Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks,etc.
model number: CM-8821
Part Number: CM-8821
Details: Applications:
Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.
Specifications:
Operating Principle: Magnetic Induction ( F )
Measuring Range: 0~1000 um / 0~40 mil
Resolution: 0.1 um / 1 um
Min. Radius Workpiece: F Type: convex 1.5 mm / concave 25 mm
Min. Measuring Area: 6 mm
Min. Sample Thickness: 0.3 mm
Accuracy: +/- 1~3%n or +/- 2.5 um
Auto Power Off
Metric / Imperial: Convertible
Battery Indicator: Low Battery Indicator
Operating Conditions: Temp. 0~40 degree, Humidity: 10~90 %RH

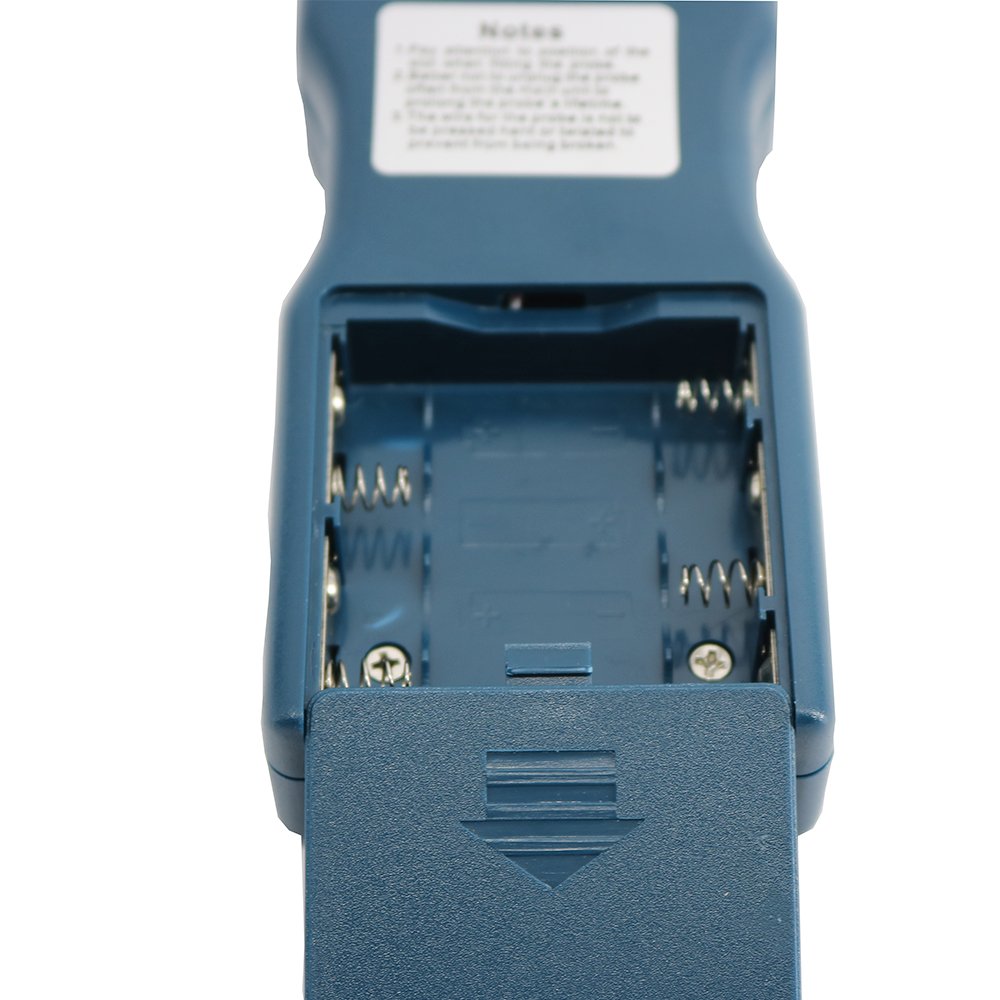

Power Supply: 4 x 1.5 V AA (UM-3) Battery
Dimensions: 6.34 x 2.72 x 1.26 in
Weight: 0.46 lb (Not Including Batteries)

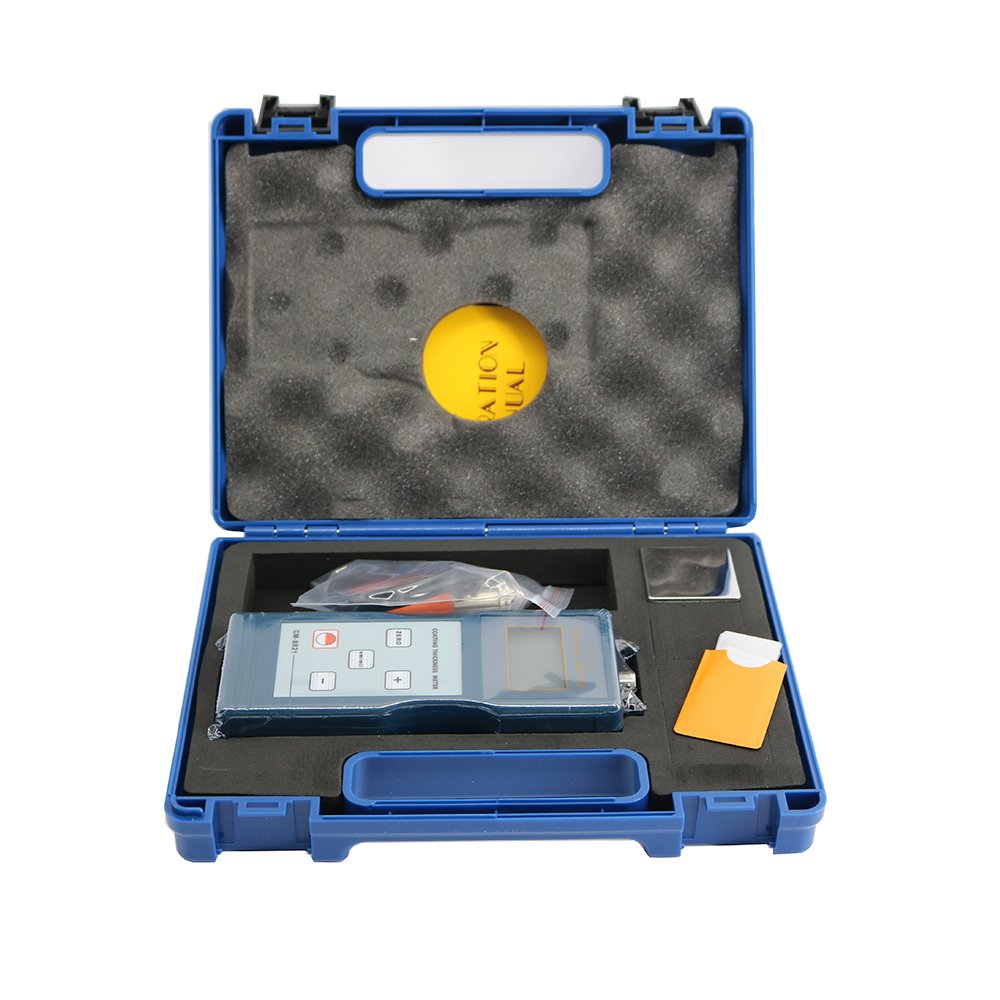

Standard Configurations:

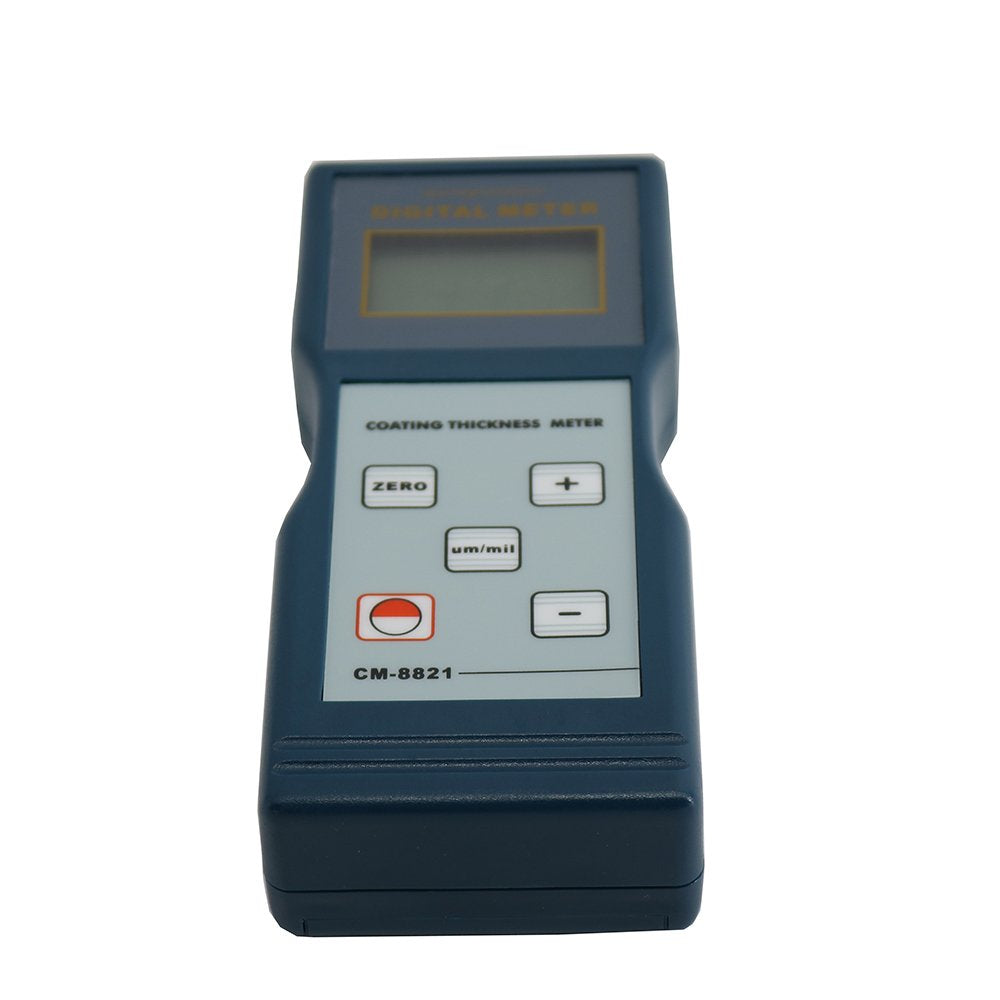

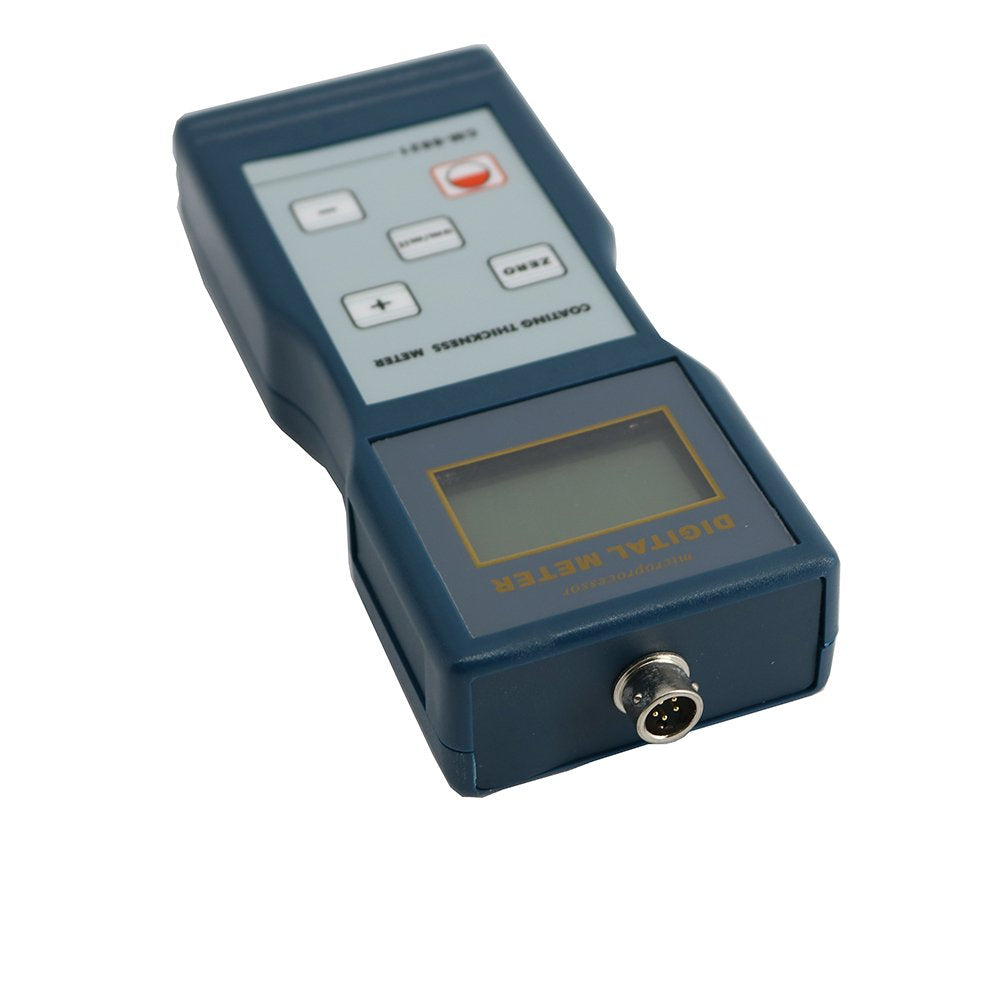

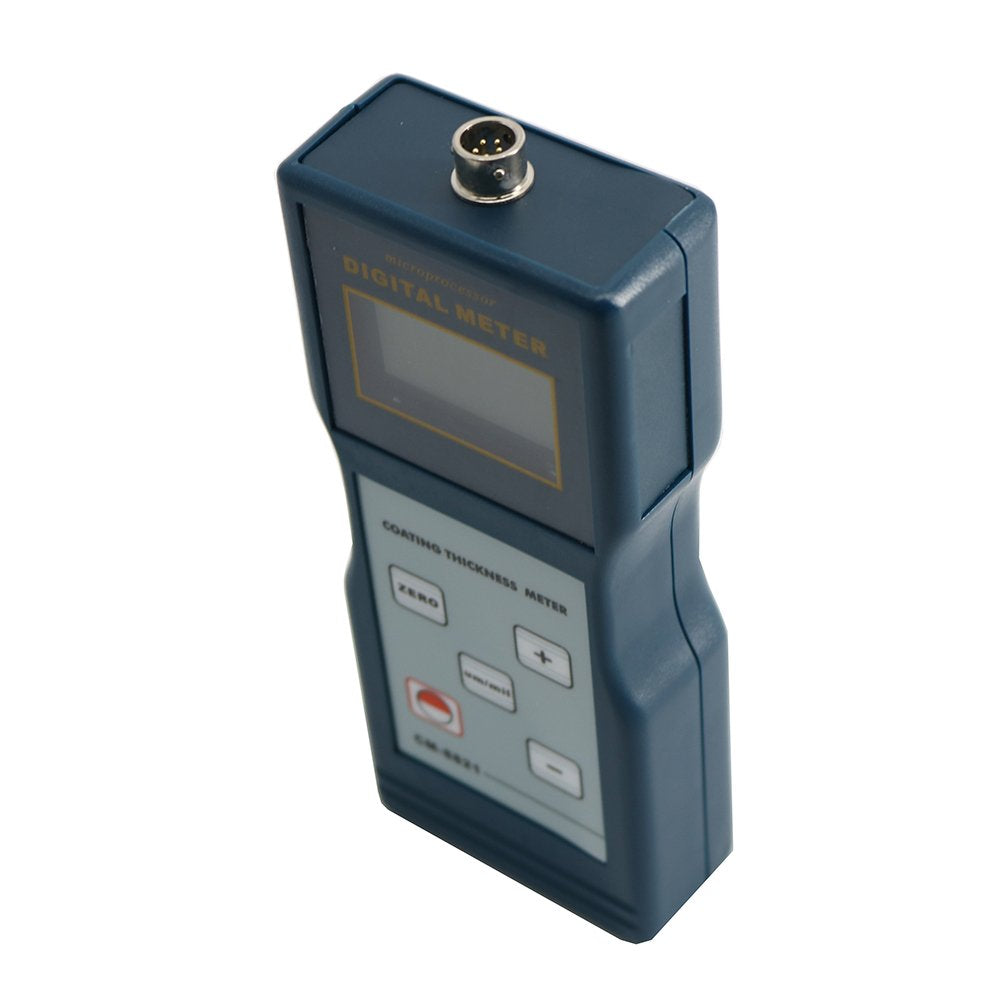

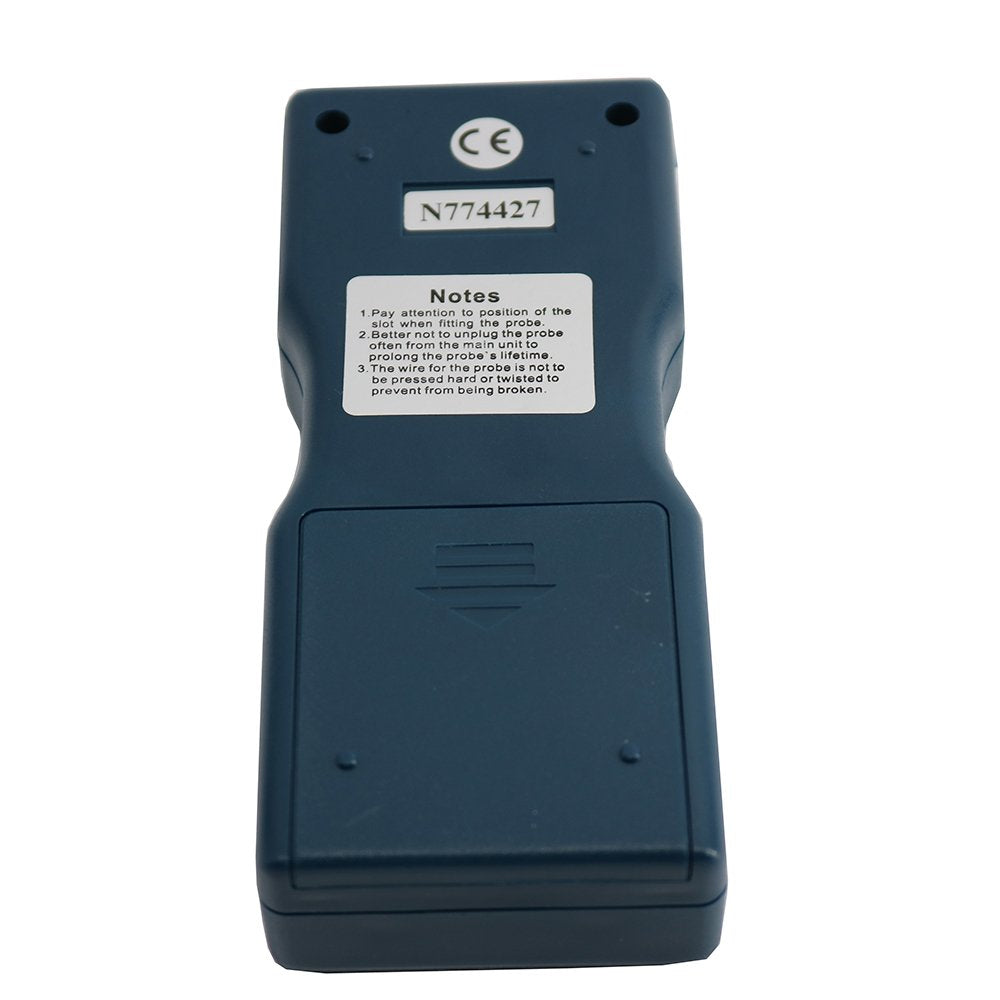

1 x Digital Coating Thickness Gauge

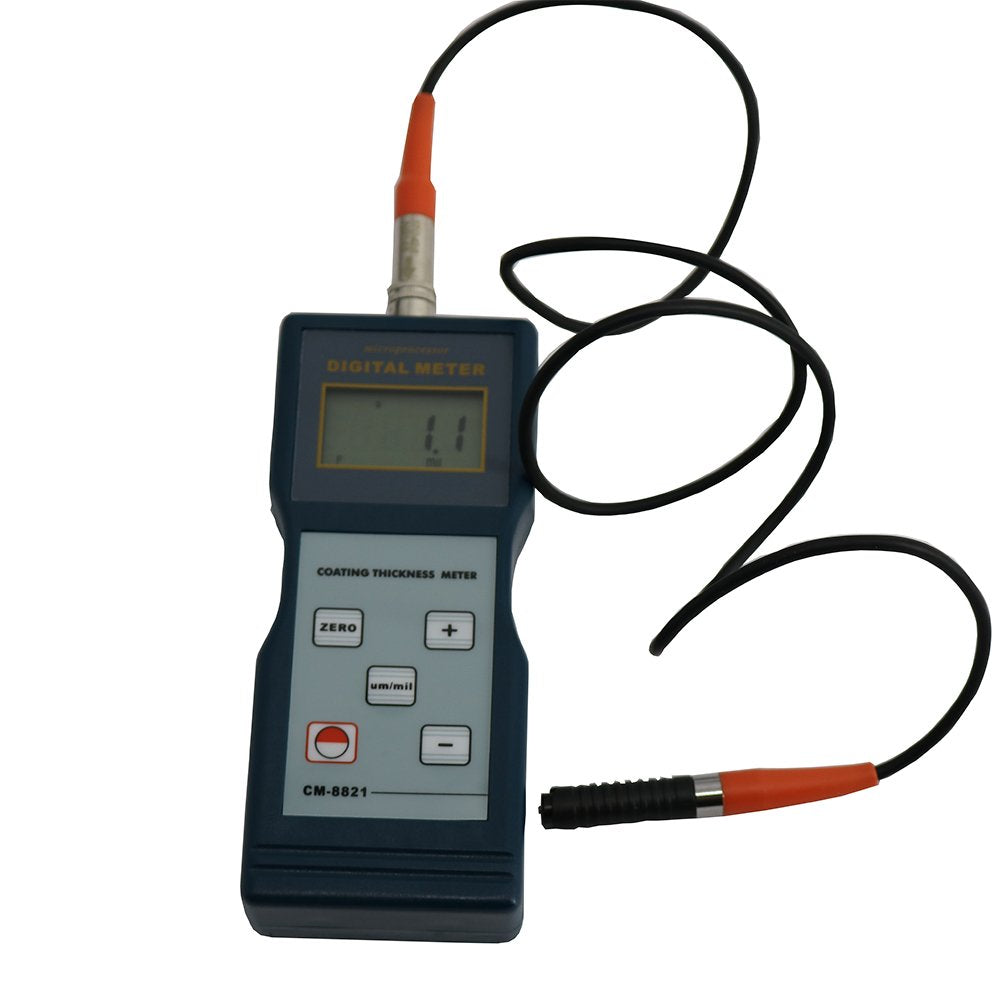

1 x F type Probe with 1M cable
1 x Iron Substrate Block
4 x Calibration Foil

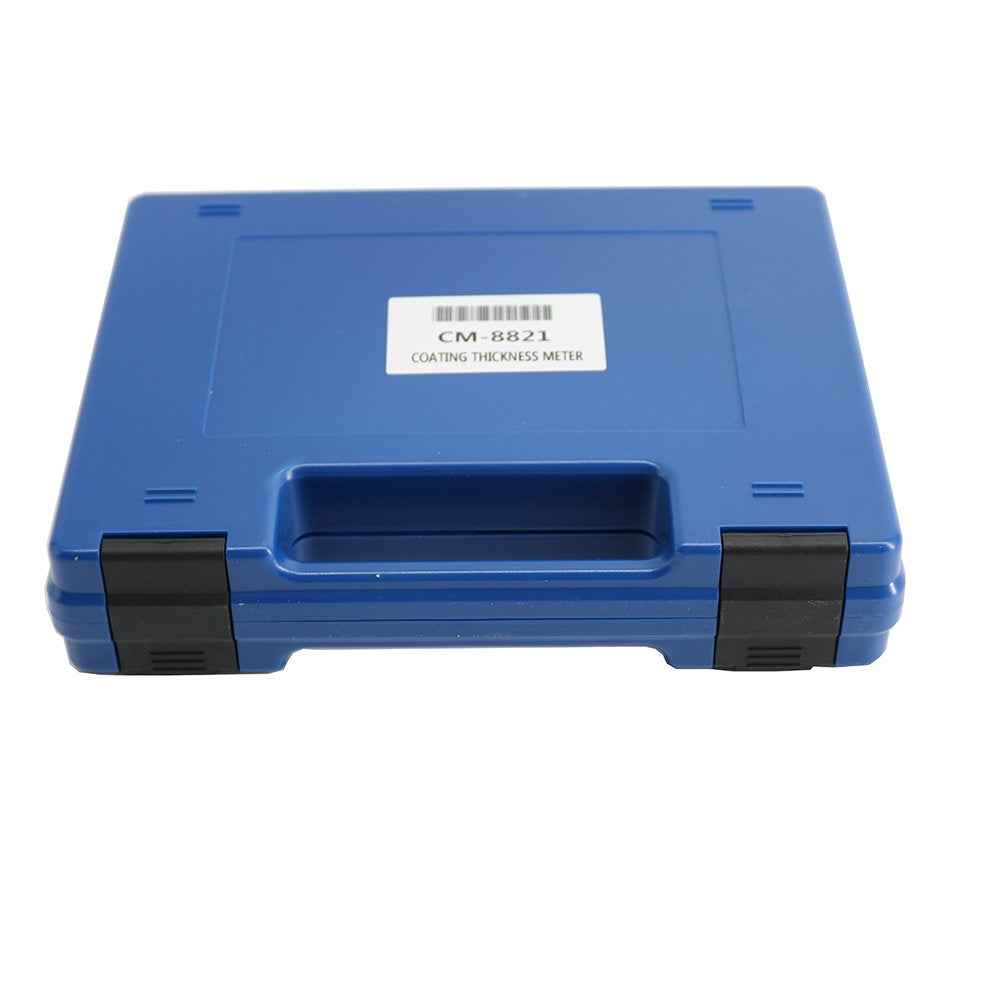

1 x Carrying case
1 x English Manual
