Two measuring methods: magnetic induction (F) and eddy current (N)
Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）
Metric/imperial system selectable. Manual or automatic shut down.
Automatic memory of calibration value,and automatic recognize the substrate.
Operation process have buzzing reminder,while no buzzing in continuous mode.

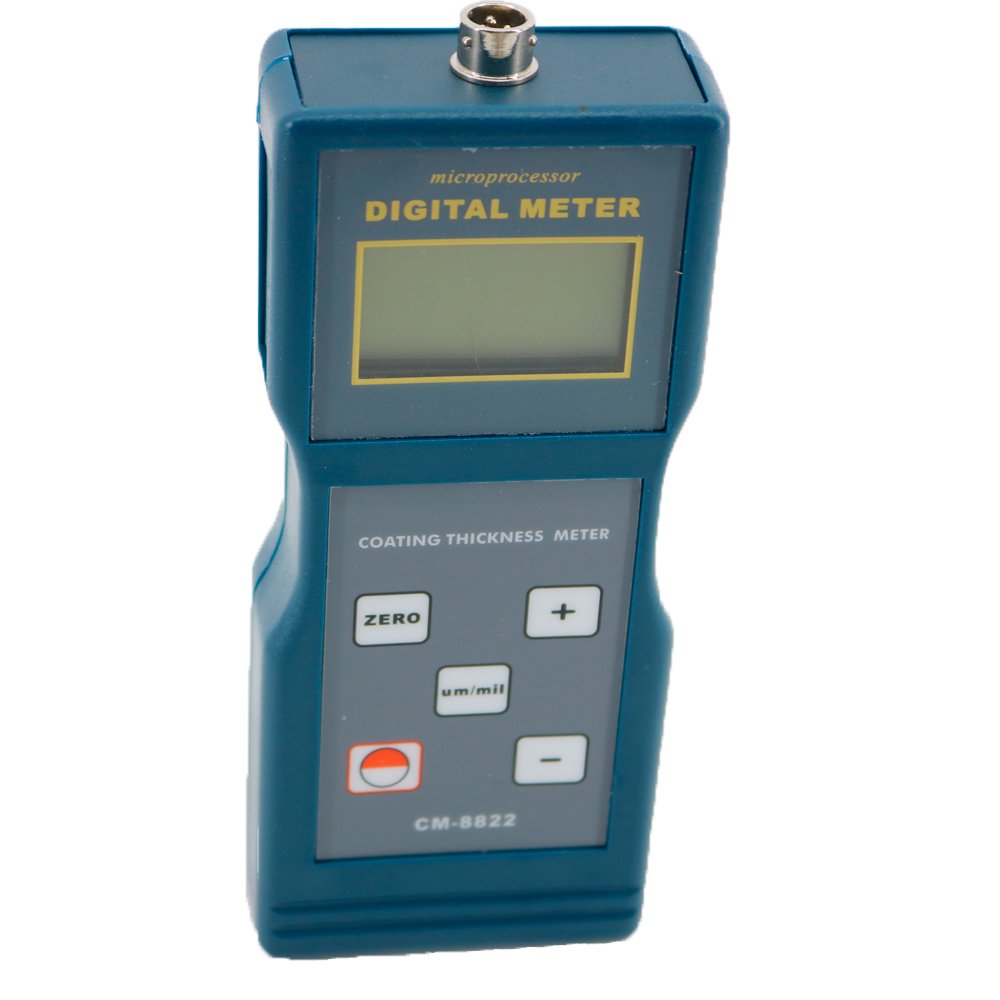

Part Number: CM-8822
Details: Application
Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.
Parameter
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1000um
Resolution; 0.1/1
Accuracy: +/-1-3%n or +/-2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible

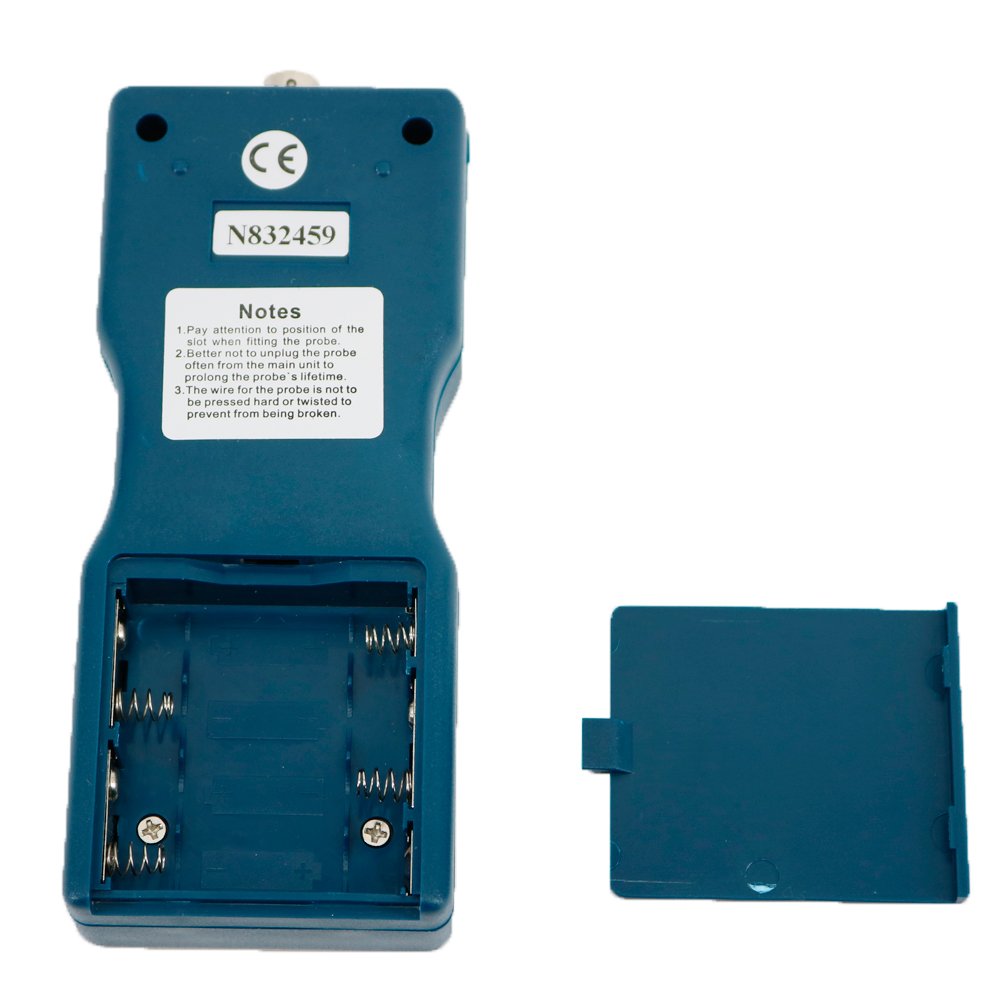

Power supply: 4x1.5V AA(UM-3)battery
Auto power off
Operating conditions:0-45C(32F-104F),less or equal to 90%RH
Dimensions: 160x68x32mm
Weight: 250g(not including battery)
Optional accessories: other range 0-200um to 15000um.

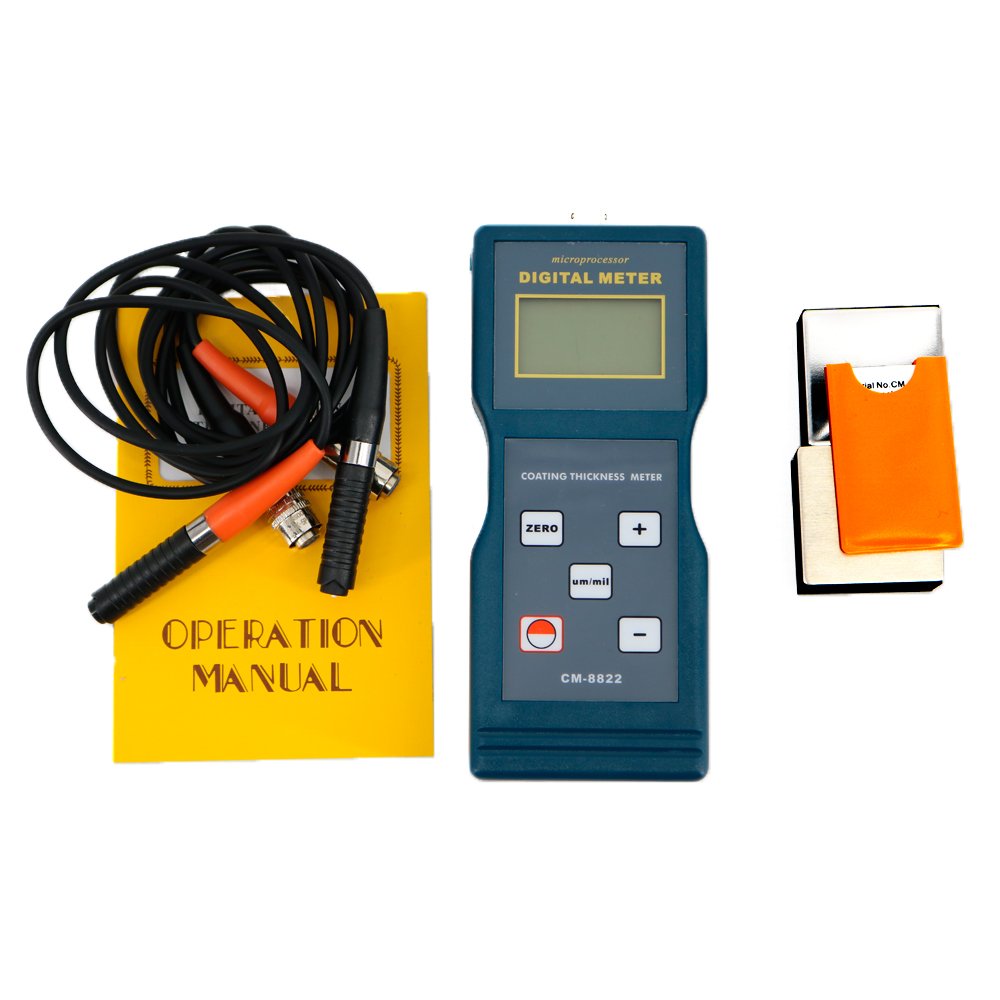

Standard Accessories:

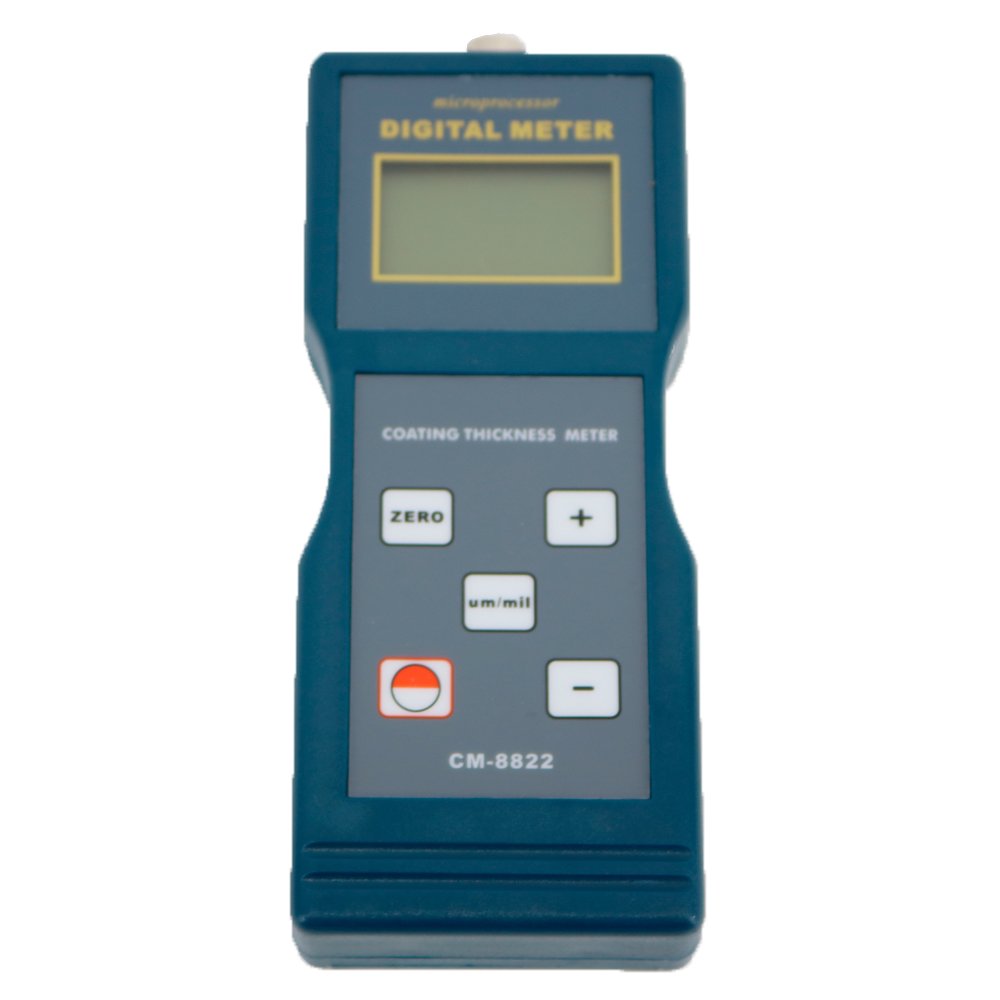

1. Main Unit
2. Probe (F Type / NF Type)
3. Calibration Base Set (F Type / NF Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)

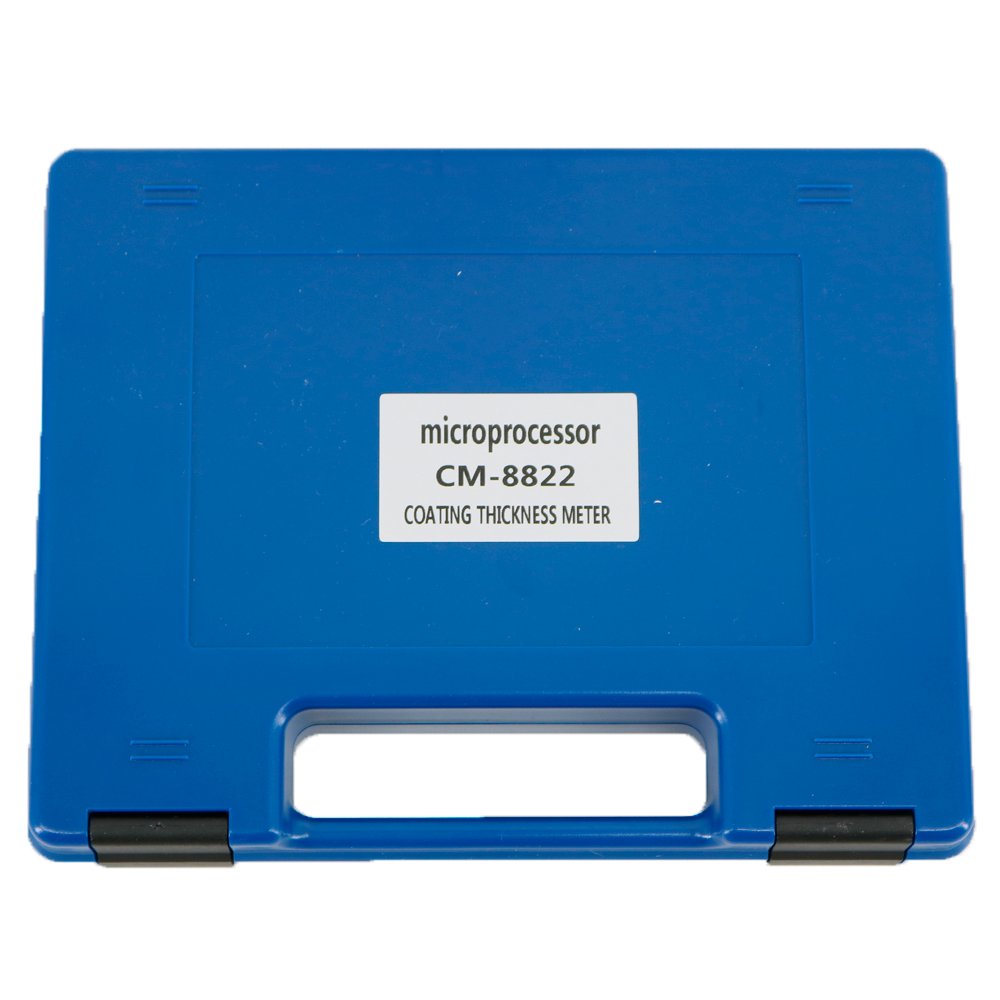

5. Carrying Case
6. Operation Manual
