In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN EN

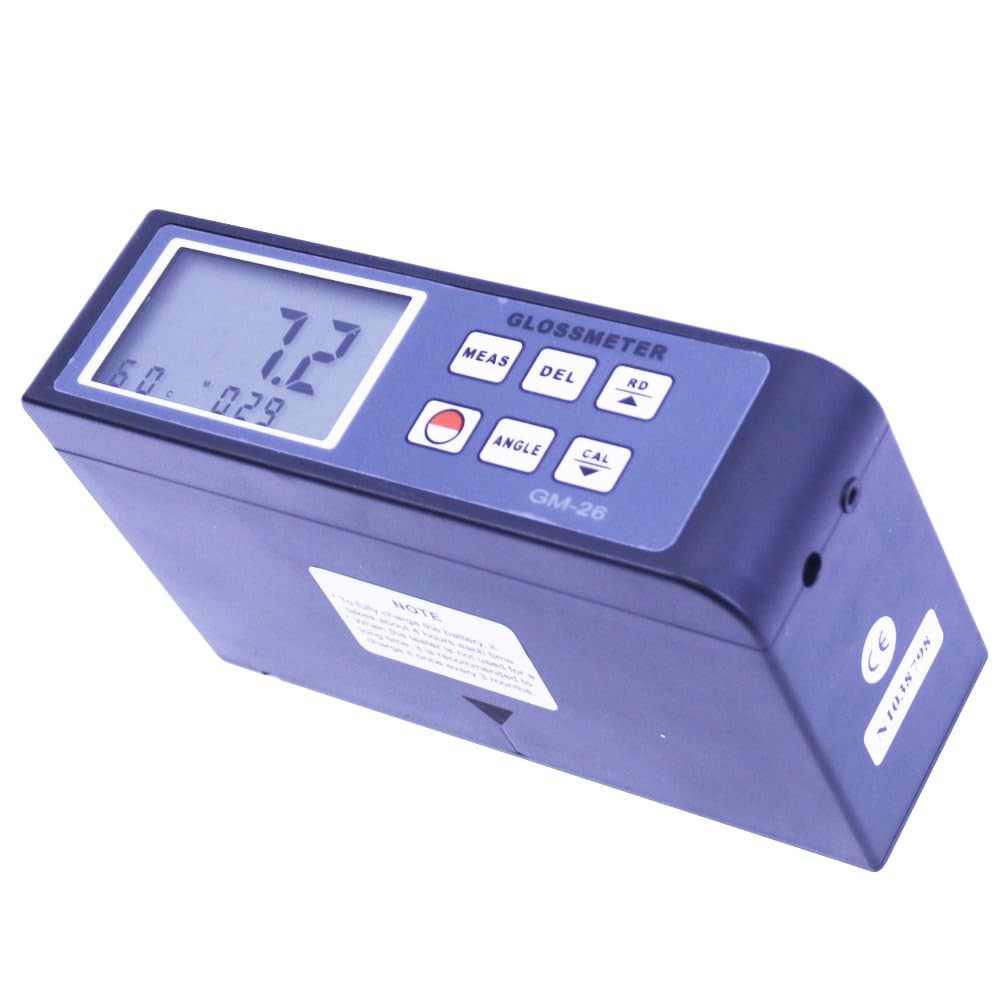

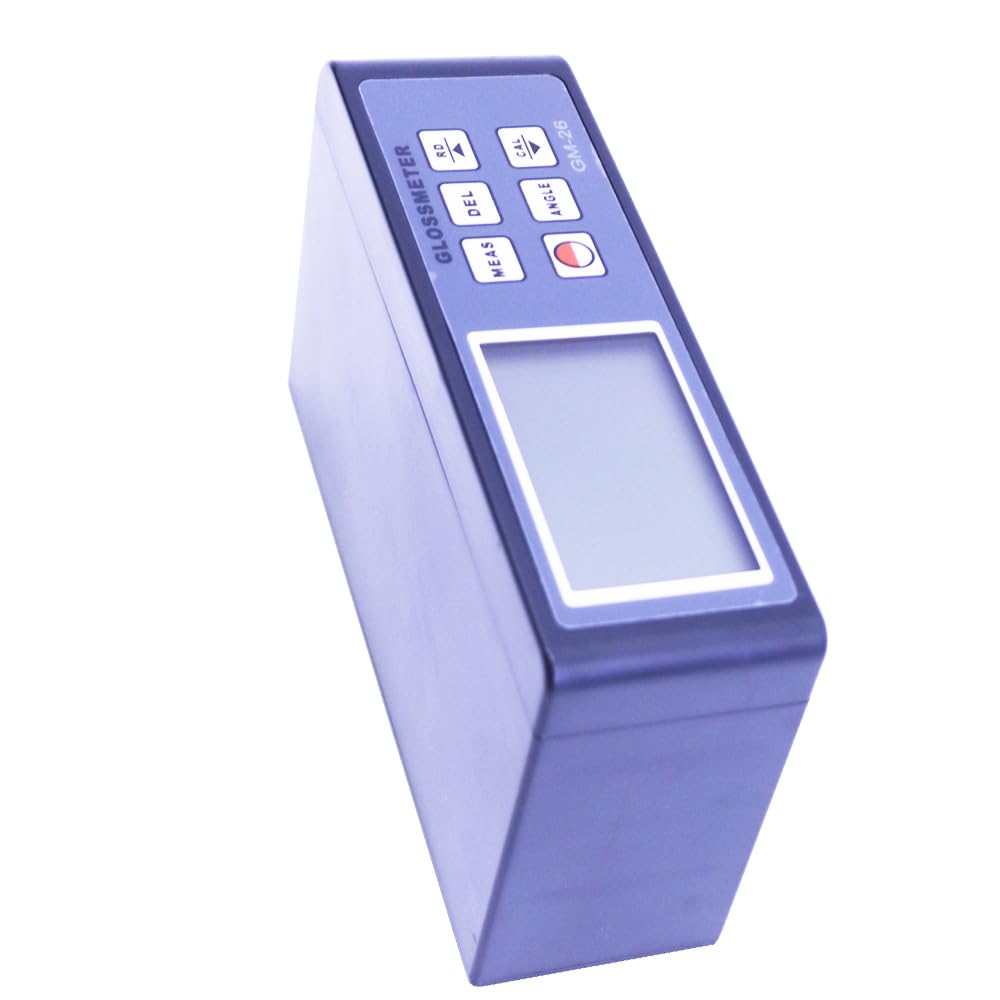

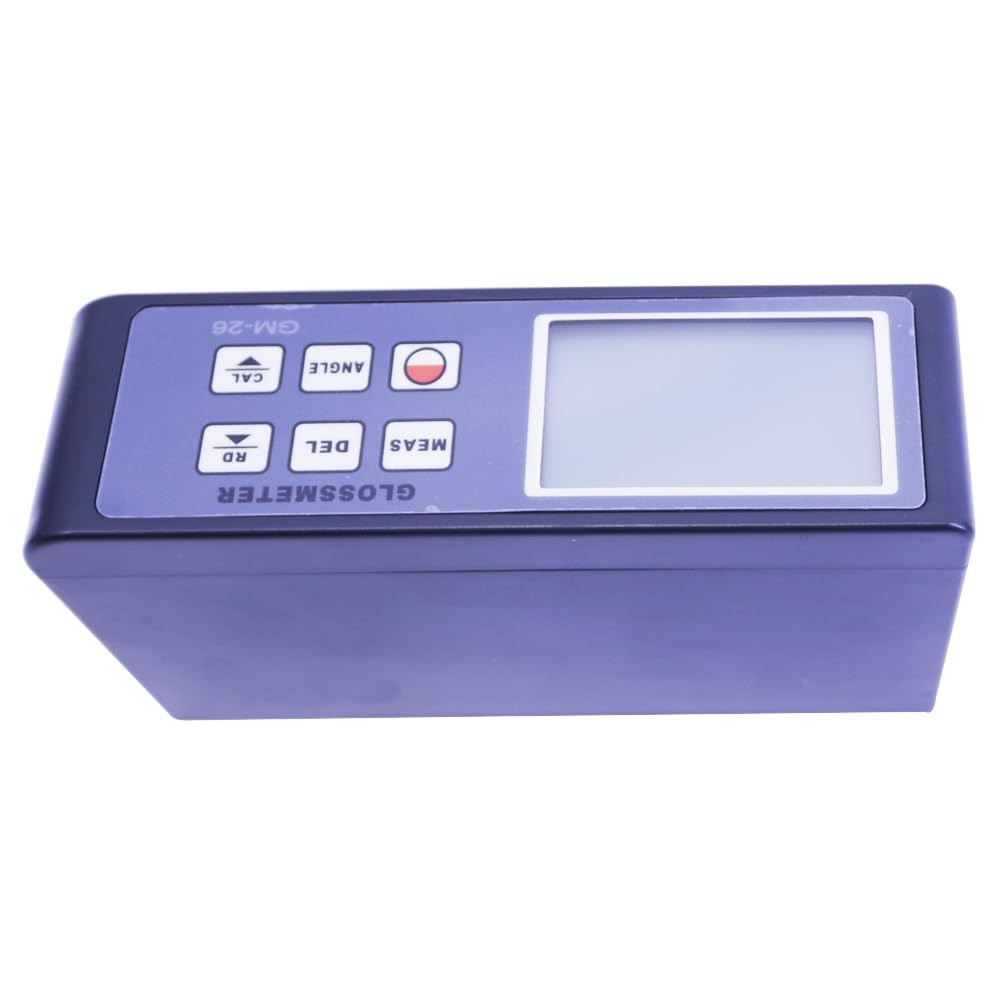

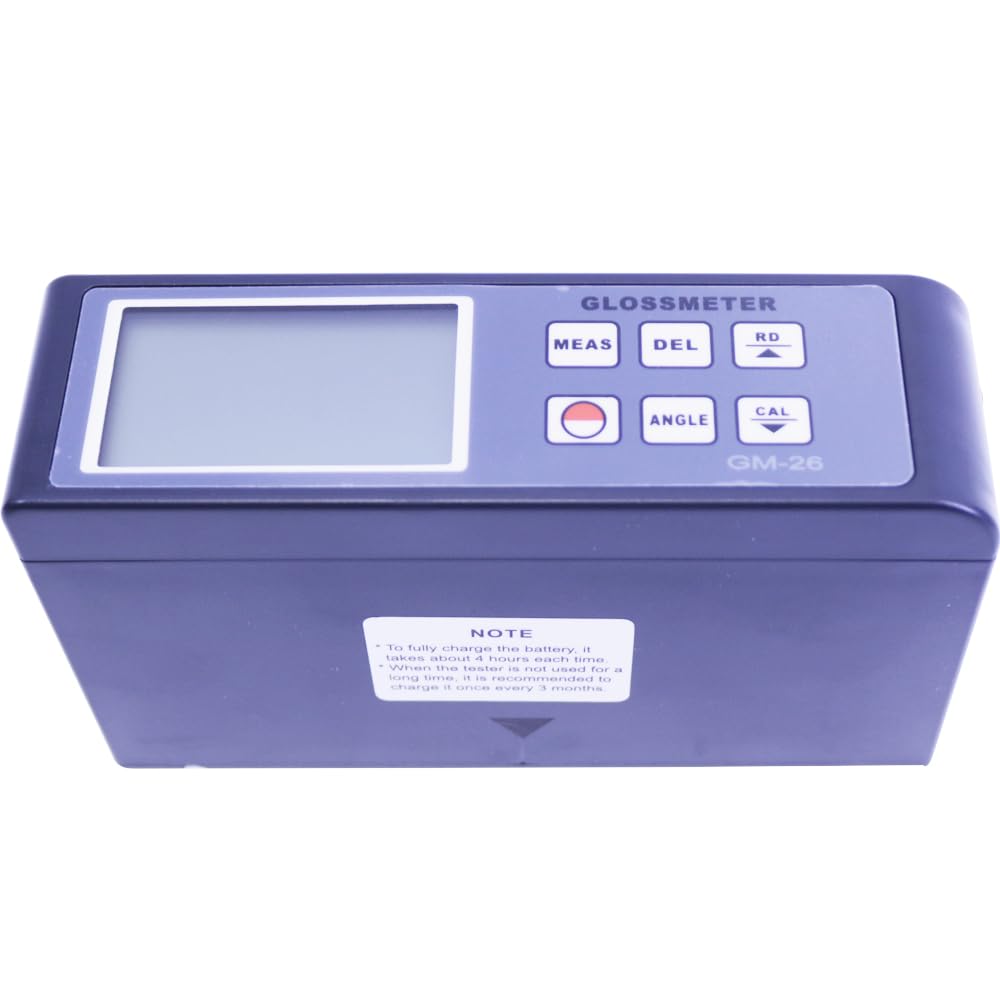

Part Number: GM-26
Details: Introduction:
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface ,measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection,Surface inspection of plastic moldings, Evaluation of detergents and washers,Checking masonry and washers, Checking building exteriors.
Specification:

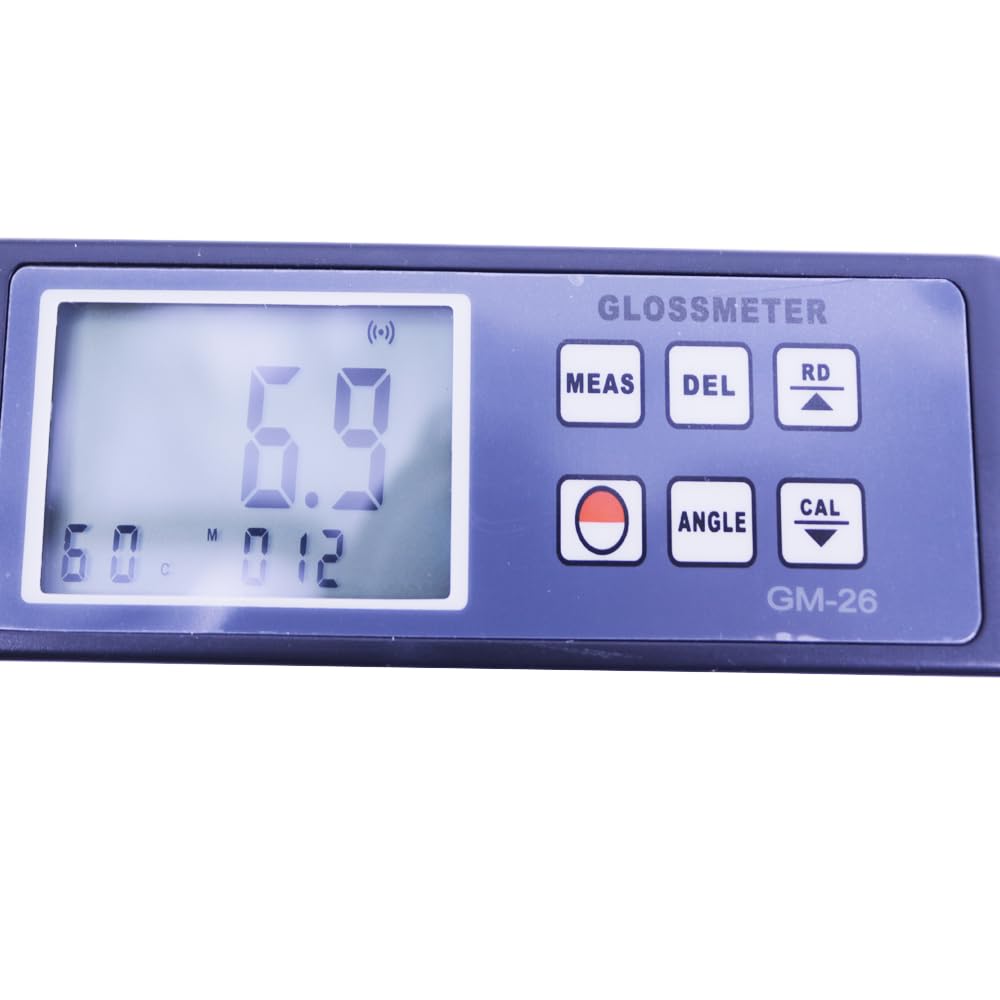

Display:4 digits backlit LCD
Measuring geometry:20 Degrees & 60 Degrees
Range: 0.1 to 200 gloss units
Accuracy:±1.0 gloss unit(against reference standard)
Resolution: 0.1 gloss unit
Repeatability: ±0.5 GU(0 ... 99.9)

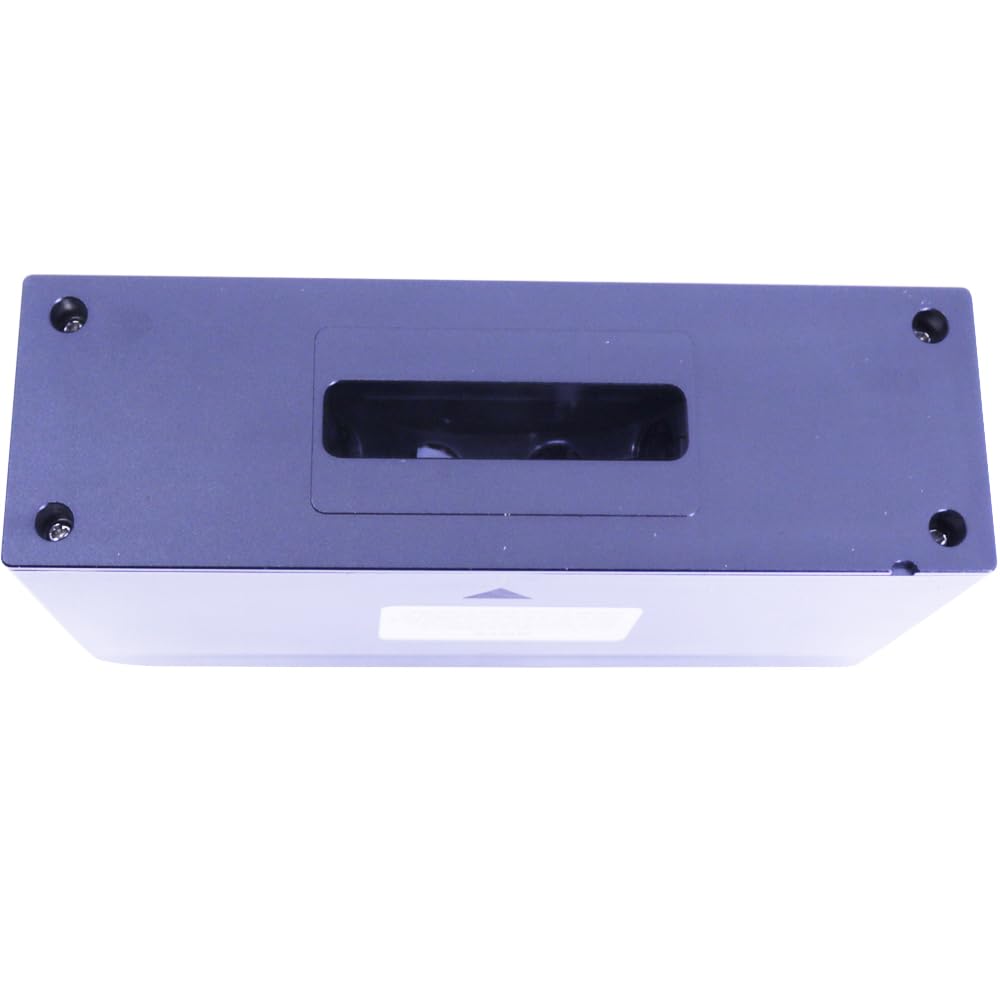

Measuring area: 0.28 x 0.55in ellipse
Data memorized: 254 groups
Power supply: battery:3.7 V Built-in Lithium Ion Rechargeable Battery
Dimensions: 5.5 x 1.77 x 2.95 in
Weight:about 0.67 lb ( including fitted batteries )
Working condition:Temperature: 0 ～ 40 °C Humidity:<85 %

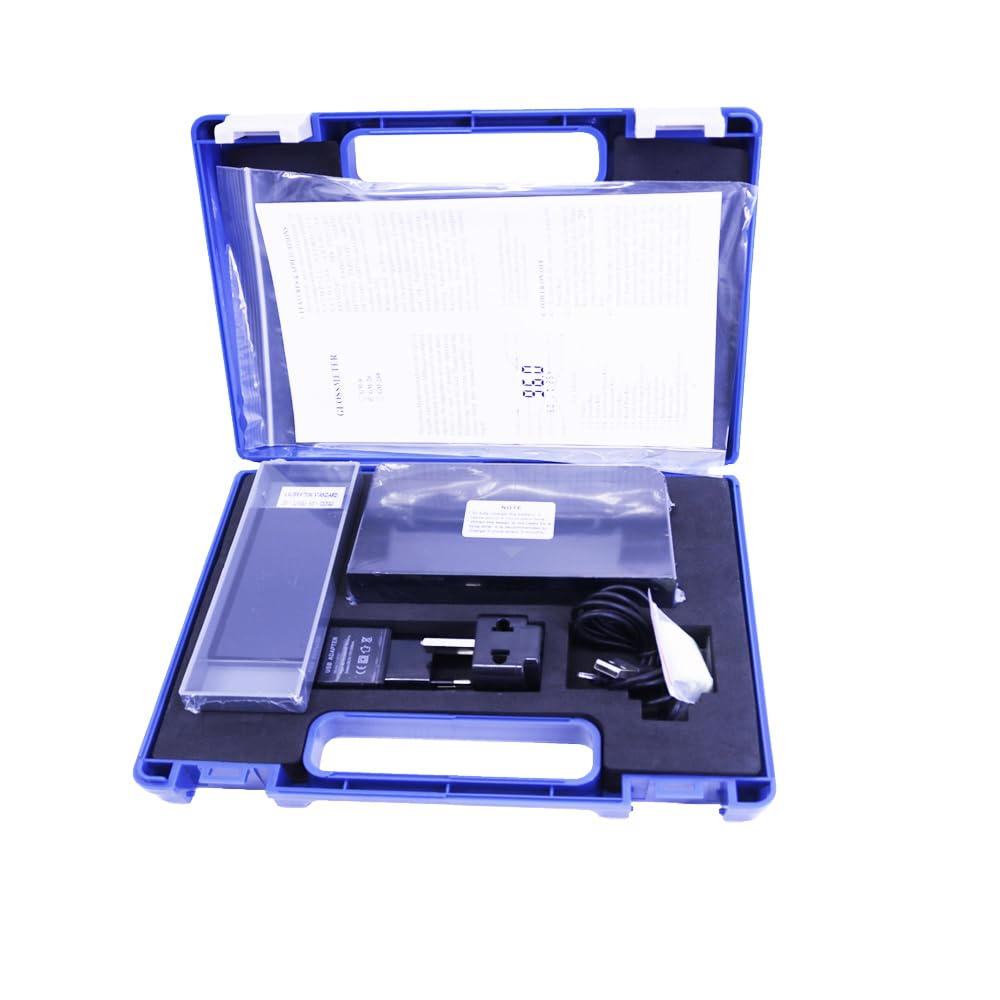

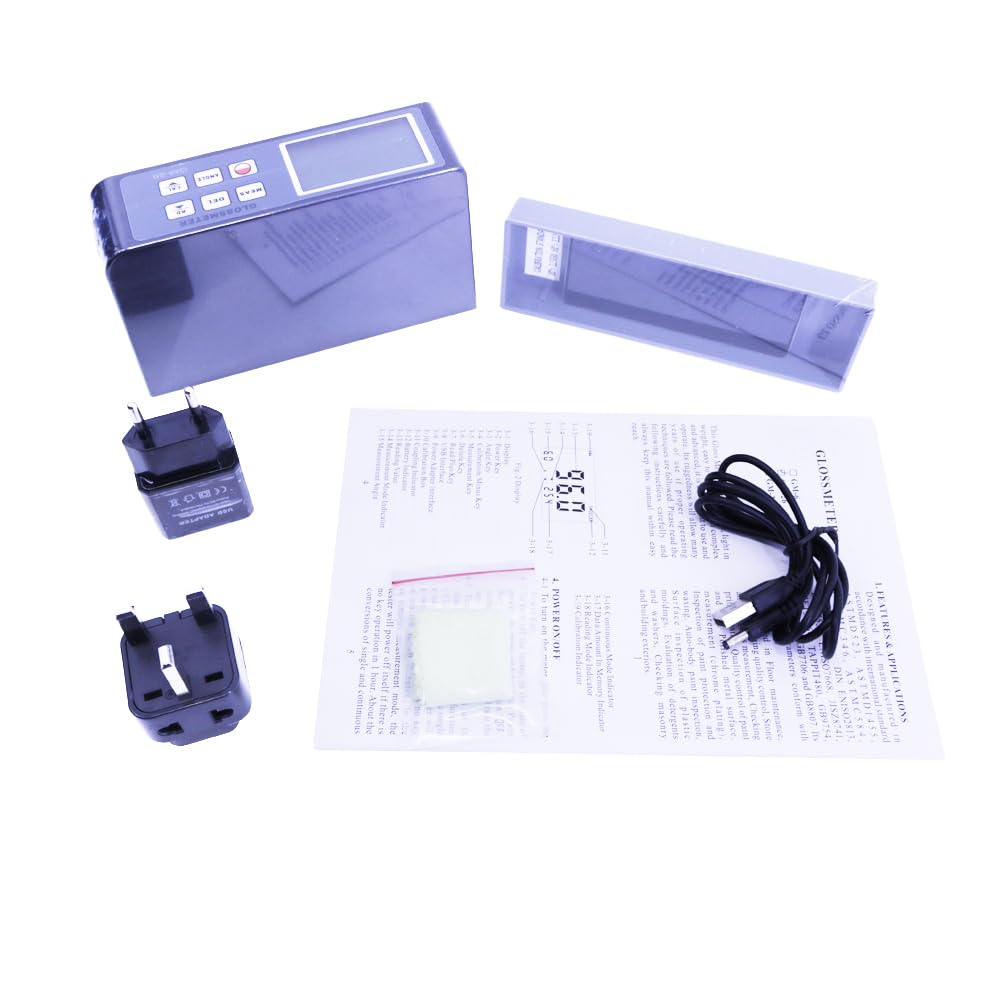

Standard Accessories :
1. Main Unit
2. Holder With Calibration Standard
3. AC Adapter
4. Optical Cleaning Cloth

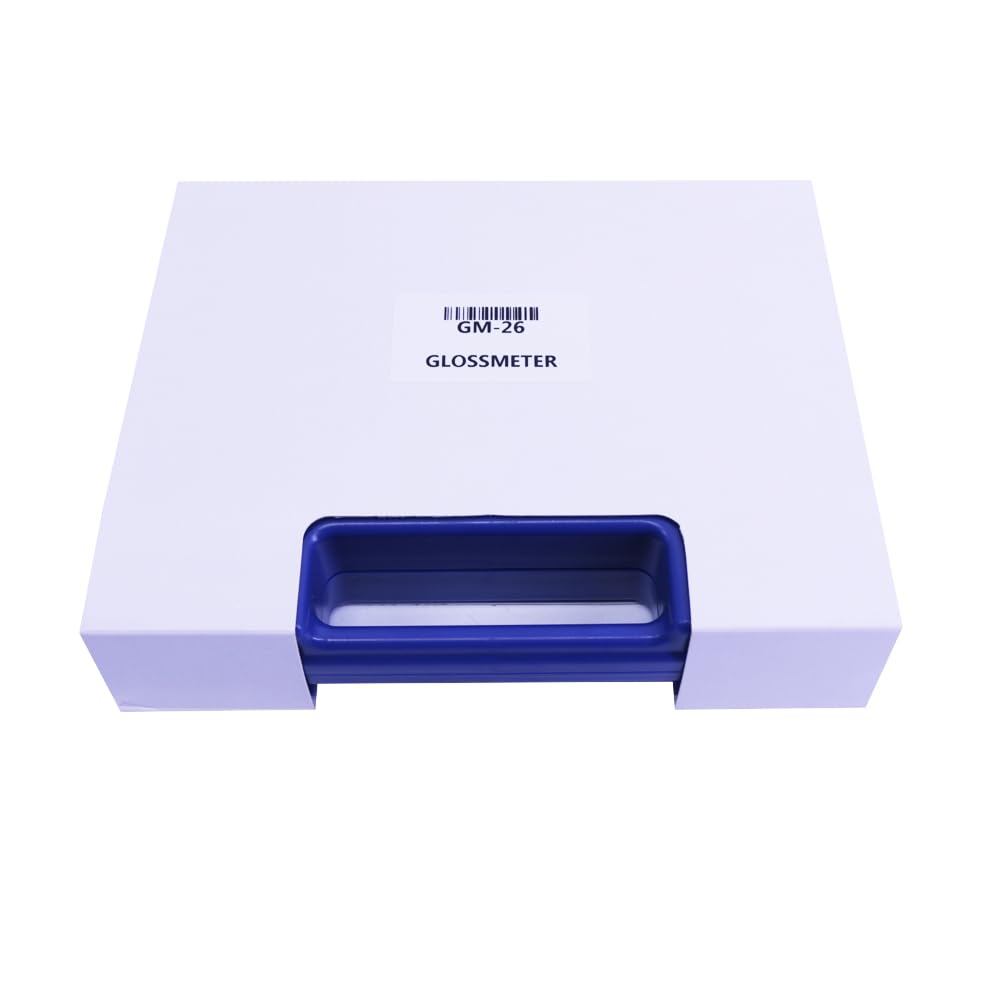

5. Carrying Case(B07)
6. Operation Manual
Optional Accessories:
1. USB, RS-232 Data Cable With Software
2. Bluetooth Data Out put With Software
