LS220 Automotive Paint Meter Car Paint Meter Coating Thickness Gauge with Bluetooth Data Transfer Measuring Range 0.0-3500μm

Brand: Graigar

Color: Blue

Features:

• Ultra-low power consumption, coupled with the design of automatic shutdown with no operation for 3 minutes to avoid frequent battery replacement and saves energy.
• Ultra-small size for carrying around when going out for car inspection.
• "Fe", "NFe", "Fe/NFe" three measurement modes can be set for the LS220 automotive paint meter.
• With temperature compensation function and digitalizing analog signal function, these sensors are unsusceptible to interference.

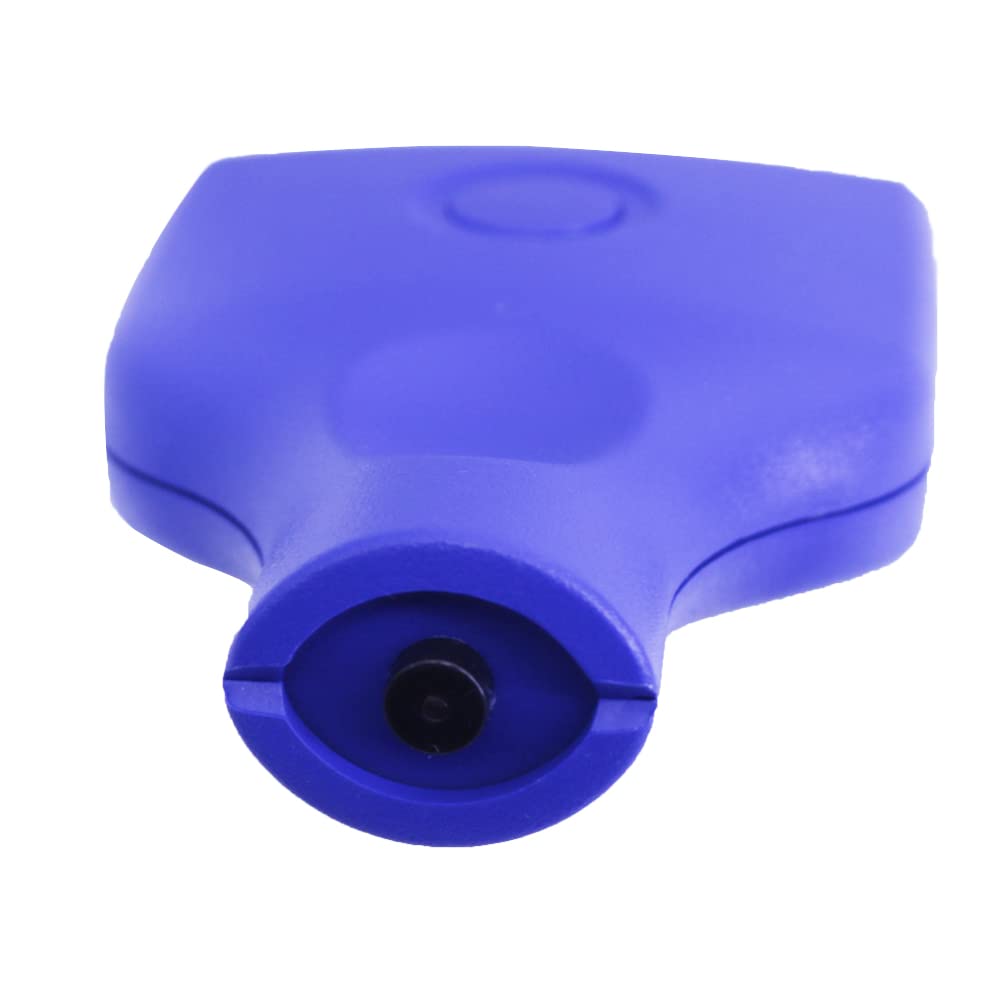

• Wear-proof ruby probe tip for long-term use with strong corrosion and abrasion resistance.

model number: LS220

Part Number: LS220

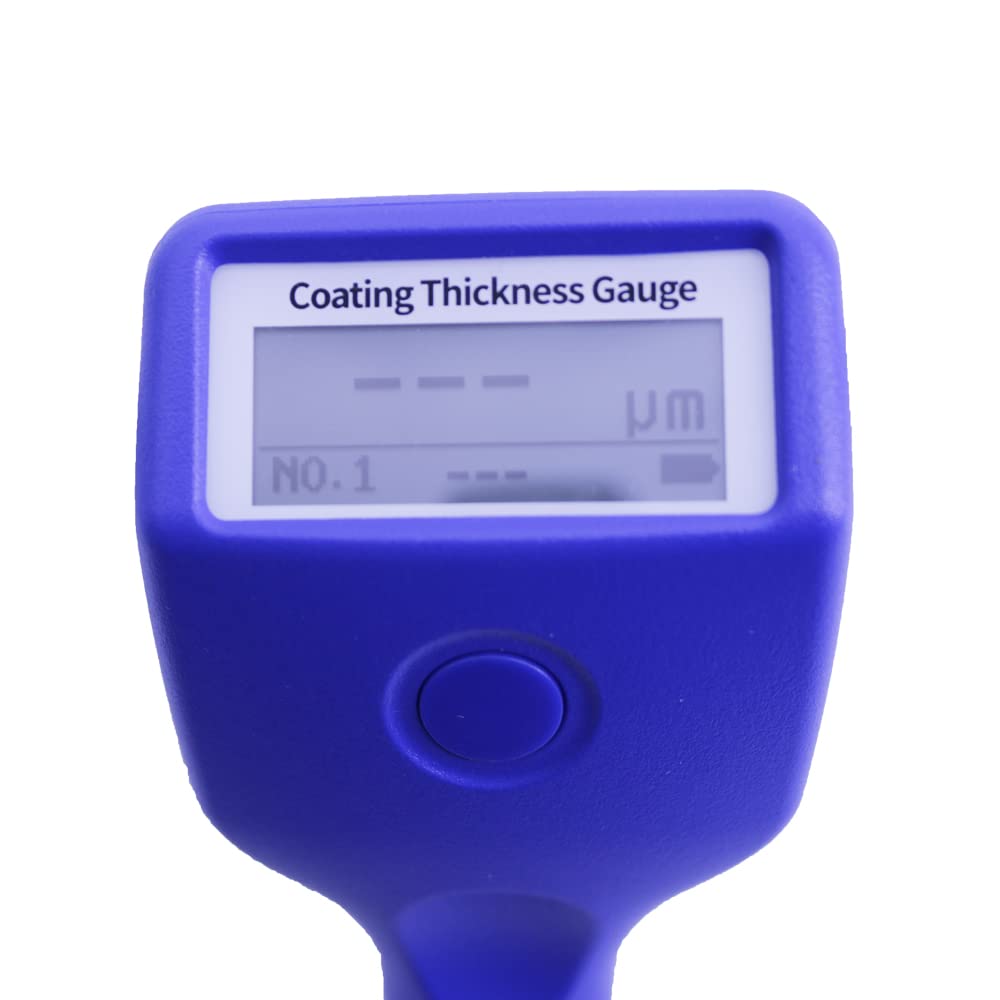

Details: Characteristics1. The LS220 automotive paint meter has high-sensitivity probe, fast test speed. Measurement can be completed in 0.5 seconds.2. The LS220 car paint thickness gauge uses dual-purpose probes, which are suitable for detecting the paint thickness on iron materials and also for detecting the paint thickness on aluminum materials. It can also recognizes non-metallic substrates.3.This automotive paint meter uses an industrial-grade LCD screen, which can be used at minus 20 ° C. No worries for outdoor use in the cold winter.4.No calibration is needed just simple zero adjustment to ensure the measurement accuracy.Parameter:LS220 Coating Thickness GaugeProbe tip:Ruby fixedMeasuring principle:Fe:Hall Effect / NFe: Eddy currentProbe type:Built-in integrated probeMeasuring range:0.0-2000μmResolution:0.1μm:(0μm-99.9μm)1μm:(100μm-999μm)0.01mm:(1.00mm-2.00mm)Accuracy:≤±(3% reading+2μm)Unit μm / milMeasuring interval:0.5sMinimum measuring area:Ø = 25mmMinimum curvature:Convex:5mm / Concave:25mmMinimum substrate thickness:Fe:0.2mm / NFe:0.05mmDisplay:128×48 dot matrix LCDPower supply:2pcs of 1.5V AAA alkaline batteryRange of operation temperature:-20℃-50℃Storage temperature range:-20℃-60℃Host size:101*62*28 mmWeight(with battery):79 gPackaging Details:LS220 Coating Thickness GaugeFe plate of zero adjustmentNFe plate of zero adjustmentStandard filmUser manualCertificate/Warranty card

EAN: 0761272051250

Package Dimensions: 7.1 x 3.9 x 2.4 inches
