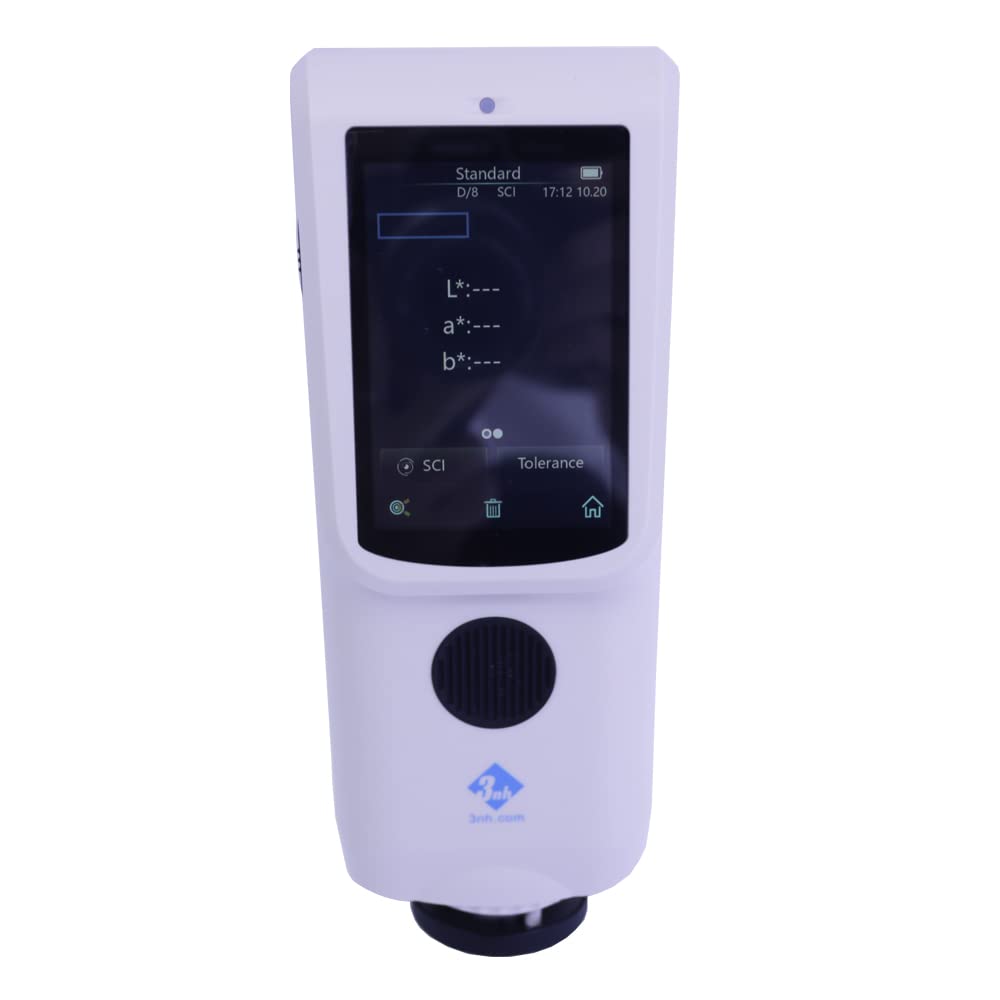

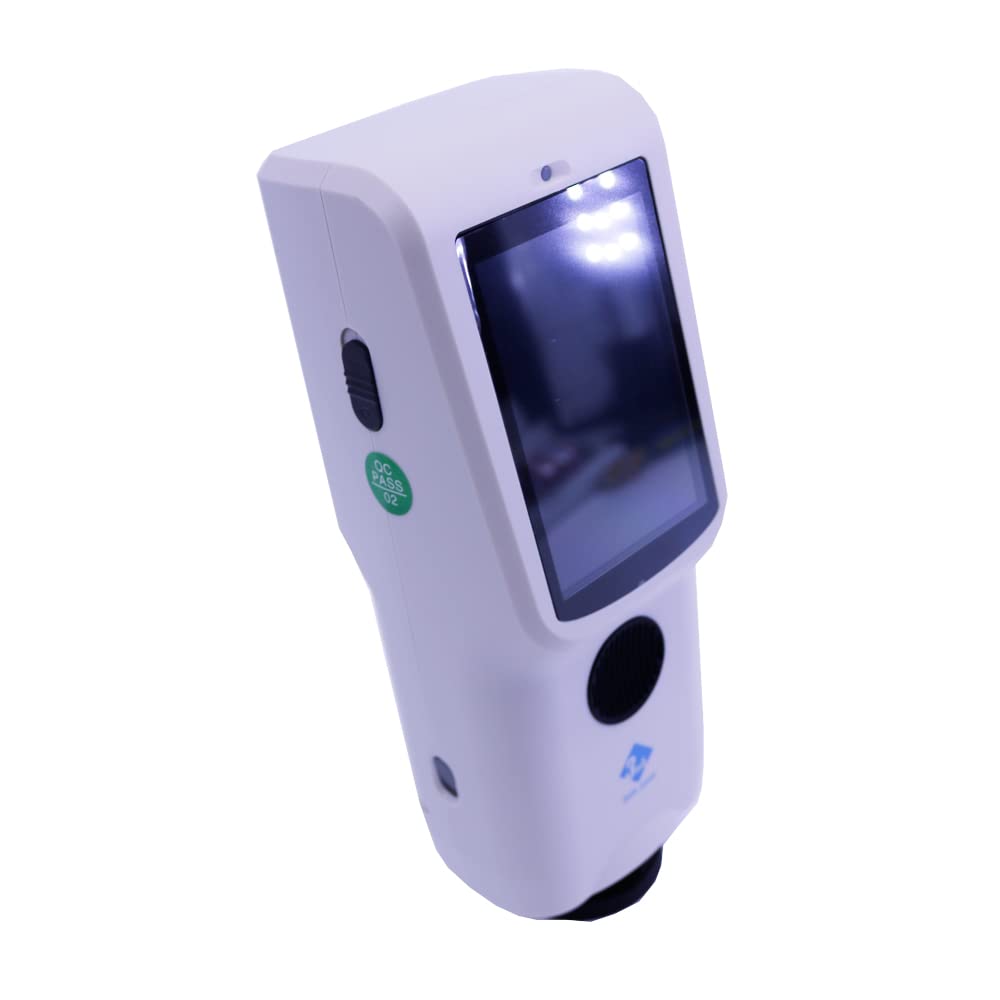

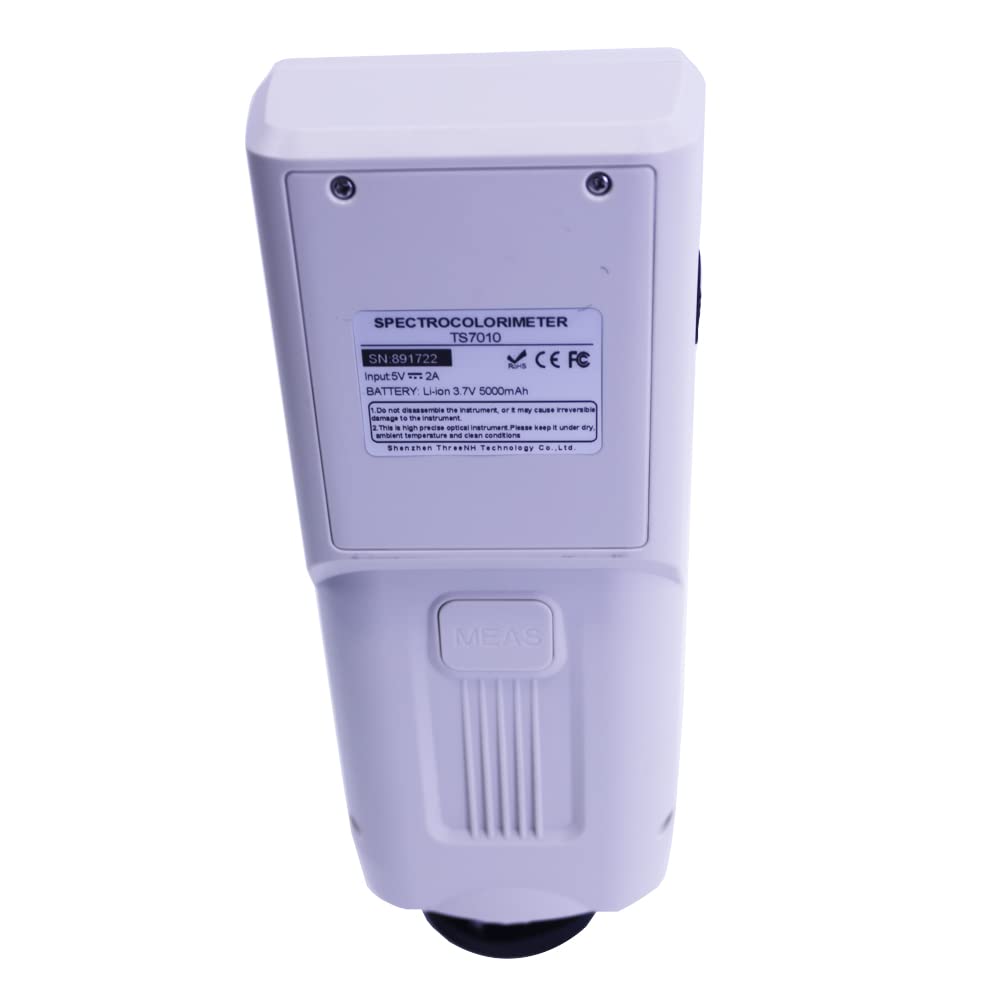

TS7010 New Portable Spectrocolorimeter Color Difference Analyzer Φ8mm Aperture Colorimeter

Model

TS7010

Optical Geometry

D/8(diffused illumination, 8-degree viewing angle)

SCI Mode

Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Characteristic

Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries

Integrating Sphere Size

Φ40mm

Light Source

Combined full spectrum LED light source

Spectrophotometric Mode

Flat Grating

Senso

Silicon photodiode array (double row 24 groups)

Wavelength Range

400~700nm

Wavelength Interval

/

Semiband Width

10nm

Measured Reflectance Range

L:0~100; reflectivity:The reflectivity can be measured at 1 specific wavelength specified by the user (default: 550nm)

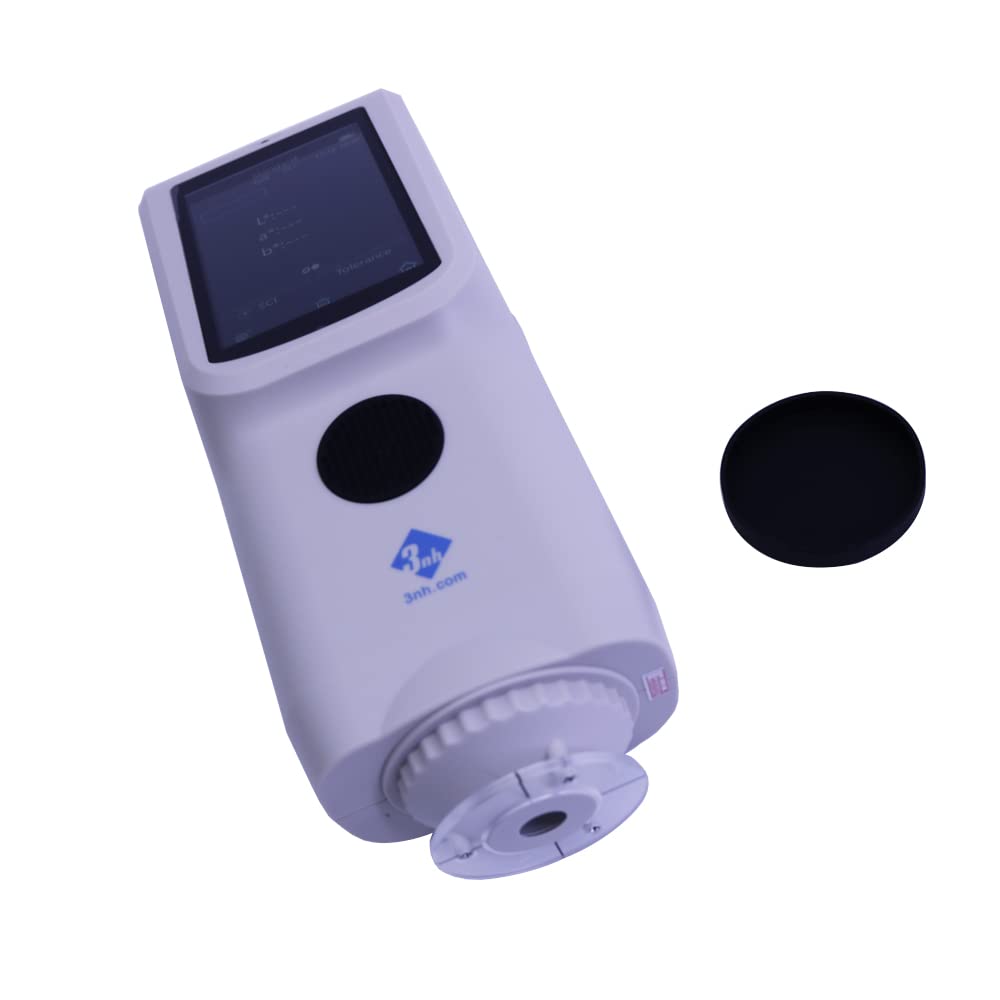

Measuring Aperture

Φ8mm

Specular Component

SCI

Color Space

CIE LAB,XYZ,Yxy,LCh

Color Difference Formula

ΔE*ab,ΔE*00

Other Colorimetric Index

/

Observer Angle

10°

Illuminant

D65,A,F2(CWF)

Displayed Data

Reflectivity (the user specifies the reflectivity at 1 specific wavelength), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset

Displayed Accuracy

0.1

Measuring Time

About 1.5s

Repeatability

Chromaticity value: MAV/SCI, within ΔE*ab 0.1 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error

MAV/SCI, Within ΔE*ab 0.4
(Average for 12 BCRA Series II color tiles)

Measurement Mode

Single Measurement, Average Measurement(2-99times)

Locating Method

Stabilizer cross position

Dimension

L*W*H=81X71X214mm

Weight

About 460g

Battery

Li-ion battery, 6000 measurements within 8 hours

Illuminant Life Span

5 years, more than 3 million times measurements

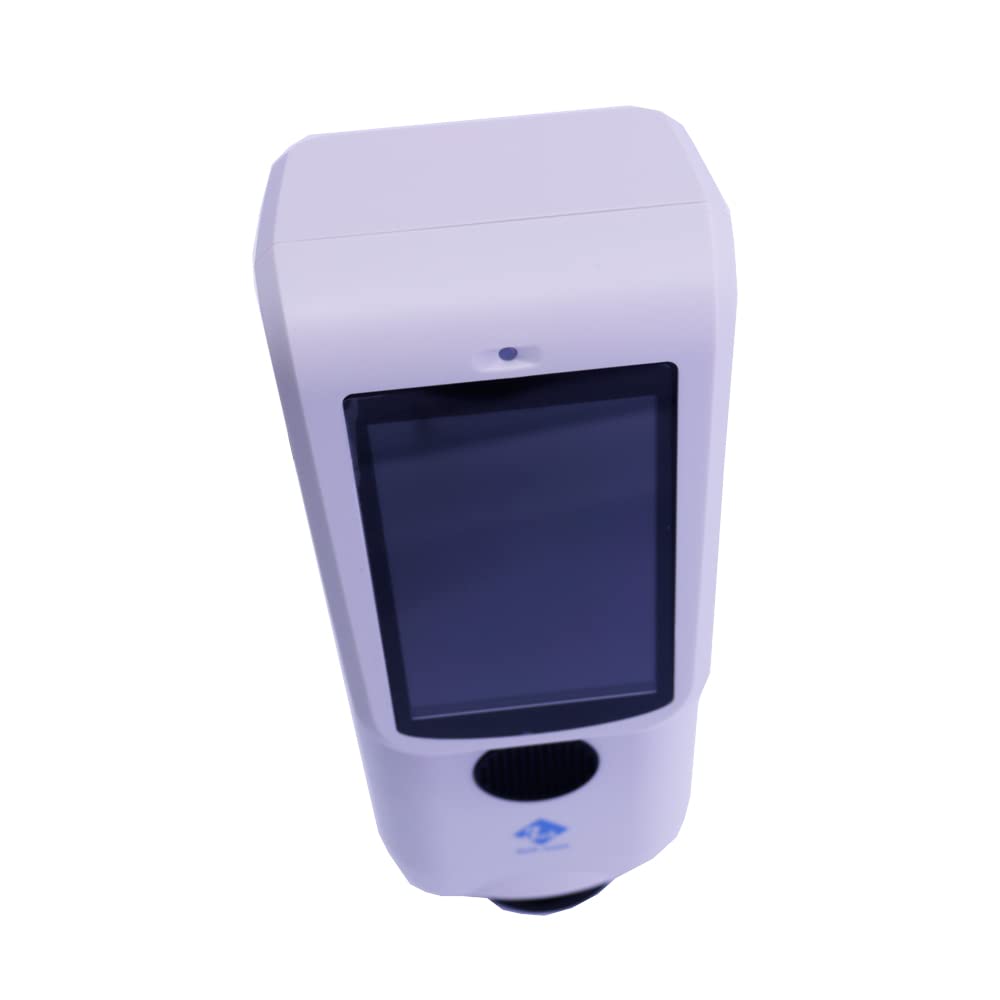

Display

3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port

USB

Data Storage

Standard 500 Pcs, Sample 10000 Pcs

Language

Simplified Chinese, English, Traditional Chinese

Operating Environment

0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment

 -20~50℃, 0~85%RH (no condensing)

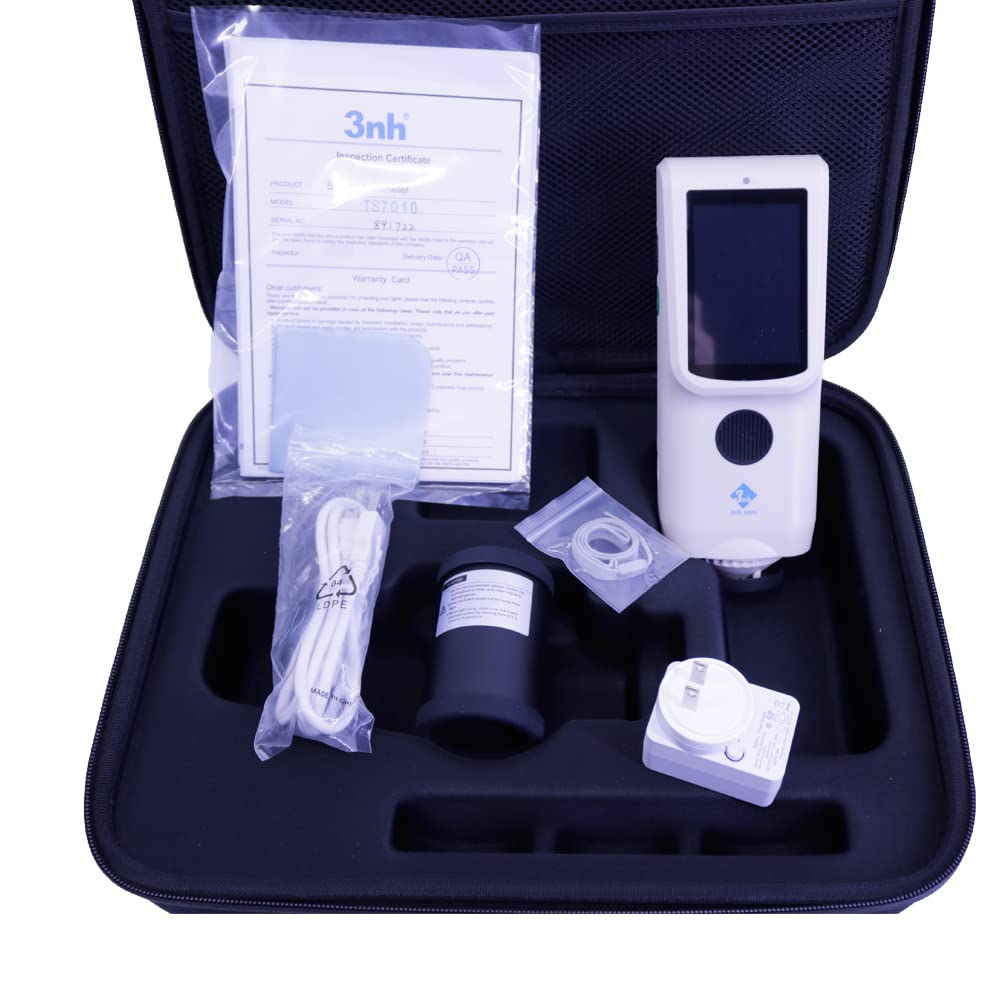

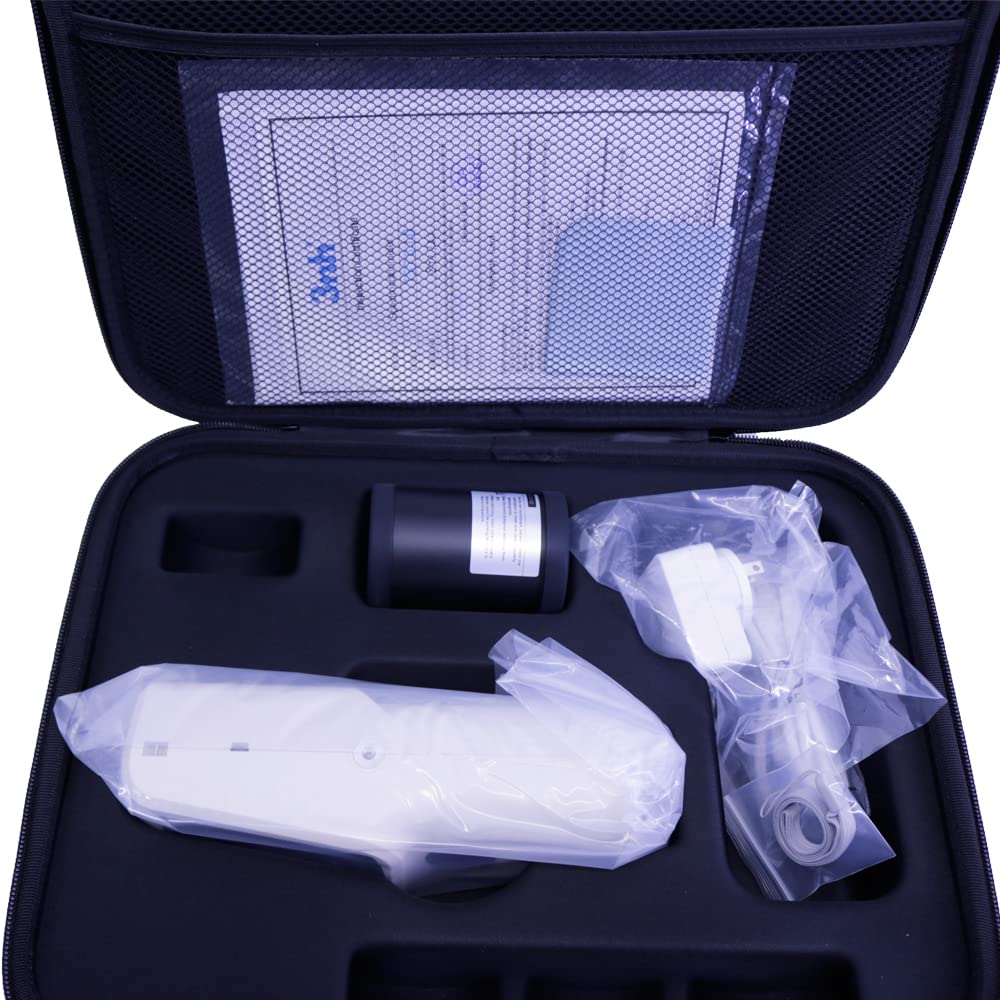

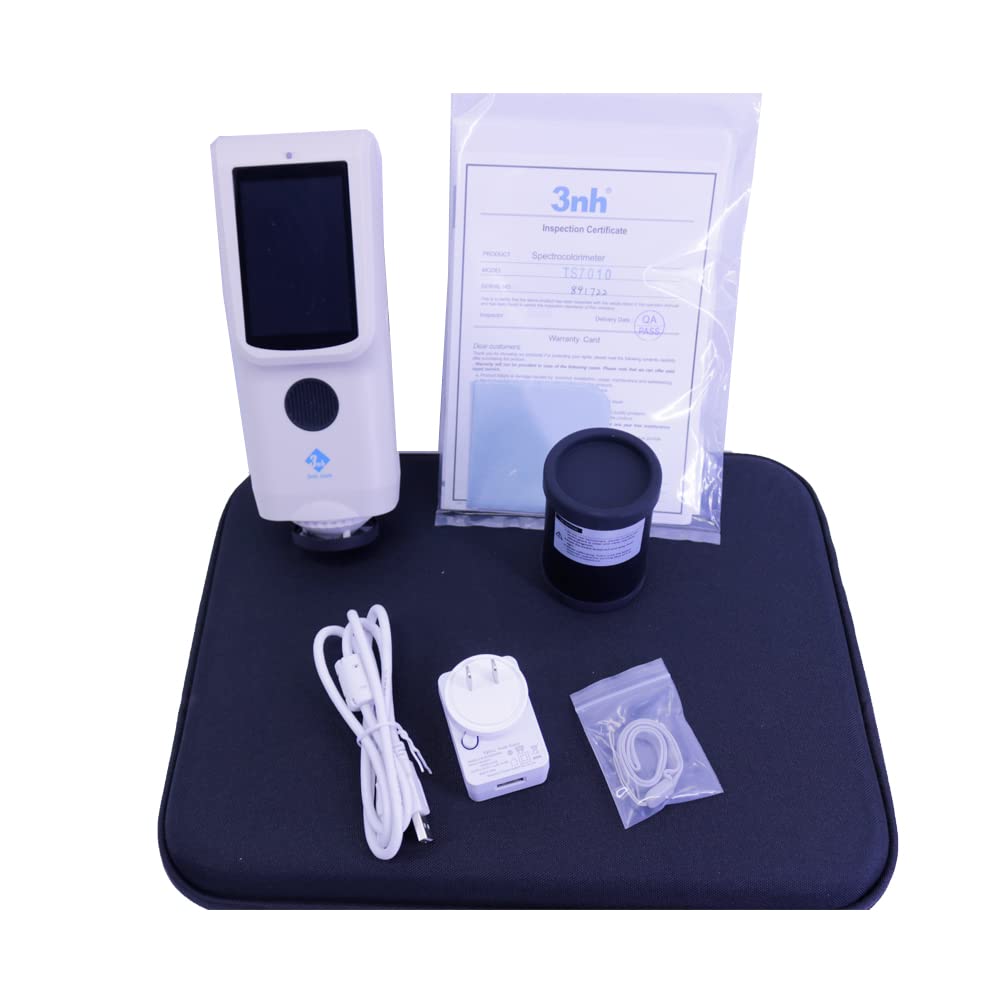

Standard Accessory

Power Adapter, USB Cable, User Guide, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture

Optional Accessory

USB Micro Printer, Powder Test Box

Notes

Technical parameters are only for reference, subject to the actual sale of the product
