Graigar AC-110AS Digital Coating Thickness Gauge Measuring Range 0-1250um Painting Thickness Tester
Graigar AC-110AS Digital Coating Thickness Gauge Measuring Range 0-1250um Painting Thickness Tester
无法加载取货服务可用情况
Product Description:
AC-110 Series have 2 types: Type A ( Integral Type ), Type AS ( Separate Type).
Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements.
Separate Type can provide several type probe, measure can be more flexibility.
It is a kind of portable measuring instrument, it can quickly, no damage and precise coating, Poating thickness measurement.
Not only can be used in the laboratory, also can be used in the engineering field.
Through the use of different measuring head, but also can meet the needs of a variety of measurement.
Widely used in manufacturing, metal processing industry, chemical industry, commodityinspection and testing field. Is the material protection professional.

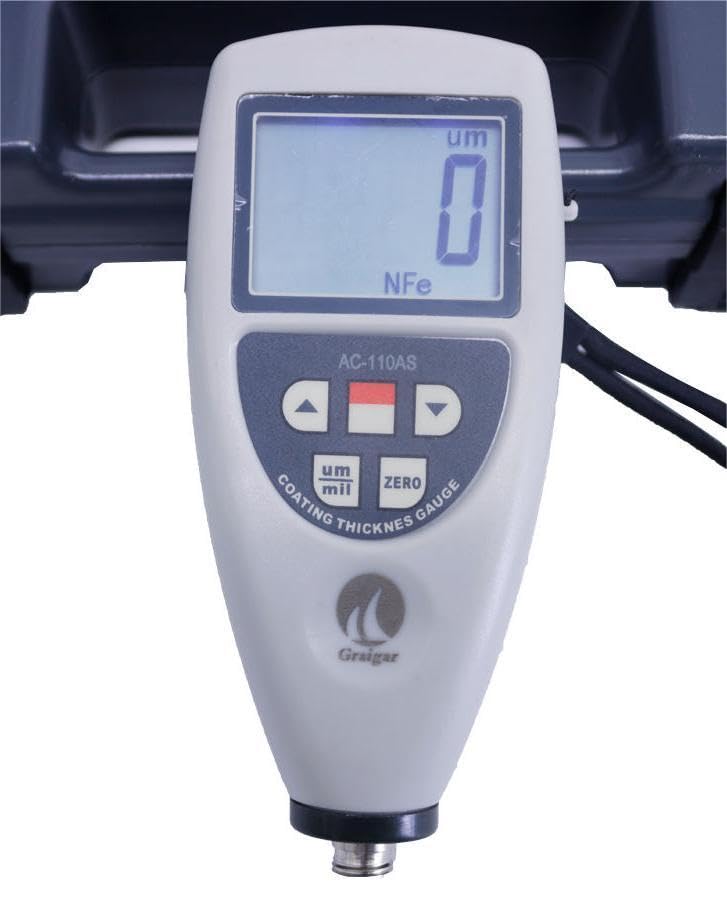

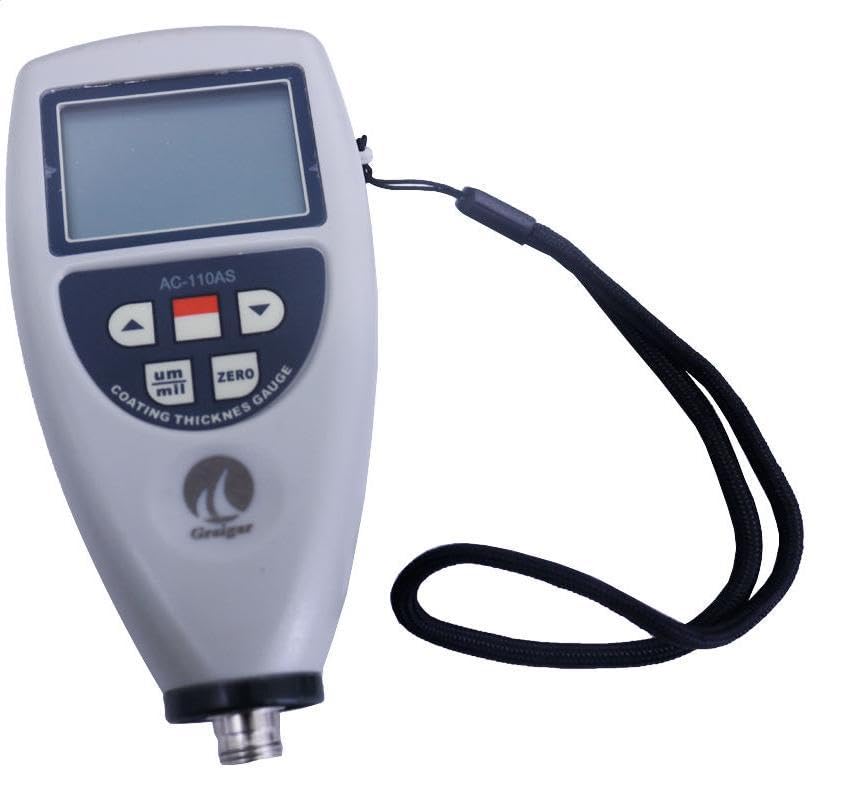

AC-110AS
Separate Type design, Provide several type sensor, measurement can be more flexibility.
Provide Bluetooth ™ data output choice.
Product Parameters:
| Measuring Range | 0~1250 um |
| 0~50mil (other range may be specified) | |
| Resolution |
0.1 um (0~99.9um)/1 um (over 100um) |
| Accuracy: | 1~3%n or 2.5 um or 0.1mil (Whichever is the greater) |
| Minimum Measurement Area | 6 mm |
|
Minimal Surface |
F Type convex1.5 mm / concave 25 mm |
| NF Type convex 3 mm / concave 50mm | |
| Operating Condition | Temp: 0~50°C / |
| Humidity: <95% | |
| Size | 120x63x25 mm |
| Power Supply | 2x1.5v AAA Um-4 Battery (Not Included) |
| Weight | 90 g (Not including batteries) |

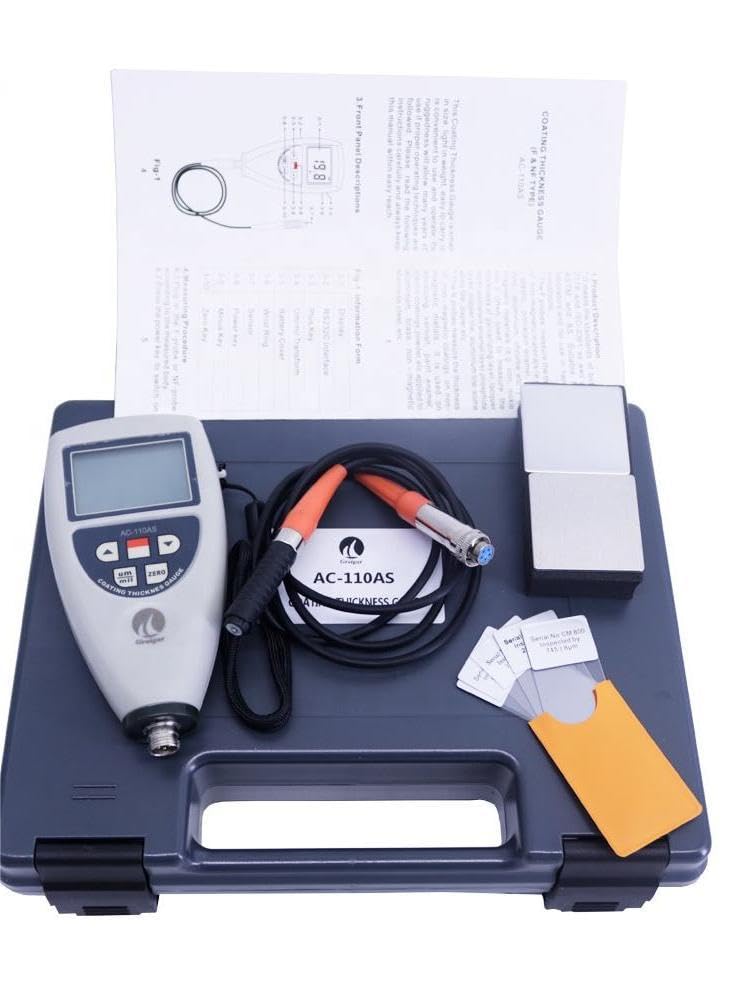

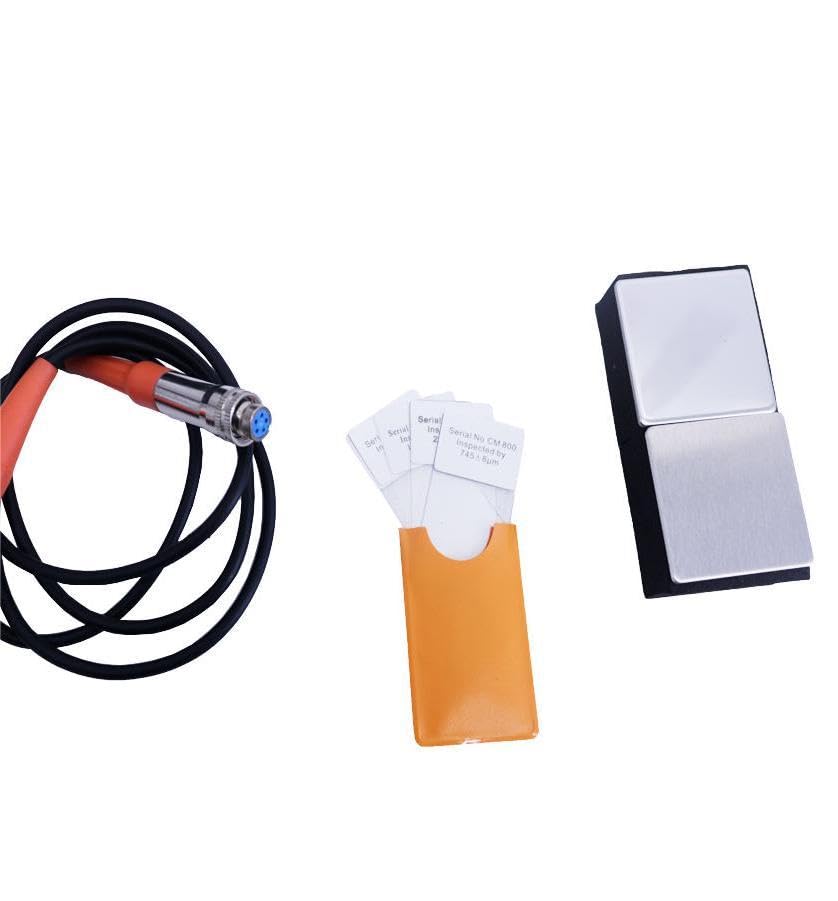

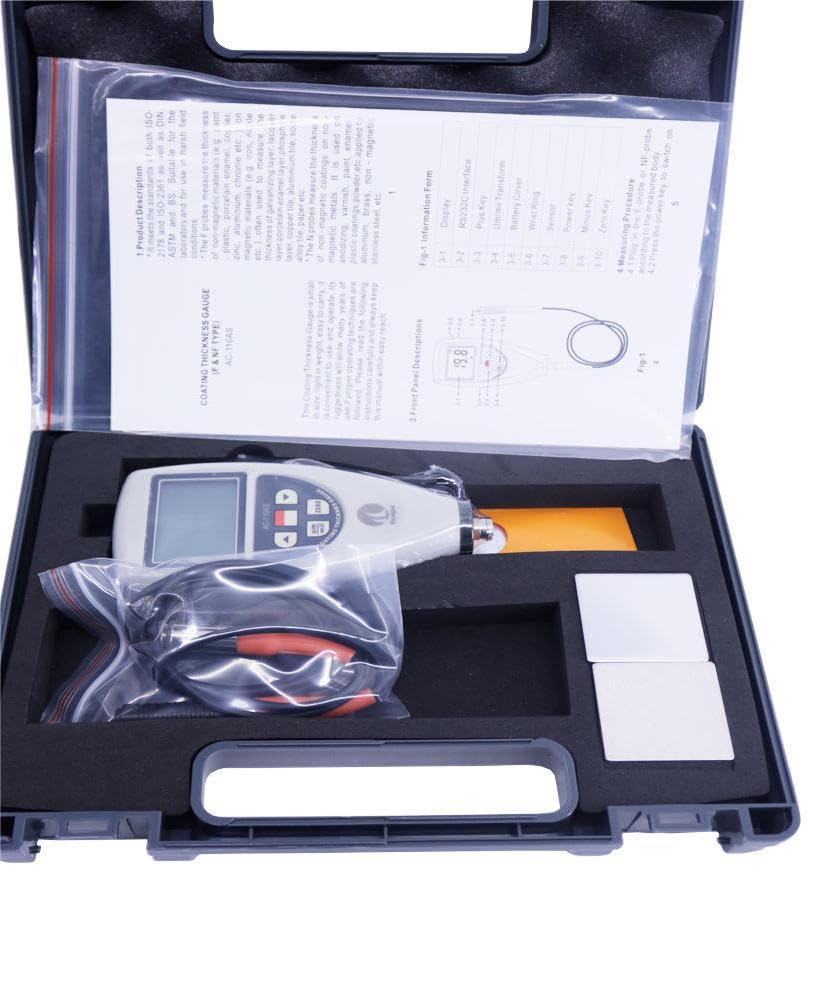

Product Accessories :
|
Standard Accessories |
Main Unit |
| Wrist Ring | |
|
Calibration Foils |
|
| Substrate ( Iron ) | |
|
Substrate ( Aluminium ) |
|
| Carrying Case | |
| Operation Manual | |
|
Optional Accessories
|
USB data output |
| Bluetooth data output |
