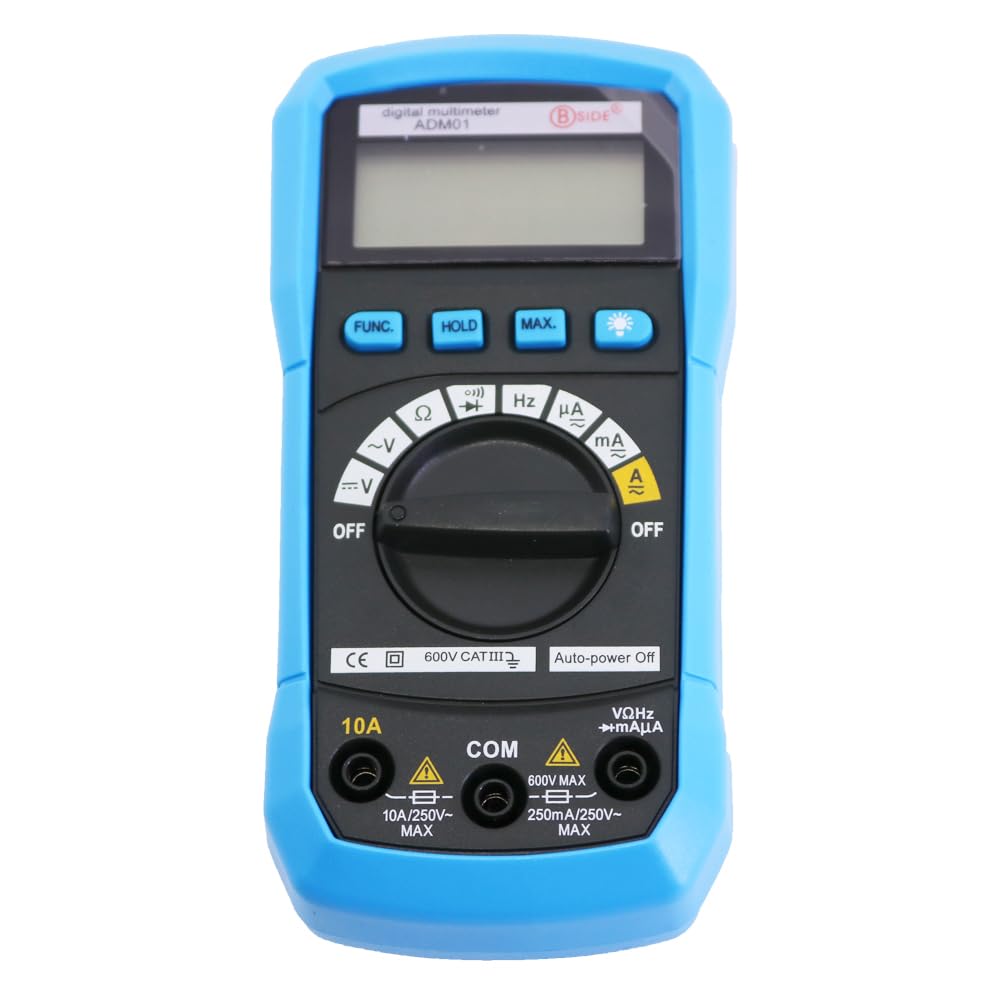

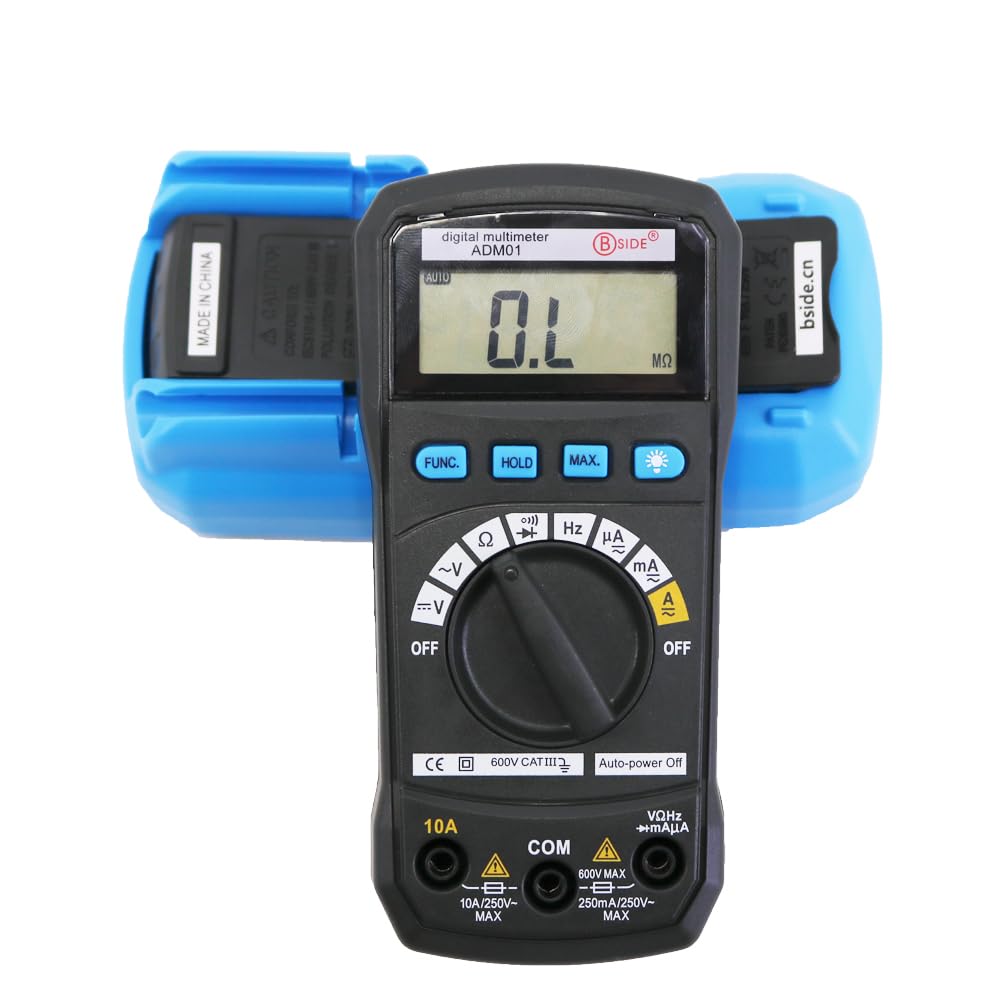

ADM01 Digital Multimeter Autorange AC/DC Voltage Current Resistance Meter Frequency Tester 0-20kHz
ADM01 Digital Multimeter Autorange AC/DC Voltage Current Resistance Meter Frequency Tester 0-20kHz
无法加载取货服务可用情况
Brand: Graigar
Color: Black and Blue

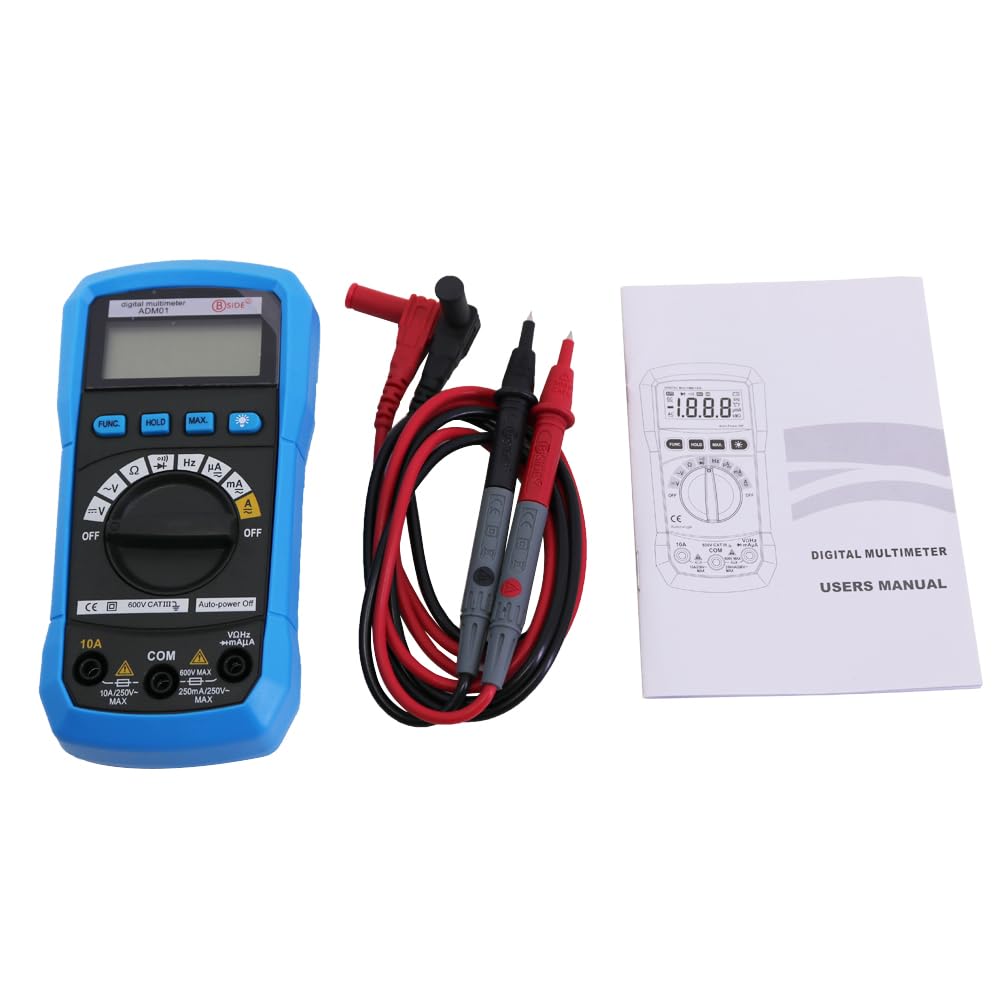

BSIDE ADM01 Autorange Digital Multimeter with Temperature Tester USB Interface
Introdution:

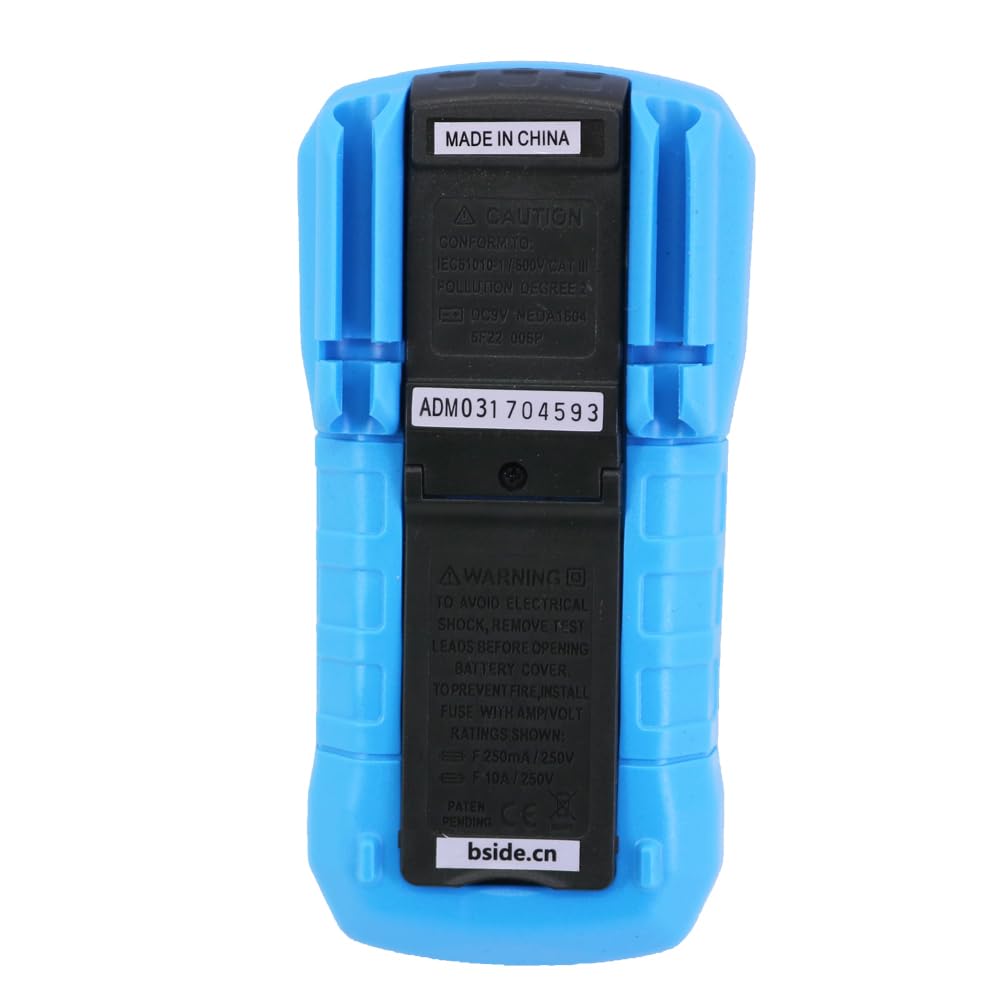

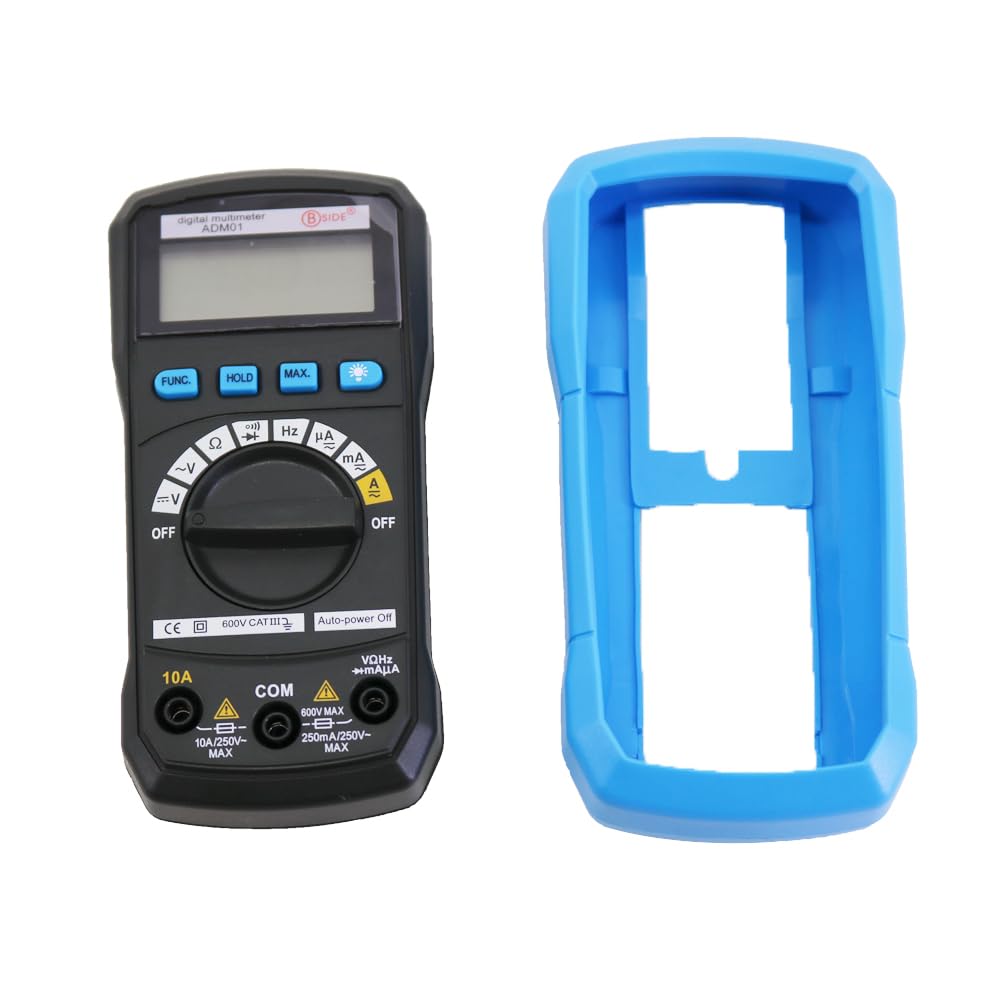

This Meter is a handheld and battery operated Digital Multi Meter(DMM) with multi function. This Meter is designed to meet IEC61010-1 & CAT III 600V over voltage category and double insulation. The meter with holster that is giving the main body, though downsized, high resistance against the shock of a drop.
This operating instruction covers information on safety and caution. Please read relevant information carefully and observe all the warnings and note strictly.
The DMM as general measurement tool and widely used in the school, laboratory, factory and other social field.
Electrical Specification ( at 23±5℃; <75% RH)
DC Voltage
|
Range |
Resolution |
Accuracy |
|
200mV |
0.1mV |
±(0.5% rdg + 2dgt) |
|
2V |
0.001V |
|
|
20V |
0.01V |
|
|
200V |
0.1V |
|
|
600V |
1V |
±(0.8% rdg + 2dgt) |
* Over load protection: SG(Spark Gap) used to protect that the voltage overred 1500V
AC Voltage
|
Range |
Resolution |
Accuracy |
|
2V (40Hz-400Hz) |
0.001V |
±(0.9% rdg + 3dgt) |
|
20V (40Hz-400Hz) |
0.01V |
|
|
200V (40Hz-400Hz) |
0.1V |
|
|
600V (40Hz-200Hz) |
1V |
±(1.2% )rdg + 3dgt |
* SG(Spark Gap) used to protect High voltage that is over 1500V.
Resistance
|
Range |
Resolution |
Accuracy |
|
200Ω |
0.1Ω |
±(0.8% rdg + 2dgt) |
|
2kΩ |
0.001kΩ |
|
|
20kΩ |
0.01kΩ |
|
|
200kΩ |
0.1kΩ |
|
|
2MΩ |
0.001MΩ |
±(1.0% rdg + 2dgt) |
|
20MΩ |
0.01MΩ |
Diode check
|
Range |
Resolution |
Function |
|
|
0.001V |
Will display the forward drop voltage. |
* Operating current:about 1mA
* Open circuit voltage:about 1.48V
Continuity
|
Range |
Function |
|
|
If measured resistance less than 100Ω, will buzzer is sounded. |
* Open voltage: about 0.5V
DC Current
|
Range |
Resolution |
Accuracy |
|
200µA |
0.1μA |
±(1.5% rdg + 3dgt) |
|
2000µA |
1µA |
|
|
20mA |
0.01mA |
|
|
200mA |
0.1mA |
|
|
10A |
0.01A |

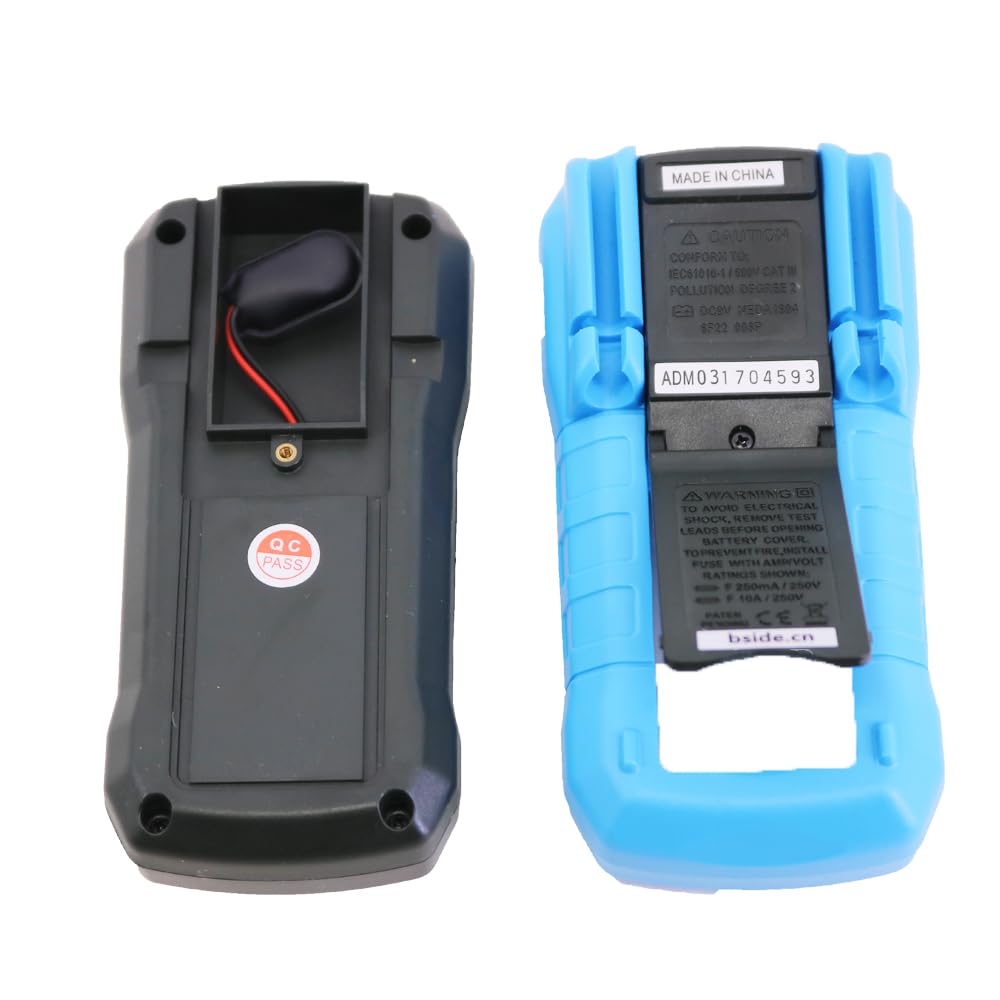

* Over Load protection:use the fuse(F250mA/250V) at µA /mA range,
and use the fuse(F10A/250V) at 10A range.
* Max input current::250mA at ‘mA’ input terminal and 10A at ‘10A’ input terminal.. .
AC Current [40Hz-400Hz]
|
Range |
Resolution |
Accuracy |
|
200µA |
0.1µA |
(1.5% rdg + 4dgt) |
|
2000µA |
1µA |
|
|
20mA |
0.01mA |
|
|
200mA |
0.1mA |
|
|
10A |
0.01A |
* Over Load protection:use the fuse(F250mA/250V) at µA /mA range,and use the fuse(F10A/250V) at 10A range.
* Max input current::250mA at ‘mA’ input terminal and 10A at ‘10A’ input terminal...
* Frequency response:40 ~ 400Hz
Frequency
|
Range |
Resolution |
Accuracy |
|
20kHz |
10 KHz |
±(1.5%rdg+5dgt) |
* Sensitivity: 0.8V
Features:
- This Meter is a handheld and battery operated Digital Multi Meter(DMM) with multi function.
- This Meter is designed to meet IEC61010-1 & CAT II 600V over voltage category and double insulation.
- The meter with holster that is giving the main body, though downsized, high resistance against the shock of a drop.
- This operating instruction covers information on safety and caution.
- The DMM as general measurement tool and widely used in the school, laboratory, factory and other social field.
model number: ADM01
