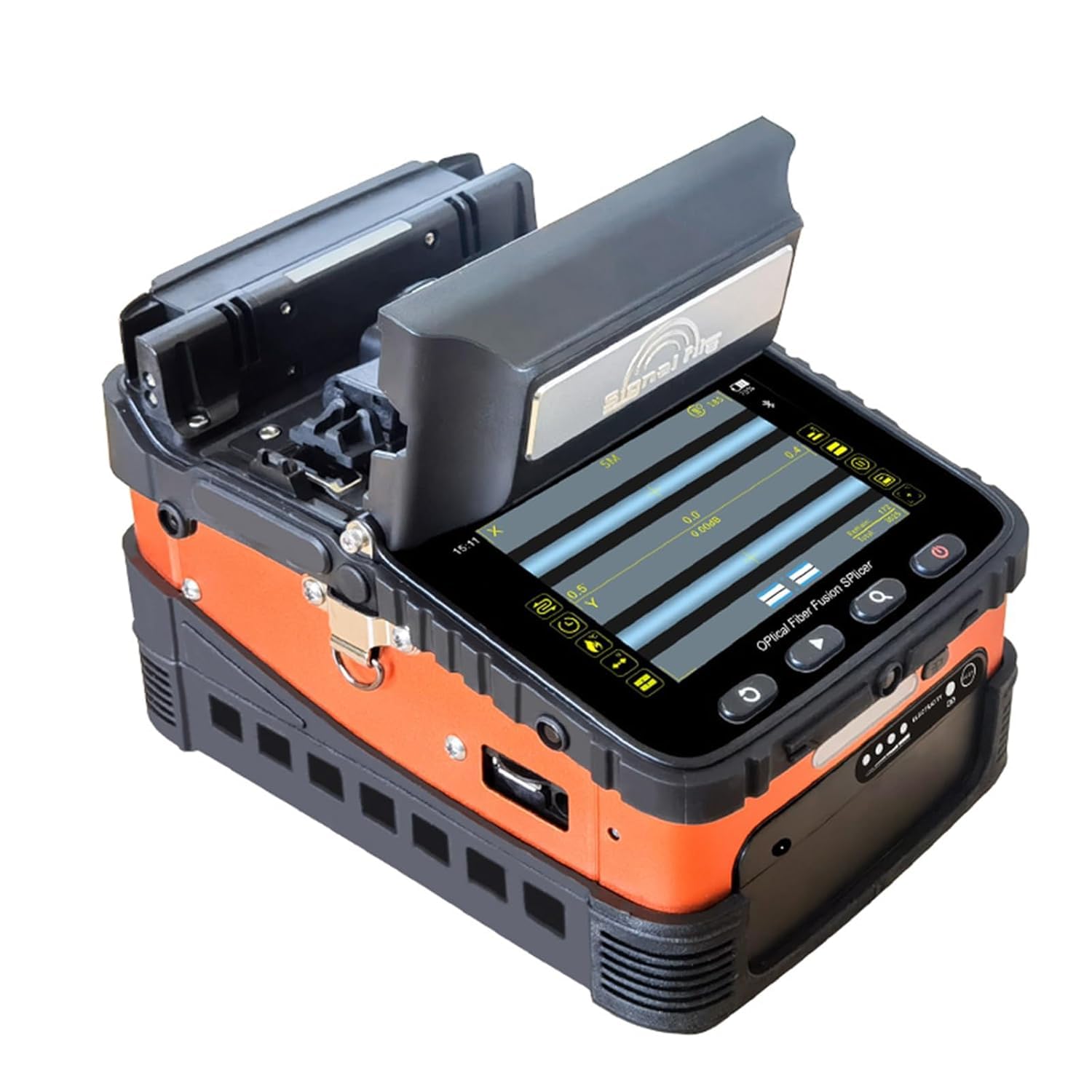

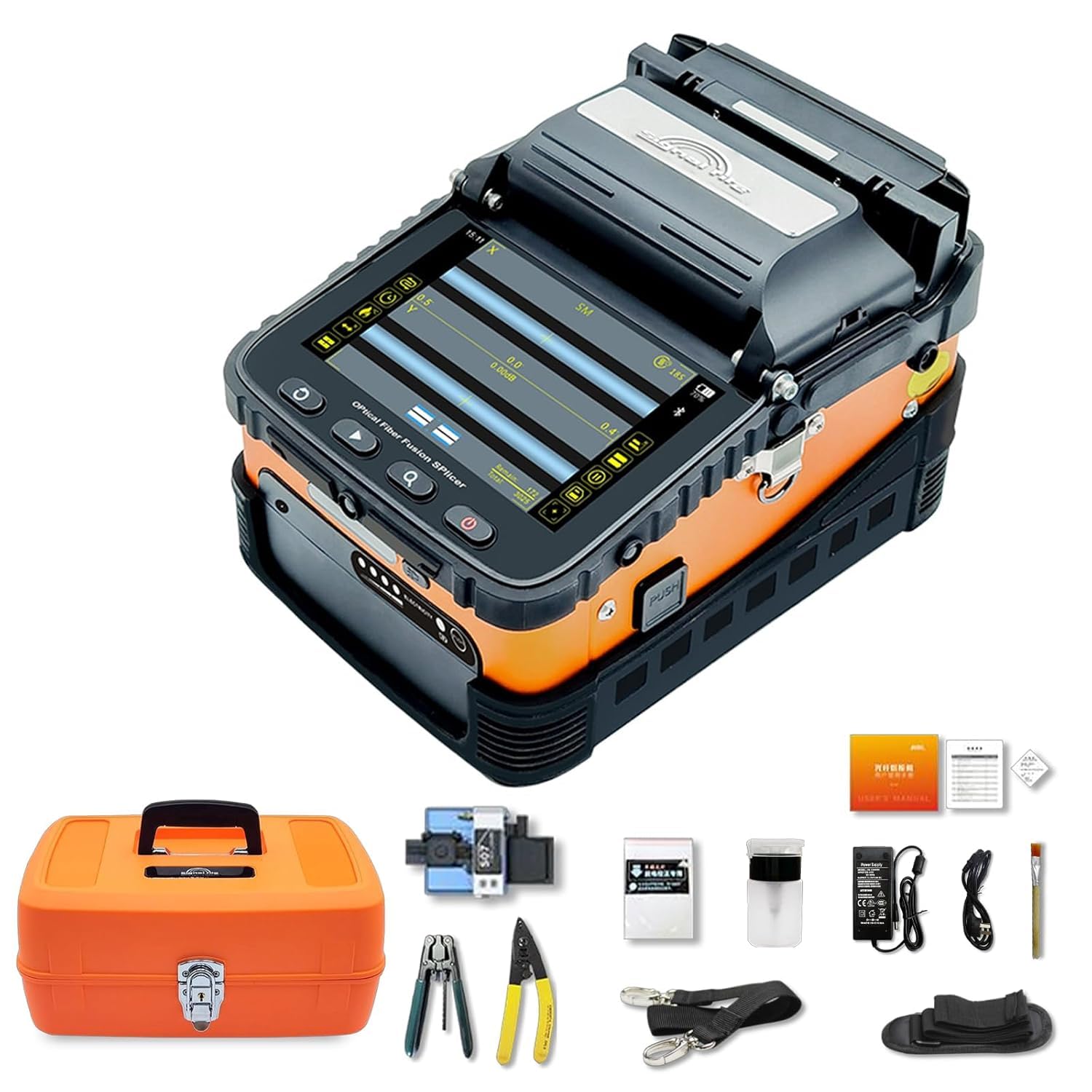

Ai-6A 6 Motor Automatic Intelligent FTTH Fiber Fusion Splicer, 5 Inch LCD Screen SM&MM Fiber Optical Welding Splicing Machine Kit, Splicing 8S Heating 18S Optical Fiber

Brand: Graigar

Color: /

Features:

• 【Splicing & Heating】- The fusion splicing machine uses a powerful high-speed motor that allows fast 8 second splice time and 18 second heat time, continuous splice and heats about 160 times.
• 【Management function】- The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment.

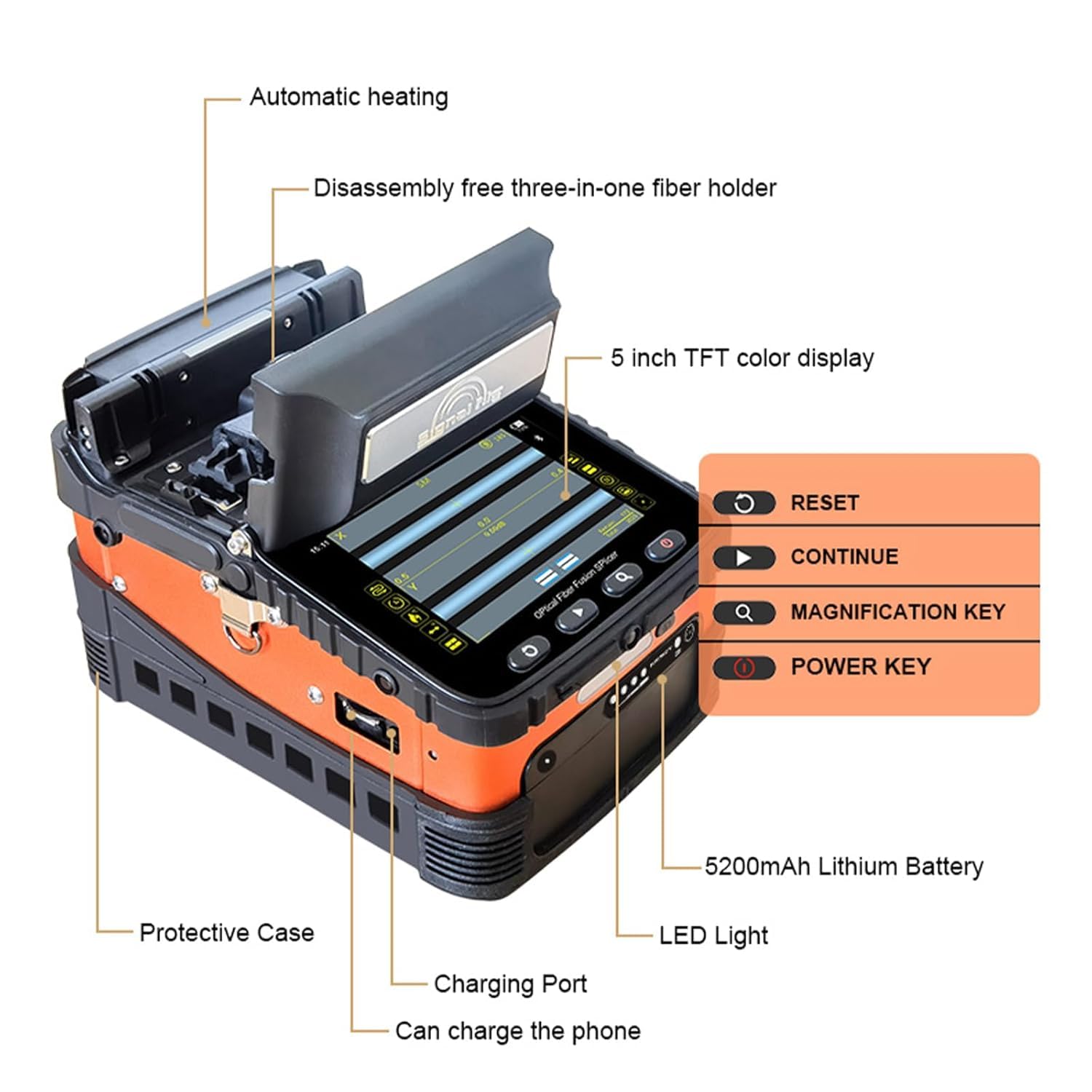

• 【3-in-1 Fiber Holder】- Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable.
• 【Magnification&Large capacity lithium battery】- With 5-inch high-resolution screen, it is up to 300 times the focus magnifications when X/Y Axis displayed separately, 150 times focused magnifications when X/Y Axis Displayed Simultaneously. 5200 mah high-capacity lithium battery,continuous splicing and heating about 160 times.
• 【Splicing loss】- 0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）

model number: Ai-6A

Part Number: /

Details: Motor number6 motors
Splicing time8s
Heating mode18s， can be customized according to the external environment
Fiber typeSingle-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion;
The cladding diameter80-150 μm
Splicing loss0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）
Splicing modeAutomatic focusing core alignment, conventional/high precision welding
Splicing wayAutomatic, semi-automatic
Fiber holderThree in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable
Battery capacity5200mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 160 cores
Magnification320x (X or Y axis single display) ，200x (x and Y axis dual display)
Fiber diameterCoating diameter: 80-150μm/Coating diameter: 100-1000μm
Cutting lengthCoating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm
Heat shrink tube60mm、50mm、40mm、25mm
display5 inch TFT color display screen
Software upgradeMobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software

EAN: 0707457583116

Package Dimensions: 25.0 x 24.0 x 23.0 inches
