AS-120B Portable Shore Hardness Tester Digital Hard Rubber Hardness Meter
AS-120B Portable Shore Hardness Tester Digital Hard Rubber Hardness Meter
无法加载取货服务可用情况
Product Description
The Shore Hardness Tester AS-120 Series including type(A, B, C, D, E, O, DO, OO), Model complete, with different probe size, Use for different measured objects and Hardness value, to meet different request for kinds of material hardness measure.
Product Feature
* Integrated design, small volume, light weight, simple structure, easy to use, Intuitive readings and automatic shutdown function.
* With low battery alarm indicator & average value calculation function.
* Auto switch off and manual shutdown.
Product Model Information
| Model | Indenter | Typical Examples Of Materials Tested | Hardness Values |
|
A |
0.79 Truncated (frustum) cone |
Soft vulcanized rubber, natural rubber, nitriles, thermoplastic elastomers, flexible polyacrylics and thermosets, wax, felt, and leathers |
20~90A |
| B | R0.1Cone |
Moderately hard rubber, thermoplastic elastomers, paper products, and fibrous materials. |
Above 90 A Below 20 D |
| C | 0.79 Truncated (frustum) cone |
Medium-hard rubber, thermoplastic elastomers, medium-hard plastics and thermoplastics. |
Above 90 B Below 20 D |
| D | R0.1Cone |
Hard Rubber, thermoplastic elastomers, harder plastics, and rigid thermoplastics. |
Above 90 A |
| DO | R1.2 Spherical radius |
Moderately hard rubber, thermoplastic elastomers, and very dense textile windings. |
Above 90 C Below 20 D |
| E | R2.5 Spherical radius |
Hard sponge, EVA |
Above 90 DO Below 20 A |
|
O |
R1.2 Spherical radius |
Soft rubber, thermoplastic elastomers, very soft plastics and thermoplastics, medium-density textile windings. |
Below 20 DO |
|
OO |
R1.2 Spherical radius |
Extremely soft rubber, thermoplastic elastomers, sponge, extremely soft plastics and thermoplastics, foams, low-density textile windings. |
Below 20 O |
Product Parameters
| Accuracy | ≤±1H |
| Resolution | 0.1H |
| Display Range | 0~100H |
| Measurement Range |
10~90H |
| Case | High impact ABS |
| Operating temperature | 0~40°C |
| Size | 170x63x24 mm |
| Power Supply | 2x1.5vAAA Um-4 Battery |
| Weight | 310 g (Not including batteries) |

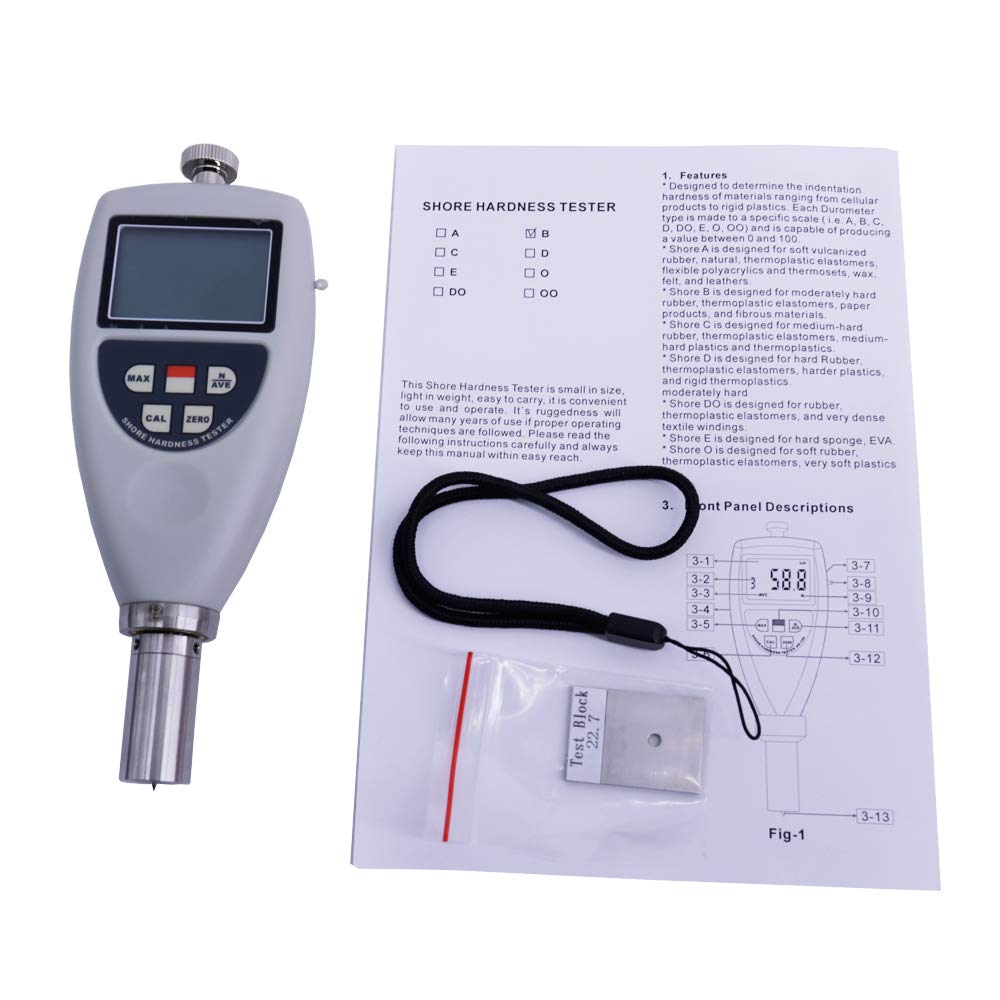

Product Accessories
|
Standard Accessories |
Main Unit |
|
Test block |
|

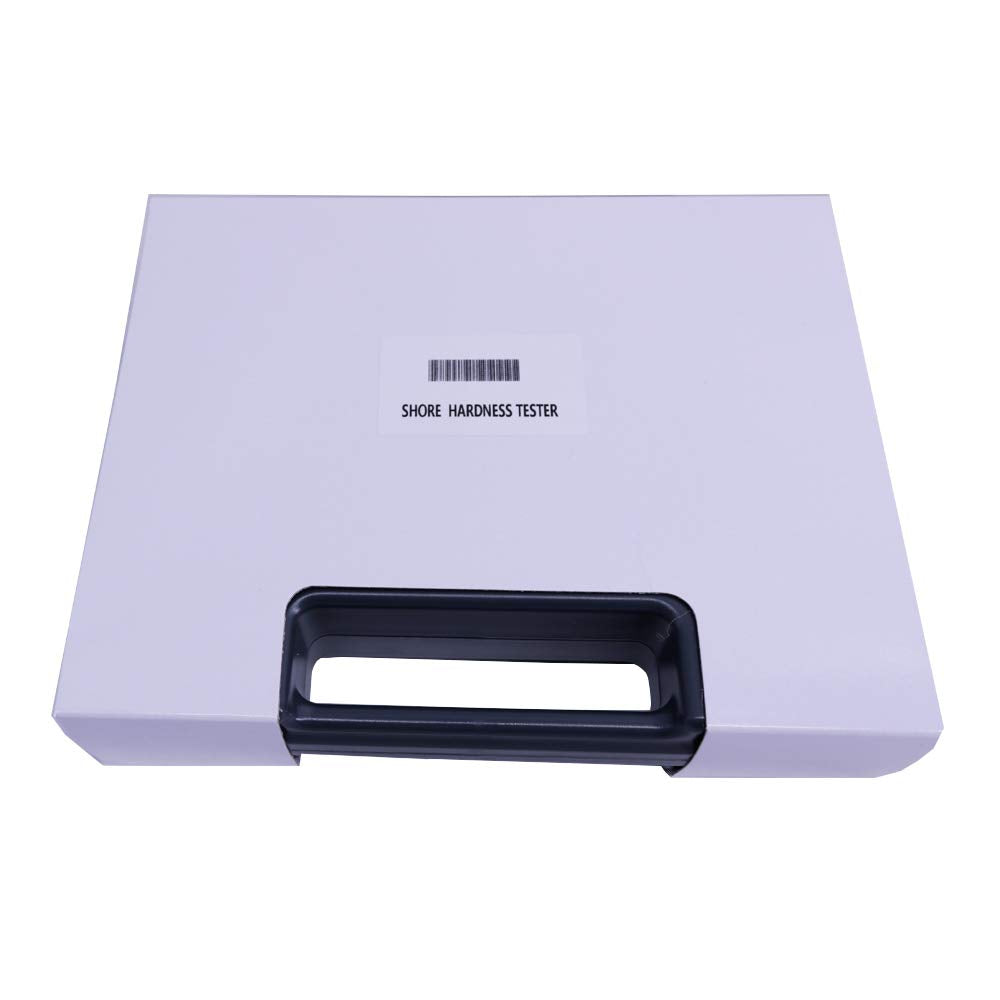

| Carrying Case | |
| Operation Manual |
