Multi-channel sampling and parallel test, can sampling, alarm and communication transmission to 8 channels simultaneously.
Compatibility various kinds of temperature sensors, fast response, data stable and with Break even detection function.
AT4516 support K/N/E/J/T/R//S/B thermocouples. test temperature -1200℃ to 1300℃.
The instrument is equipped with RS-232 interface and USB interface as standard, and provides free communication.
The temperature test resolution 0.1 ℃.
Part Number: AT4516
Details: FEATURES
Scan speed: Fast/Med/Slow
Cold Junction Compensation

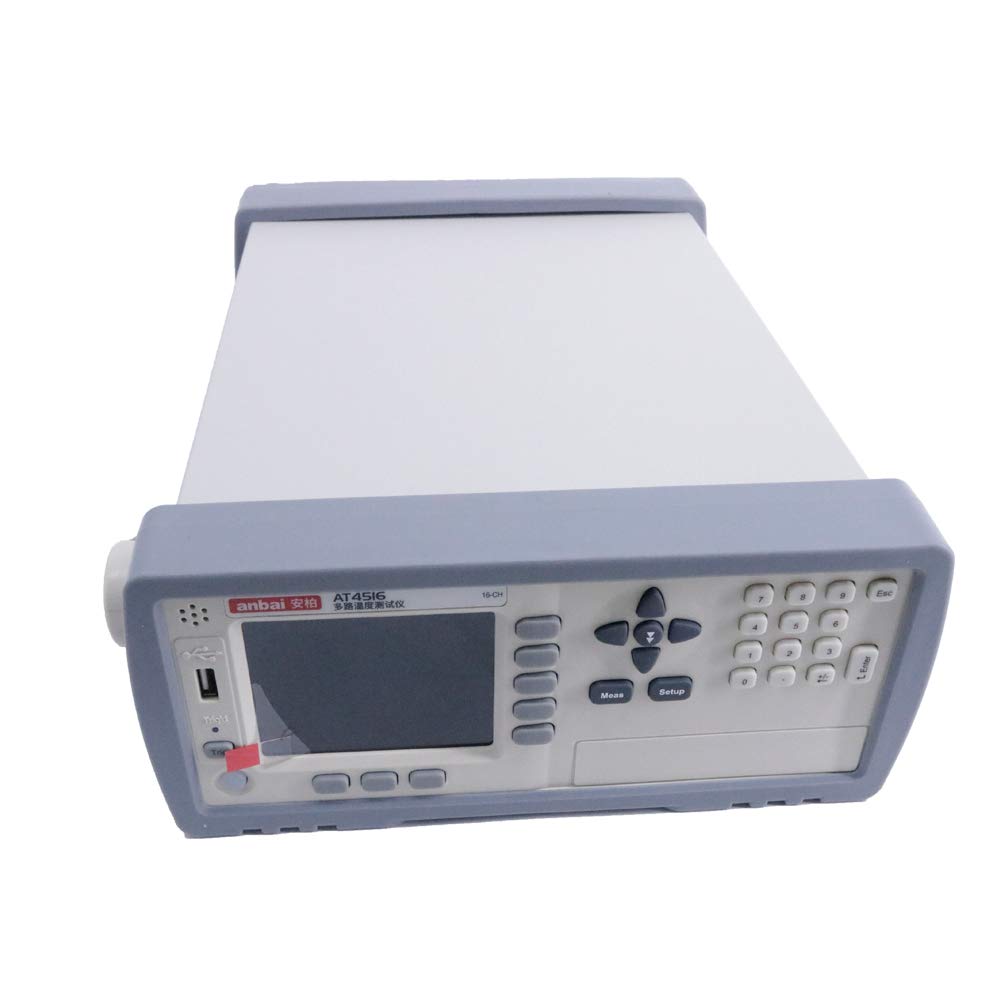

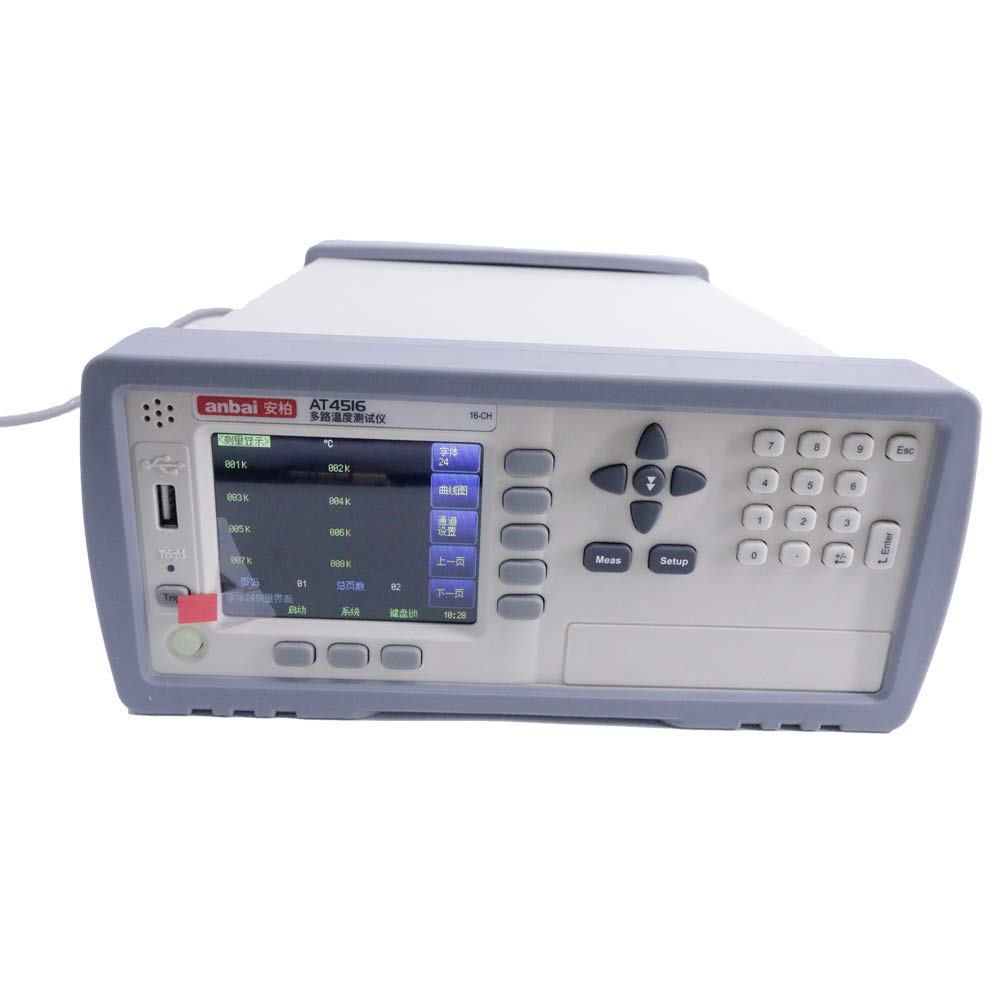

TFT True Color LCD Display.

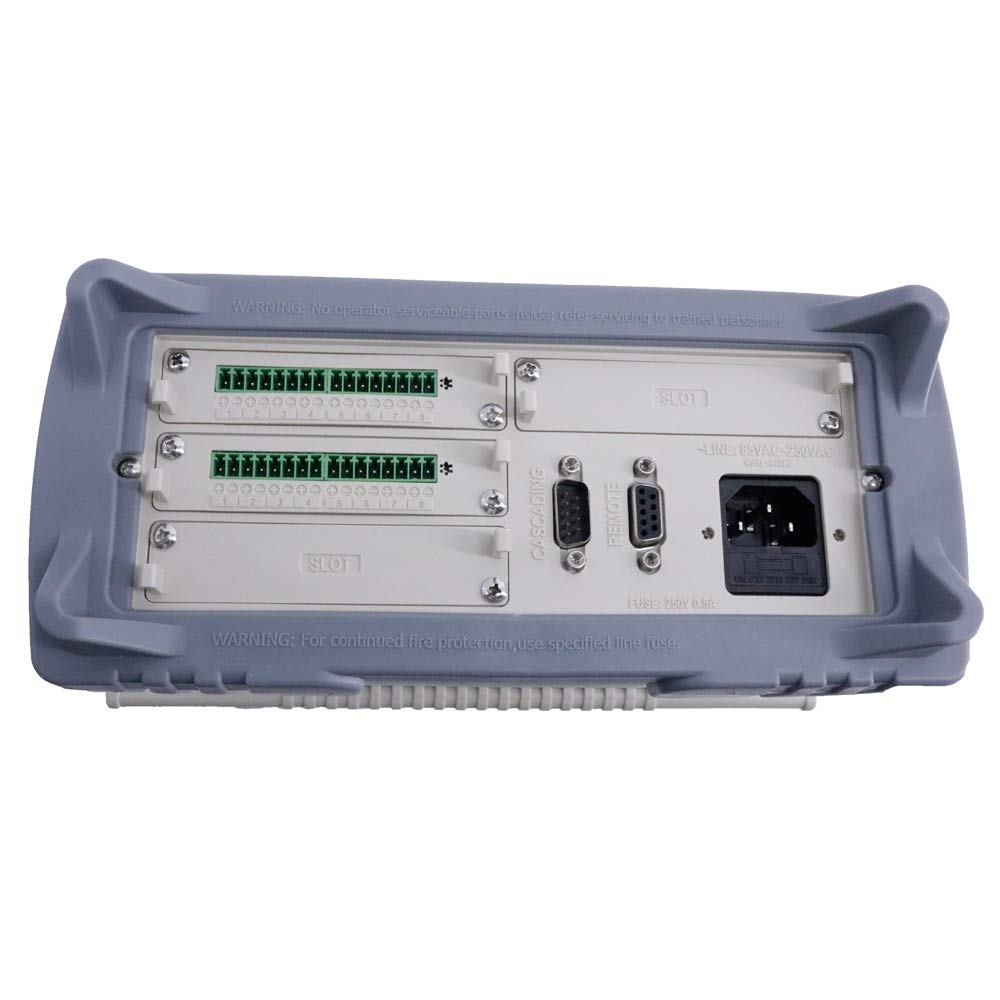

Interface: RS232C and USB Slaver Interface
USB-Disk Interface
Automatic detection of burnout
SPECIFICATIONS
Accuracy:0.2%+1℃
Range:-200℃~1800℃ (variation depend on graduation)
Resolution:0.1℃
Channels:16 channel; 128 channels are available
Speed:fast: 100ms/channel, medium:500ms/channel, slow: 1s/channel
Correction:Error correction for each channel
Comparator:high & low beep function for each channel
Interface:RS232C, U-disc, USB
Software:ATS45 data acquisition software
Cold Junction:Accuracy: 0.5℃
Other Functions:TFT-LCD True color display, broken thermocouple check function
Power Supply:V: 85VAC～260VAC /Fre：50Hz/60Hz /Power：10VA
Dimension & Weight:216x88x300mm /weight：3kg

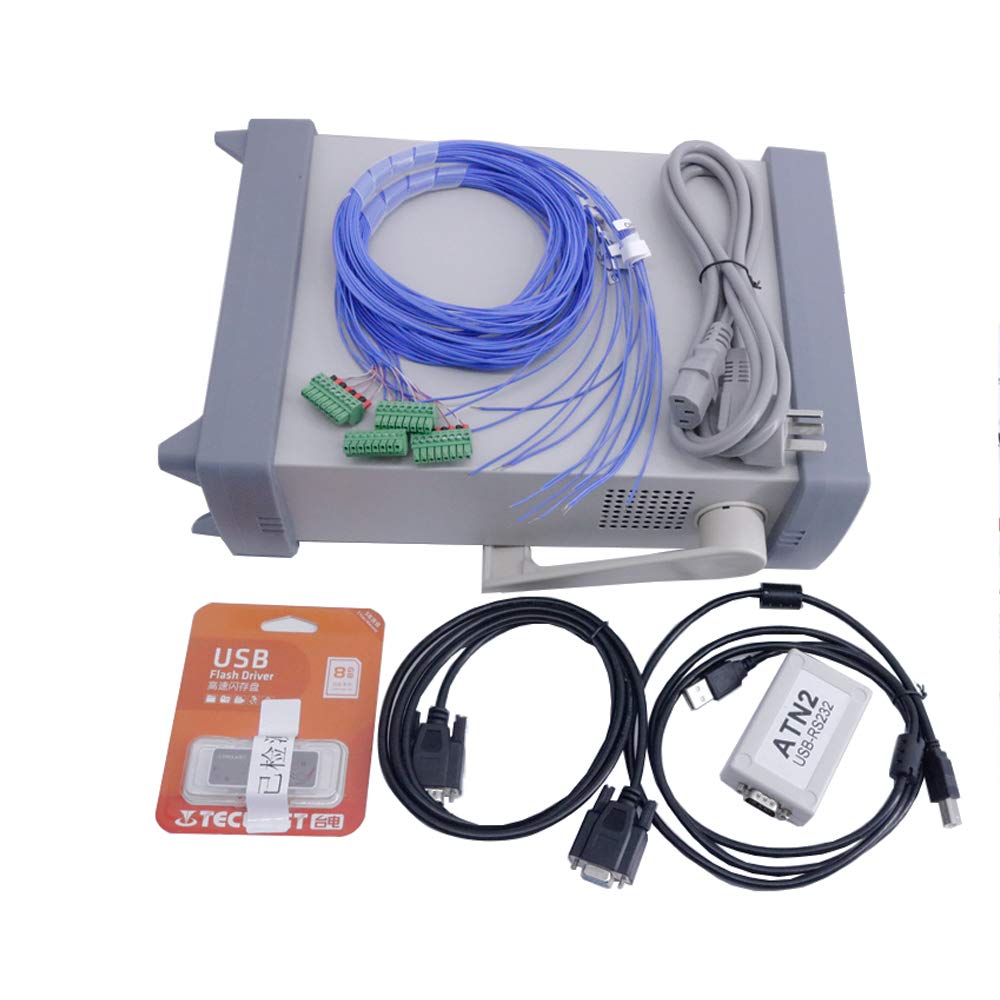

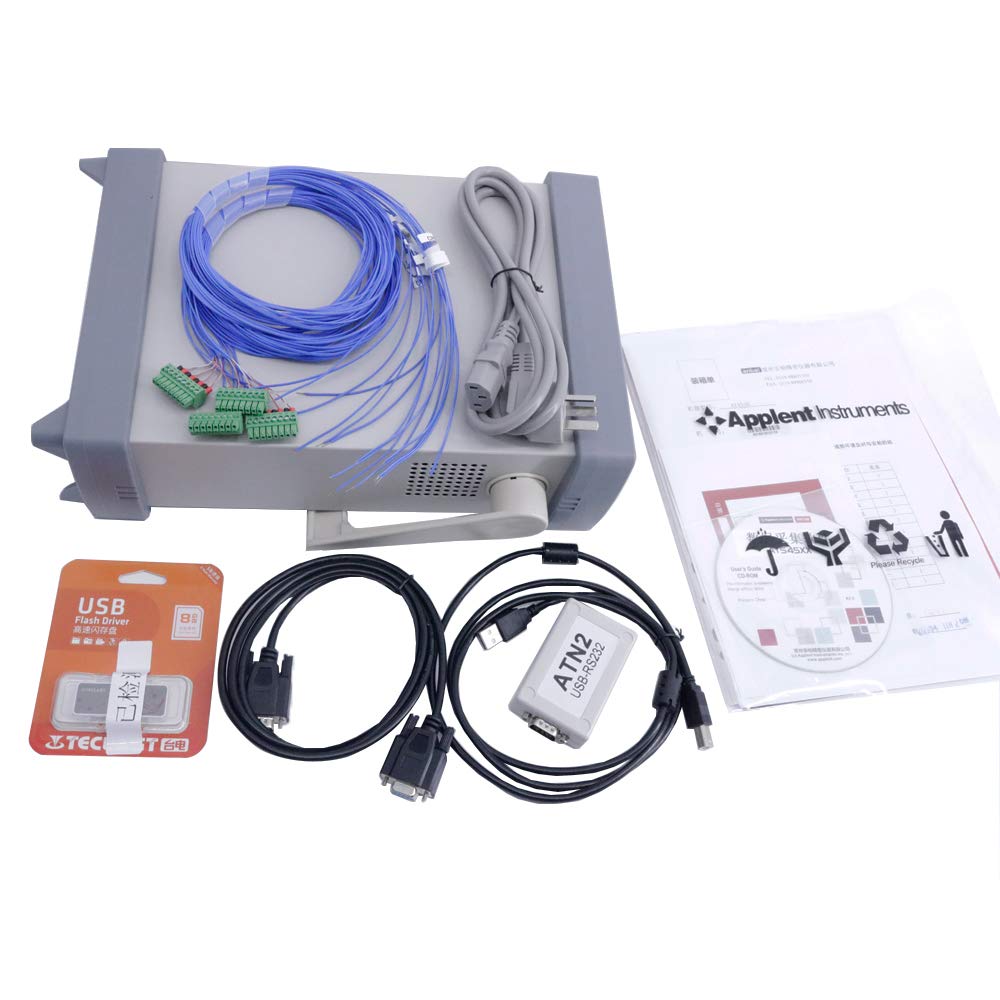

Accessories:
AT4516 Tester
K thermocouple 16 channels (2 meters/ channel)
ATL108 RS232 cable
ATN2 USB box
ATL103 USB cable
