AT528L Handheld Digital Battery Tester AC Ohmmeter Battery Resistance Meter

AT528L Handheld Digital Battery Tester AC Ohmmeter Battery Resistance Meter

$719.00 USD
$719.00 USD
Sale Sold out

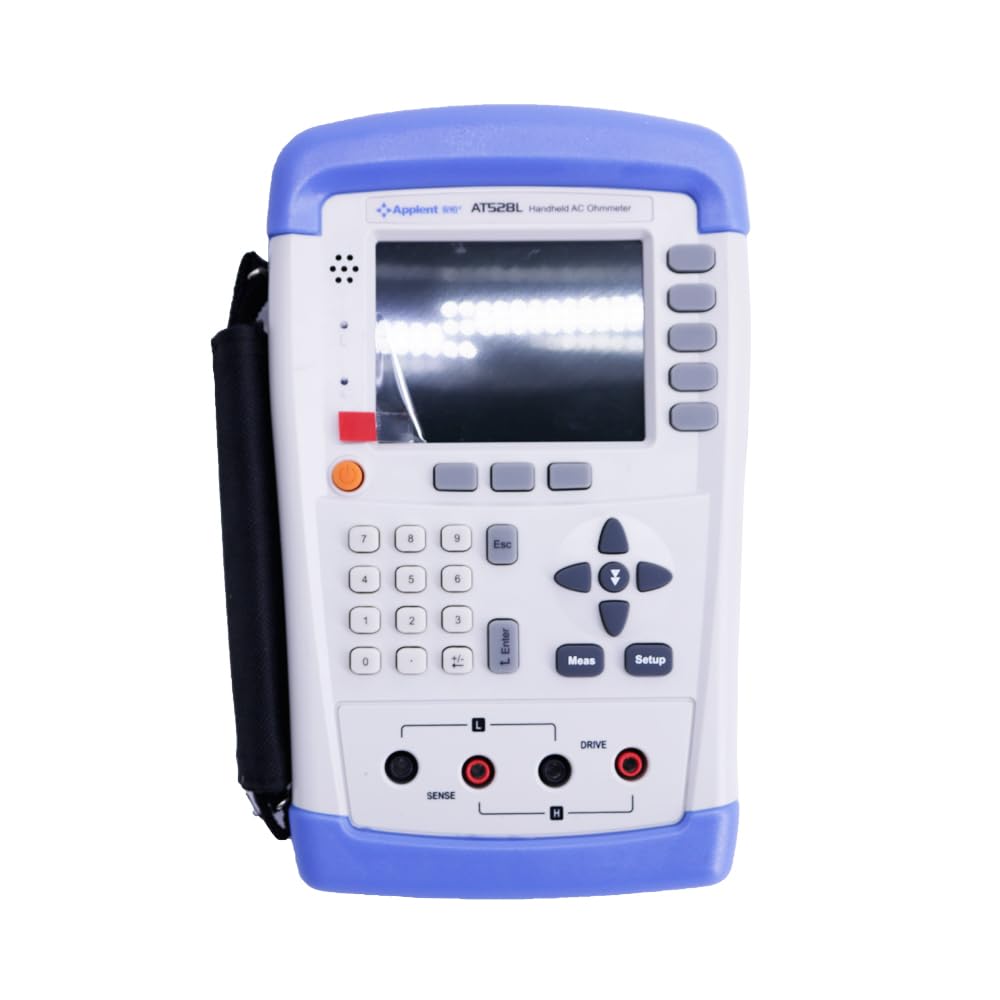

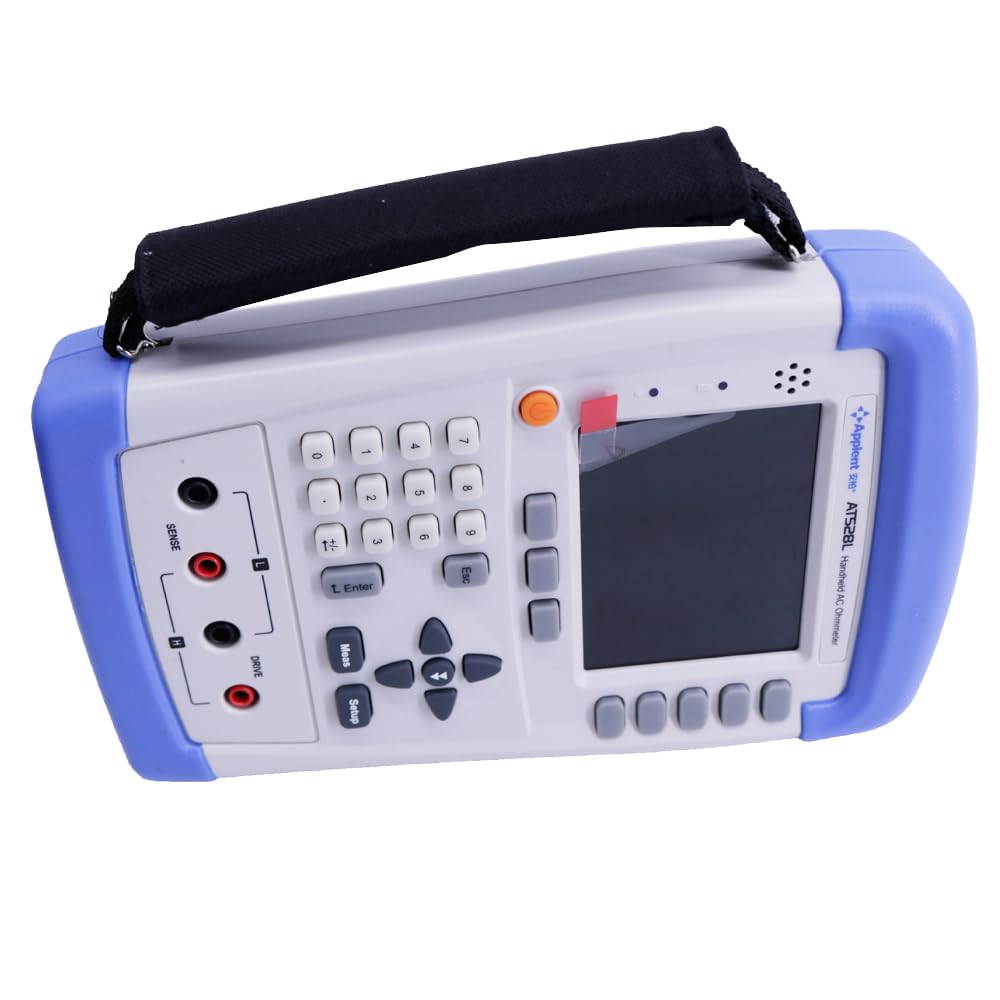

AT528L is minature handheld battery tester adopting high performance 32 bits ARM micor-processor control. With built-in high capacity lithium battery , it can realize super long standby time.

Given 3.5 inch true color LCD display, you can read tested data conveniently. By testing battery voltage and resistance, AT528 can judge quickly the degradation of battery.it can measure 0.1mΩ~200.0Ω resistance, 0-50V DC voltage, with 3200 digits display of resistance, 3000digits display of voltage.It follows vector measuring principle to test resistance, differential principle to measure voltage, enabling it to accuratly measure open circuit.With special sorting function and sorting beep setting, it can carry out simple sorting.

This instrument can restore 500 groups of data.

AT528L has both portability of handheld meter and superior performance of bentop device. In addition, with USB insterface realizing remote control and data collecting and analysis, it is suitable for inspection of assembly line of variouss kinds of battery and degradation review of UPS battery.



APPLICATIONS

  • Measure all kinds of low-voltage batteries, accumulators, lithium batteries, mobile phone batteries
  • Contact resistance, battery internal resistance
  • battery voltage
  • UPS battery detection



FEATURES

  • Fresh and dazzling two-color casting shell
  • Battery and external power supply mode

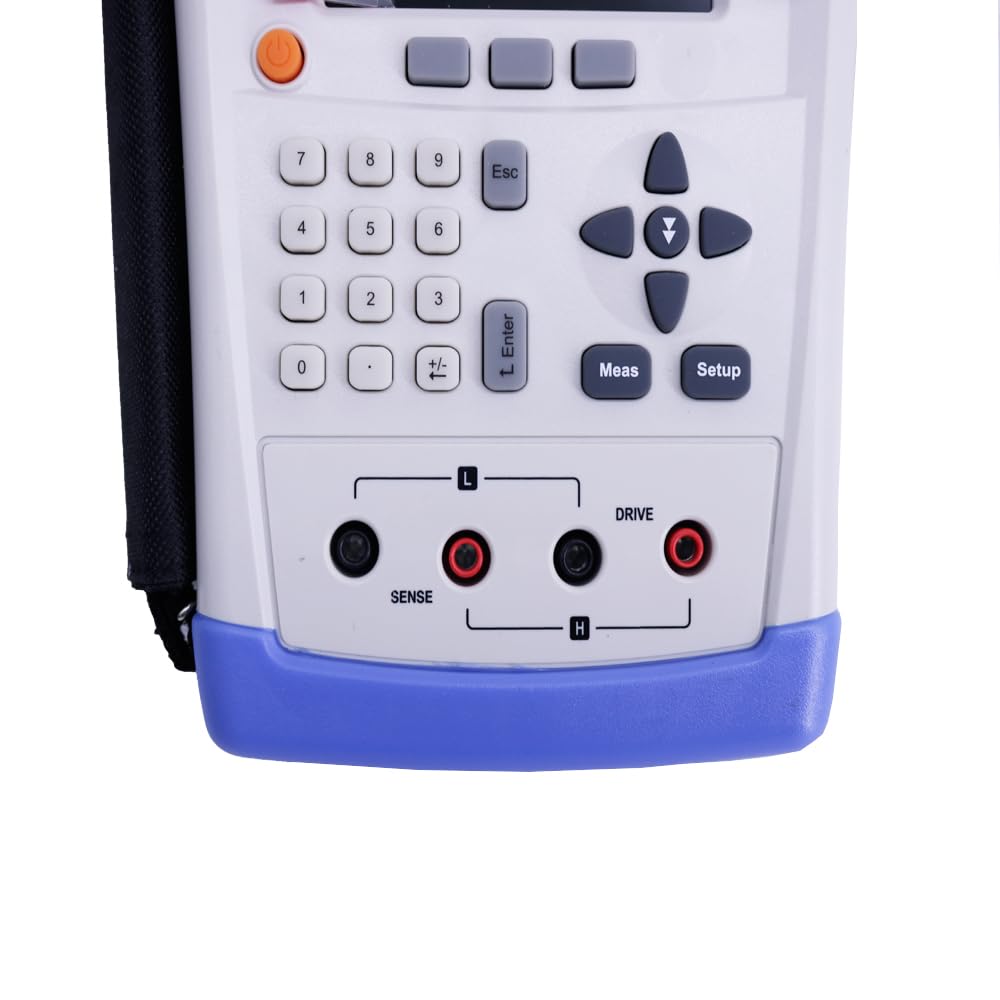

  • Four terminal test
  • Built-in Mini-USB interface
  • Compatible with SCPI instruction set
  • Backlight adjustment
  • Power consumption≤5W
  • Super long continuous working time ≥ 8h
Parameters ACR, DCV
Accuracy R: 0.5%±5dgt(resolution:0.01mΩ) V:0.1%±5dgt(resolution:1mV)
Range R: 0.1mΩ~200Ω V:1mV~50V
Signal Source AC:1kHz open circuit voltage:<30mV Test current:<15mA
Range 4 ranges, automatic, manual, nominal
Speed 2 times/s
Result Display ABS/PER/SEQ
Display Max R:2200 V:5000
Adjustment Short-circuit Correction
Comparator resistance & voltage compare separately, voltage & resistance combine compare, GD/NG sorting display, beep
Trigger Internal, Manual, Remote

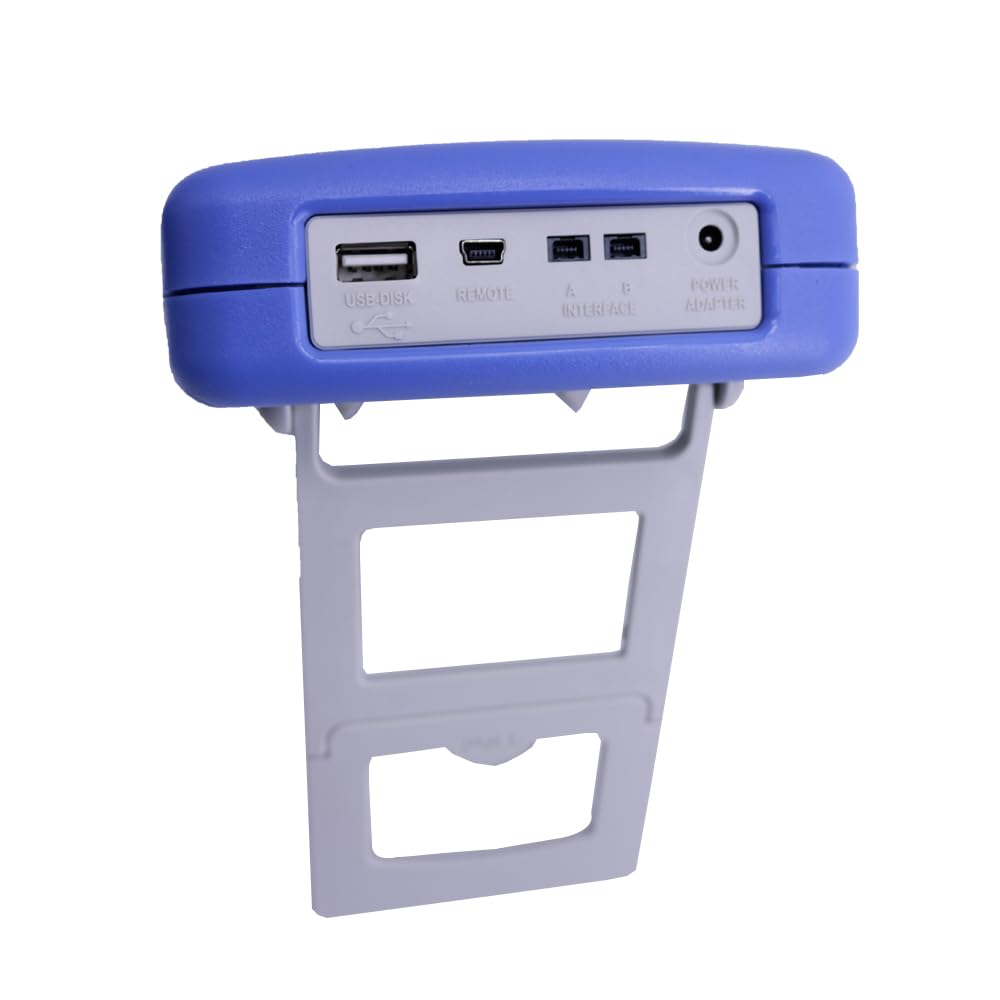

Interface Build-in Mini-USB, charging interface, U-disc interface
Options ATL506B
Power V:100-240V~50/60Hz 0.35A output:9V 1A DC ##8.4V 2200mAh Li battery
Dimensions 130.23 x210.76x37.88 mm
Mass 650g

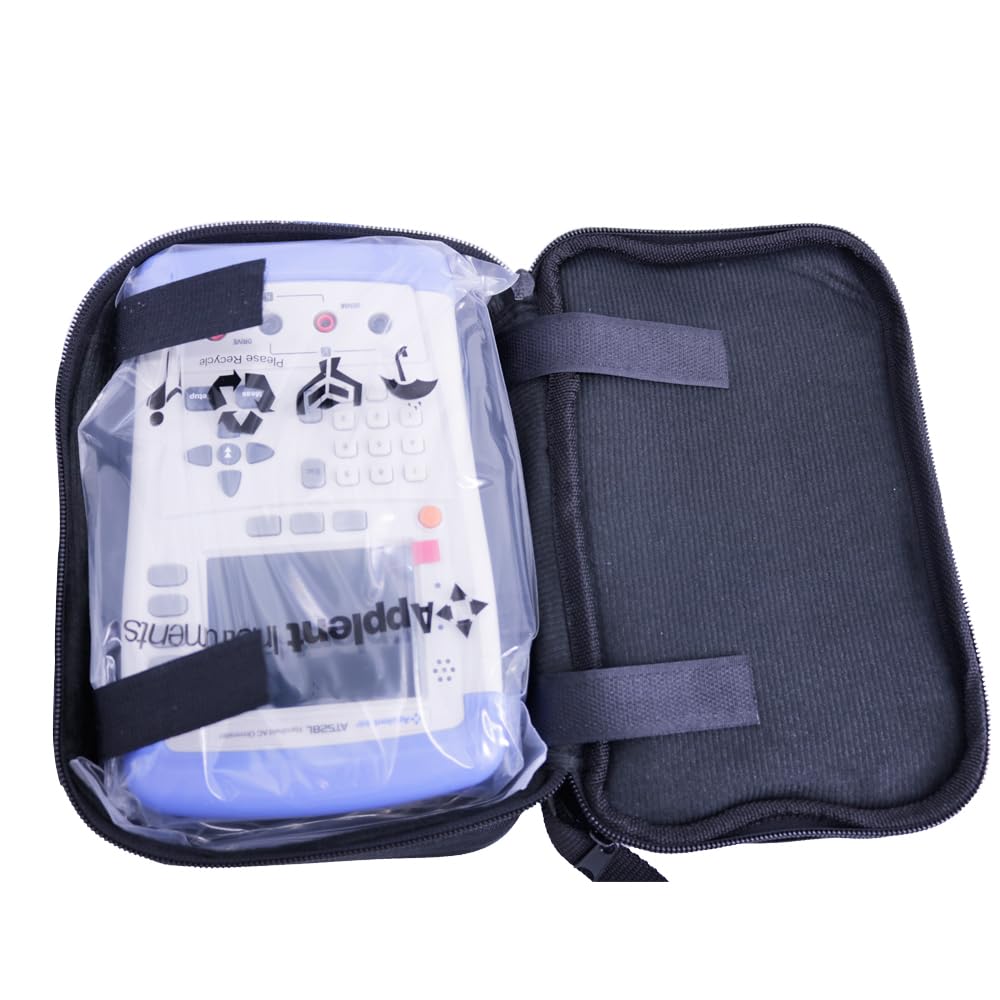

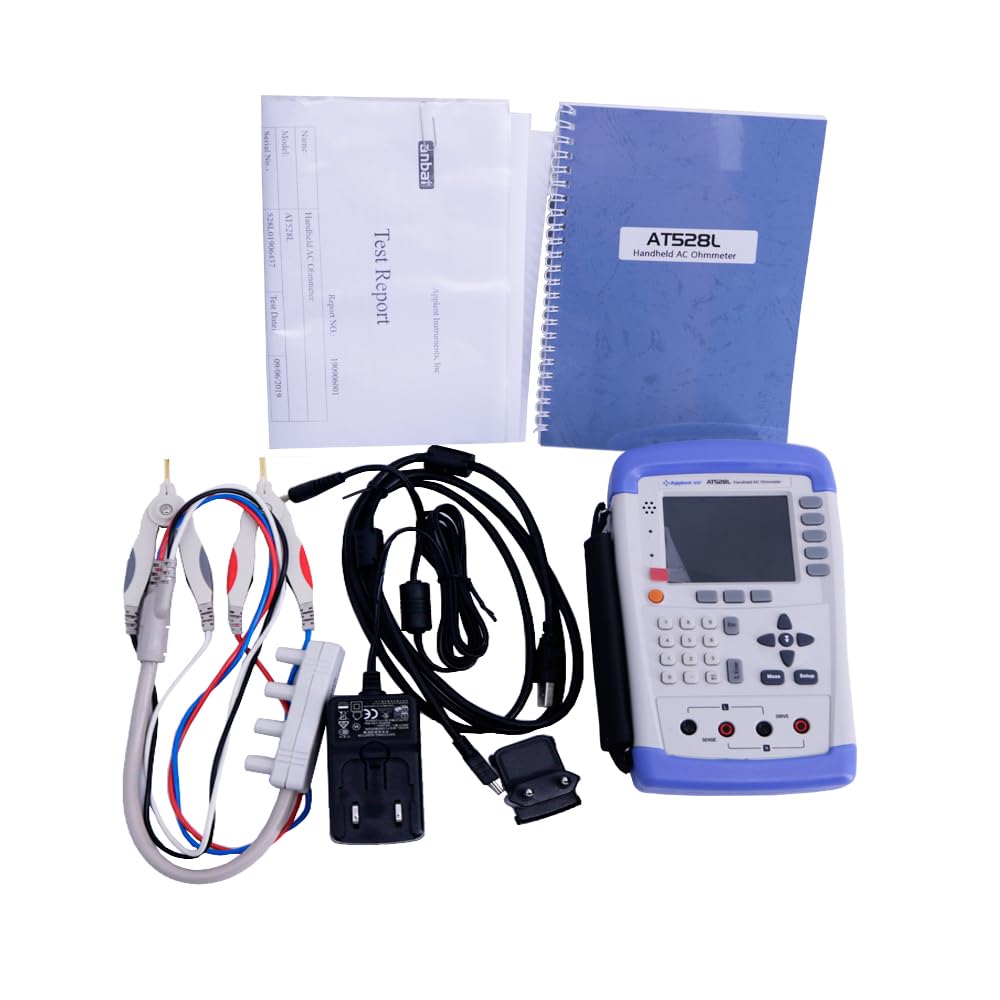

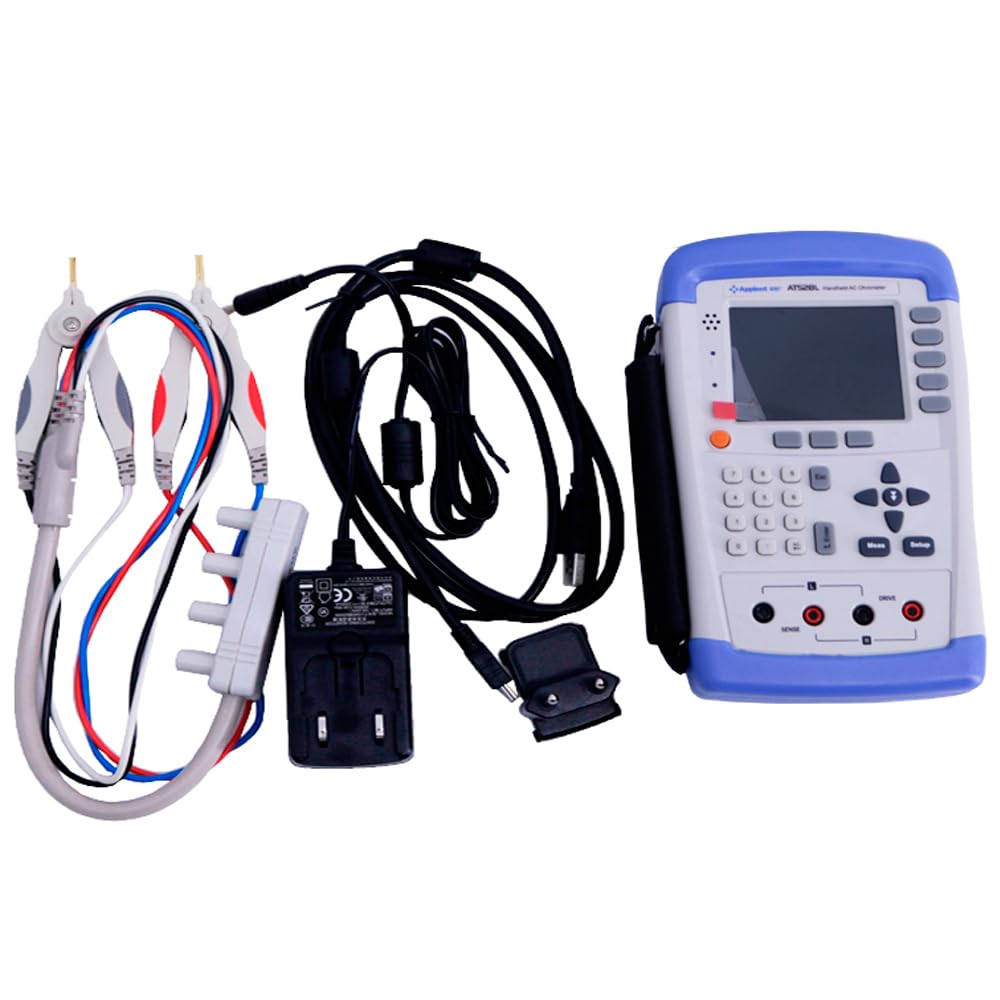

Accessories ATL501B 4 terminal fixture ATL909 DC adaptor ATL202 bag ATL804 Li battery ATL105Mini-USB communication cable
Other functions 3.5 inch 16M color TFT-LCD display, keypad lock, data hold function,compatible SCPI order set; Chinese & English language, adjustable background, auto power-off, 500 groups measured data saved with one key
