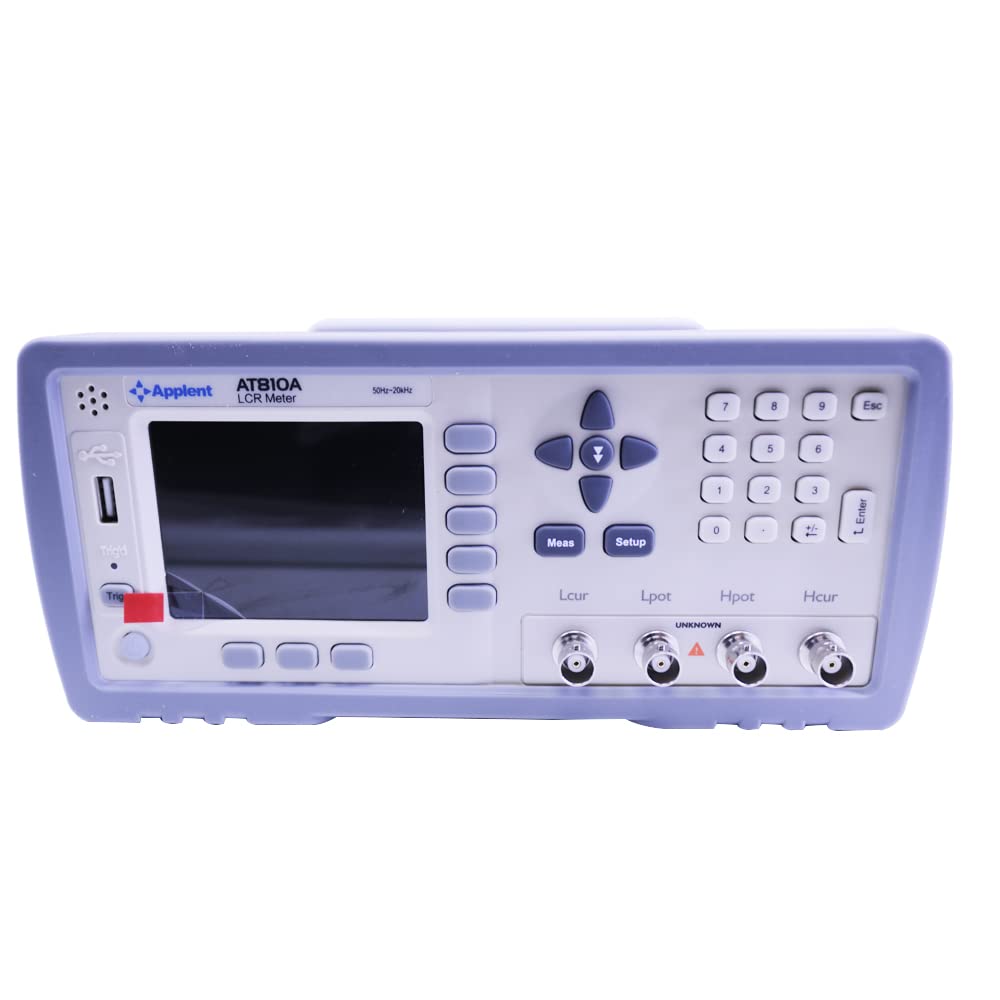

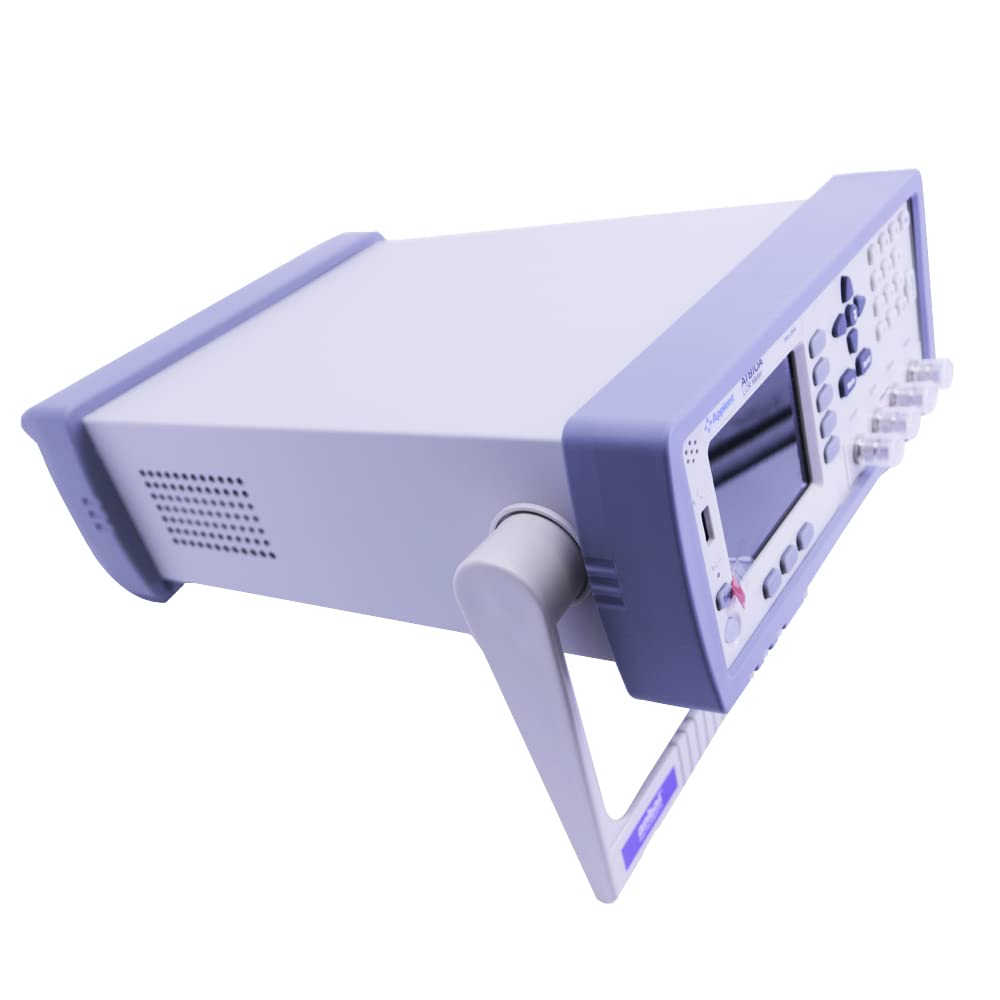

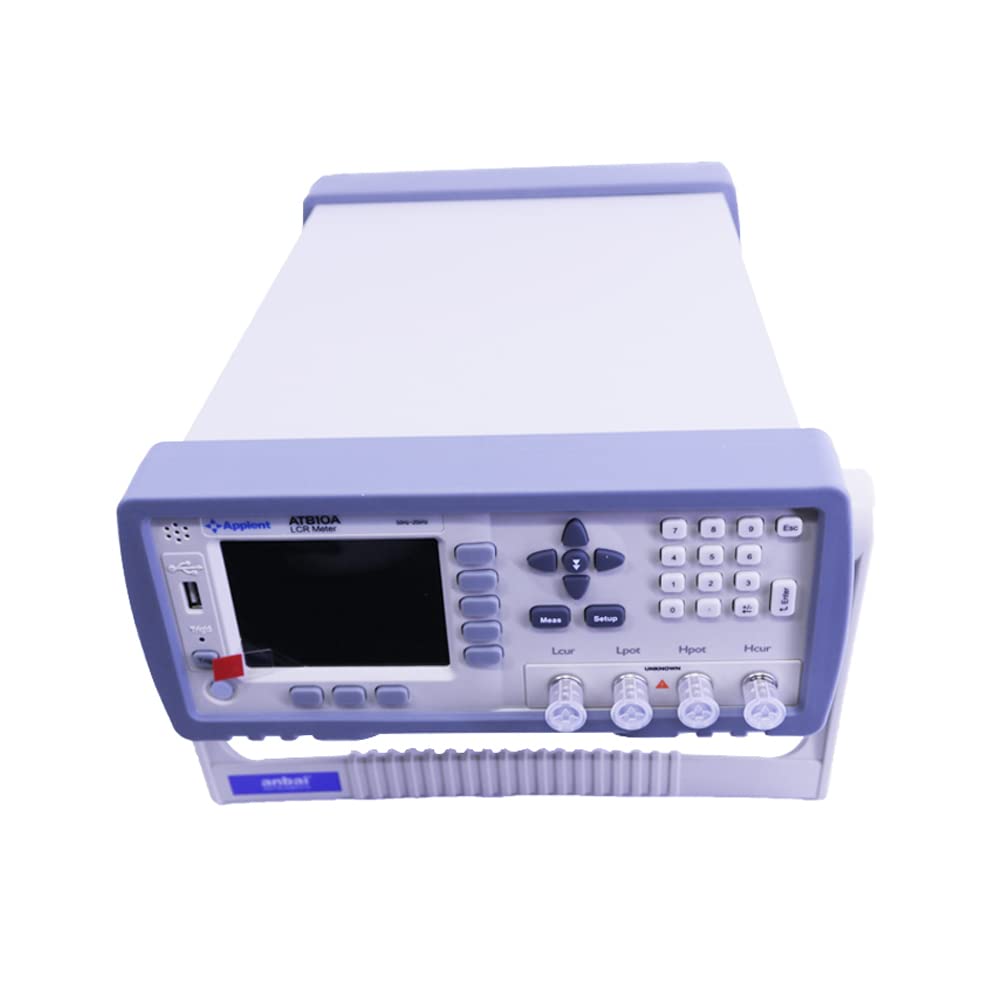

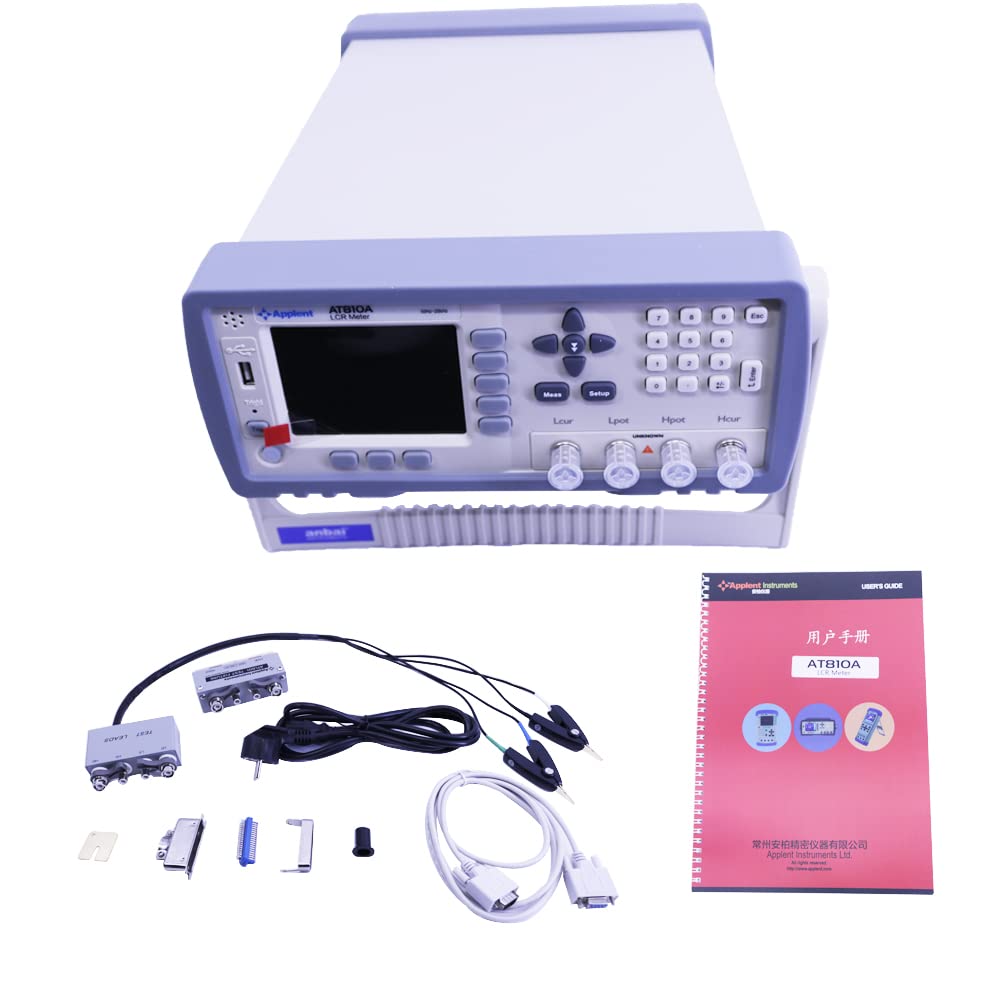

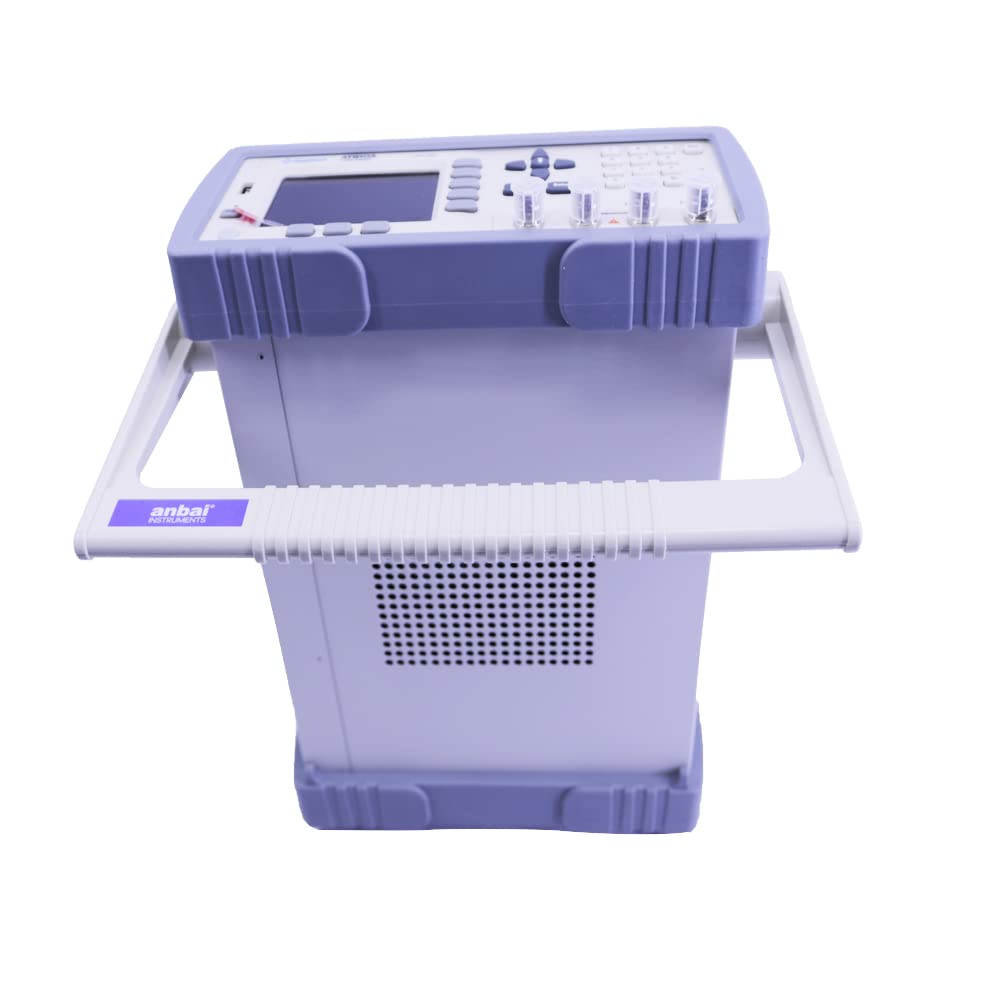

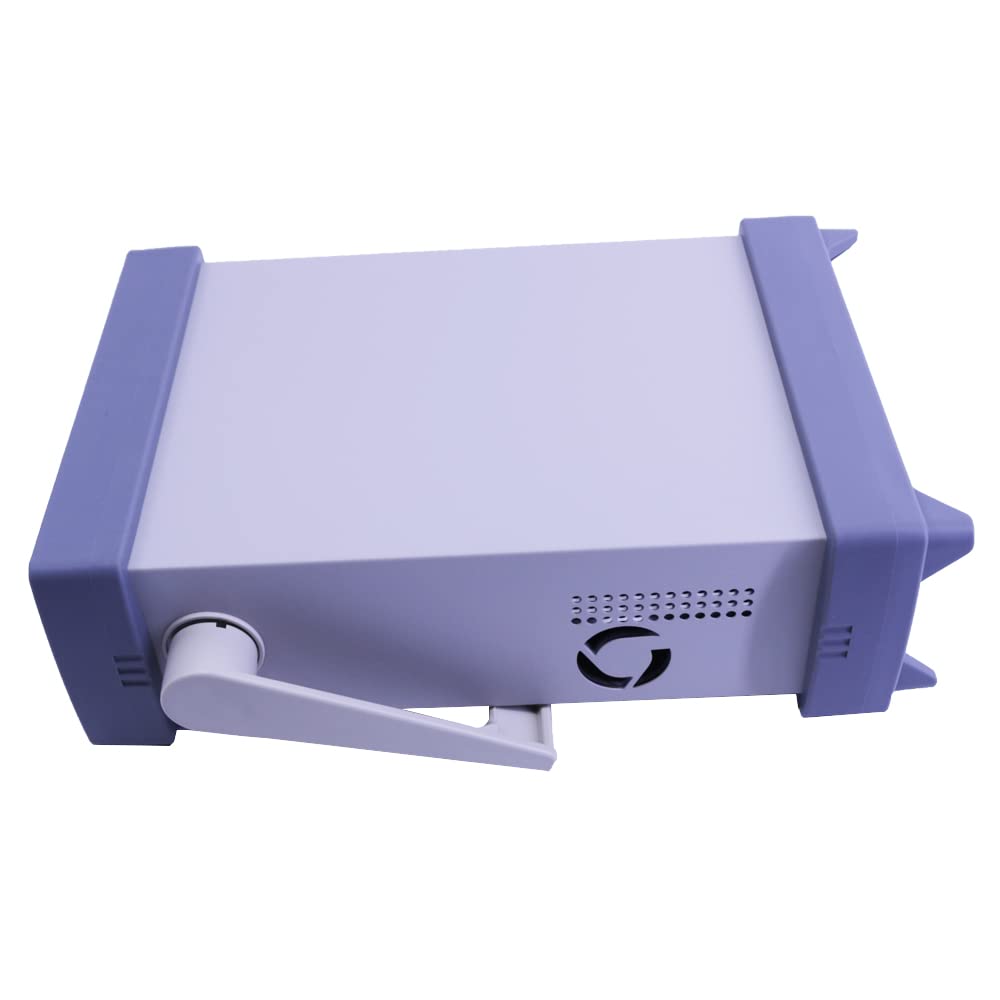

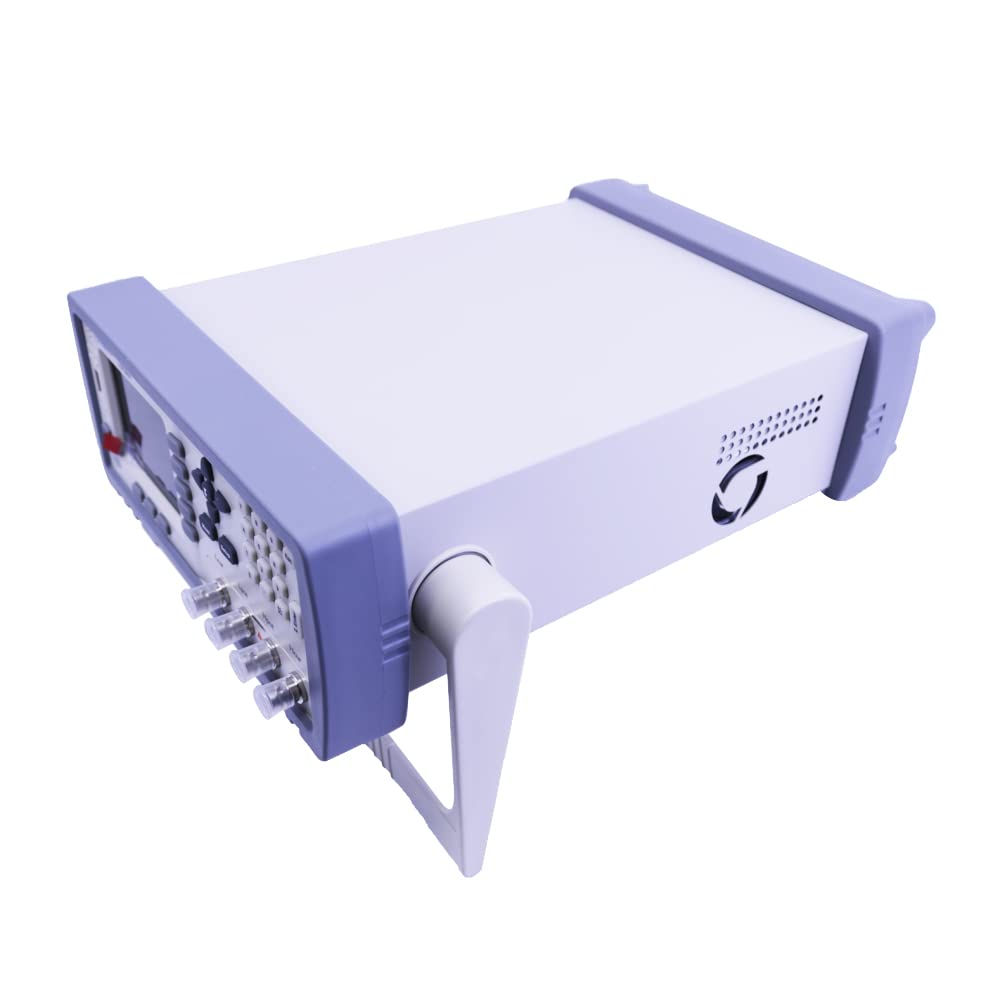

AT810A Smart LCR Meter 10Hz-20kHz (Resolution 0.001Hz) Electronic Component Analyzer

AT810A Smart LCR Meter 10Hz-20kHz (Resolution 0.001Hz) Electronic Component Analyzer

$990.00 USD
$990.00 USD
Sale Sold out
APPLICATIONS
Componets and materials measurement such as Inductor, Magnetic core, Ferrite core, Capacitor, Transformer and etc.

The AT810A is the use of a high-performance processors and highlight color LCD screen smart LCR Meter. Since the SMD technology makes AT810A portability. We rely on highly skilled technical, so that the instrument even more outstanding performance.

AT810A offers wide frequency range (10Hz~20kHz 0.001Hz Step), signal level (0.01V~2.00V,0.01V Step), auto range with 9 ranges, 30Ω or 100Ω constant output impedance and easy-to-use operation system.

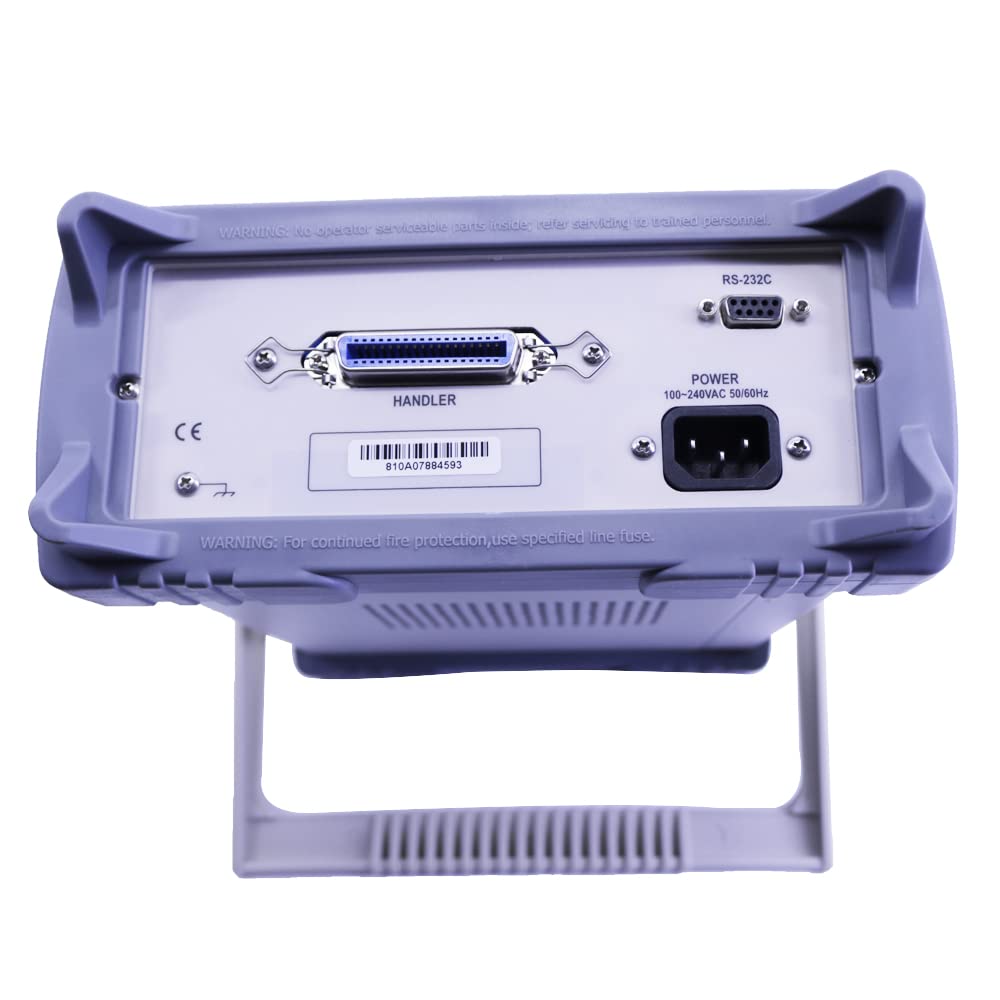

Built-in RS232C and handler interfaces help build an automatic component test system, communicate with the computer and analysis the test results.

FEATURES
TFT-LCD Display;
Correction: OPEN and SHORT;
View: ΔABS, Δ% or Sorting Result on 3rd Line;
Comparator Function: 10 files,6 bins: P1~P9,NG,AUX, HI, IN, LO;
Interface: RS232C and Handler;
Optional Interface: USB;
Test signal monitor: Vm and Im;
Avarage rate: 1~99times;

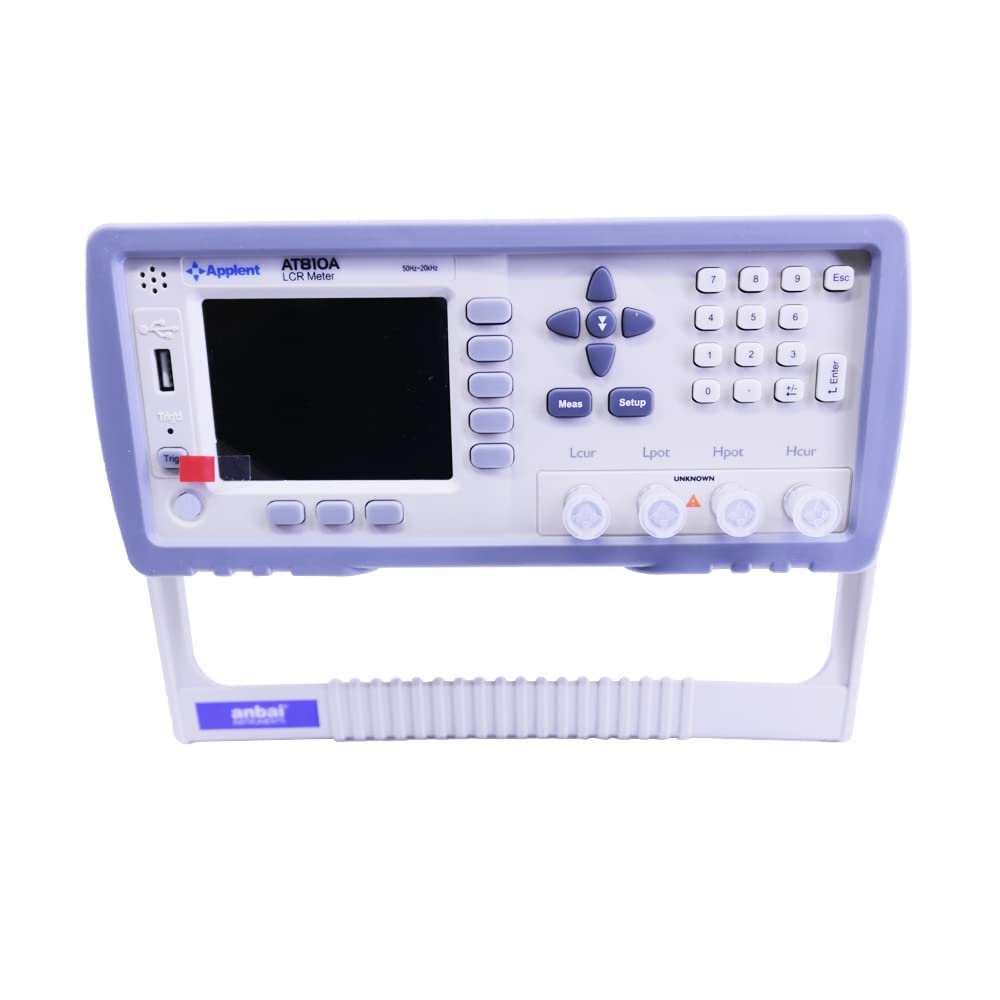

Measurement Terminal: 4 terminals;
Key lock function;


Test Functions

Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCR

Accuracy

0.05%

Measurement Frequency

10Hz~20kHz (Resolution 0.001Hz)

Measurement Range

AUTO/HOLD/NOMINAL 9 Ranges

Measurement Speed

30 times/s, 10 times/s, 3 times/s

Display Range

L: 0.00001μH-9999.99H
C: 0.00001pF – 9999.99μF
R,X,Z: 0.00001Ω - 99.9999MΩ
D, 0.00001 – 9.99999
Q: 0.00001 – 99999.9
Δ%: -999999% - 999999%
θ(deg): -179.999° -179.999°
θ(rad):-3.14159 – 3.14159
DCR: 0.00001Ω ~ 99.9999MΩ

Source Resistance

30Ω, 50Ω and 100Ω

Monitor Parameter

Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%

Display Reader

6 digits: 999999

Equivalent Circuit

Serial and Parallel

Signal Level

10.00mV~2.00V AC
100.0μA~20.00mA AC

Average

1~256

Trigger Mode

INT/HOLD/MAN/BUS

Trigger Delay

0.01ms~60s

Comparator

OK: 10-BINS NG:1-BIN
AUX: 1-BIN

List Test

10 Steps (Frequency/Voltage/Current)

Comparator Mode

SEQ/ABS/PER

Adjustment

OPEN/SHORT Zeroing (ALL,SPOT)

Files

built-in 10 files and USB Disk 10 files

Data Logger

9999 Log Files (.csv)

Beep Feature

OFF/PASS/FAIL

Interface

RS232/RS485*/USB*/HANDLER/GPIB*(OPTION)
(*RevE)

Protocol

SCPI/Modbus*
(*RevE)

Other Functions

AUTO LCZ

Power Supply

AC 100V-240V, 50Hz-60Hz
20W MAX

Dimension & Weight

264(W)x107(H)x350(L)
3kg, net
