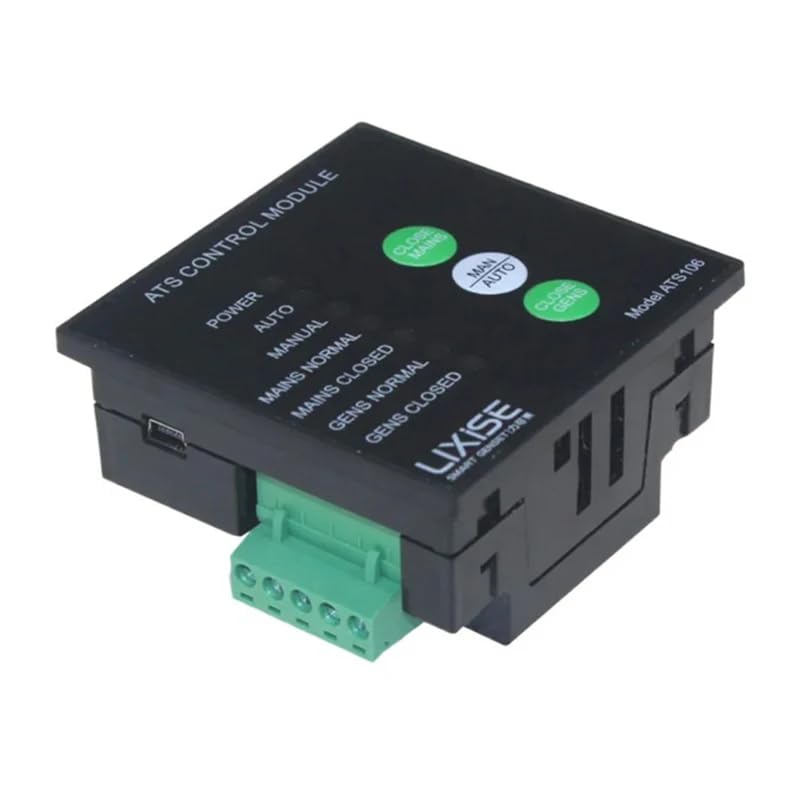

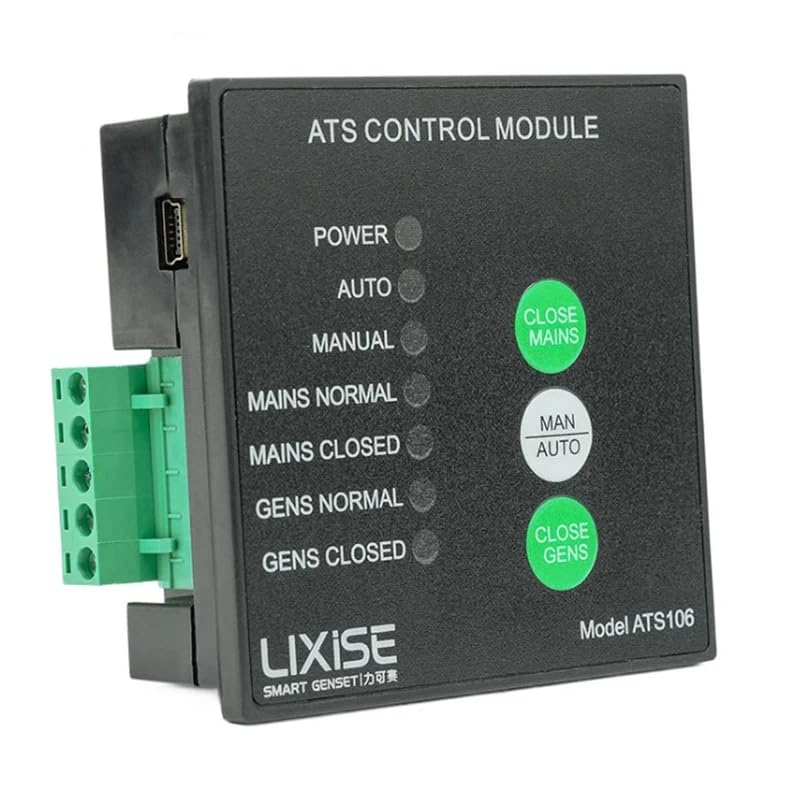

ATS106 Kit Original Diesel Generator ATS Controller Dual Power Automatic Transfer Switch Panel

Product description:

ATS106 dual power transfer controller is a mains / generator automatic switching control module, a microprocessor core, can accurately detect two single-phase voltage of the voltage appearing abnormalities (loss of power, overvoltage, undervoltage, over and under frequency) to make accurate judgments, the delay control ATS switch. Controller has issued mains abnormal delay start function generator signal.

Main features:

1,All the way to adapt to the way electricity generation ATS control

2,power supply range (8-35) VDC, able to adapt to different starting battery voltage generator environment

3,mains or power voltage threshold can be set, the normal time delay can be set, generator set start delay can be set

4,mains voltage is abnormal delay can be set, genset shutdown delay can be set

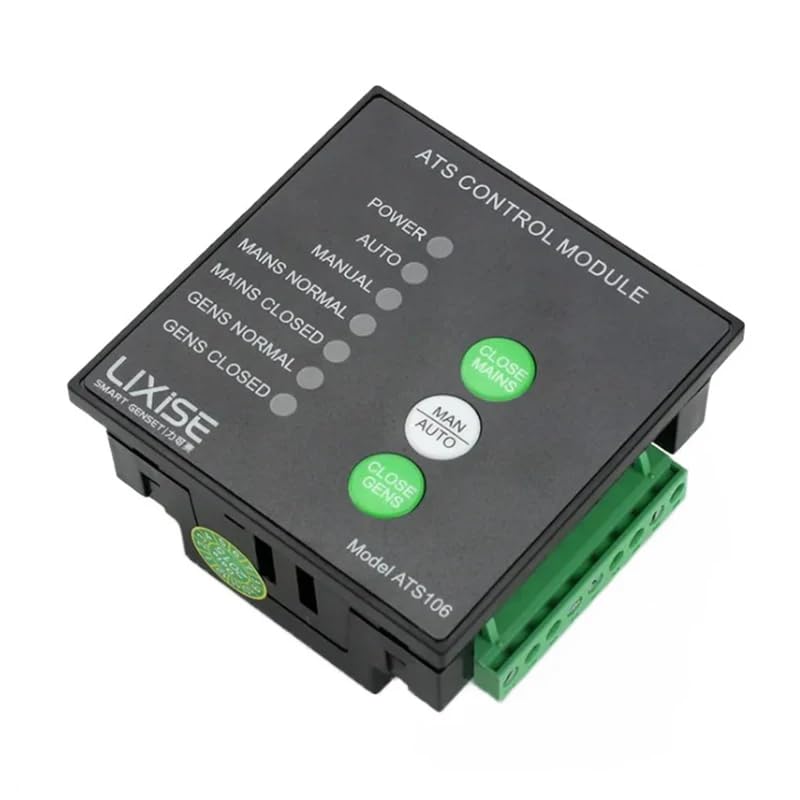

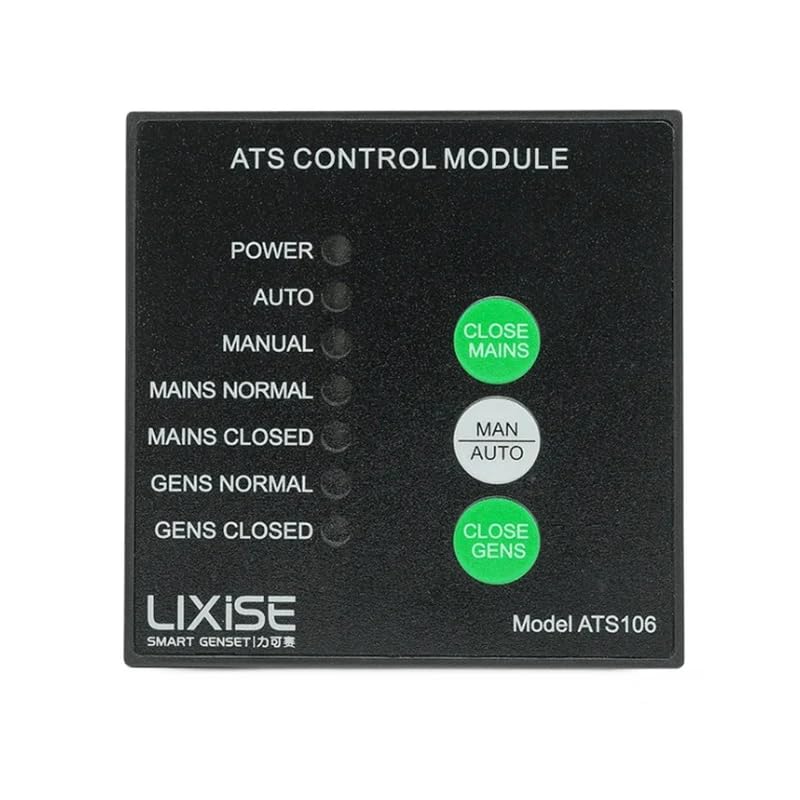

5,7 LEDs on the panel display operation and alarm status

6,switching relay contact capacity 16A 250VAC, can directly drive switching

7,Generator power relay (GNES START) output contact capacity 5A 250VAC, as passive contact

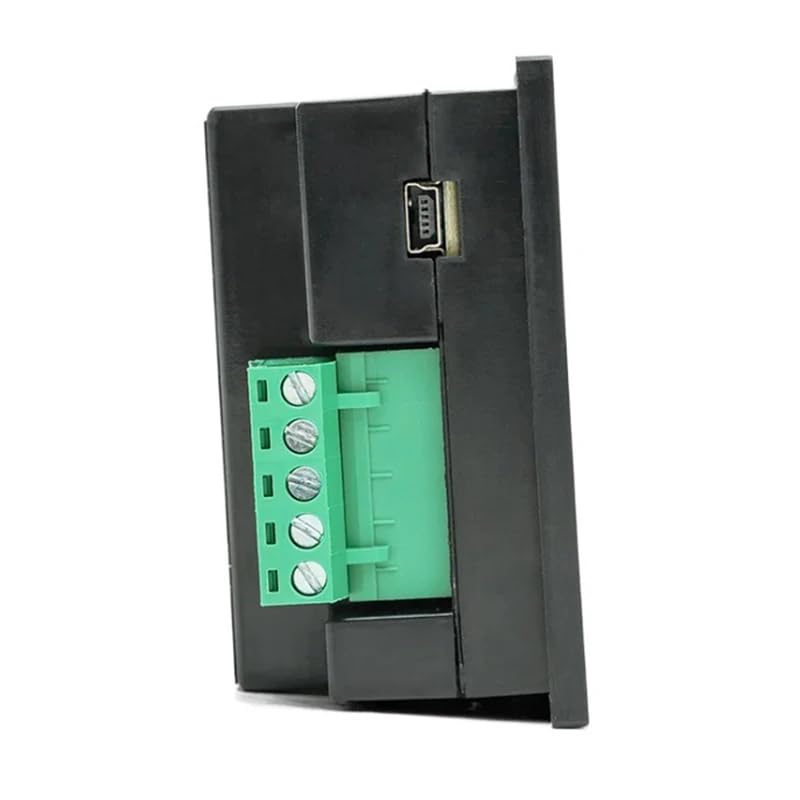

8,USB programming interface, working for all kinds of delay, power threshold can be set via a PC

Specifications:

DC supply: 8 to 35(1.5VA)

Single-phase AC input:  AC30~277V(+20%) 50/60Hz

Relay output:   Relay of close mains &close gens:16A 250VAC

                              Relay of start generator:5A 250VAC

Delay timers:   Mains Normal delay time:0~3600s

                              Mains Abnormal delay time:0~3600s

Gens Normal delay time: 0~3600s

Stat generator time:       0~3600s(after Mains is abnormal)

Close time:         0~20.0s

OVer close time:0~5.0s

Between close time:0~3600s

Critical value

      Mains under voltage:0~360V

     Mains over voltage:    0~360V

     Gens under voltage:  0~360V

     Gens ove frequency:  51.0~75.0Hz

Brand: Graigar

Color: Black

Features:

• 1. Adapted to ATS control of one power supply and one power generation system 2. The power supply has a wide range (8-35) VDC and can adapt to different starting battery voltage environments of generator sets.
• 3. The voltage threshold for mains or power generation can be set, the normal delay can be set, and the startup delay of the generator set can be set.
• 4. The delay of abnormal mains voltage can be set, and the delay of generator set shutdown can be set. 5. There are 7 LEDs on the panel that display various operating and alarm states.
• 6. The contact capacity of the switching relay is 16A 250VAC, which can directly drive the switch conversion. 7. The output contact capacity of the generator set start relay (GNES START) is 5A 250VAC, and it is a passive contact.
• 8 The USB programming interface allows for various delays and battery thresholds required for operation to be set on a PC.

model number: ATS106

Part Number: ATS106
