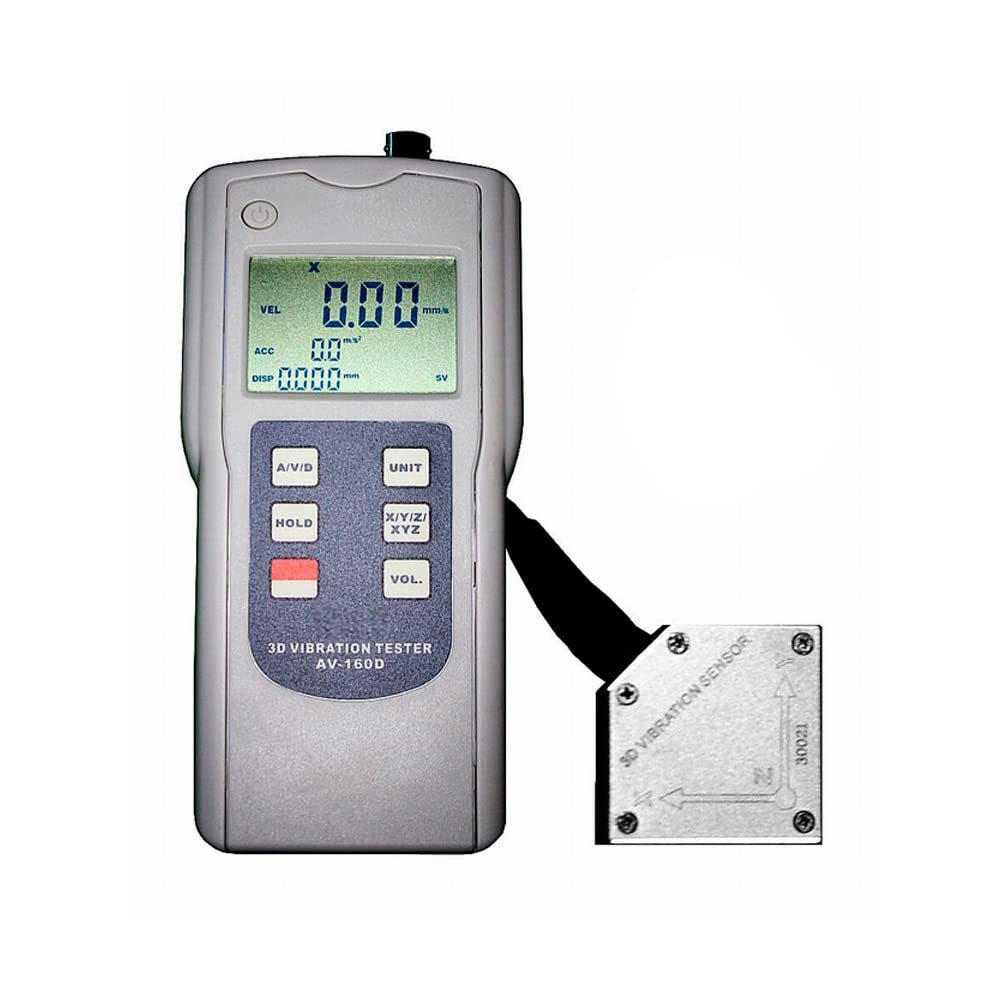

AV-160D 3D-Vibration Tester Digital Vibration Tester Velocity 10Hz~1kHz
AV-160D 3D-Vibration Tester Digital Vibration Tester Velocity 10Hz~1kHz
无法加载取货服务可用情况
Product Description
The 3D Vibration Tester Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned. Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement It has a bearing condition measurement function.
Product Feature
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* AC output socket for headphones and recording.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
| Vibration Sensor |
3-Axis Piezoelectric accelerometer |
| Axial Vibration |
Any one axis of X ,Y,Z or 3 axes of XYZ |
| Accuracy | ±5%+2 digits |
| Measurement Range | Displacement : 0.001-4.000 mm equivalent peak-peak / 0.04-160.0 mil |
| Velocity : 0.1-400.0 mm/s true RMS / 0.004-16.00 inch/s | |
| Acceleration : 0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g | |
| Frequency Range | Displacement : 10Hz. ~ 1kHz. |
| Velocity :10Hz. ~1kHz. | |
|
Acceleration: 10Hz. ~ 10kHz. |
|
| Operating Conditions | Temperature : 0-50 ℃ |
| Humidity : below 95% RH | |
| Analogue Output | AC output 0~2.0V peak full scale (load resistance: above 10k) |
| Power Supply | 4x1.5vAAA (UM-4) Battery |
| Size | 140x70x30mm |
| Weight | 130g (Not including Batteries) |
Product Accessories
|
Standard Accessories |
Main Unit |
|
Magnetic suction seat |
|
| Probe (cone) / Probe (spherical) | |
| Portable box | |
| Brochures | |
|
Piezoelectric sensor |
|
| Carrying Case | |
| Operation Manual |
