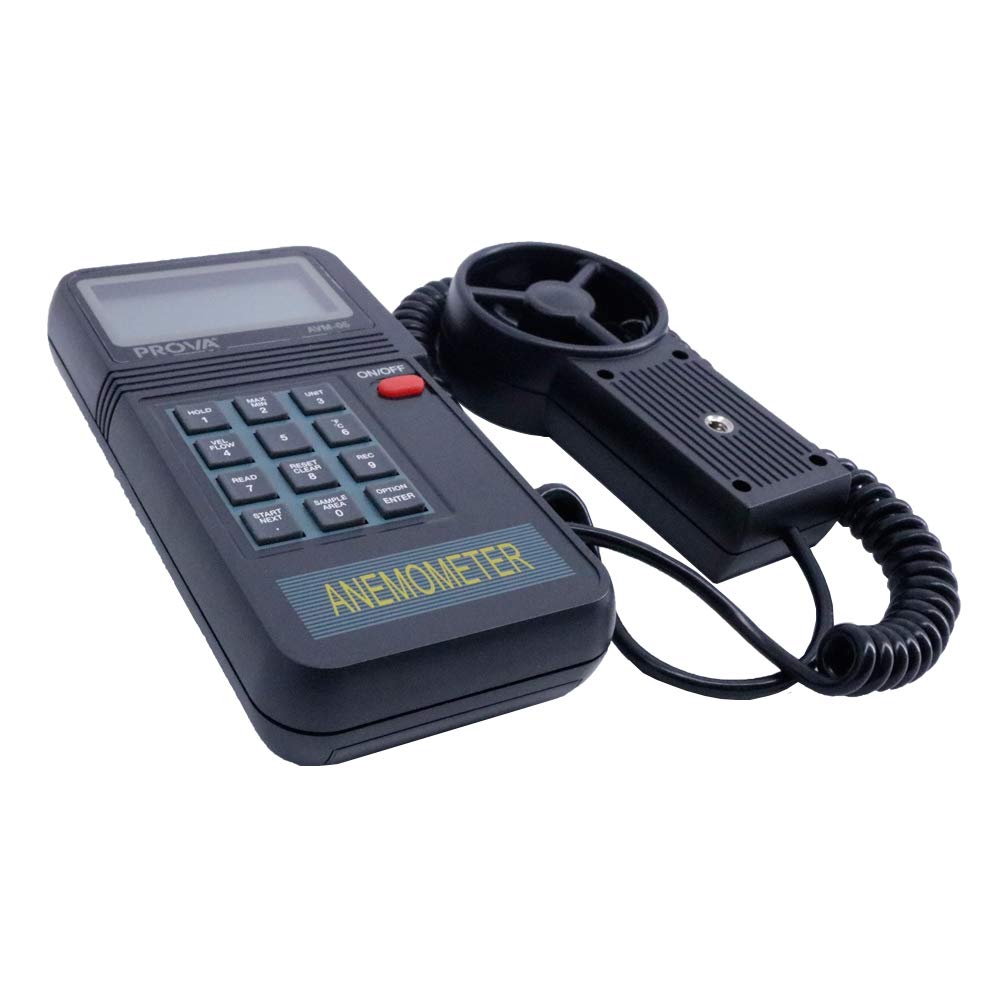

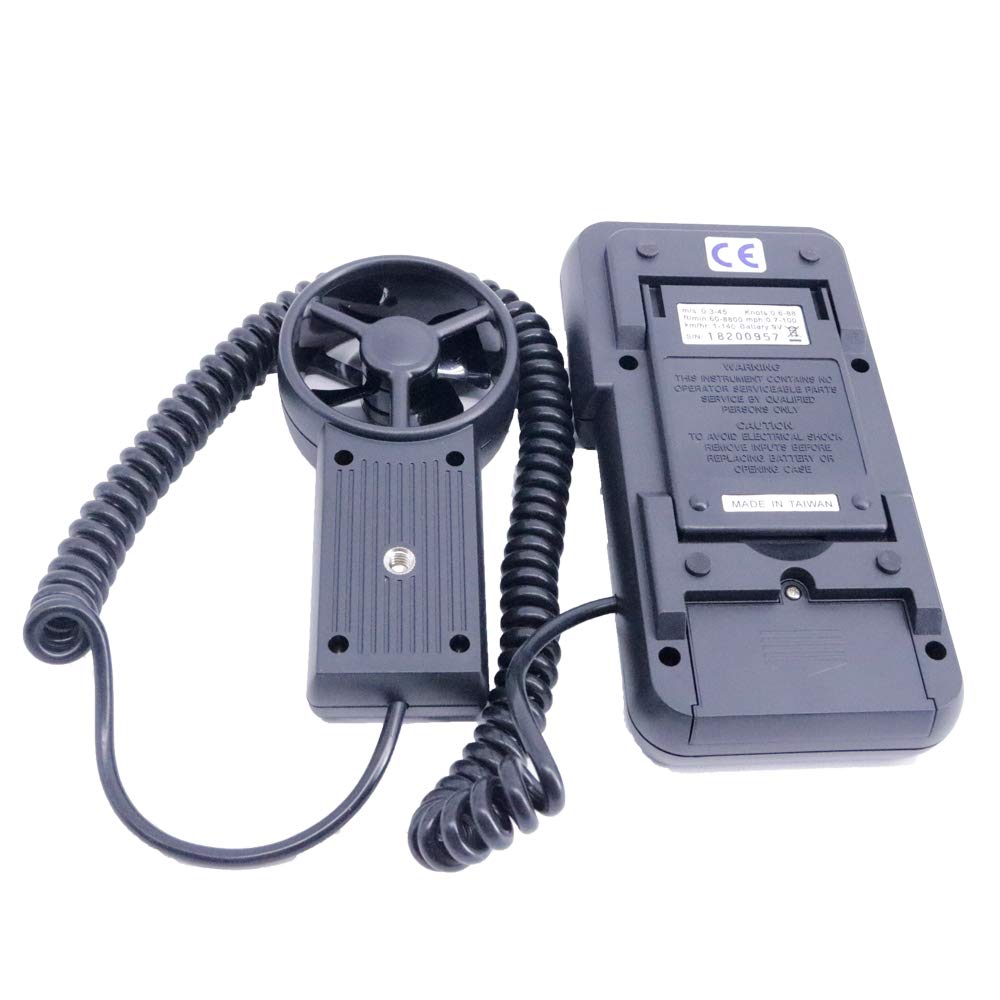

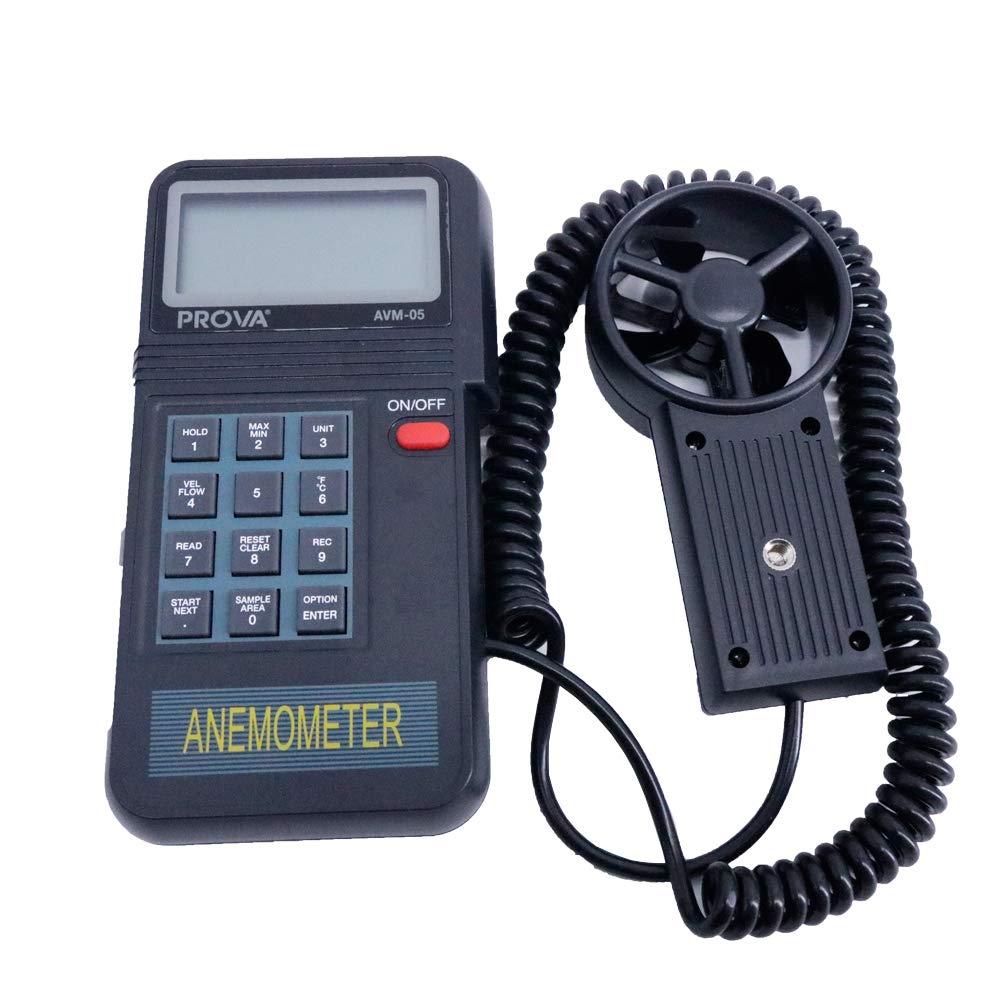

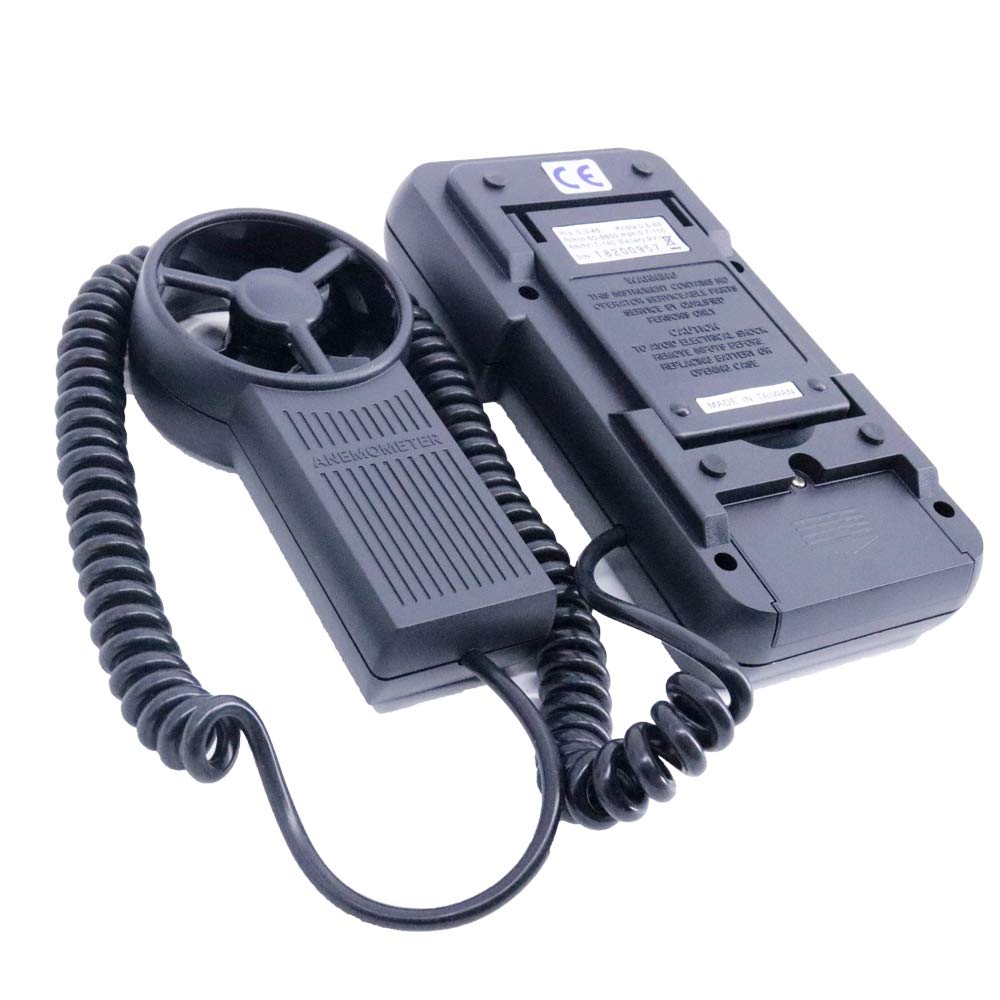

AVM-05 Digital Anemometer K Type Thermocouple Air Flow Tester Temperature Meter

AVM-05 Digital Anemometer K Type Thermocouple Air Flow Tester Temperature Meter

$255.00 USD
$255.00 USD
促销 售罄

Features:

1.Sensitive and accurate (ultra low friction jewel bearing)
2.Flow (CMM, CFM)
3.Velocity (m/s, ft/min, knots, km/hr, mph)
4.One shot or continuous recording
5.Sampling time set by keypad
6.Ergonomic and easy-to-use design
7.Read while measuring (detached vane)
8.LCD dual display (VEL + Temperature,FLOW + AREA)
9.Large 17mm 3 /2 digits LCD
10.Detachable 52mm (diameter) van head
11.2 meters coiled cable and mounting nut for long extension
12.Built-in low battery indicator.
13.Hold/ Max/ Min functions.



Electrical Specifications: (23℃±5℃)

Range of Wind Velocity:

Units Range Resolution Threshold Accuracy
m/s 0.0-45.0 0.01 0.5 ±3% ±0.3
ft/min 0.0~8800 2 60 ±3% ±20
knots 0.0~88.0 0.02 0.6 ±3% ±0.2
km/hr- 0.0~140.0 0.04 1 ±3% ±0.4
mph 0.0~100.0 0.02 0.7 ±3% ±0.2
•m/s : meter per second                       •ft/min : feet per minute
•knots : nautical miles per hour              •Km/hr : Kilometers per hour
•mph : miles per hour

Unit Conversion table:
  m/s ft/min knots Km/hr mph
1 m/s 1 196.87 1.944 3.60 2.24
1 ft/min 0.00508 1 0.00987 0.01829 0.01138
1 ft/min 0.5144 101.27 1 1.8519 1.1523
1 Km/hr 0.2778 54.69 0.54 1 0.6222
1 mph 0.4464 87.89 0.8679 1.6071 1


Range of Temperature:
Unit Range Resolution Accuracy
 ℃ 0.0~45.0 0.2 +/-1.0
 ℉ 32.0~113.0 0.36 +/-1.8



 Flow: (Auto-range, CMM: 0 - 45.00 m/s, CFM: 0 -8800 ft/min)

  Range Resolution Area
CFM (ft3/min) 0 - 999900 0.001 - 100 0.001- 9999
CMM (m3/min) 0 - 999900 0.001 - 100 0.001- 9999





General Specifications:

Bearing: Sapphire jewel bearing
Temperature sensor: K-type thermocouple
Mounting Nut: 1/4" x 20
Operating Temperature: Meter: 0 °C ~ 50°C (32 °F ~ 122°F) Vane: 0°C ~ 60°C (32 °F ~ 140°F)
Operating Humidity: Less than 80% RH
Operating Pressure: 500 mB ~ 2 Bar
Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption: Approx. 3 mA

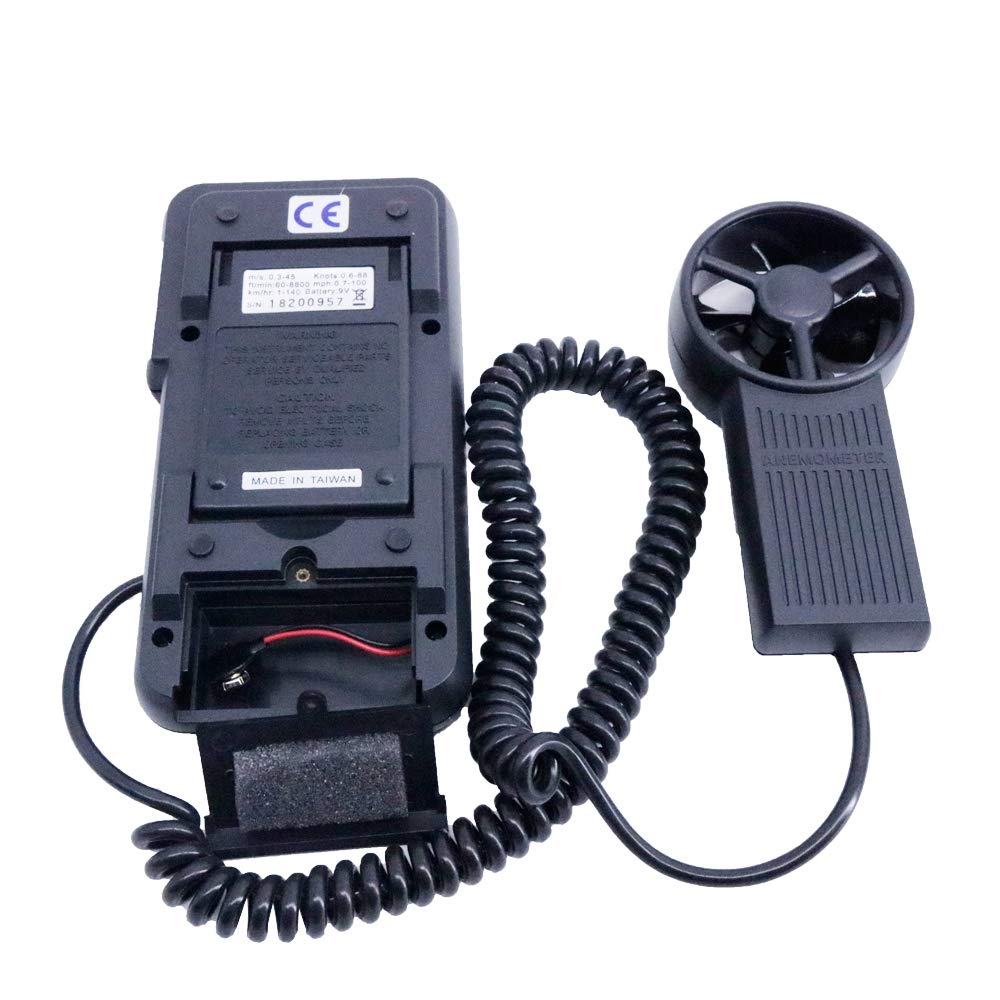

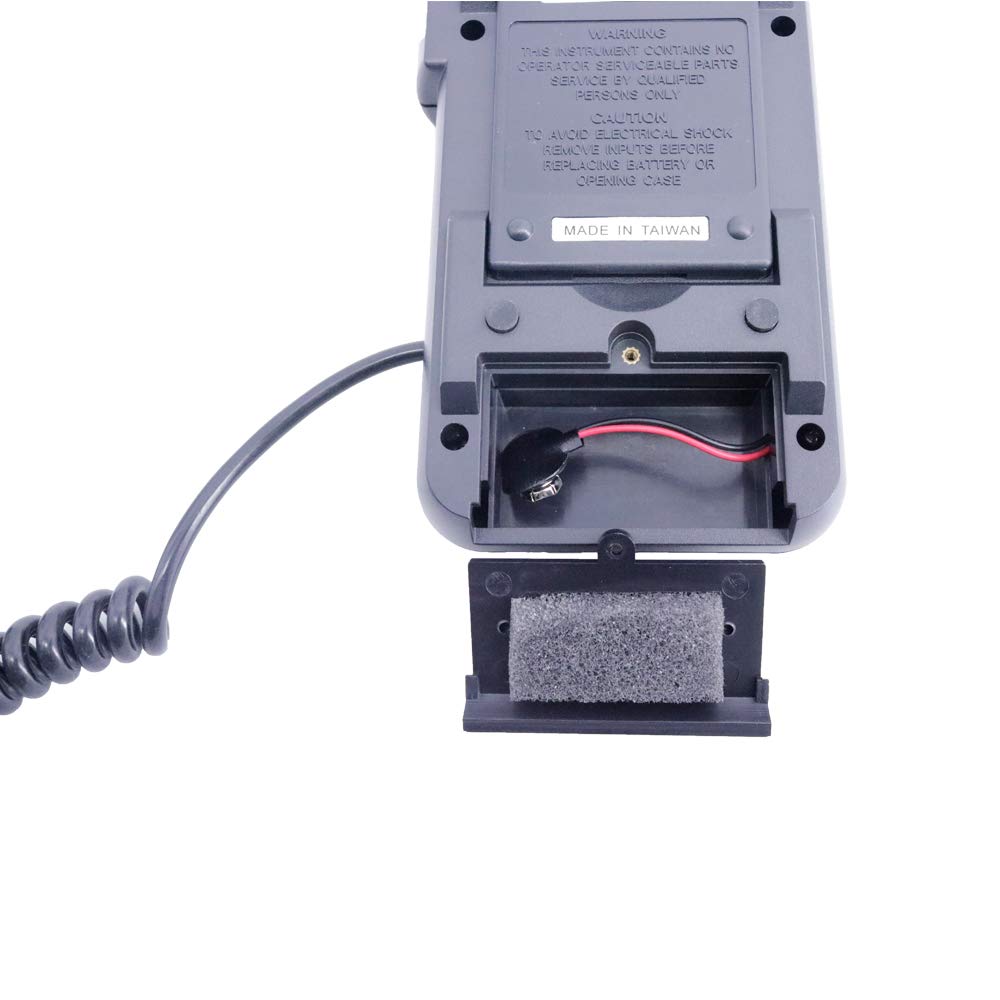

Battery Type: 9V
Battery Life: 50 hours (for 300mA-hrs battery)
Averaging Period for Wind Speed Measurement: m/s 0.6 sec.(approx.) ft/min 1.2 sec.(approx.) knots 1.2 sec.(approx.) km/hr 2.2 sec.(approx.)
Dimension: Meter 88x 168x 26.2mm (3.46"x 6.61"x 1.03")
Dimension: Vane 66x 132x 29.2mm (2.60"x 5.22"x 1.15")
Weight: 350g / 12.34oz (battery included)

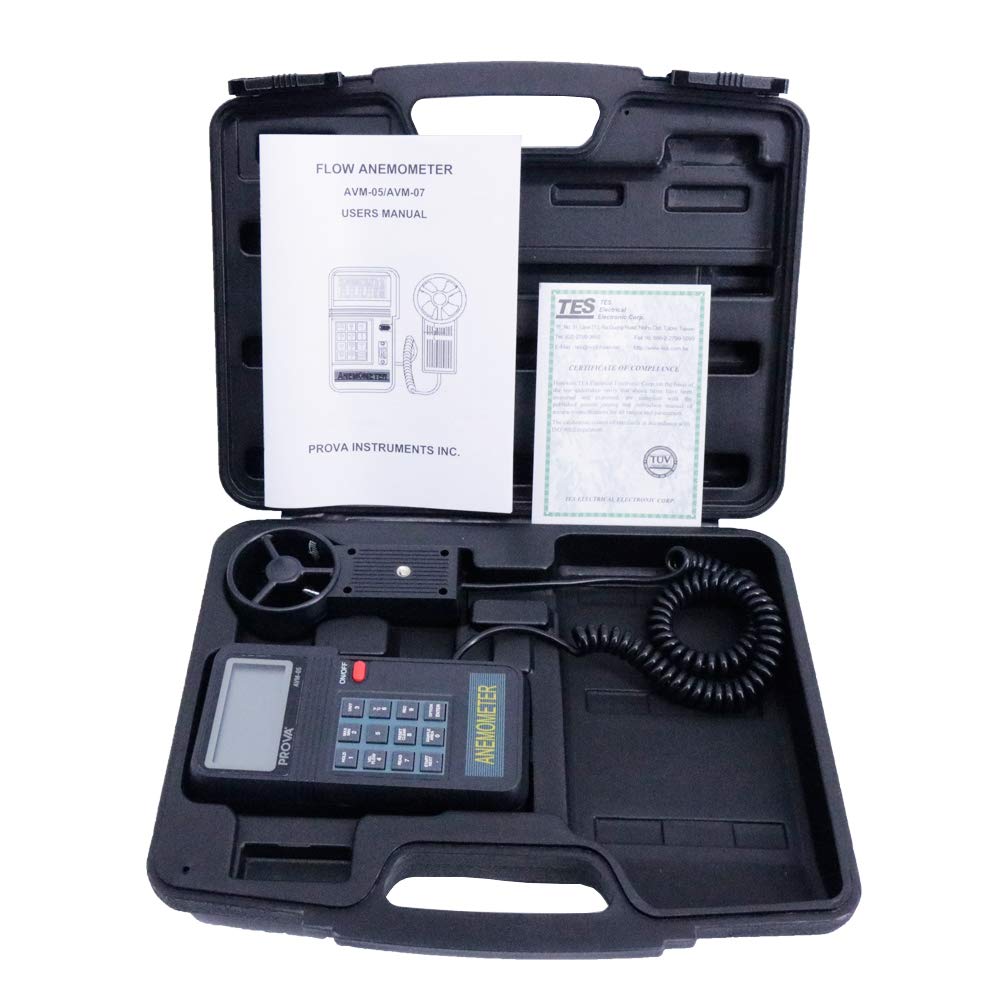

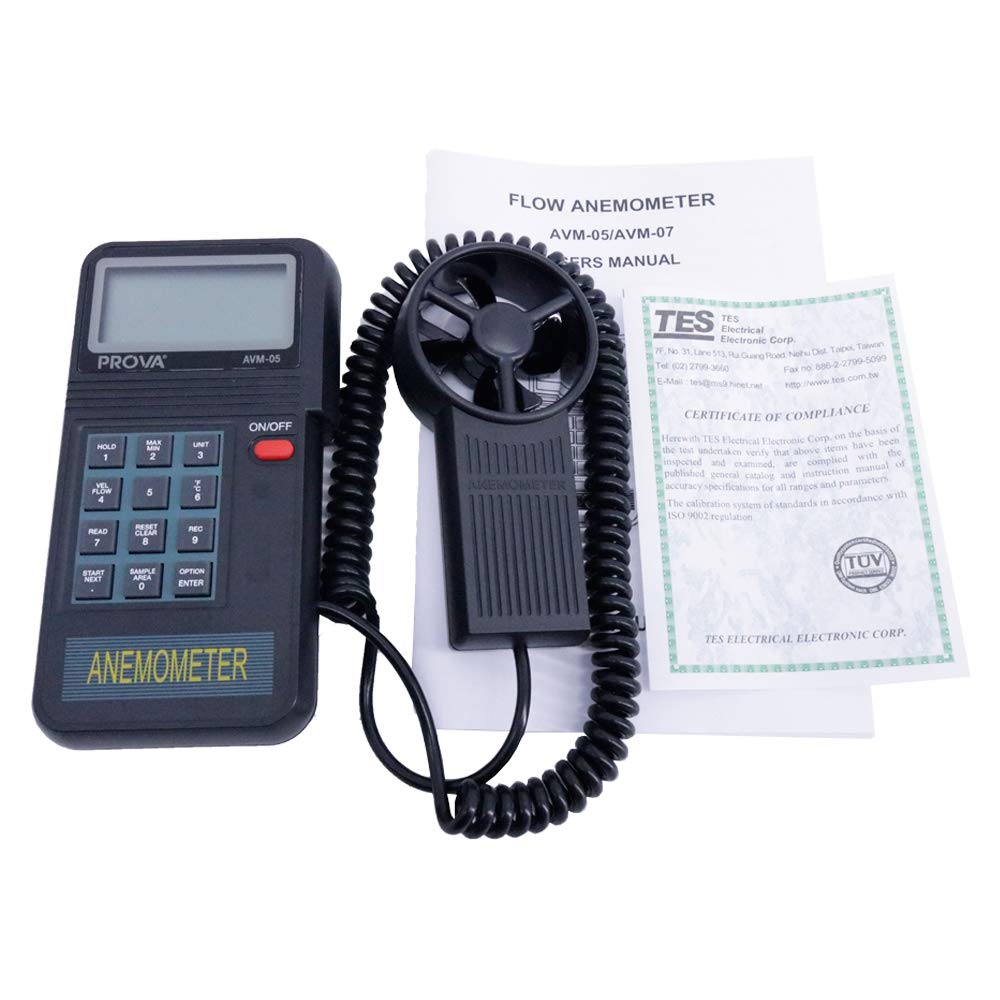

Accessories:

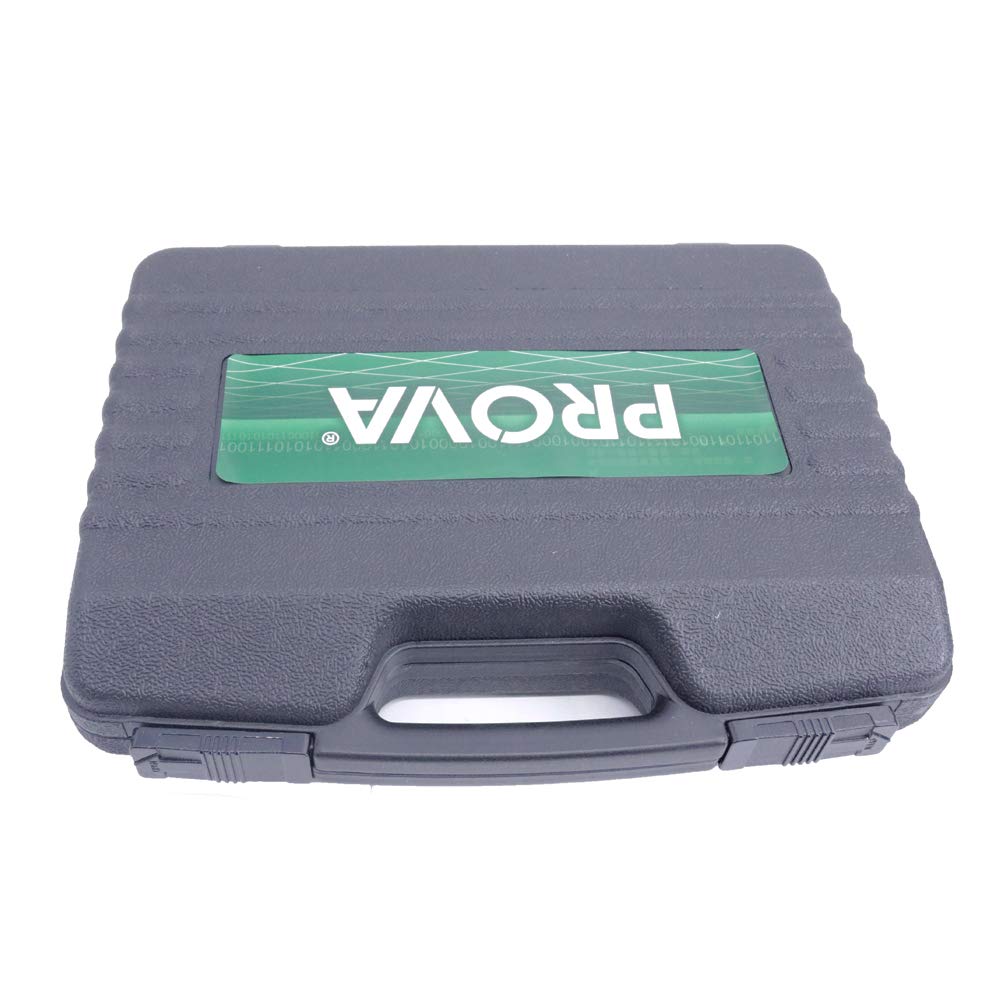

Carrying case x 1

Users manual x 1
