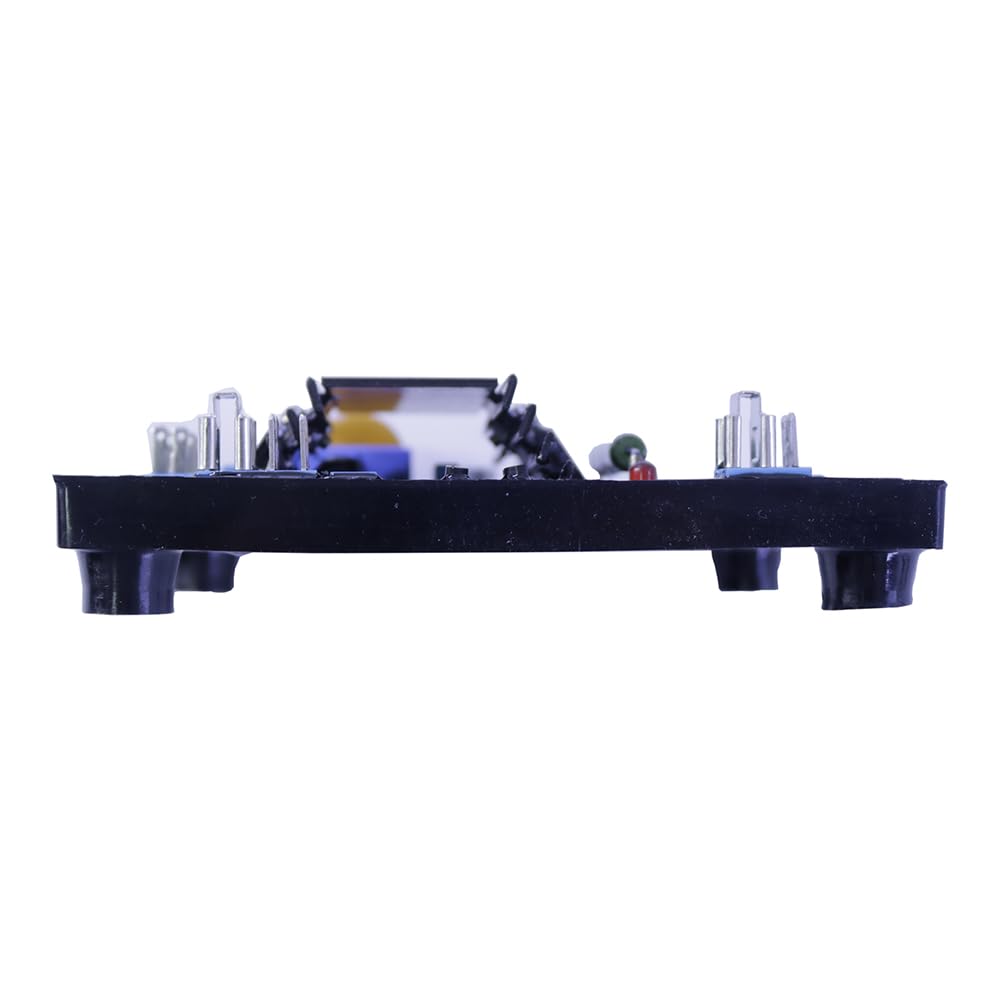

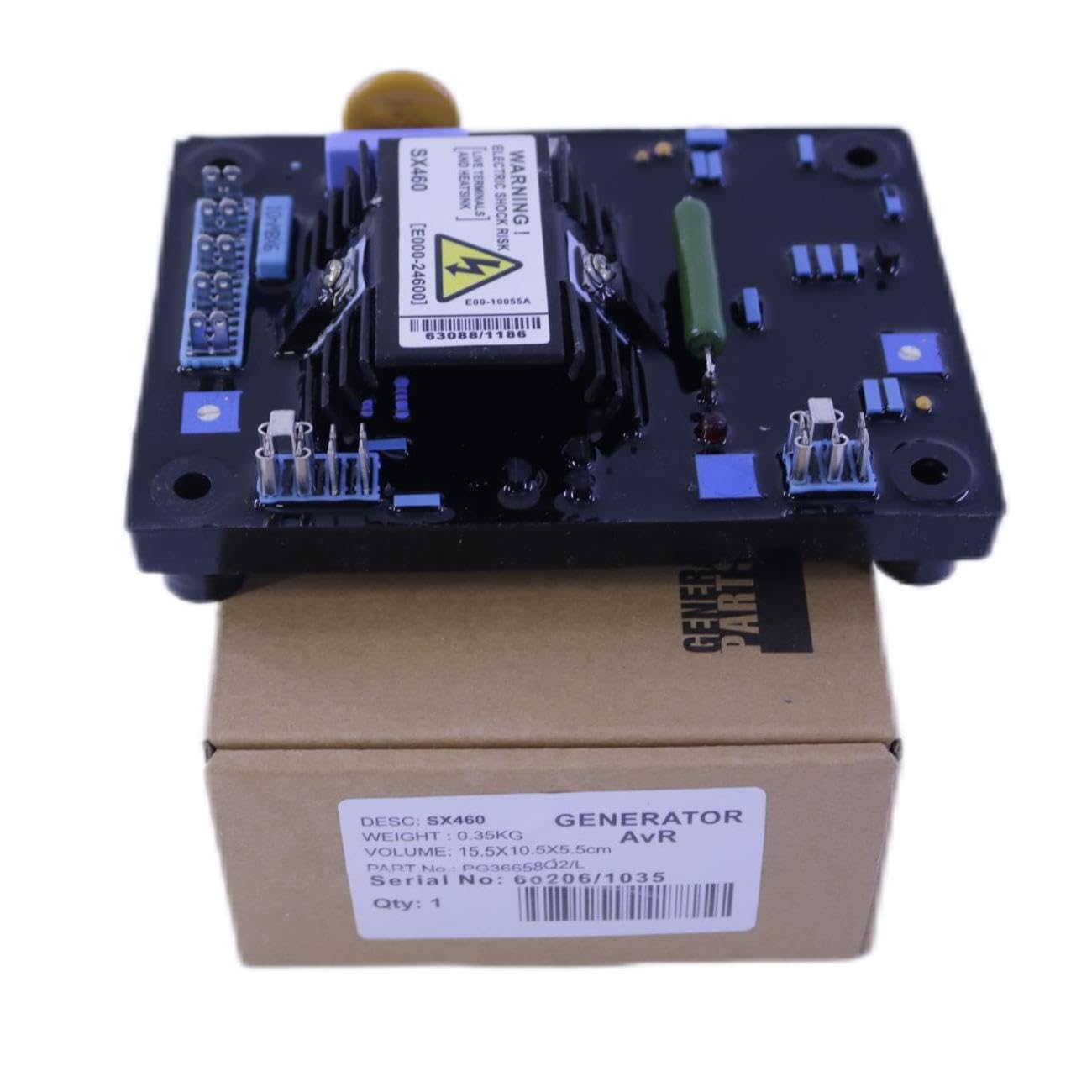

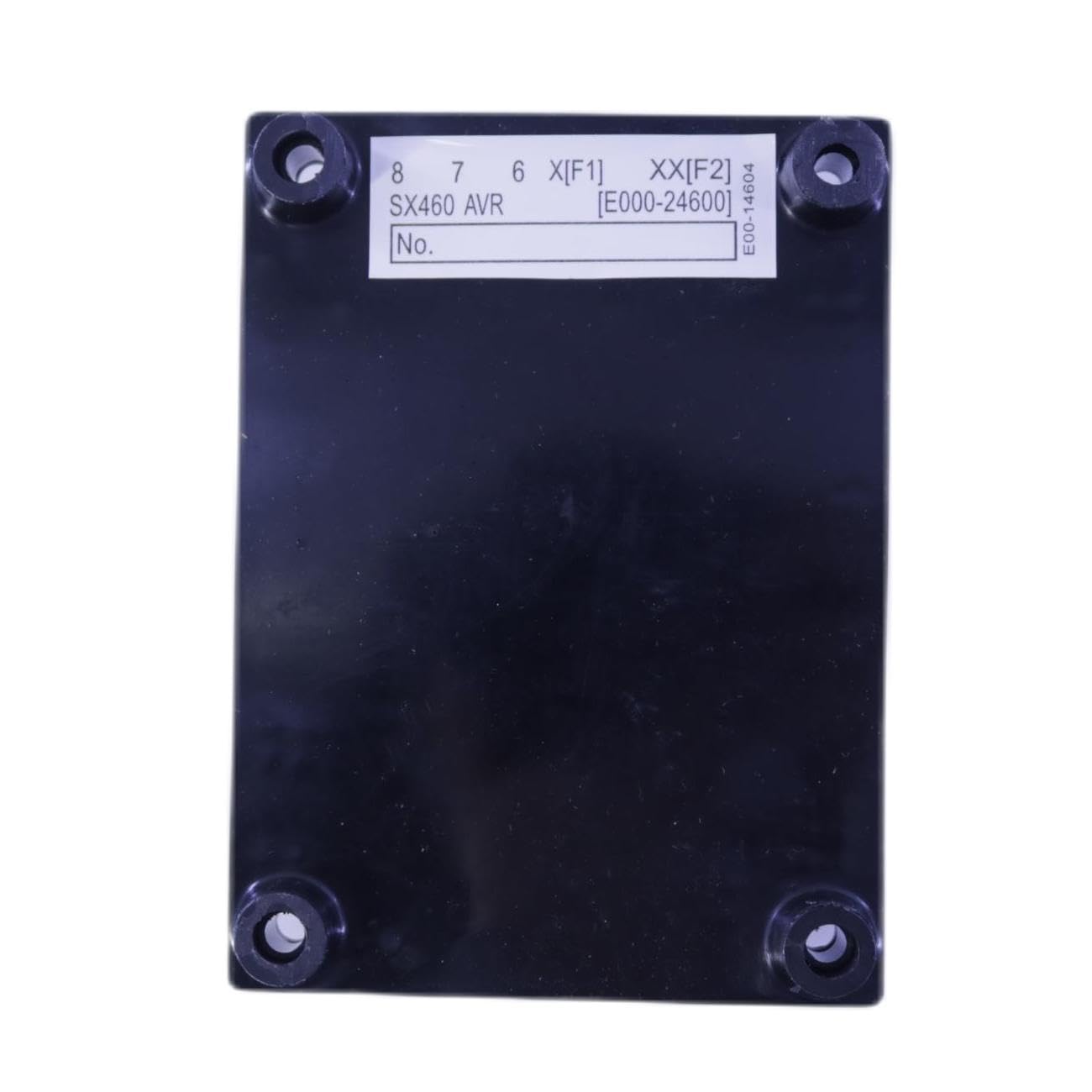

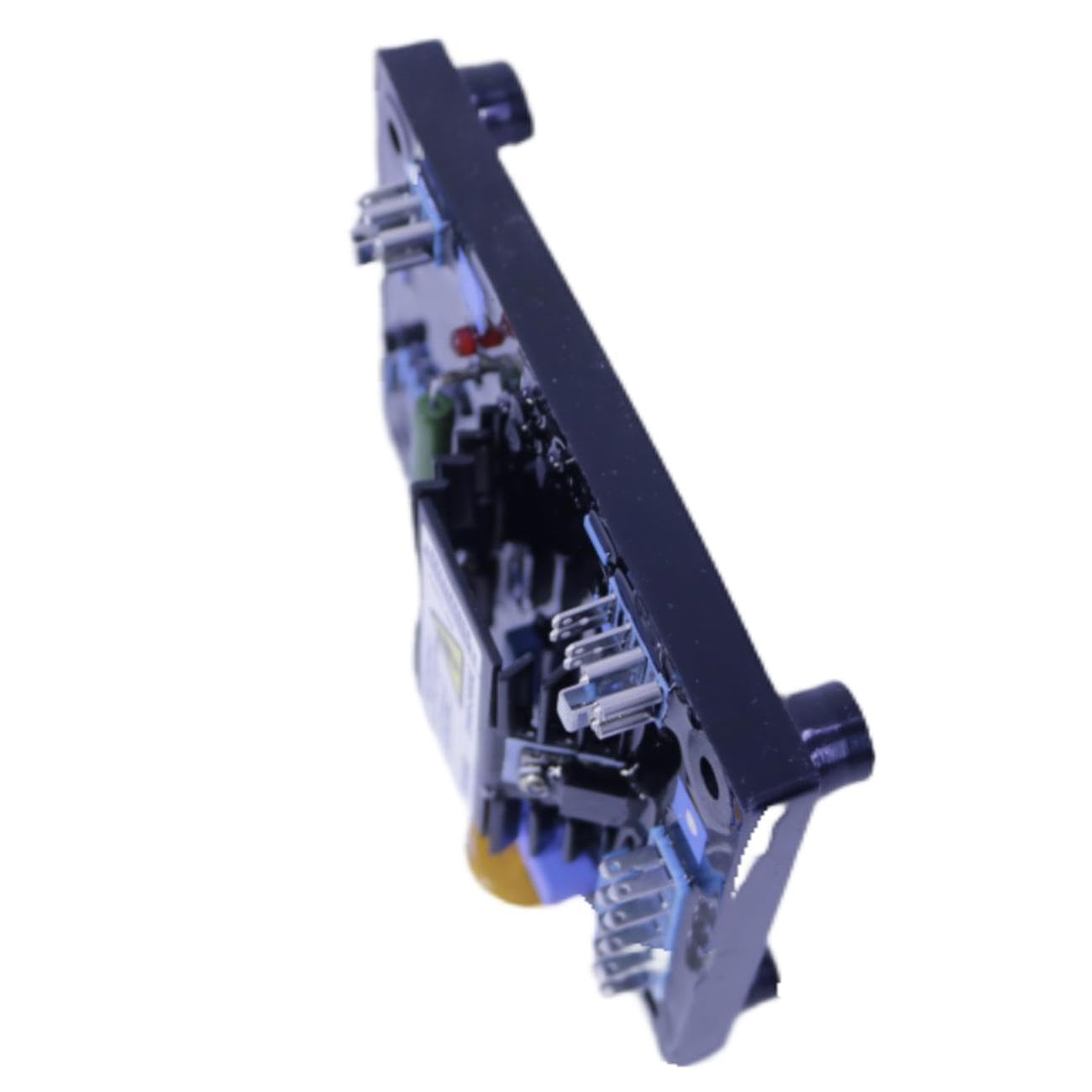

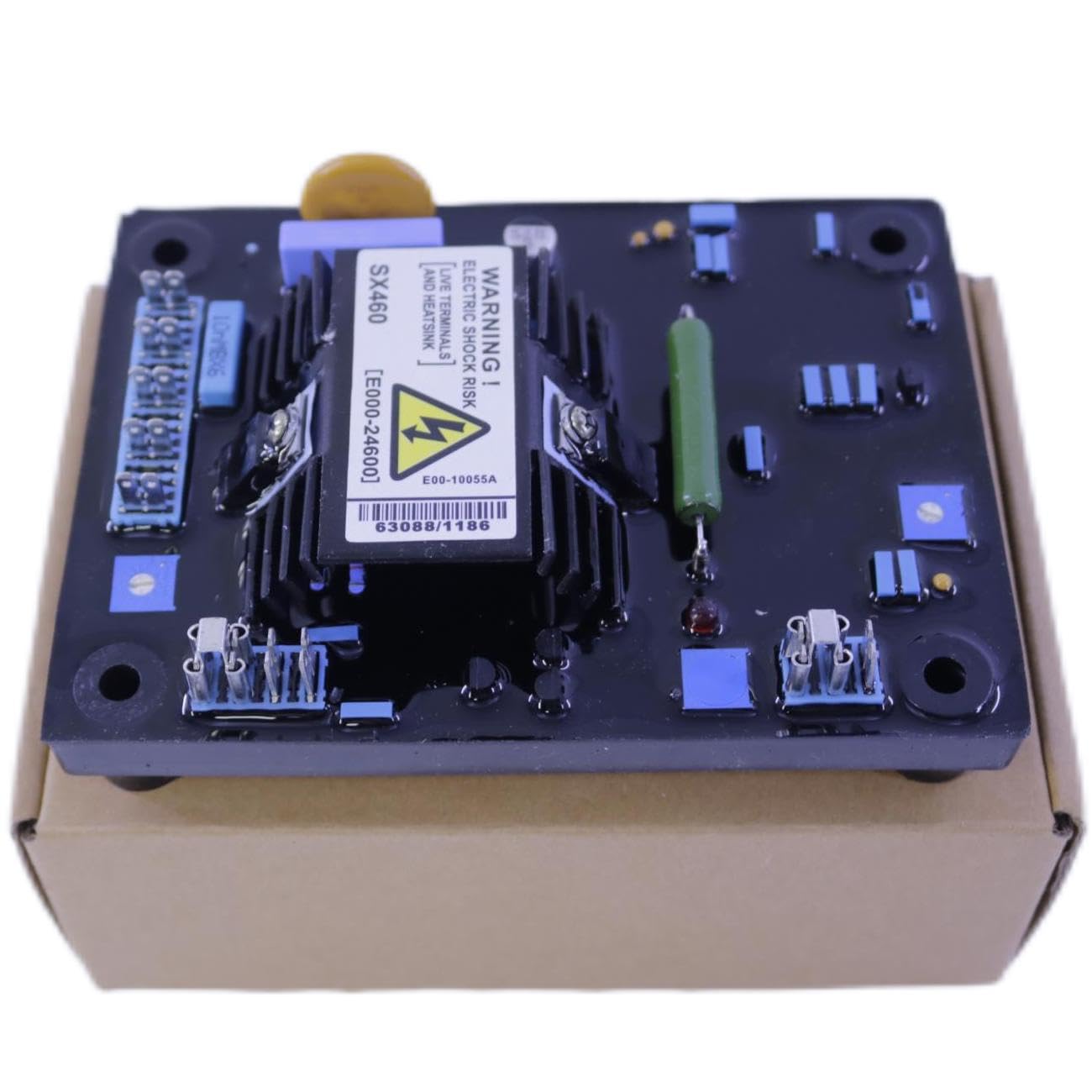

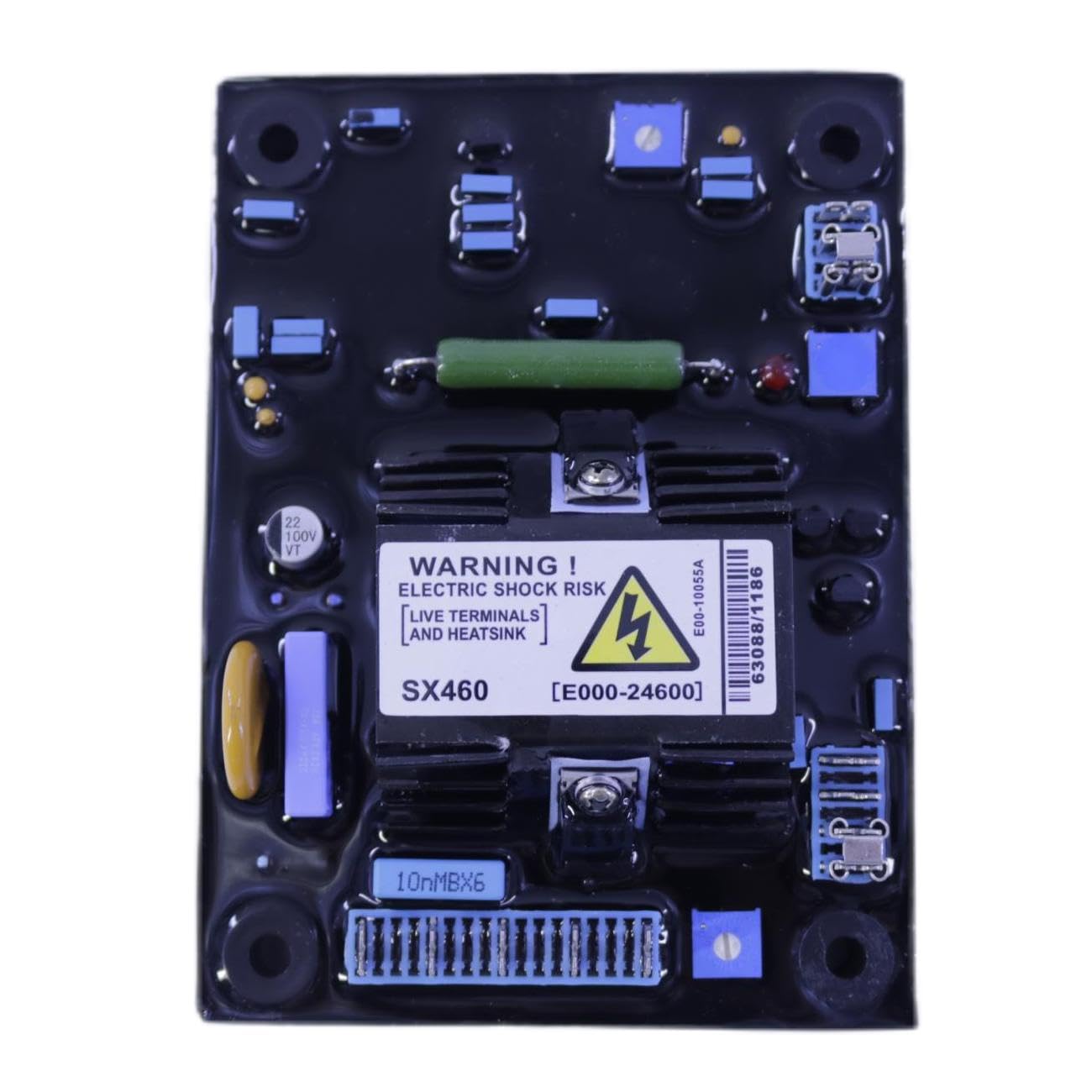

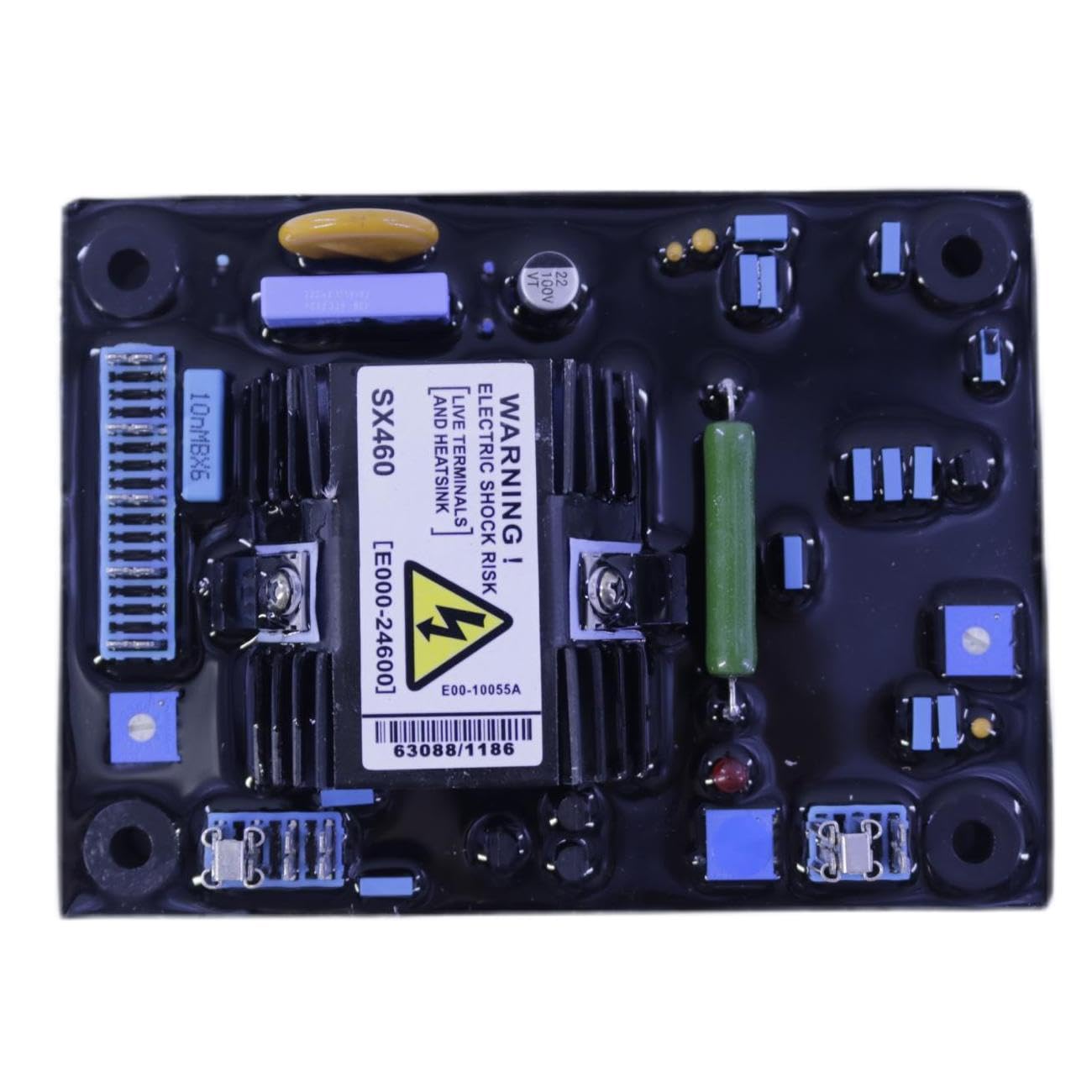

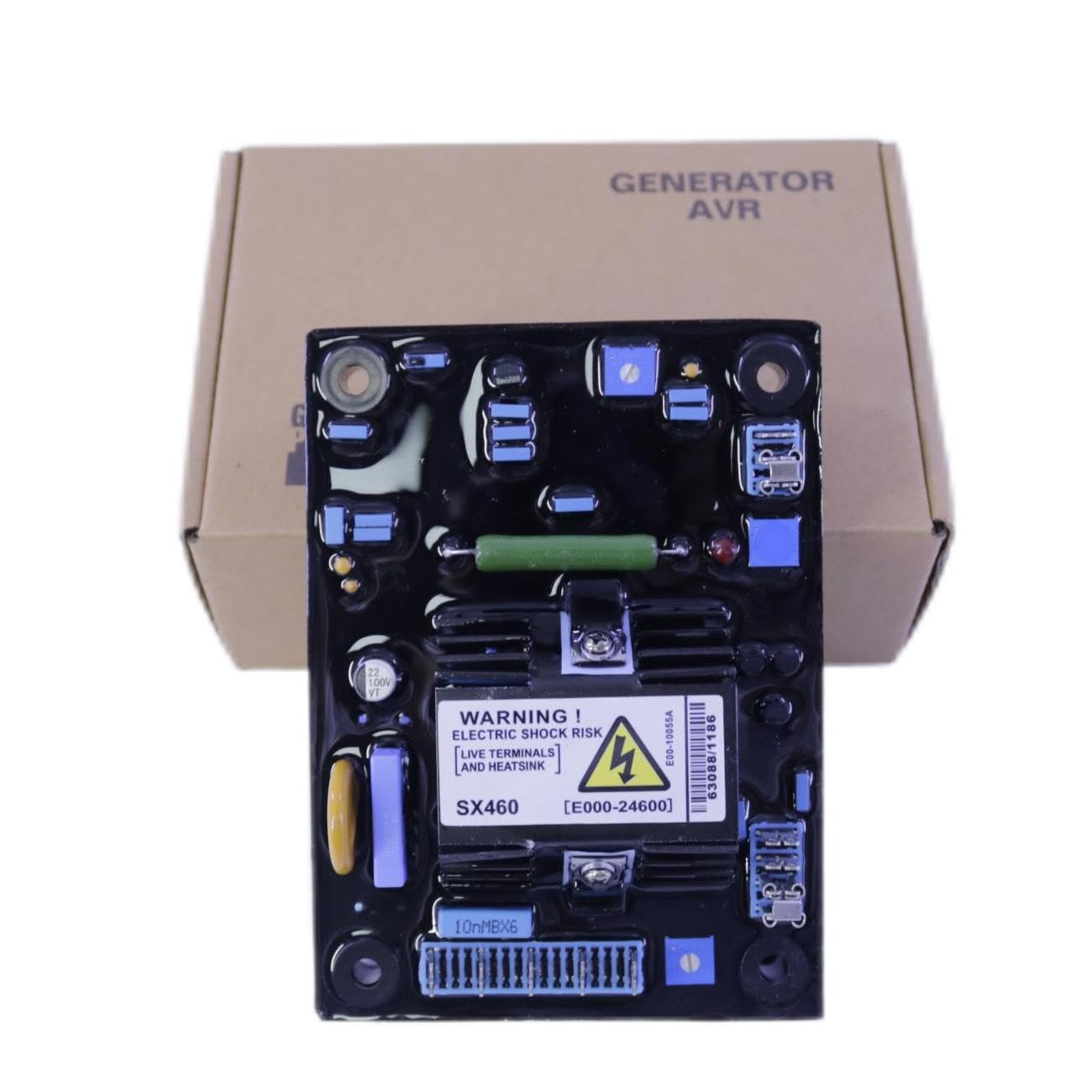

AVR SX460 Generator Automatic Voltage Regulator Half Wave Phase-Controlled

Features:

• SX460 is a half wave phase-controlled thyristor type Automatic Voltage Regulator (AVR)
• INPUT:Voltage jumper selectable 95-132V ac or 190-264V ac
• Frequency 50-60 Hz nominal
• OUTPUT:Voltage max 90V dc at 207V ac input
• OUTPUT:Current continuous 4 A dc

Details: SX460 is a half wave phase-controlled thyristor type Automatic Voltage Regulator (AVR)

INPUT

Voltage jumper selectable 95-132V ac or 190-264V ac

Frequency 50-60 Hz nominal

OUTPUT

Voltage max 90V dc at 207V ac input

Current continuous 4 A dc

intermittent 6A for 10 secs

Resistance 15 ohms minimum

Regulation +/- 1.0% (with 4% engine governing)
