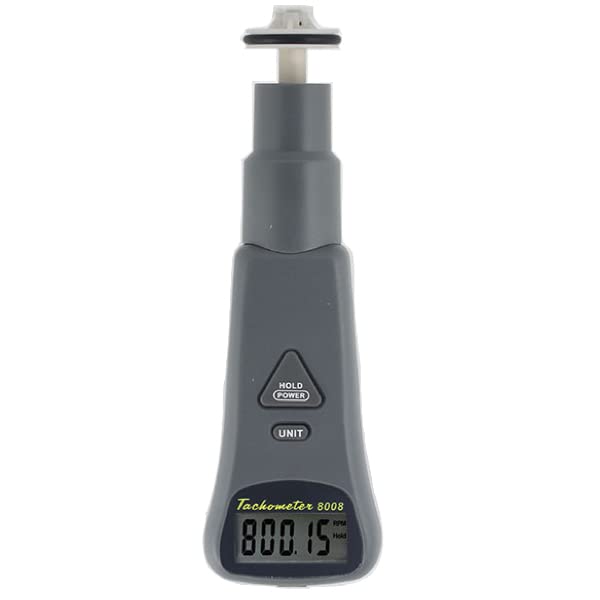

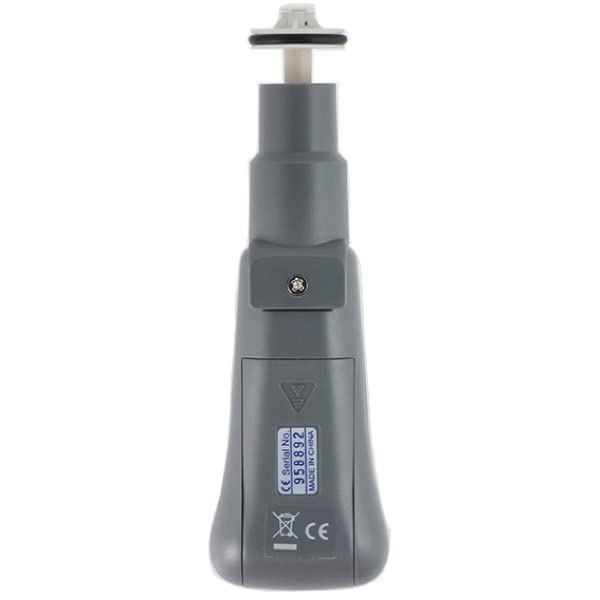

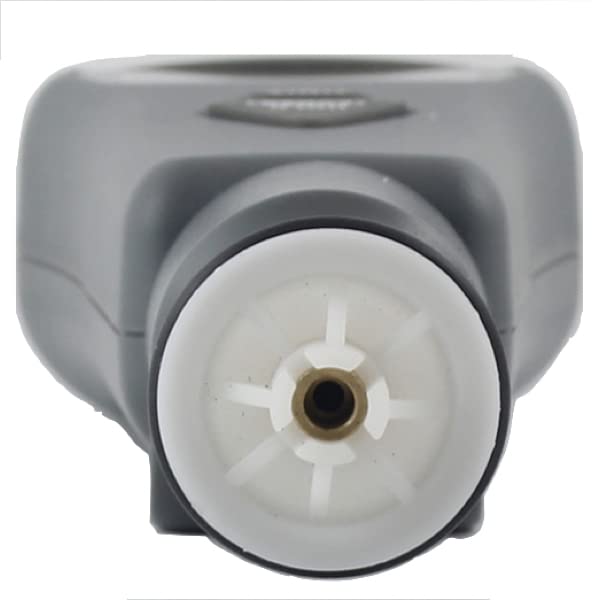

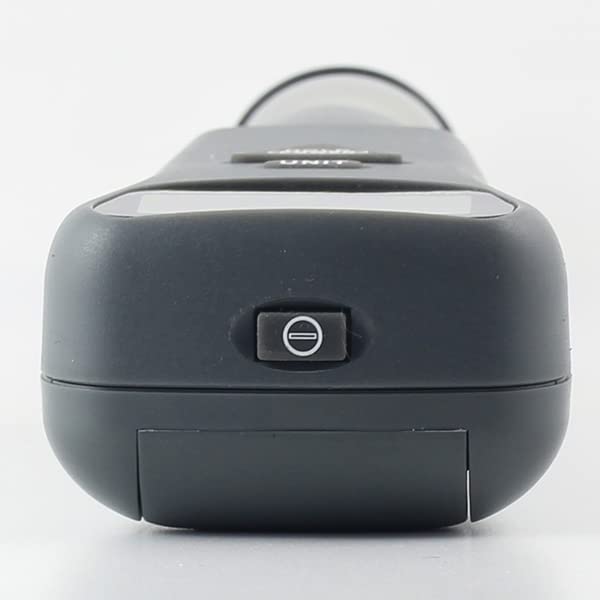

AZ8008 Digital Contact/Non-Contact Tachometer RPM Meter Speed Rotation Tester

AZ8008 Digital Contact/Non-Contact Tachometer RPM Meter Speed Rotation Tester

$140.00 USD
$140.00 USD
Sale Sold out
Model 8008
Non-Contact Rotation Measuring Range 10.0~99999 RPM
Contact Rotation Measuring Range 10.0~19999 RPM
Contact Surface Speed Measuring Range 1.0000~9999.9 M/Min
3.0000~30000 Ft/Min
1.0000~10000 Yd/Min
RPM Unit Resolution 0.001/0.01/0.1/1
M/Min Unit Resolution 0.0001/0.001/0.01/0.1
Ft/Min Unit Resolution 0.0001/0.001/0.01/0.1
Yd/Min Unit Resolution 0.0001/0.001/0.01/0.1
Accuracy ±(0.1% of rdg. +2 digit)
Measure Distance 5~30 cm (non-contact)
Power Consumption 5uA (Idle), 18 mA (measurement)
Time base 4.0 Mhz Quartz Crystal
Sampling time 1 second (>60 RPM)
>1 second (10~60 RPM)
LCD Size 33(L) * 15(W) mm
Operating Temperature 0~50℃
Operating RH% Humidity <80%
Storage Temperature -10~50℃
Storage RH% Humidity <90%
Meter Size 165(L) * 51(W) * 32(H) mm
Weight ~90g
Battery 9V battery *1 PC
Standard Package Meter, Manual, Paper Box,
Reflective Tape, Convex Tip, Concave Tip

 * Lowest cost contact and non-contact 2 in 1 combo tachometer in the market
* Two ways to power on/off
* Simple three steps to transform from contact to non-contact tachometer
* Non-contact measurement by red LED beam
* Contact rotating object via convex or concave contact tips
* Measure RPM from 10 to 99999 RPM
* Auto range function
* Affix a reflective tape to the rotating element to measure
* Four rotation speed units are switchable in contact mode: rpm, m/min, ft/min, yd/min
* Non-Sleep mode & hold function
* Auto power off after 20 mins inactivity
* Low battery indicator
