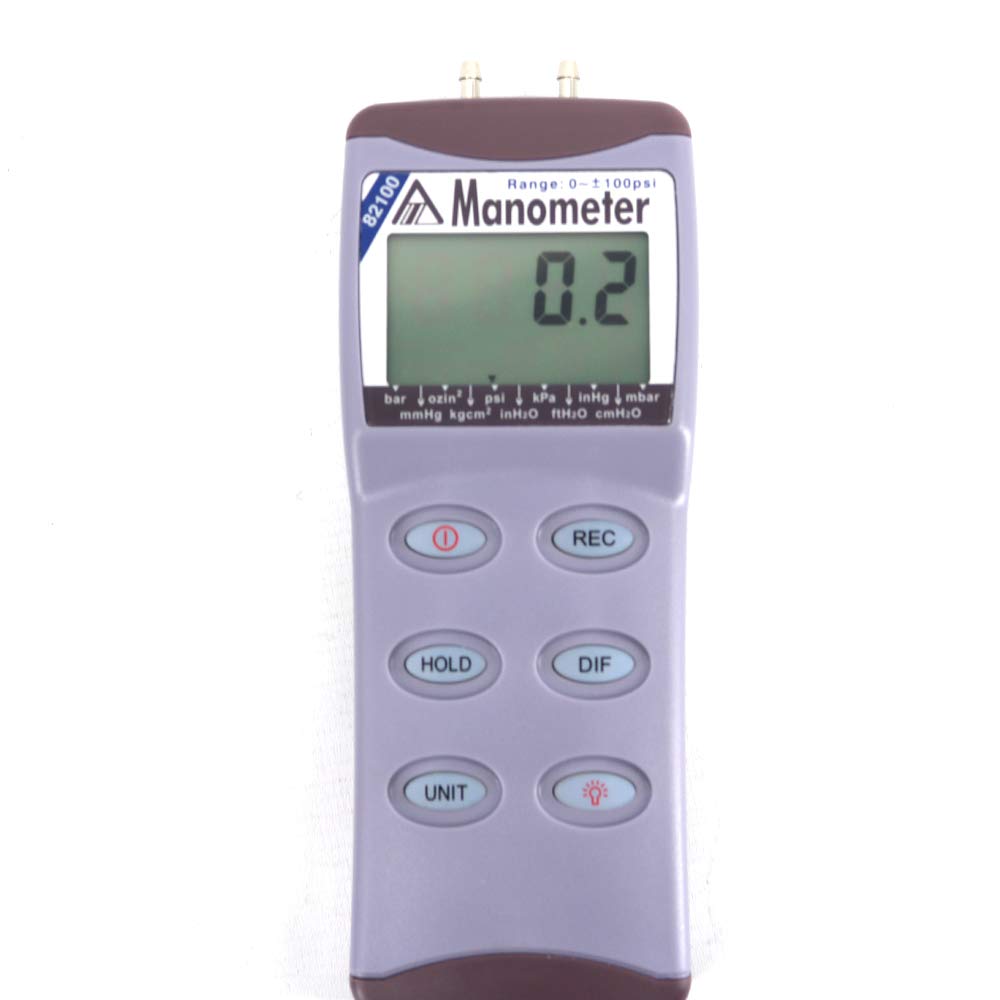

Portable digital gauge/differential pressure meter
Over-range indication with error messages
Hold function, Maximum / Minimum, Record indicator
PC interface available for real time download
11 units for selection (metric, imperial)
model number: AZ82100
Part Number: AZ82100
Details: The 82100 AZ Differential Pressure Meter could measure the gauge pressure with reference to ambient pressure or differential pressure between pressures. It is the ideal tool for HVAC/R technicians measuring pressure level, medical equipment, computer peripherals and pneumatic controls.
There are 11 pressure units could be selected for imperial and metric with 82100 AZ Gauge Pressure Meter, including the psi, kPa, mmHg, Kg/cm2, mbar(hpa), bar, inH2O, cmH2O, inHg, ftH2O and Oz/inch2, which could be applied for Pharmaceutical, Chemical/Petrochemical, Food and Power Industry.
Model:82100
psi Range (Resolution):±100.0 (0.1)
kPa Range (Resolution):±689.5 (0.4)
mmHg Range (Resolution):±5171 (3)
Kg/cm2 Range (Resolution):±7.031 (0.004)
mbar (hpa) Range (Resolution):±6895 (4)
bar Range (Resolution):±6.895 (0.004)
inH2O Range (Resolution):±2768 (2)
cmH2O Range (Resolution):±7004 (4)
inHg Range (Resolution):±203.6 (0.2)
ftH2O Range (Resolution):±230.7 (0.2)
oz/inch2 Range (Resolution):±1600 (1)
Accuracy (25℃, 77℉):±0.3% of full scale
Repeatability:±0.2~0.5% of full scale
Linearity/Hysteresis:±0.29~1% of full scale
Combined Accuracy:±1.0% of full scale
Response Time:0.5 second
Compensated Temperature Range:0~50℃
LCD Size:51(L) * 29(W) mm
Operating Temperature:0~50℃
Operating RH%:Humidity ＜80%
Storage Temperature:-20~50℃
Storage RH%:Humidity ＜90%
Meter Size:182(L) * 72(W) * 30(H) mm
Weight~:150g

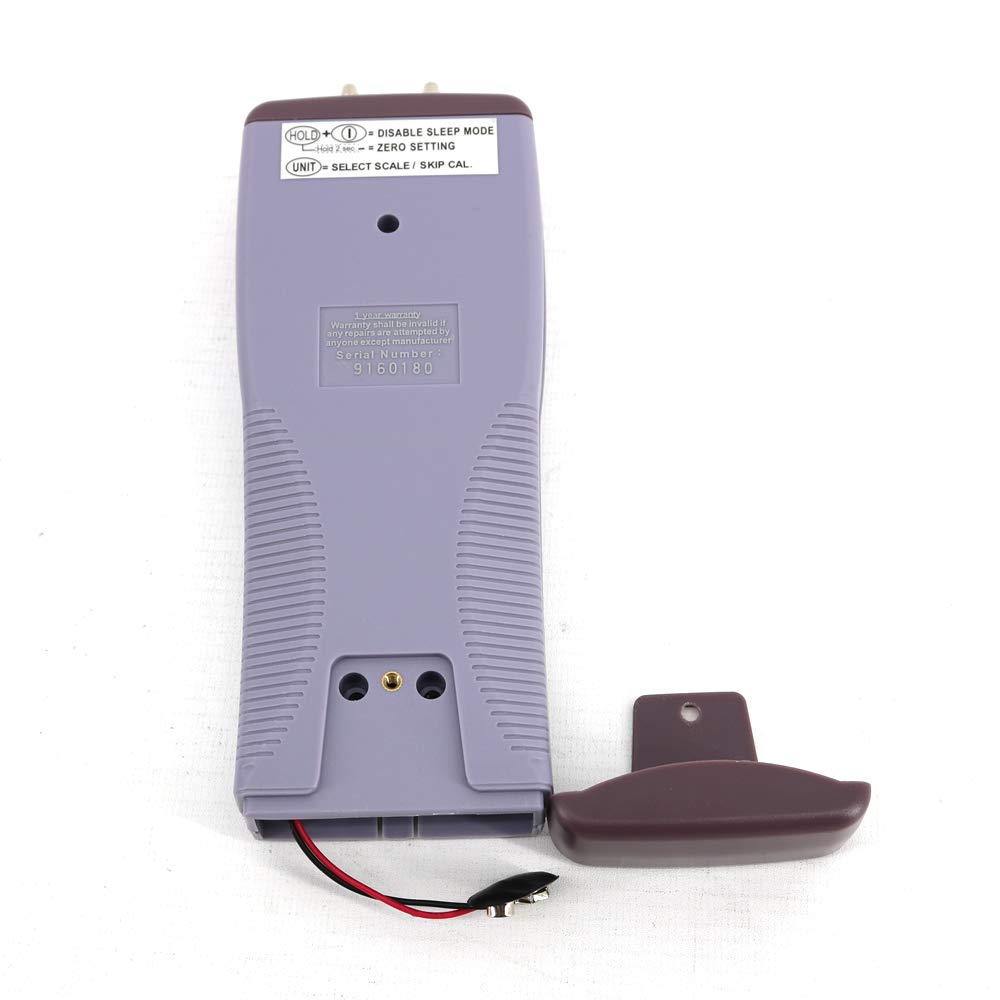

Battery:9V battery or adaptor

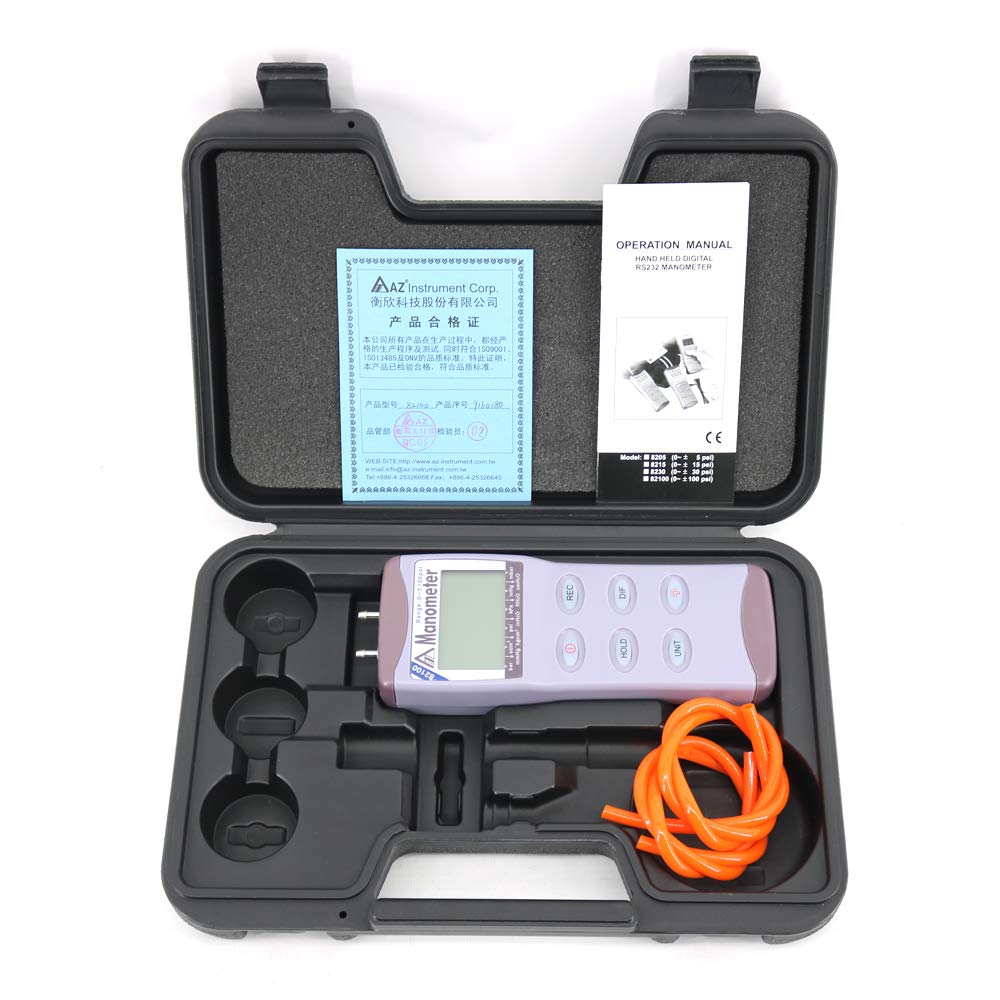

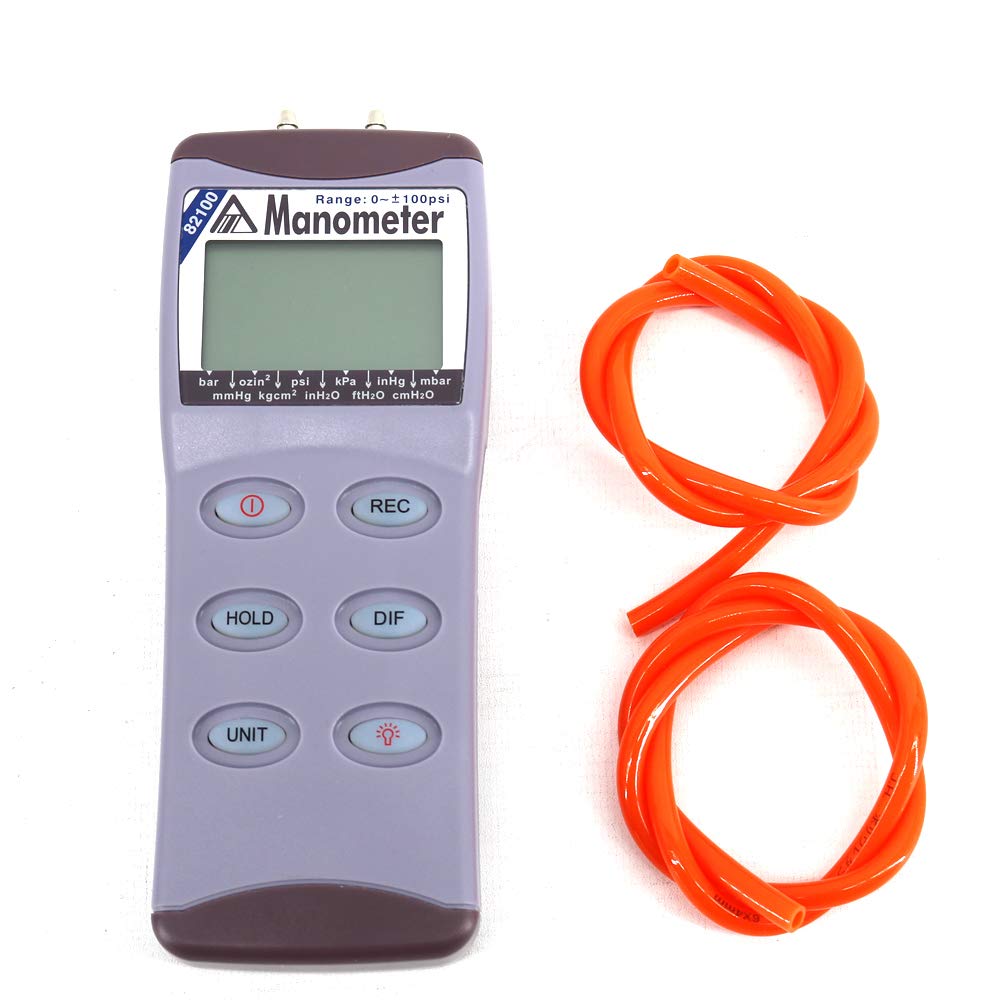

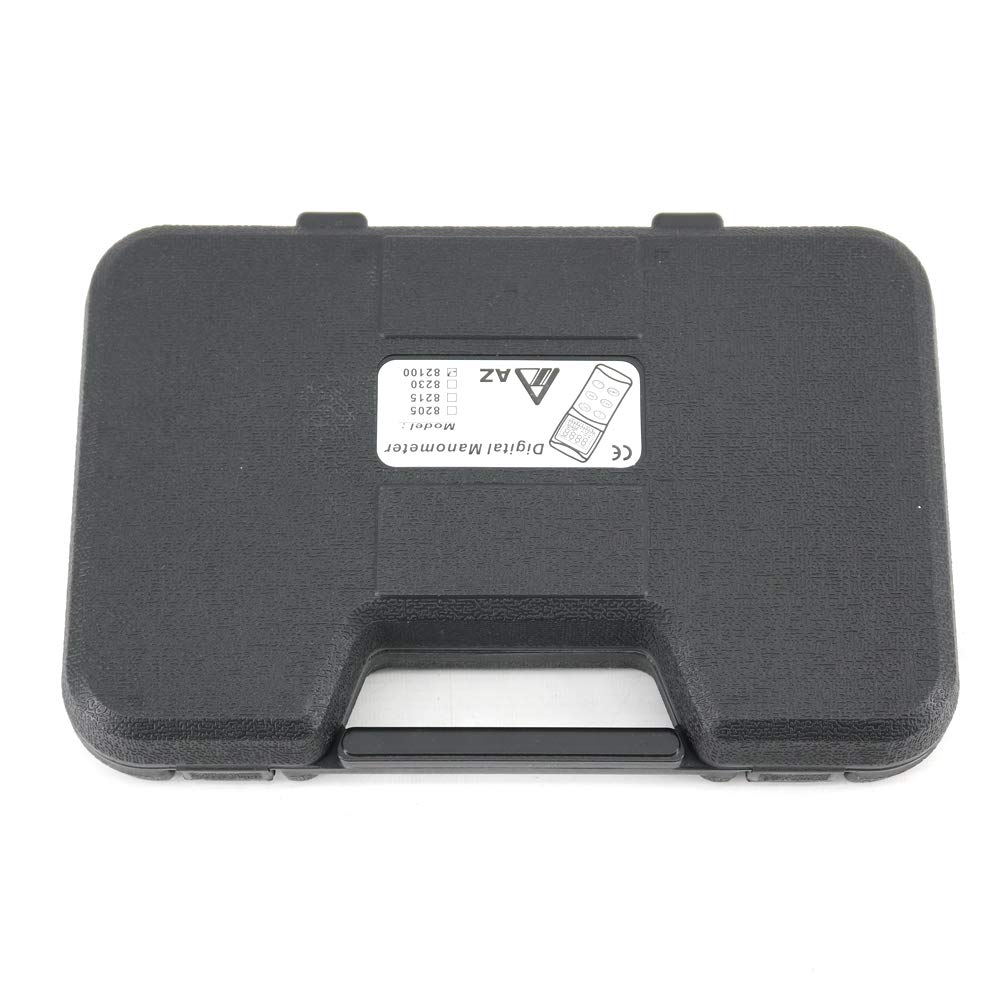

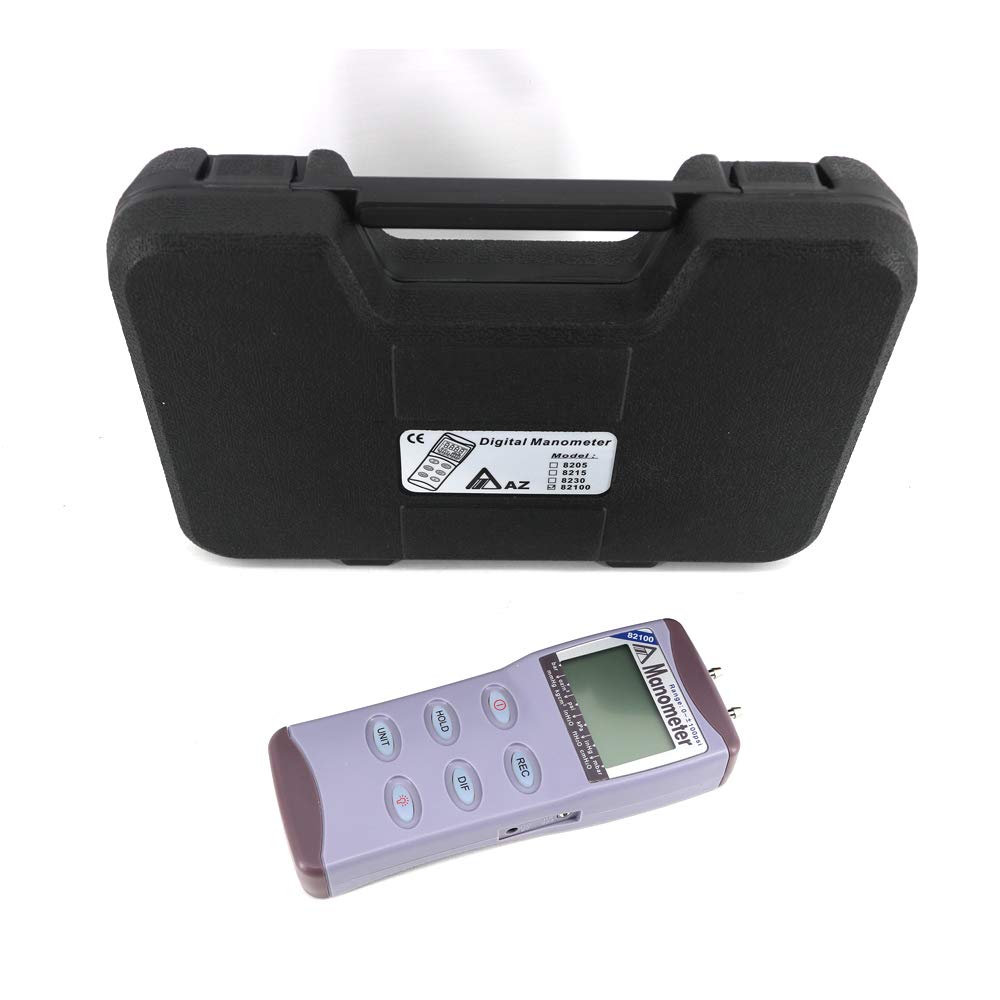

Standard Package:Meter, Manual,Connection Hose, Hard Carry Case
