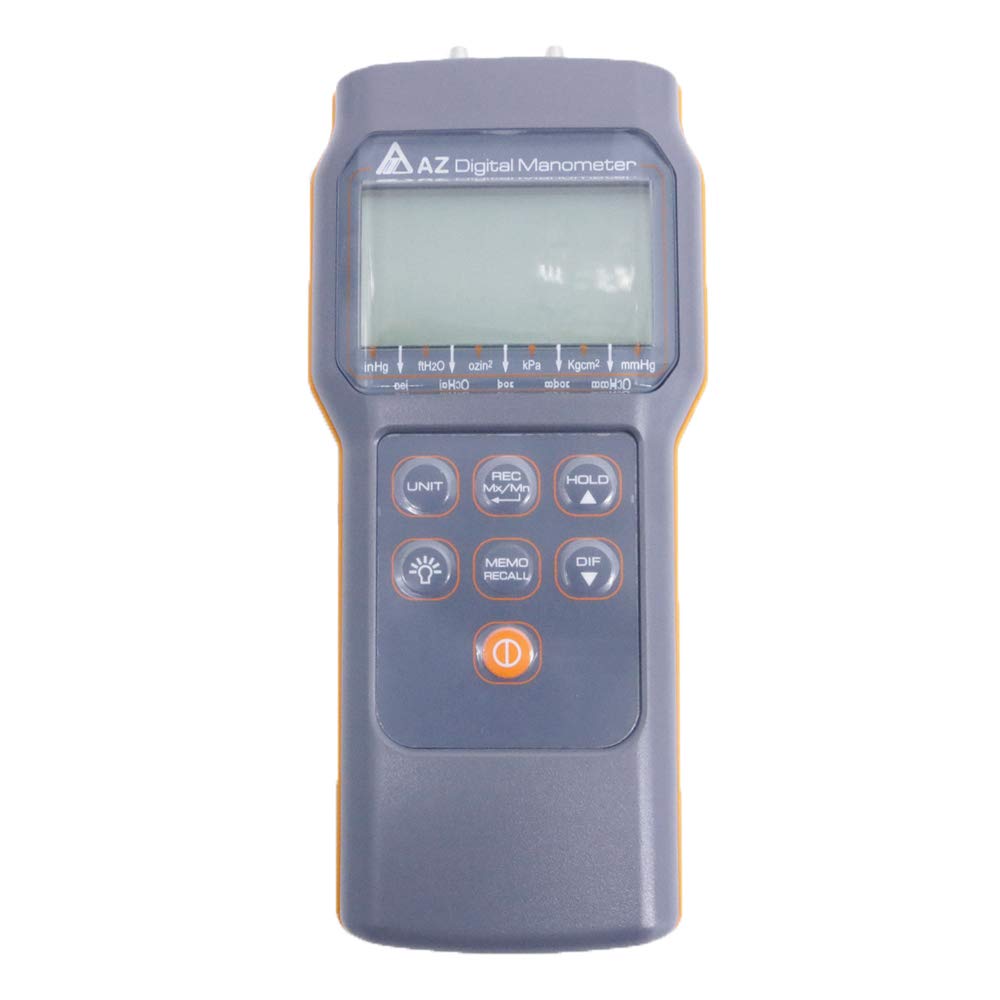

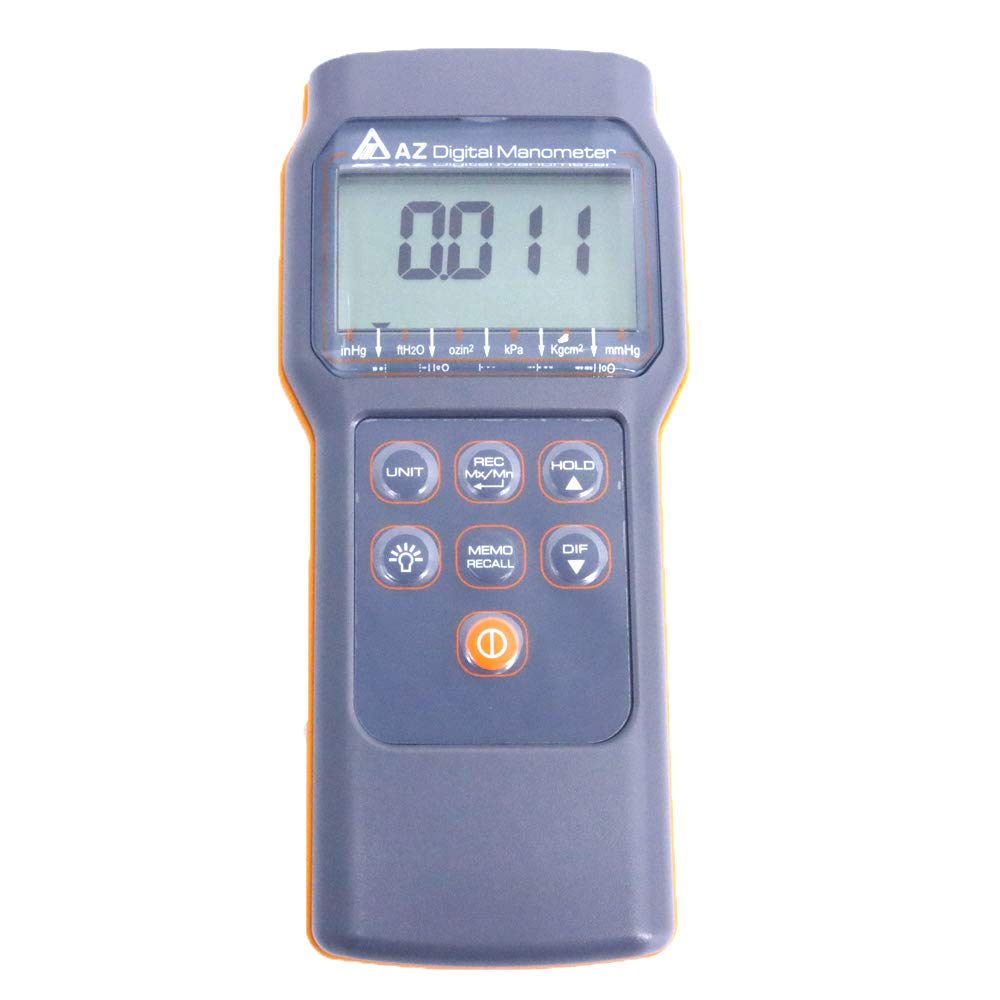

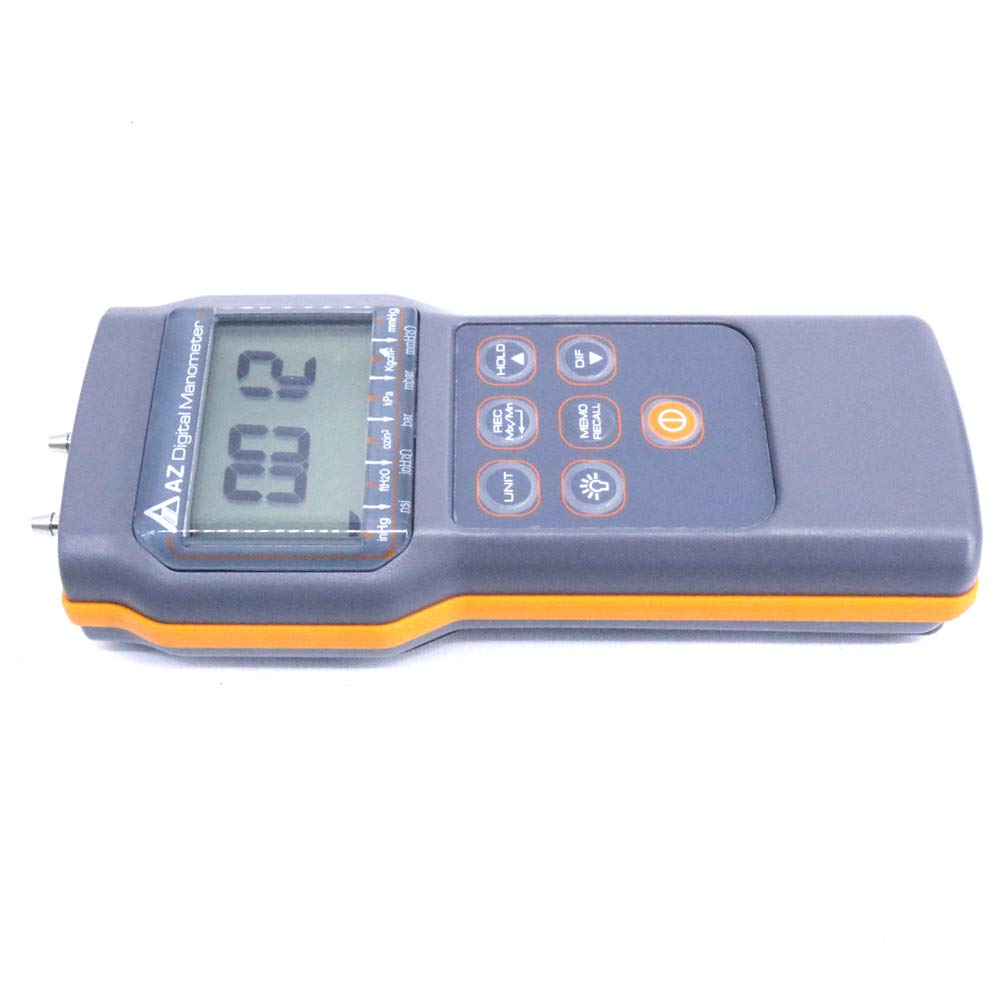

Portable digital gauge/differential pressure meter
99 points manual memories with review function
Hold function, Maximum / minimum, Low battery indicator
Display pressure change from baseline
Blue backlight function for dark area
model number: AZ82152
Part Number: AZ82152
Details: 82152 AZ 15 psi Economic Digital Manometer features:* Portable digital gauge/differential pressure meter
* 99 points manual memories with review function
* Hold function, Maximum / Minimum, Low battery indicator
* Display pressure change from baseline
* Over-range indication with error messages
* Blue backlight function for dark area
* Auto power off disablement
* 11 units for selection (metric, imperial)
* Accumulative time shows in recording period
* PC interface available for real time download
* 2 size metal lug available: 4 mm & 8 mm
Specification:
psi Range (Resolution):±15.000 (0.001)
kPa Range (Resolution):±103.42 (0.01)
mmHg Range (Resolution):±775.7 (0.1)
Kg/cm2 Range (Resolution):±1.055 (0.001)
mbar (hpa) Range (Resolution):±1034.2 (0.1)
bar Range (Resolution):±1.034 (0.001)
inH2O Range (Resolution):±415.20 (0.01)
mmH2O Range (Resolution):±10546 (1)
inHg Range (Resolution):±30.5 (0.001)
ftH2O Range (Resolution):±34.6 (0.001)
oz/inch2 Range (Resolution):±240.00 (0.01)
Accuracy (10~30℃):±1.0% of full scale
Response Time:0.5 second
Compensated Temperature Range:10~30℃
LCD Size:54(L) * 32.5(W) mm
Operating Temperature:0~50℃
Operating RH%:Humidity ＜80%
Storage Temperature:-20~50℃
Storage RH%:Humidity ＜90%
Meter Size:169(L) * 78.3(W) * 34.4(H) mm
Weight:~200g

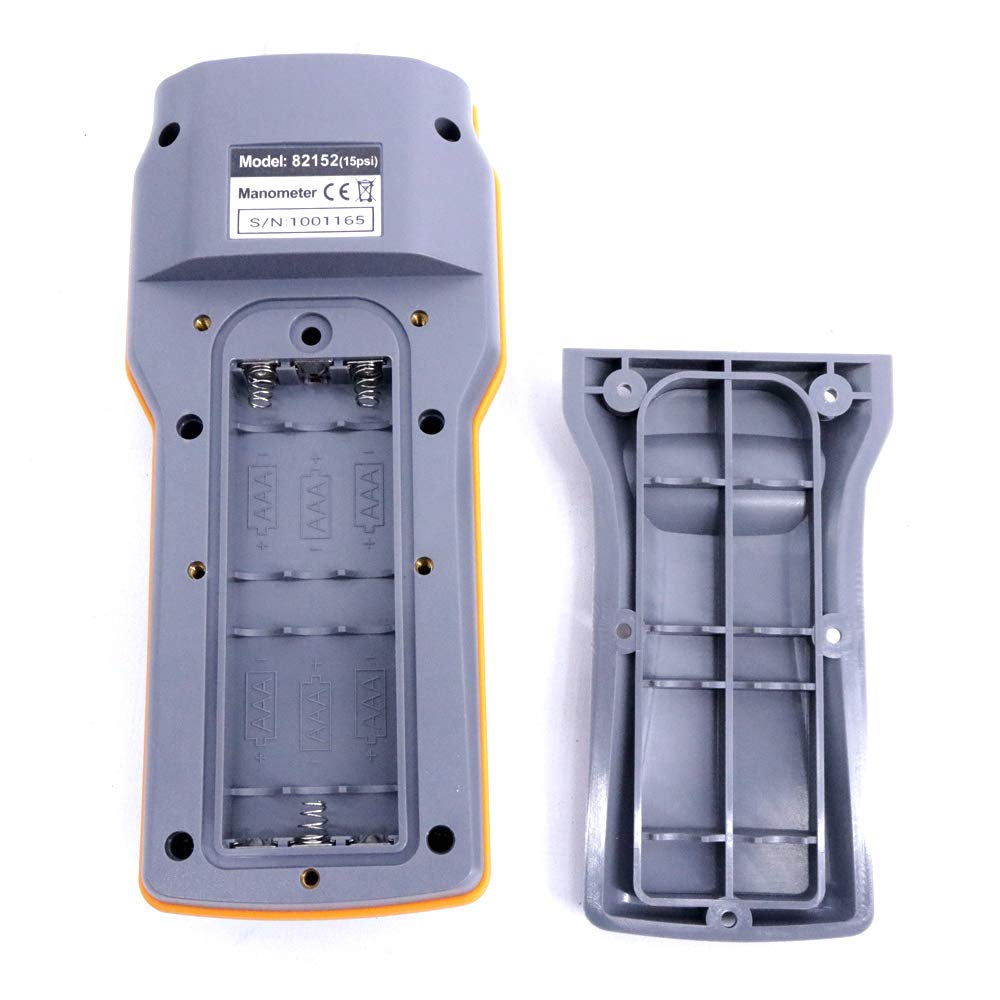

Battery:6 PCS AAA batteries
Standard Package:

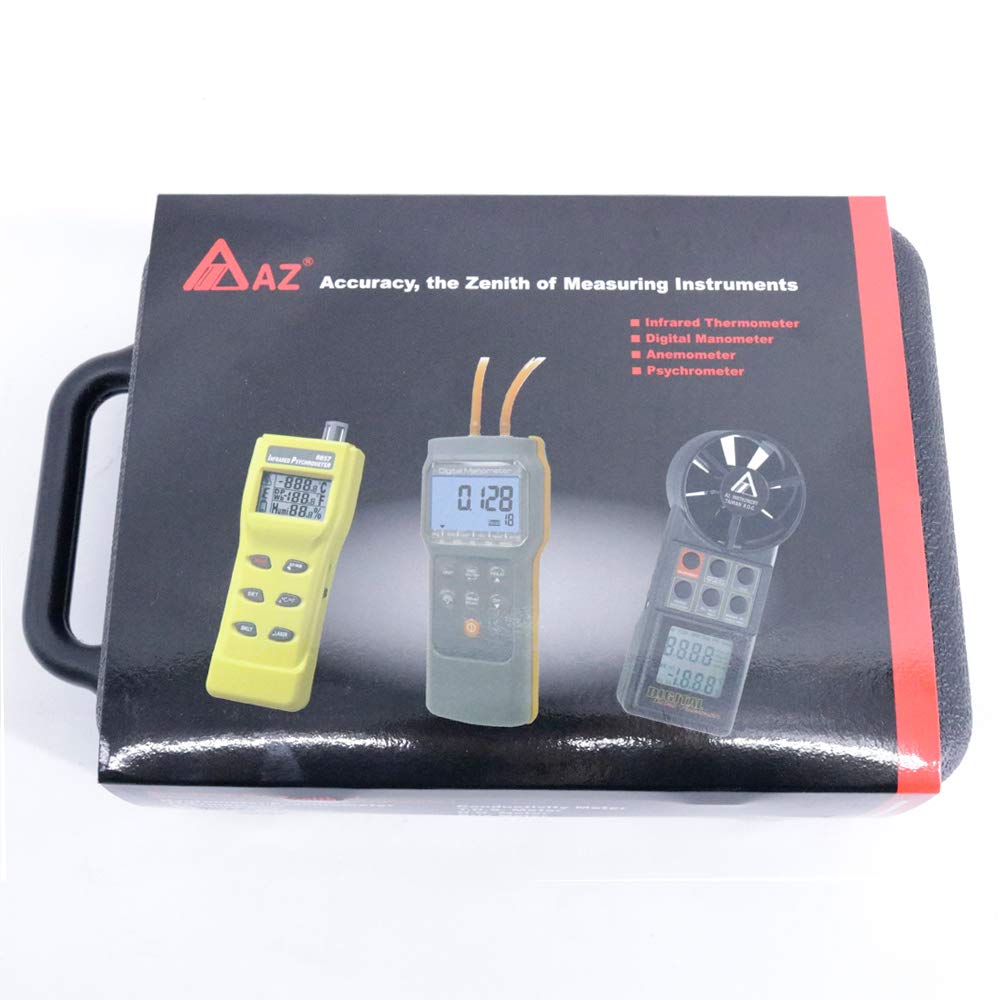

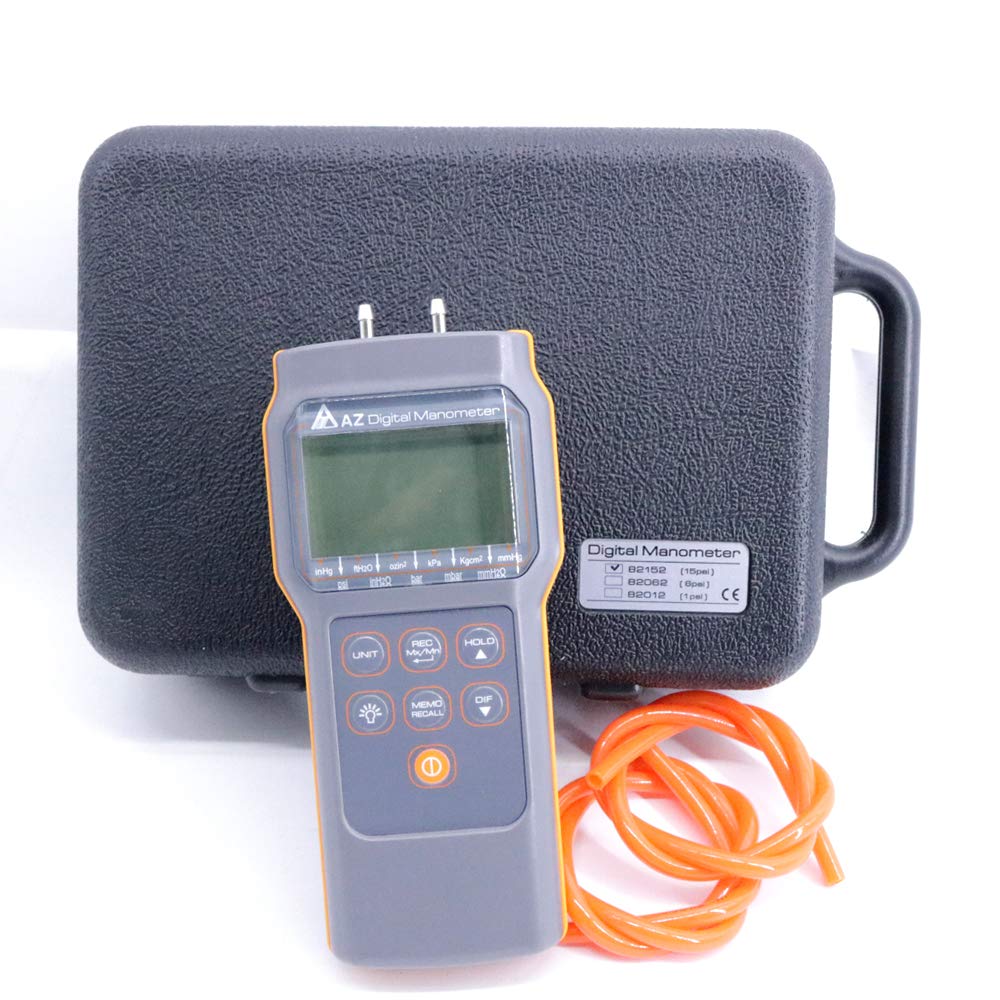

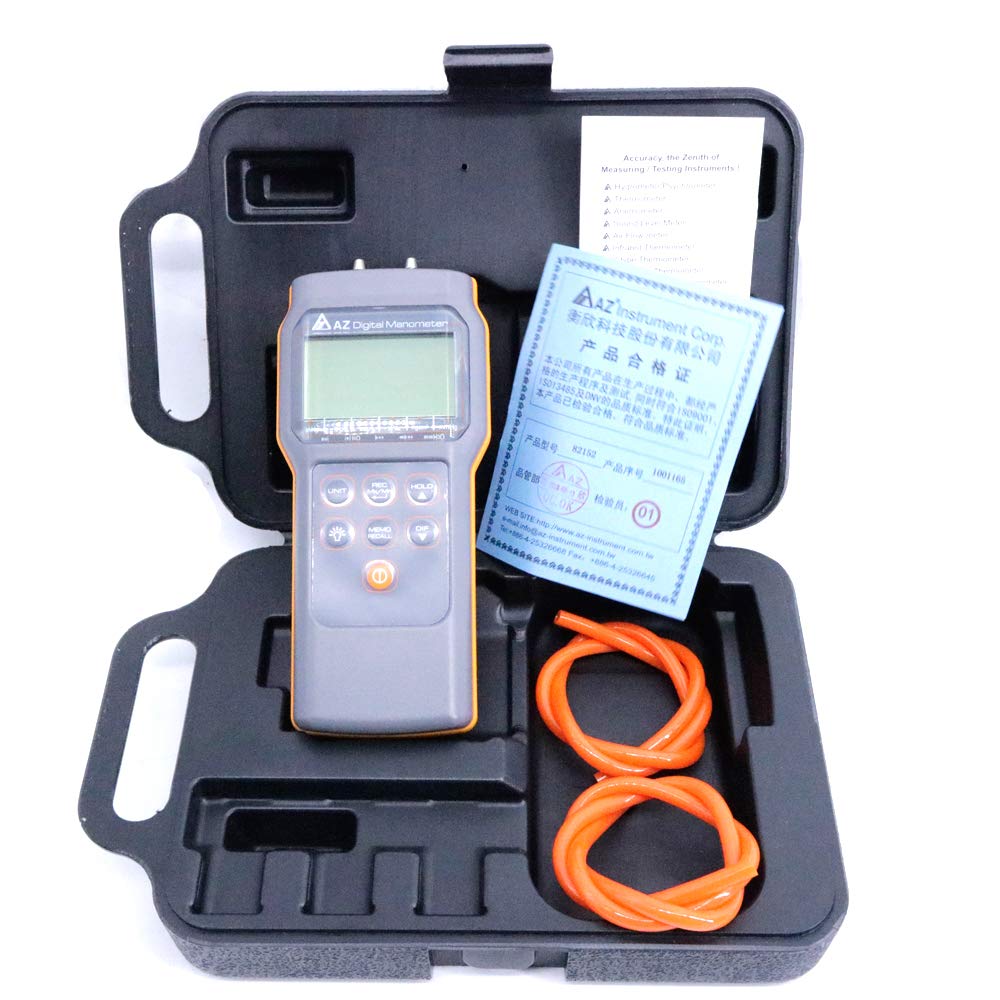

Meter, Manual,Connection Hose, Hard Carry Case
