Portable digital gauge/differential pressure meter
Over-range indication with error messages
Hold function, Maximum / Minimum, Record indicator
PC interface available for real time download
11 units for selection (metric, imperial)
model number: AZ8230
Part Number: AZ8230
Details: Specification of 8230 AZ 30 psi Digital Manometer:
Model:8230
psi Range (Resolution):±30.0 (0.02)
kPa Range (Resolution):±206.8 (0.2)
mmHg Range (Resolution):±1551 (1)
Kg/cm2 Range (Resolution):±2.109 (0.002)
mbar (hpa) Range (Resolution):±2068 (2)
bar Range (Resolution):±2.068 (0.002)
inH2O Range (Resolution):±830.4 (0.5)
cmH2O Range (Resolution):±2101 (2)
inHg Range (Resolution):±61.08 (0.04)
ftH2O Range (Resolution):±69.20 (0.04)
oz/inch2 Range (Resolution):±480.0 (0.3)
Accuracy (25℃, 77℉):±0.3% of full scale
Repeatability:±0.2~0.5% of full scale
Linearity/Hysteresis:±0.29~1% of full scale
Combined Accuracy:±1.0% of full scale
Response Time:0.5 second
Compensated Temperature Range:0~50℃
LCD Size:51(L) * 29(W) mm
Operating Temperature:0~50℃
Operating RH%:Humidity ＜80%
Storage Temperature:-20~50℃
Storage RH%:Humidity ＜90%
Meter Size:182(L) * 72(W) * 30(H) mm
Weight:~150g

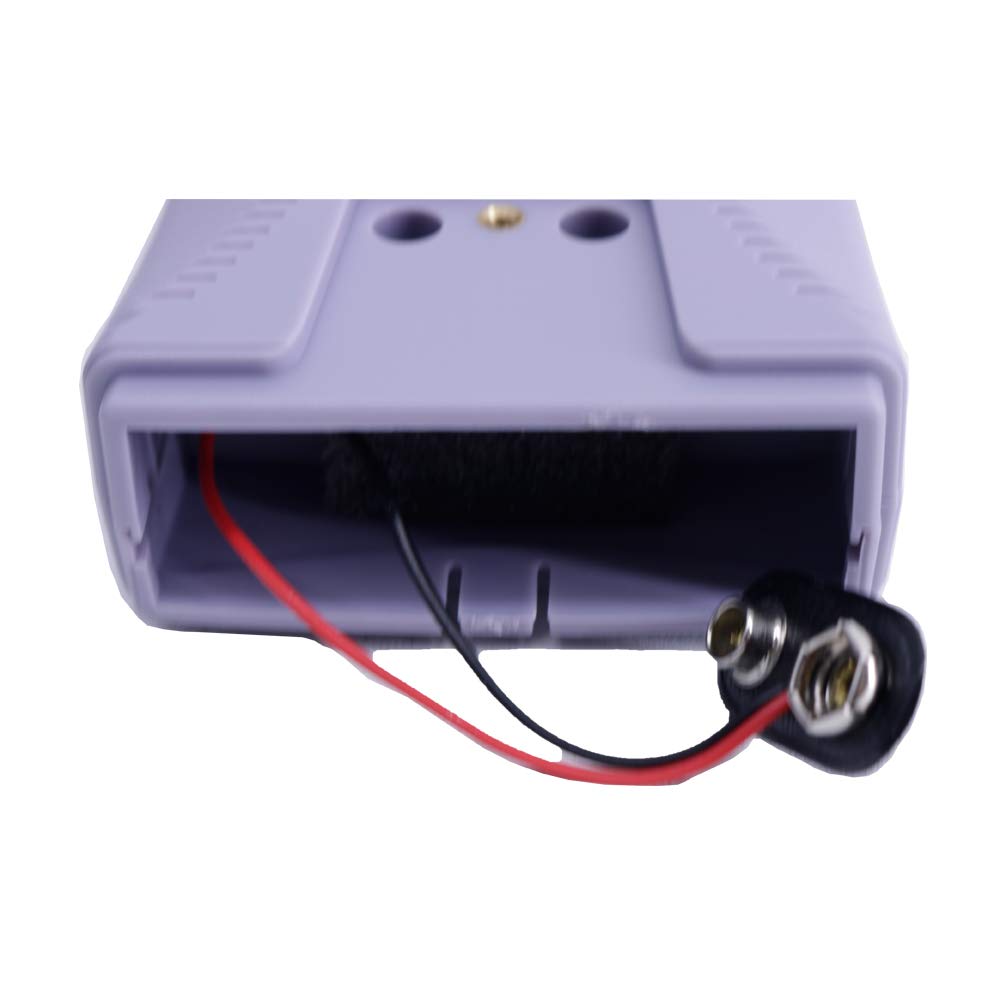

Battery:9V battery or adaptor

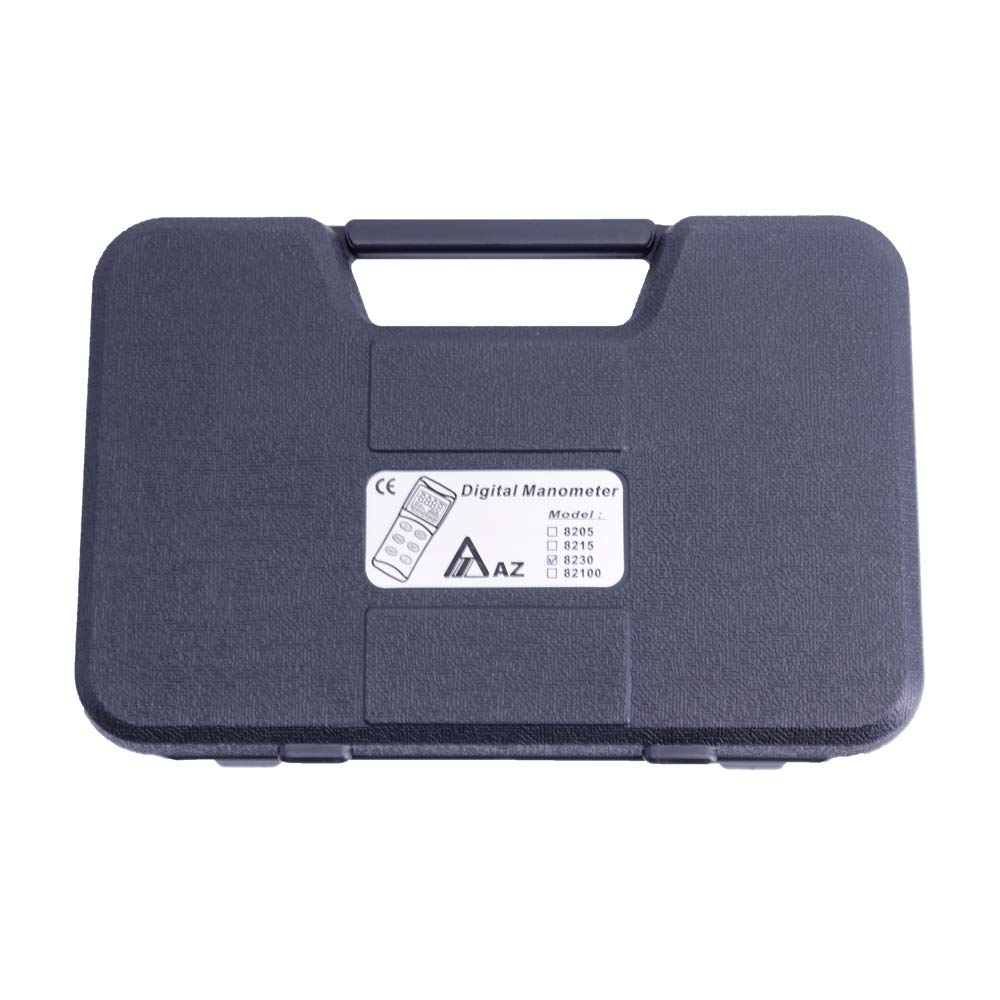

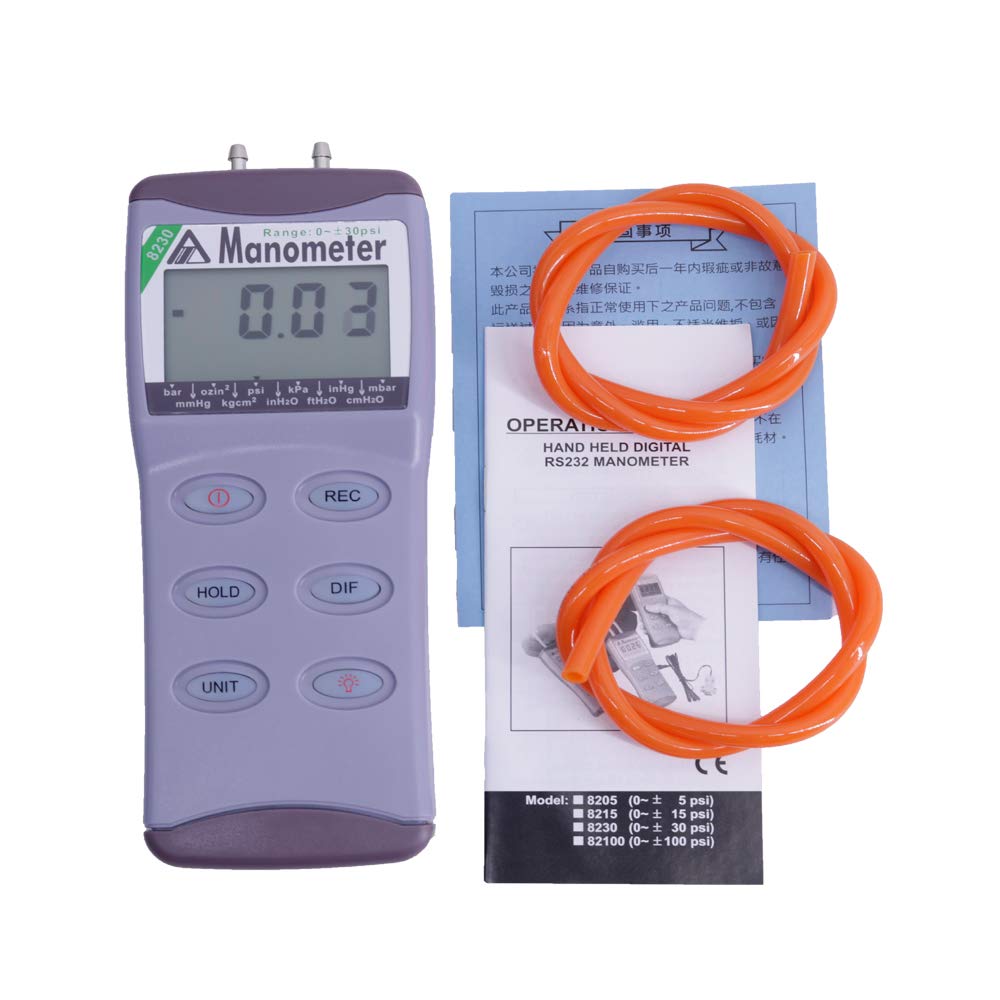

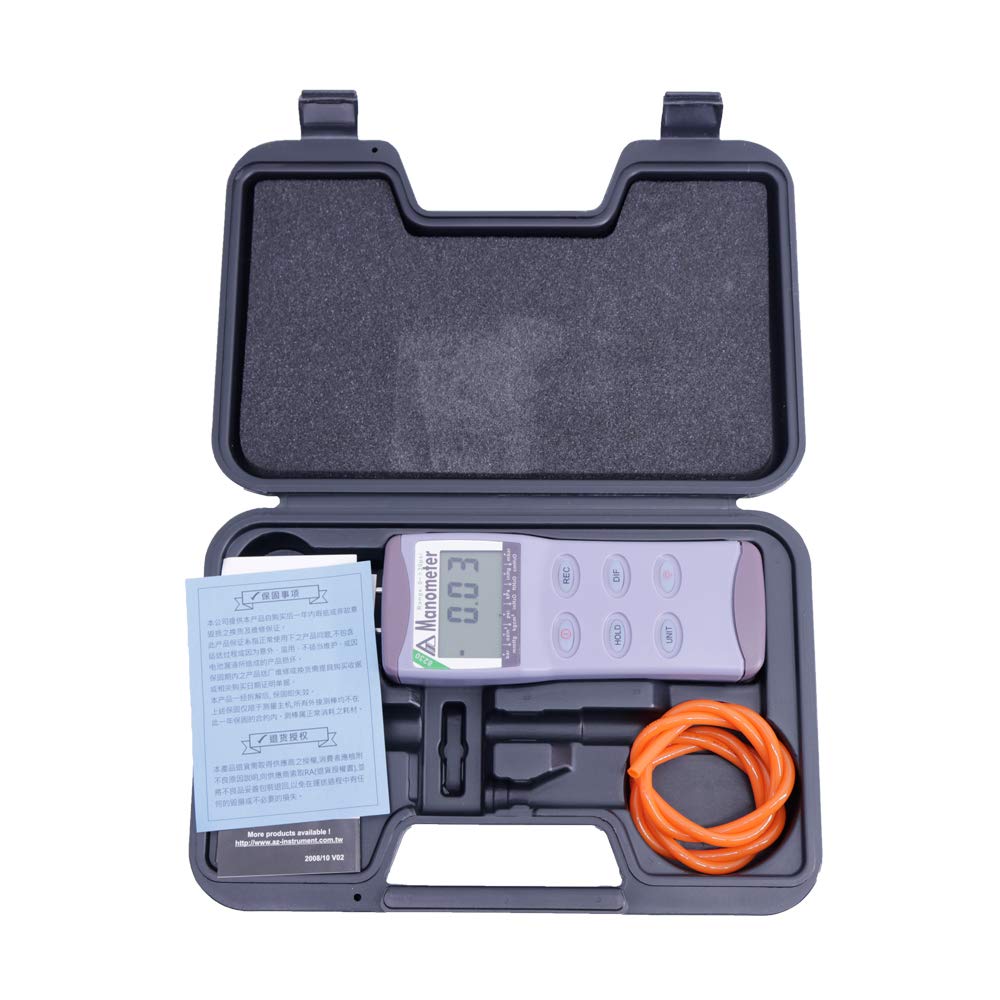

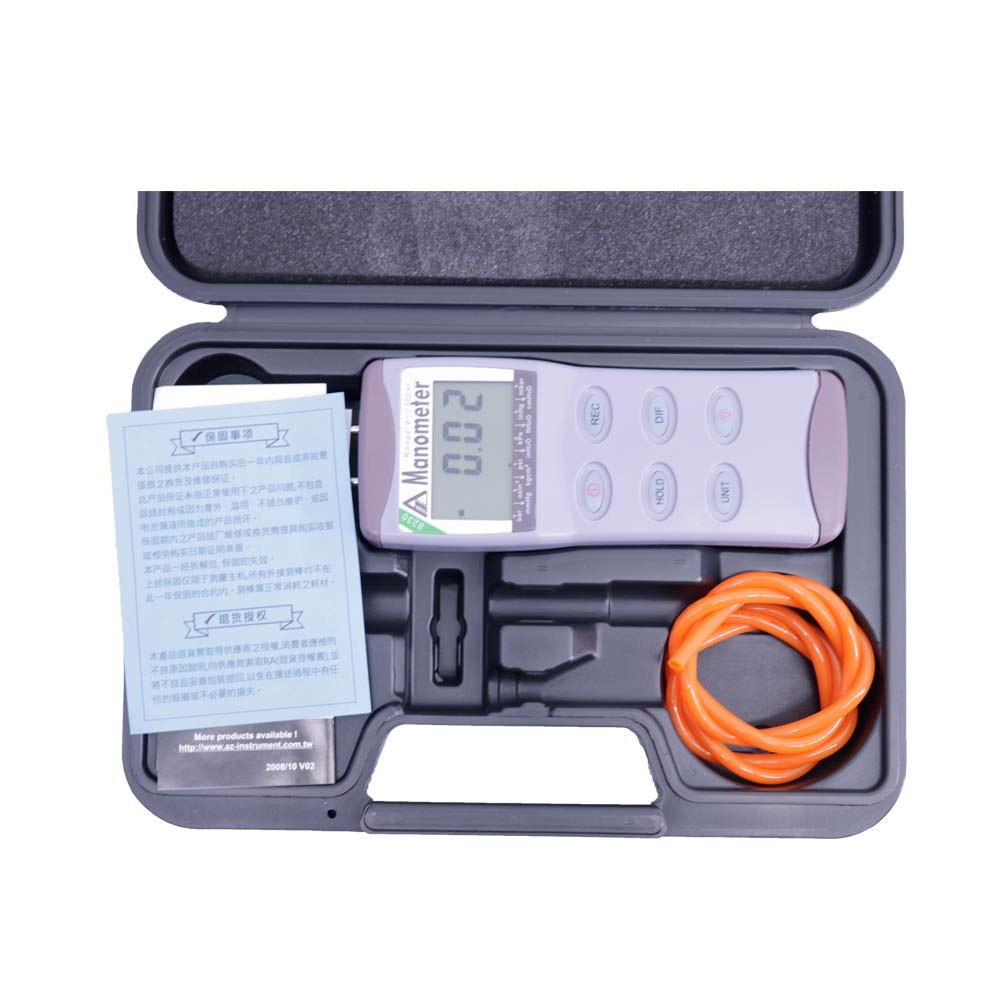

Standard Package:Meter, Manual,Connection Hose, Hard Carry Case
