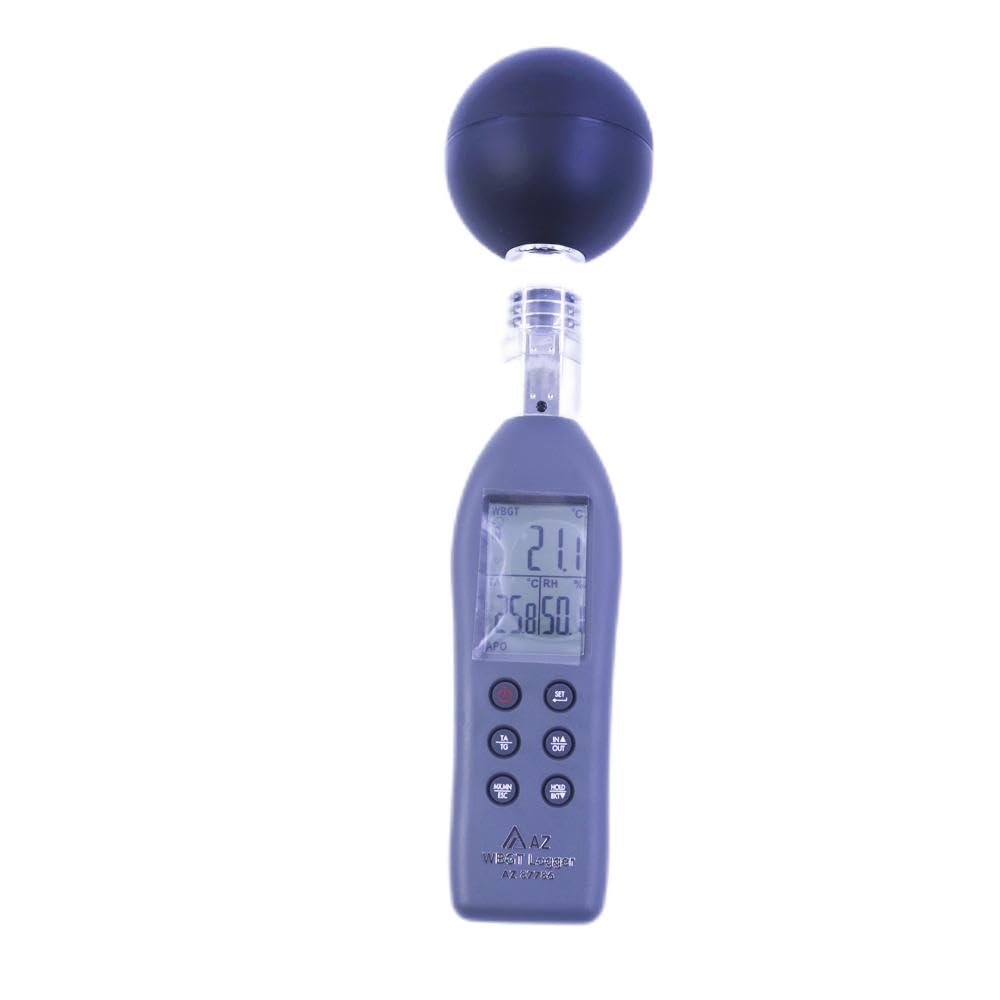

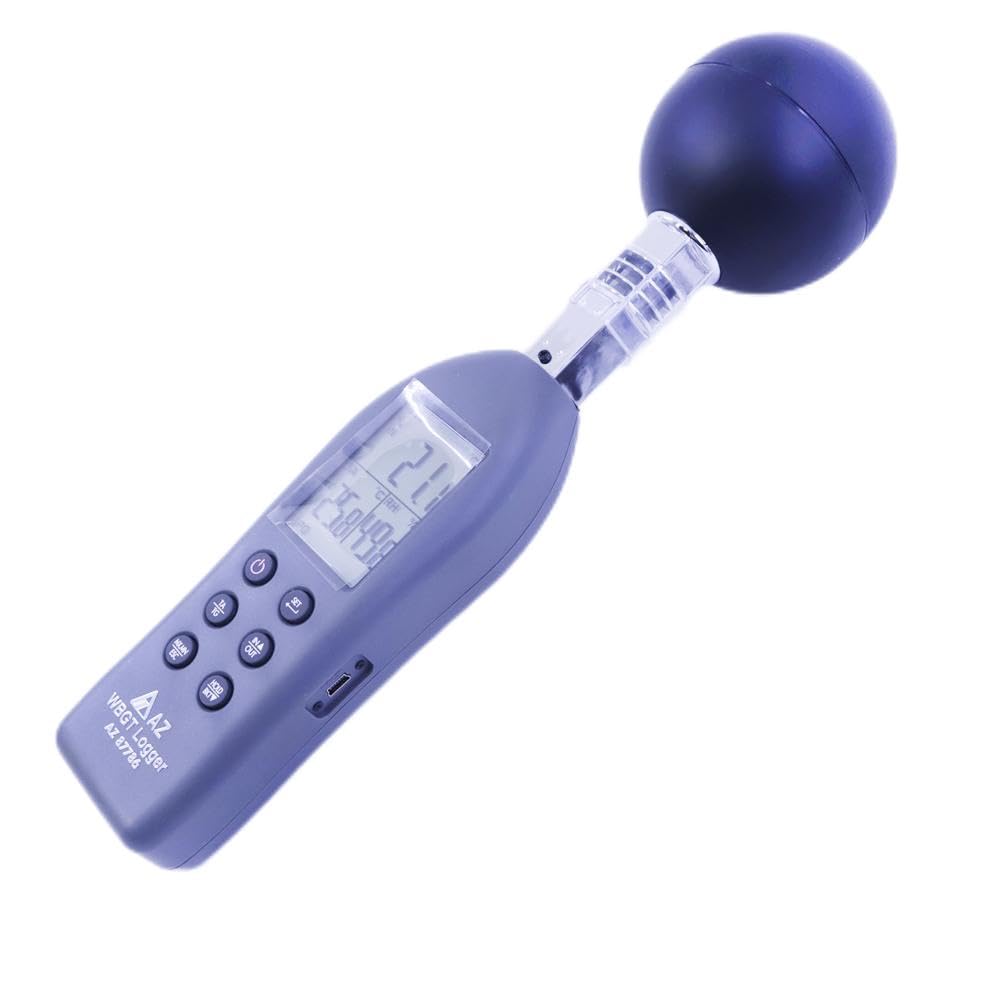

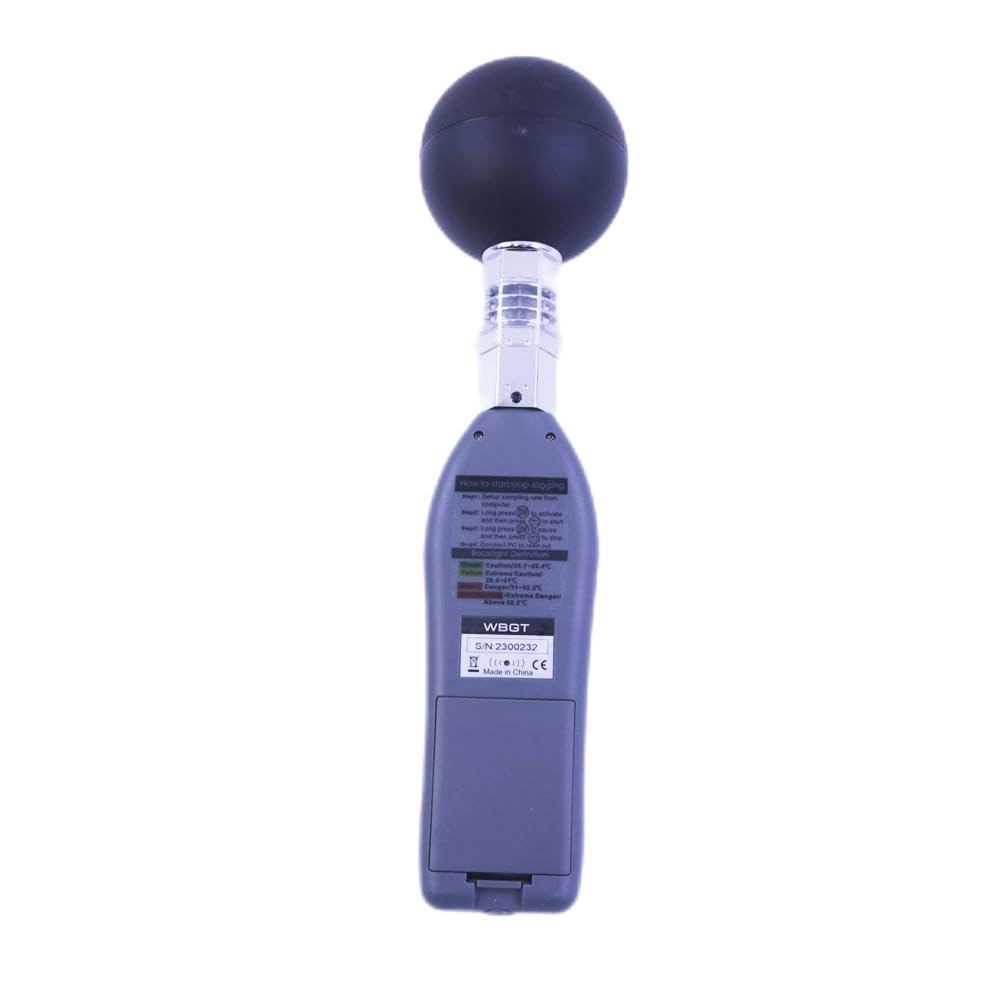

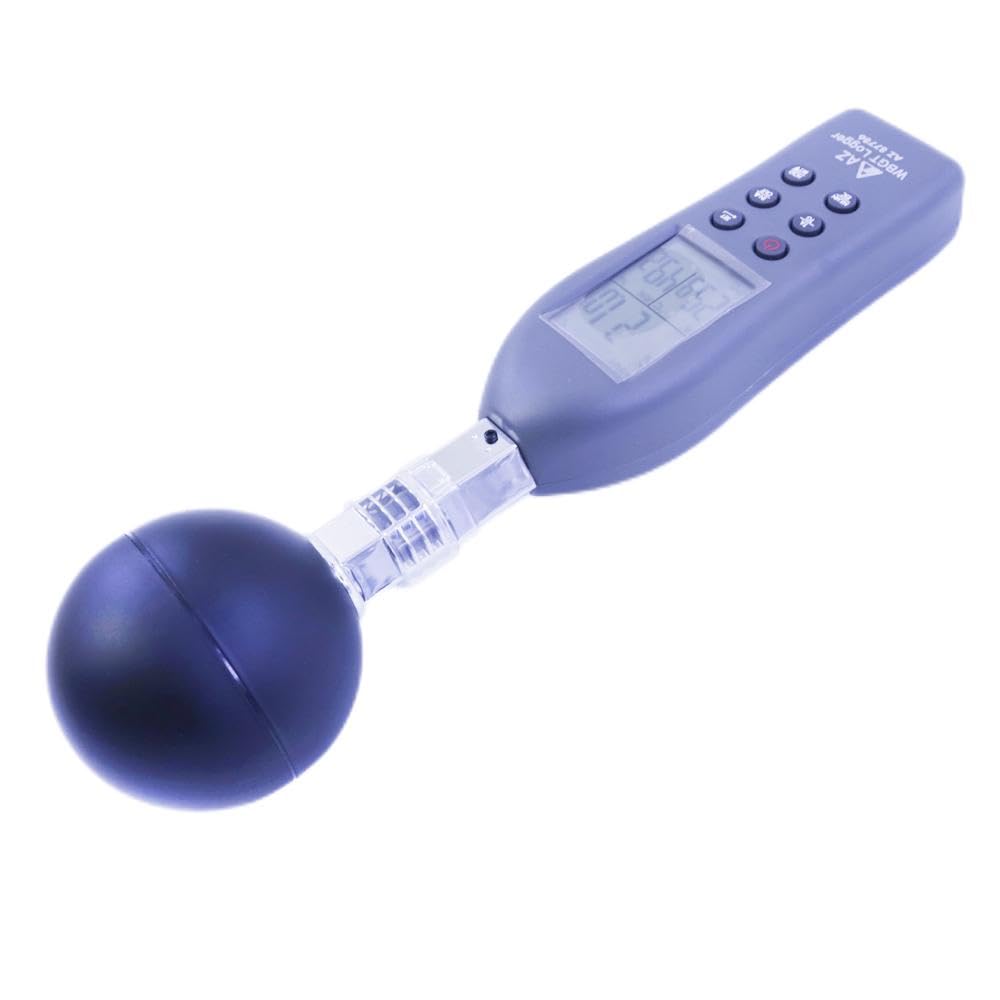

AZ87786 Handheld WBGT Data Logger Wet Bulb Globe Temperature Meter WBGT Meter with Data Logger
AZ87786 Handheld WBGT Data Logger Wet Bulb Globe Temperature Meter WBGT Meter with Data Logger
Couldn't load pickup availability
The Wet Bulb Globe Temperature (WBGT) is a composite temperature used to estimate the effect of temperature, humidity, wind speed and solar radiation on humans.
The Handy AZ87786 WBGT Data Logger could measure air temperature, globe temperature, and humidity to give heat stress index for using in control of physical activity in hot environment to limit the danger of heat-related injuries.
The AZ87786 Portable WBGT Recorder could be operated by industrial hygienists, athletes and the military to determine appropriate exposure levels to high temperatures. Military agencies, OSHA and many nations use the WBGT as a guide to manage workload in direct sunlight.
* Simultaneously display WBGT, temperature & humidity
* Check Indoor/Outdoor WBGT, TA/TG & Humidity
* Plug & Play. Software and USB driver are not required
* Generate csv report without additional PC software
* Completely user re-programmable. 8 languages, sampling rate, start delay time and ID setting
* One button switch to check Air/ Globe temperature & In/Out WBGT
* Designed with capacitance type humidity sensor to get accurate and quick reading
* Backlight indicator function (Green,yellow, red, flashing red) as WBGT condition reminder
* Easy-to-read big LCD display with 6 dust proof rubber keys
* Clear sheath to protect humidity sensor during storage
* Filter to protect humidity sensor from dust scratch during operation
* 75 mm black metal ball to measure globe temperature
* Temperature unit ℃/℉ switchable
* Hold function to freeze reading and Max/Min function included
* Battery low indicator & Sleep mode can be disabled

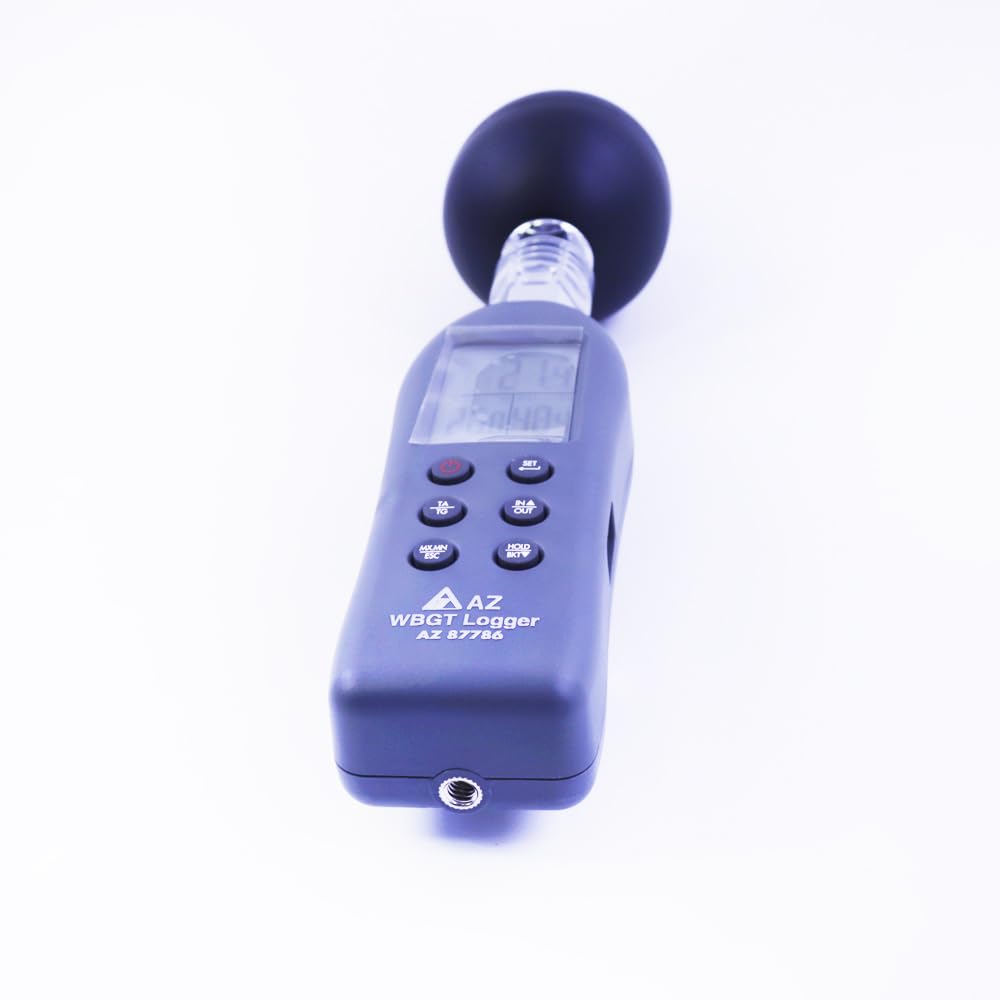

* Tripod receptacle design for long time use
* Audible beeper for danger zone warning
* Humidity self-calibration via salt bottles kit
|
Model |
87786 |
|
Temperature Range |
0~50℃ |
|
Temperature Resolution |
0.1℃, 0.1℉ |
|
Temperature Accuracy |
±0.6℃ |
|
Humidity Range |
0.1~99.9% RH |
|
Humidity Resolution |
0.1% RH |
|
Humidity Accuracy |
±3%RH (at 25℃, 10~90%RH); |
|
Global Temperature (Inside Black Ball) |
0~80℃ |
|
Global Temp. Accuracy (Indoor) |
±1℃at 15~40℃, others ±1.5℃ |
|
Global Temp. Accuracy (Outdoor) |
±1.5℃at 15~40℃, others ±2℃ |
|
WBGT Temperature Range |
0~50℃ |
|
WBGT Alarm Range |
20~50℃ |
|
Sampling Rate |
1, 5, 10, 30, 60, 90, 120 mins |
|
Start Delay Time |
0, 5, 30, 45, 60, 90, 120 mins |
|
Memory Points |
12000 readings, each contains |
|
Black Ball Size |
Diameter 75 mm, Height 75 mm |
|
Stabilization Time |
15~25 minutes typical |
|
RH% Self Calibration |
With 33% & 75% Salt Bottle |
|
Operating Temperature |
0~50℃ |
|
Operating RH% |
Humidity <80% |
|
Storage Temperature |
-20~50℃ |
|
Storage RH% |
Humidity <90% |
|
LCD Size |
50(L) * 32(W) mm |
|
Meter Size |
302(L) * 75(W) * 36.7(H) mm |
|
Weight |
~300g |
|

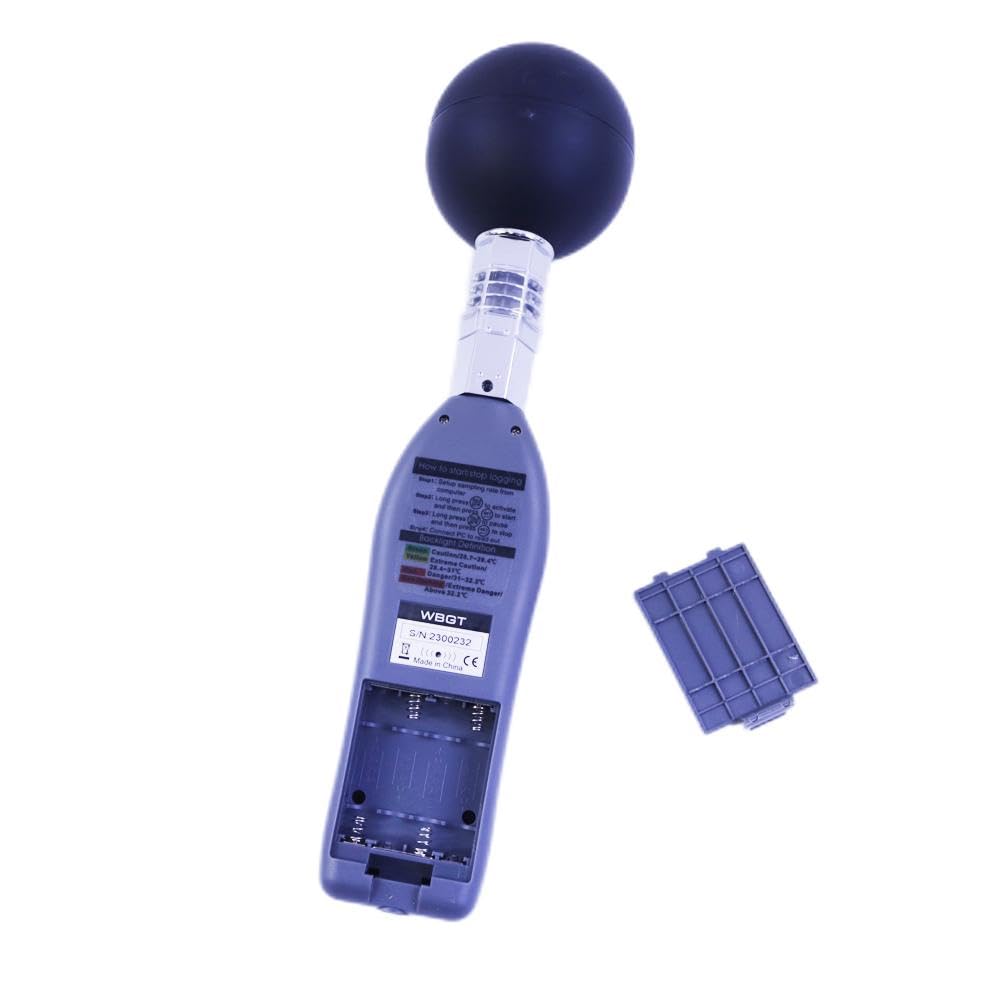

Battery |
AAA*4PCS |
|
Battery Life |
~200 hours |
|

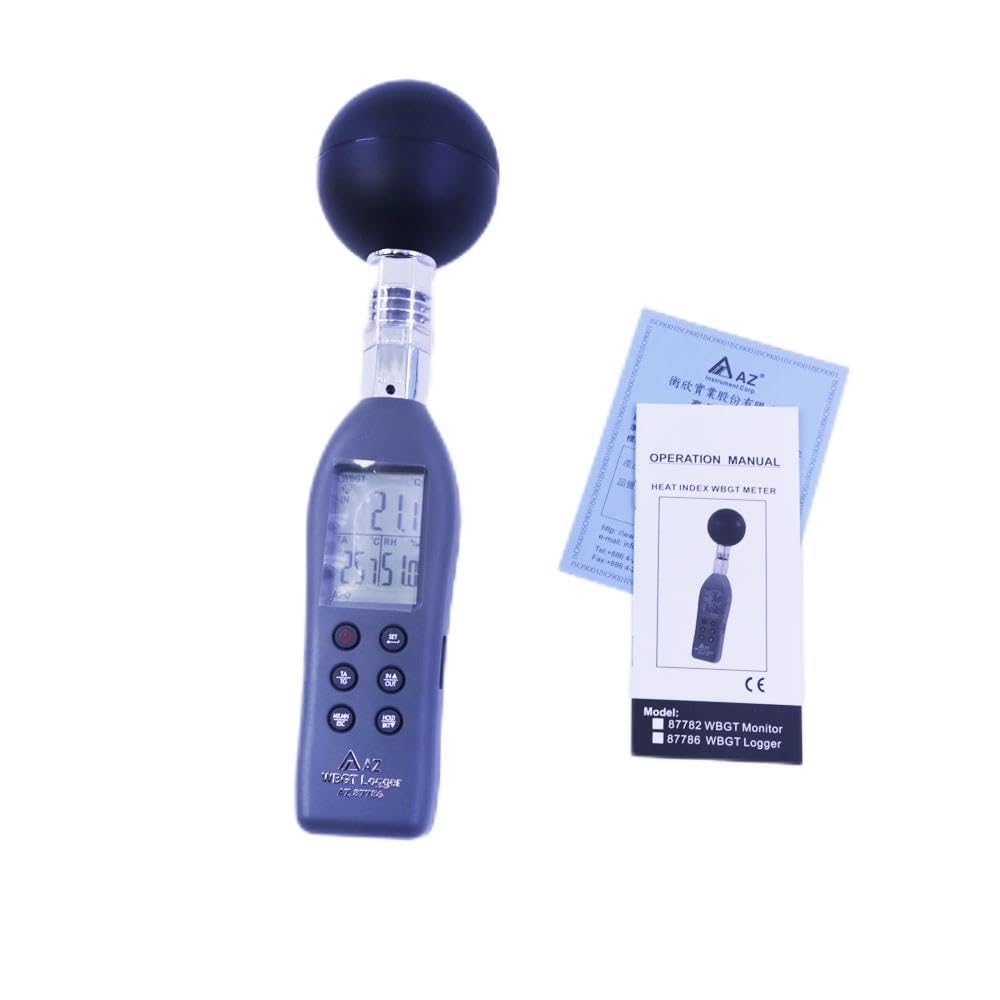

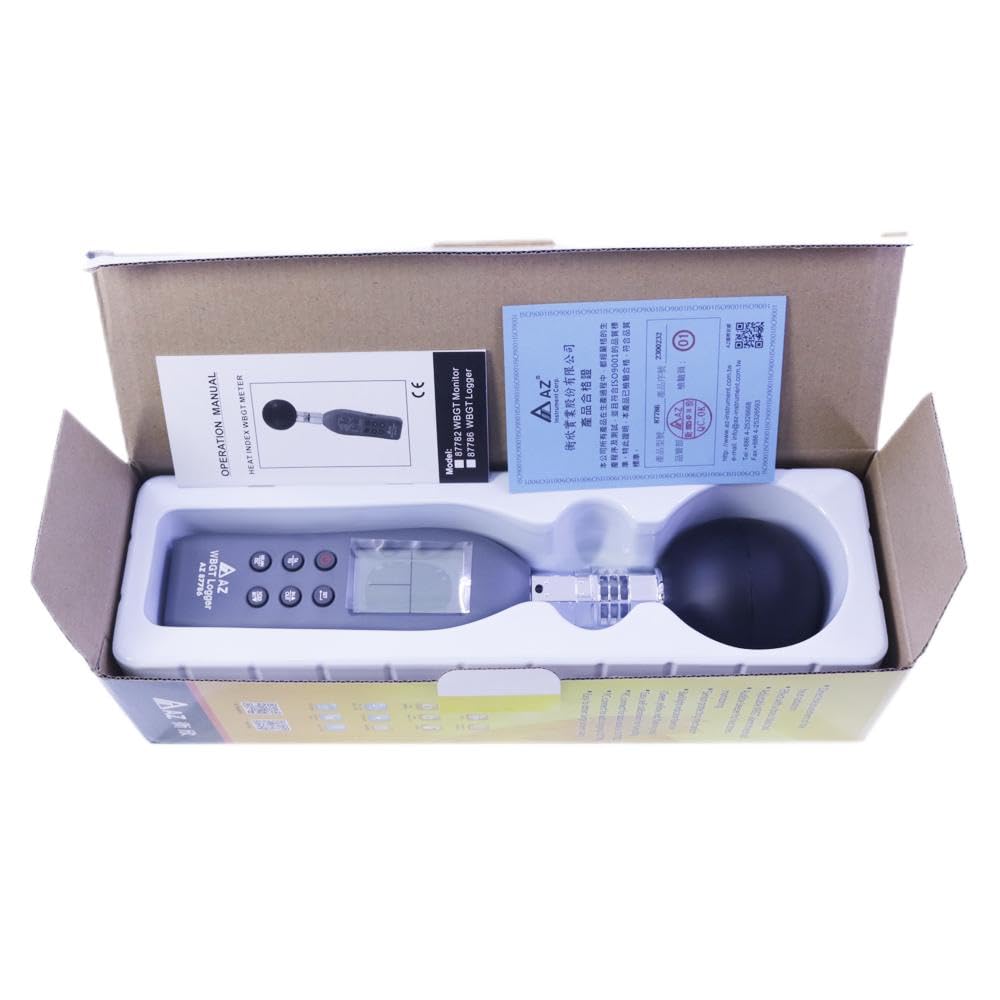

Standard Package |
Meter, Manual,Mini USB cable, Paper Box |
