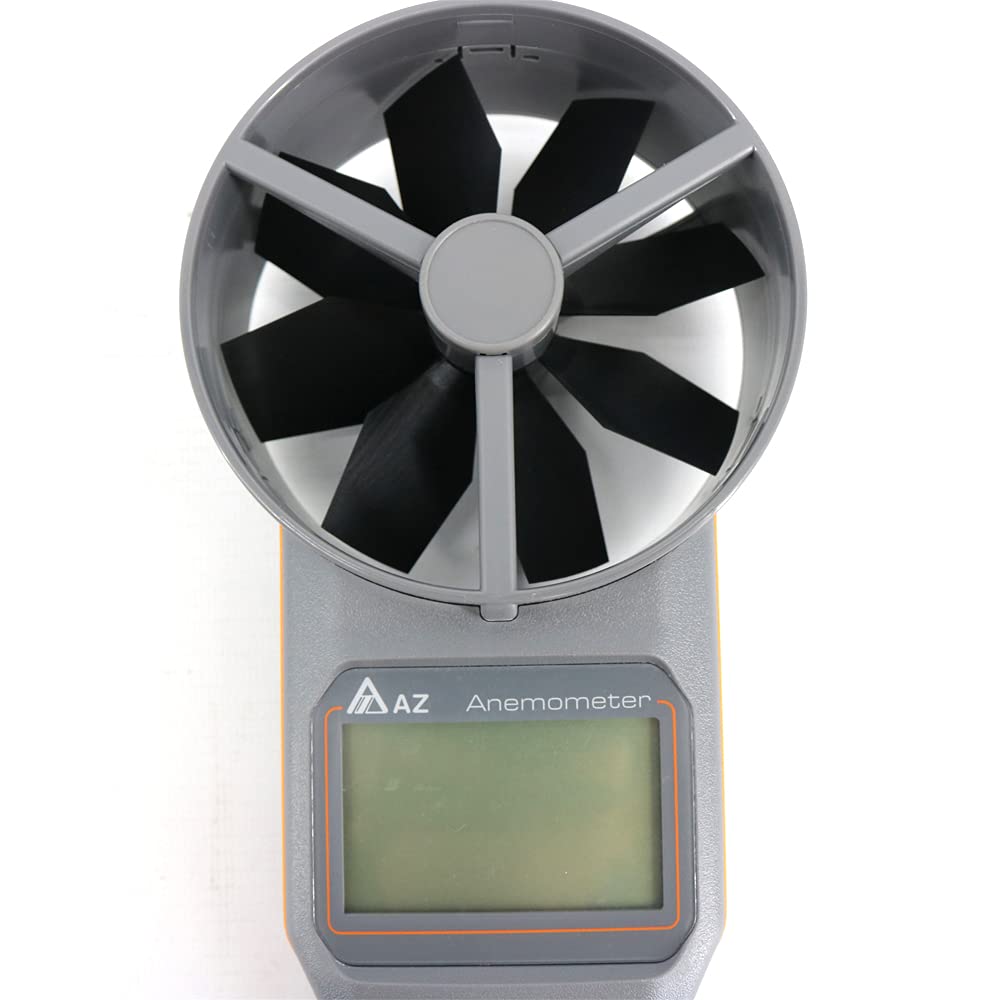

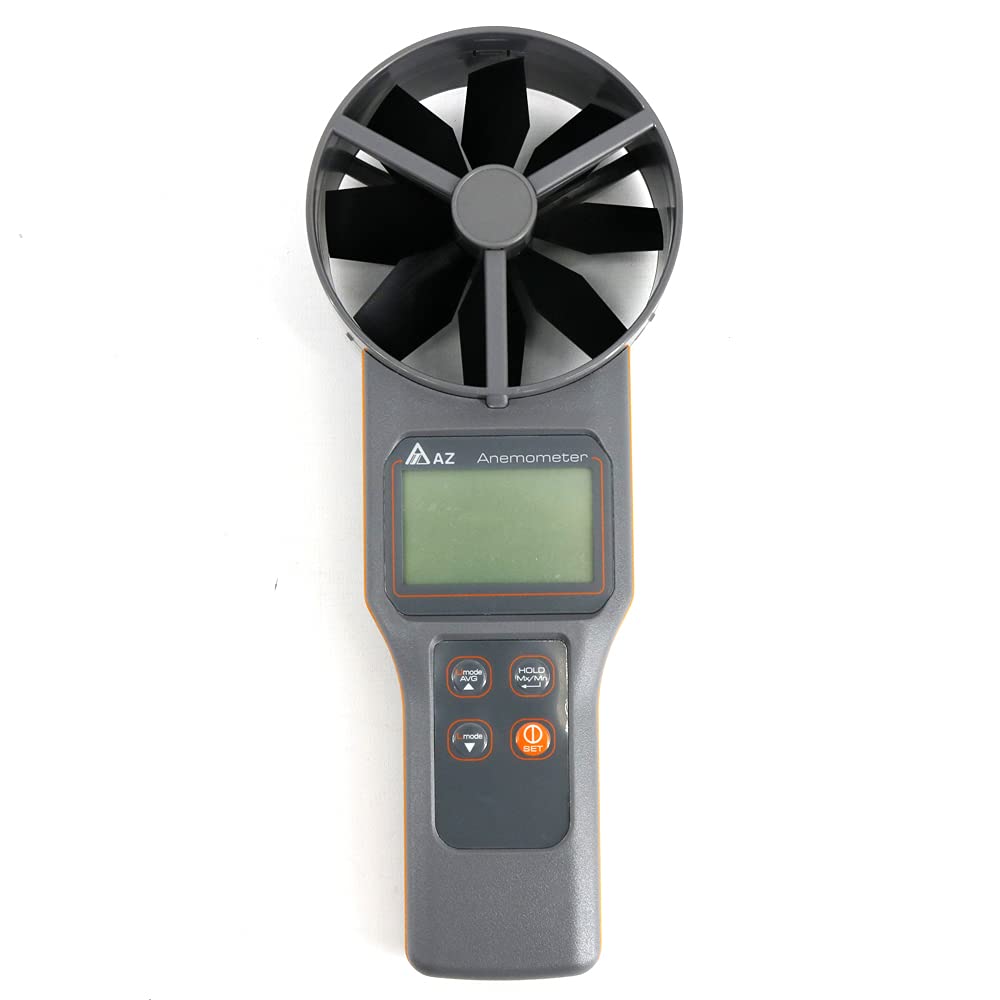

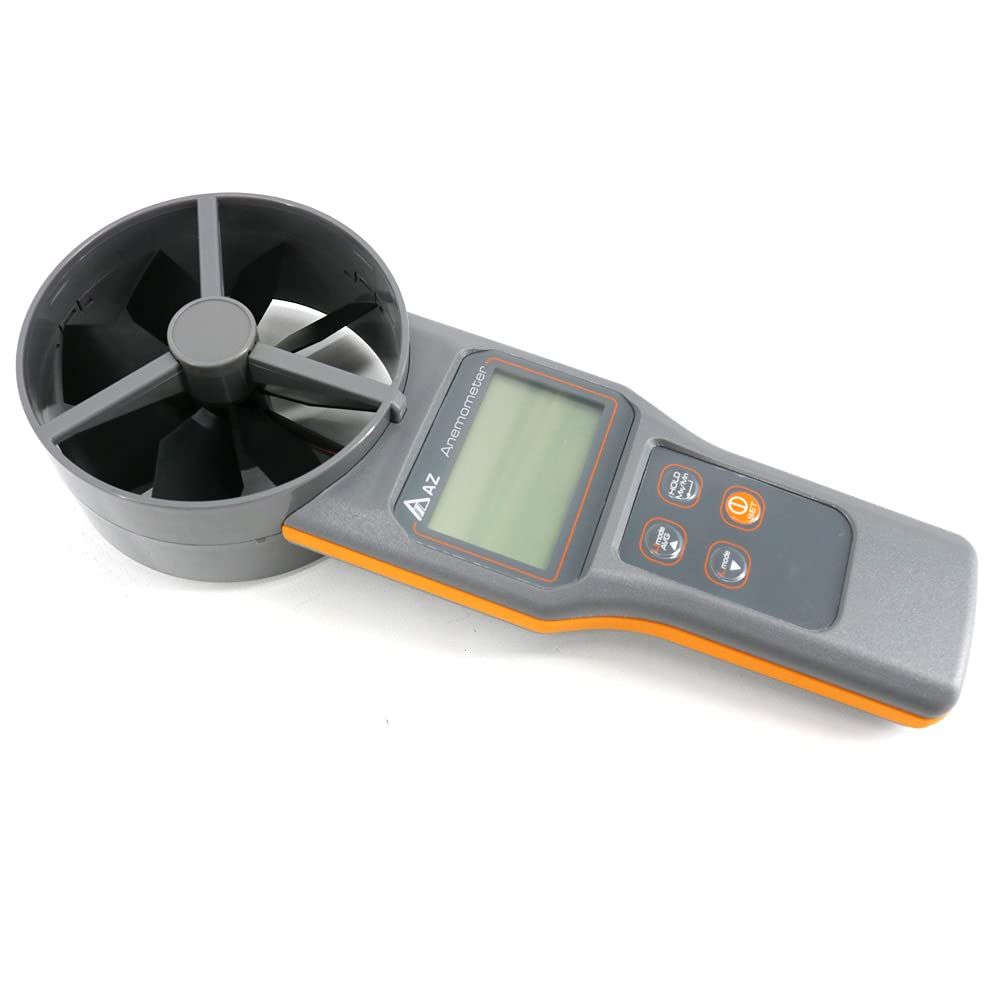

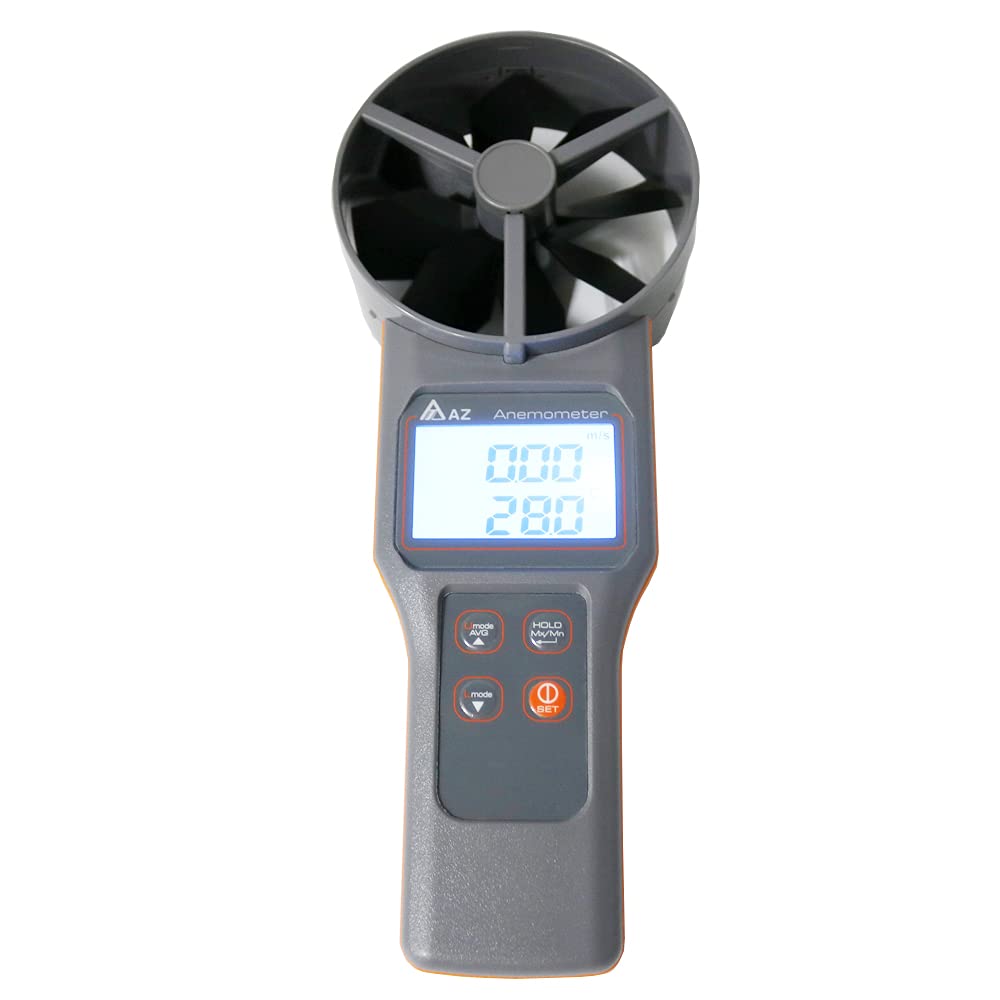

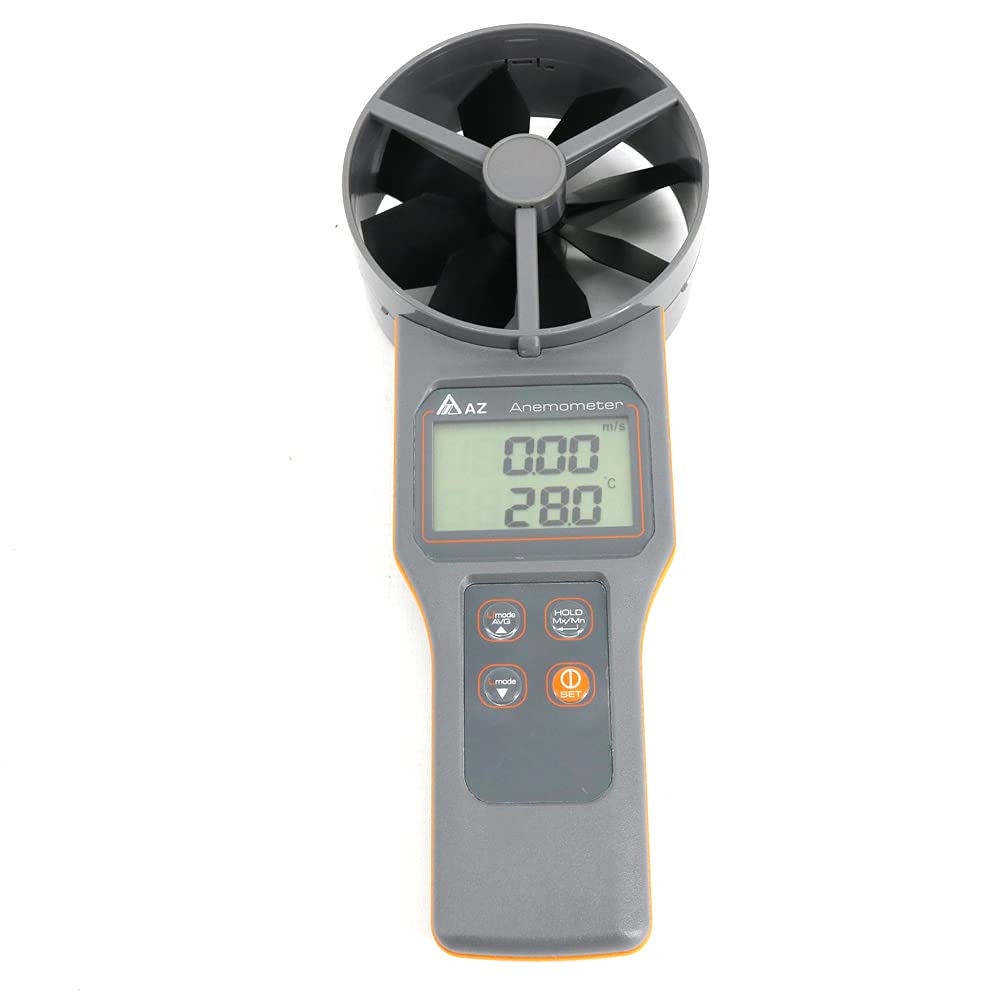

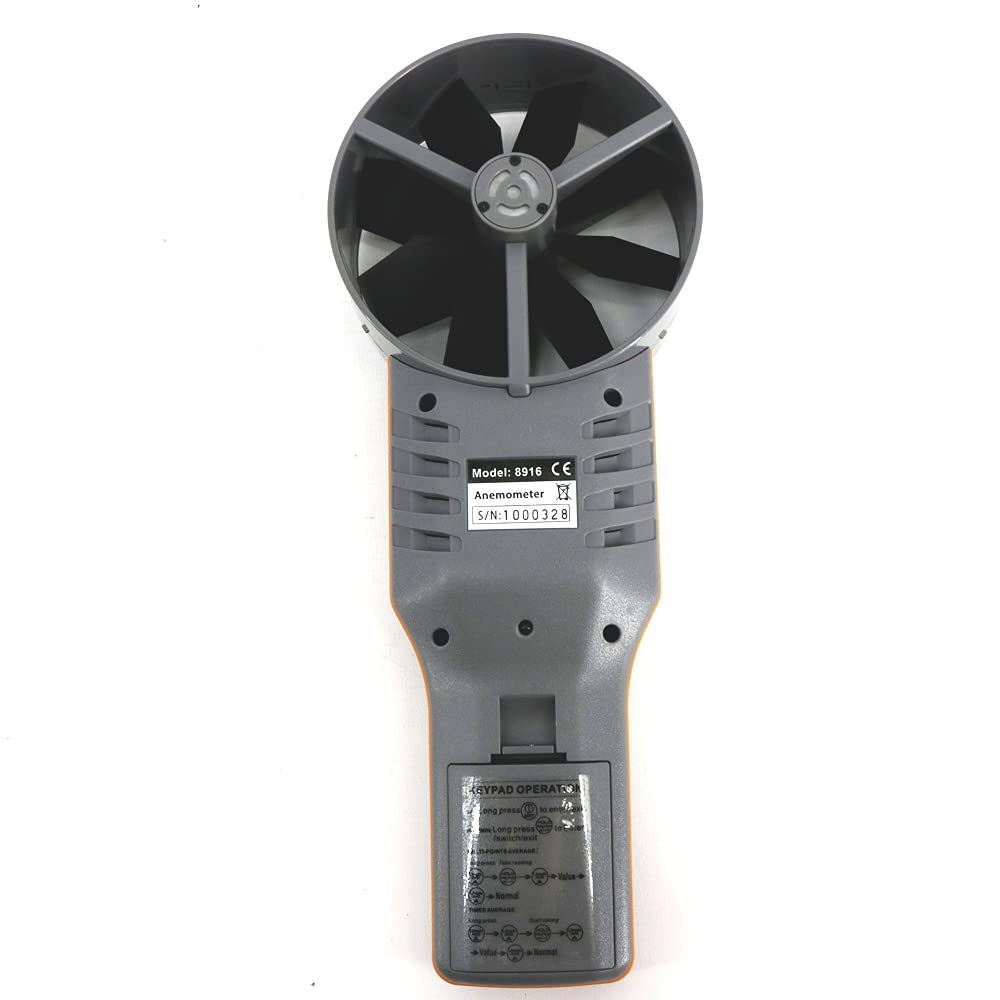

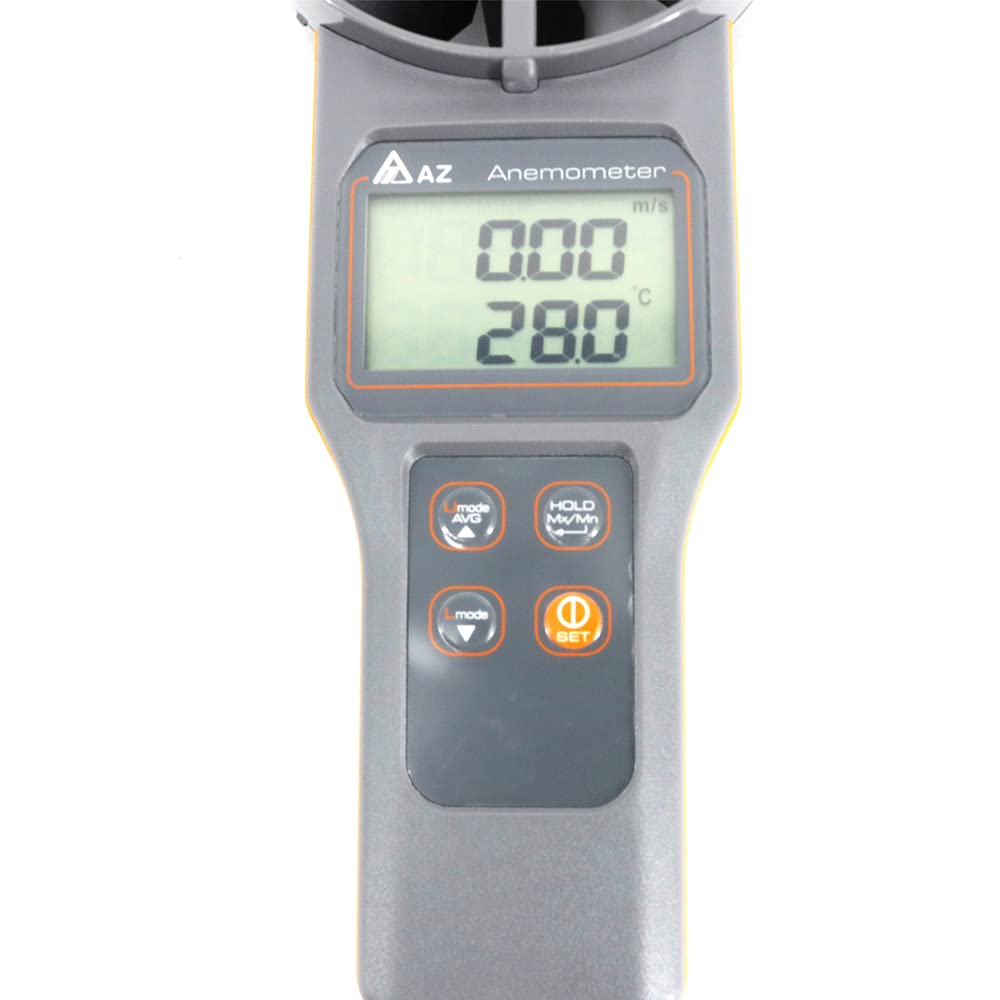

10cm Vane TEMP.&RH% Anemometer 8916/17
-Measures air velocity, volume, temperature, humidity, dew point &wet bulb temperature--10cm diameter vane type
-Auto airflow cone recognize
-Square and round air flow cone are available as optional
-Built-in thermistor temp. &capacitive humidity sensor for quick and accurate measurement
-Windspeed metric and imperial units selectable
-Display max. /min. value
-Hold function freezes current readings
-Low battery indicator
-Blue backlight for dark area operation
-Powered by 4 AAA batteries
-Unlimited points average auto calculation
-Time weighted average auto calculation
-Inlet and outlet measurement is doable
-Auto power off in 20 mins inactivity
Technical Specifications:
| Model |
AZ8916 |
AZ8917 |
| Wind speed range |
0.2~30M/S |
| Wind speed accuracy |
+/- (1.5 % of reading + 0.3m/s) for under 20m/s
+/- (3 % of reading + 0.3m/s) for above 20m/s
|
| Air temp. range |
-20~60.0 C |
| Air temp. resolution |
0.1 C/ F |
| Air temp. accuracy |
+/-0.6 C |
| Air RH% range |
0.1%RH~99.9%RH |
| Air RH% resolution |
0.1%RH |
| Air RH% accuracy |
+/-3%RH(at 25 C,
10~90%RH, others +/-5%RH) |
| Temp. response time |
60 seconds (typical) |
| Air RH% response time |
60 seconds (typical) |
| LCD update |
every second |
| Wet Bulb temp. display |
-20~59.9.0 C |
| Dew point temp.display |
-5~59.9 C |
| Air volume display |
0 to 99999m /minute |
| Air volume resolution |
0.1(0 to 9999.9) or 1 (10000 to 99999) |
| LCD size |
32.5(H)x54(W)mm |
| Operating temp. |
0~50 C |
| Operating RH% |
Humidity < 80% |
| Storage temp. |
-10~50 C |
| Storage RH% |
Humidity < 90% |
| Dimension(mm) |
269x106x51 |
| Weight |
~200g |
| Battery |
AAA x 4pcs |
| Standard Package |

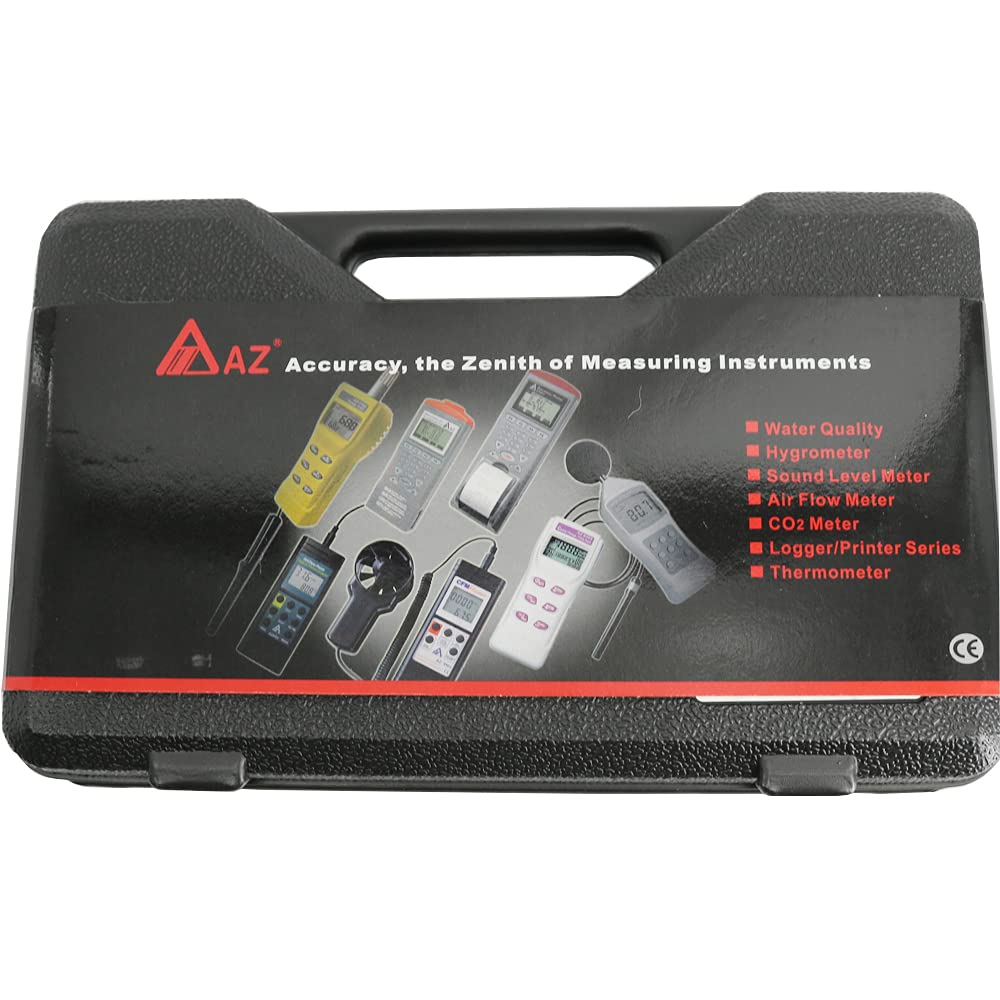

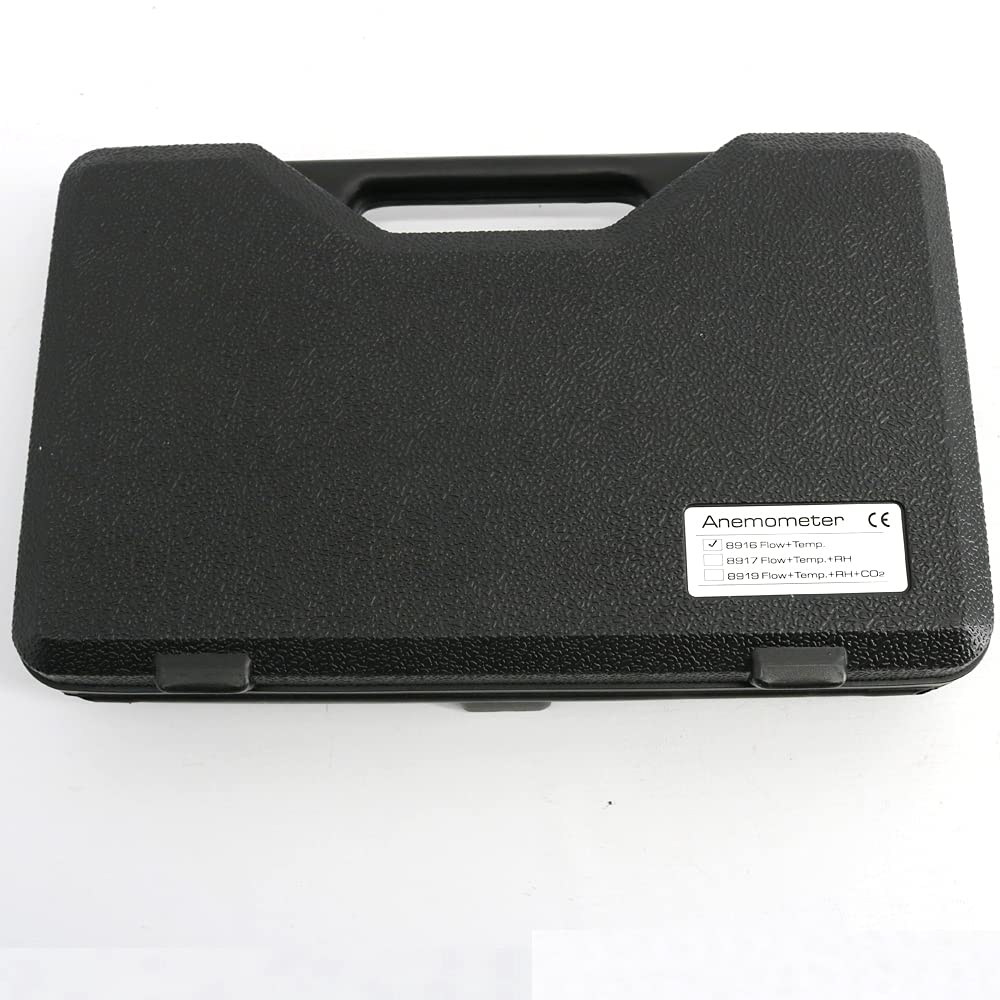

Meter/Manual/Hard carry case |
