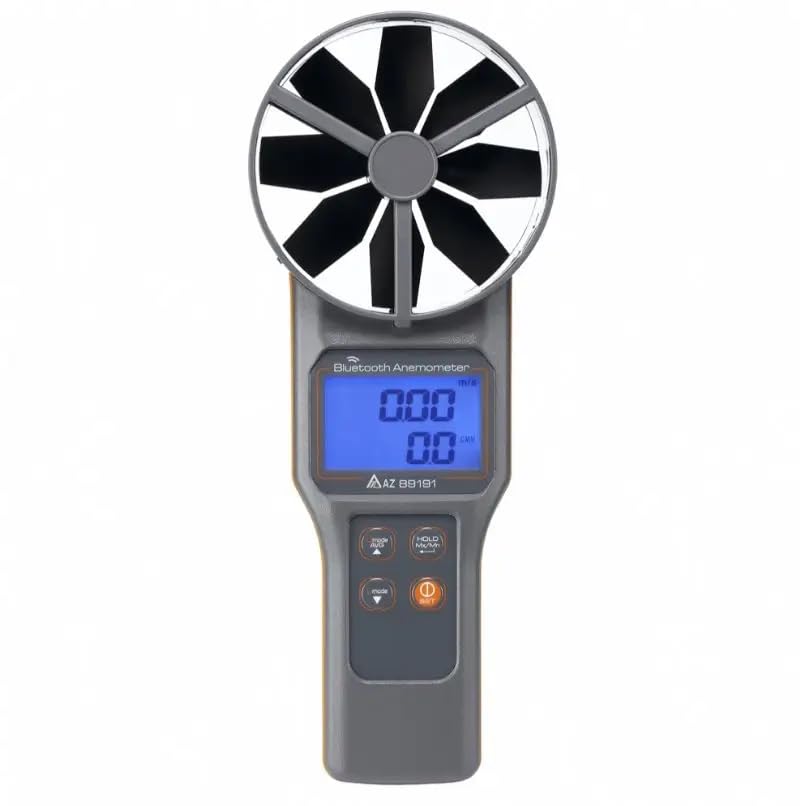

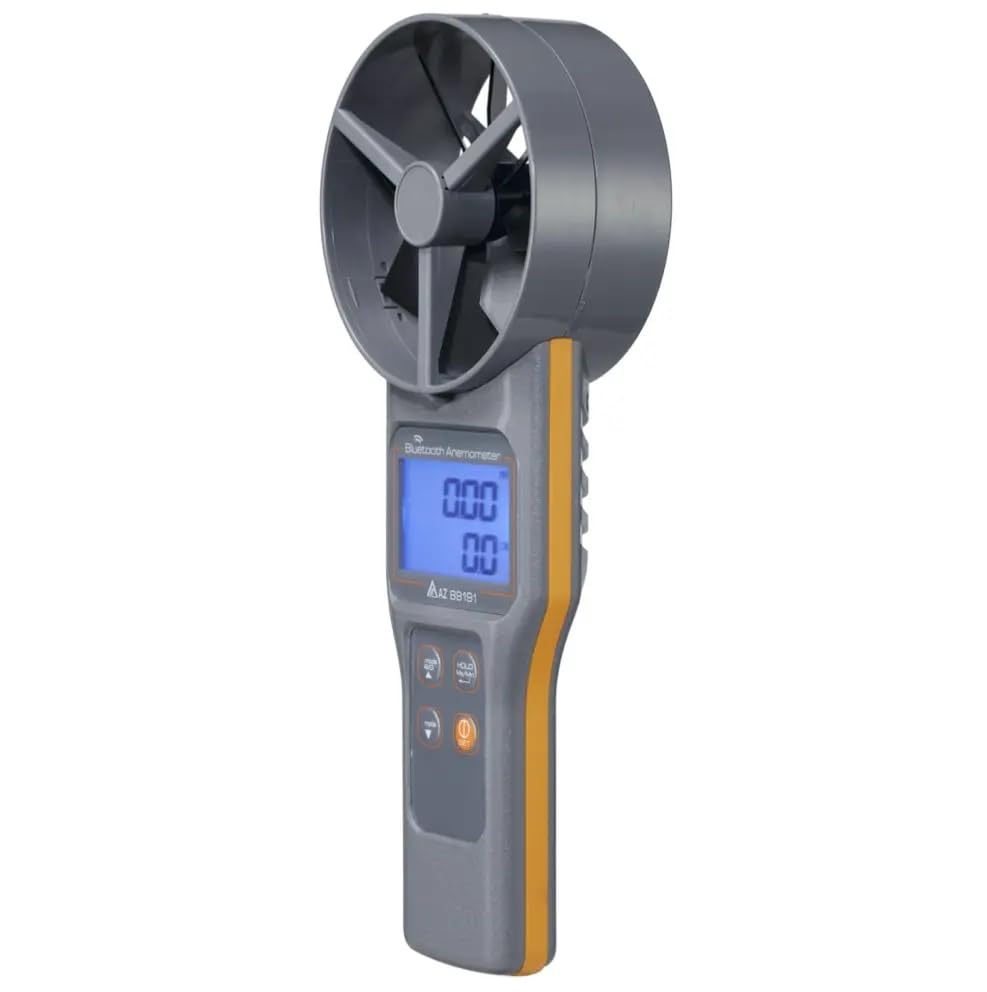

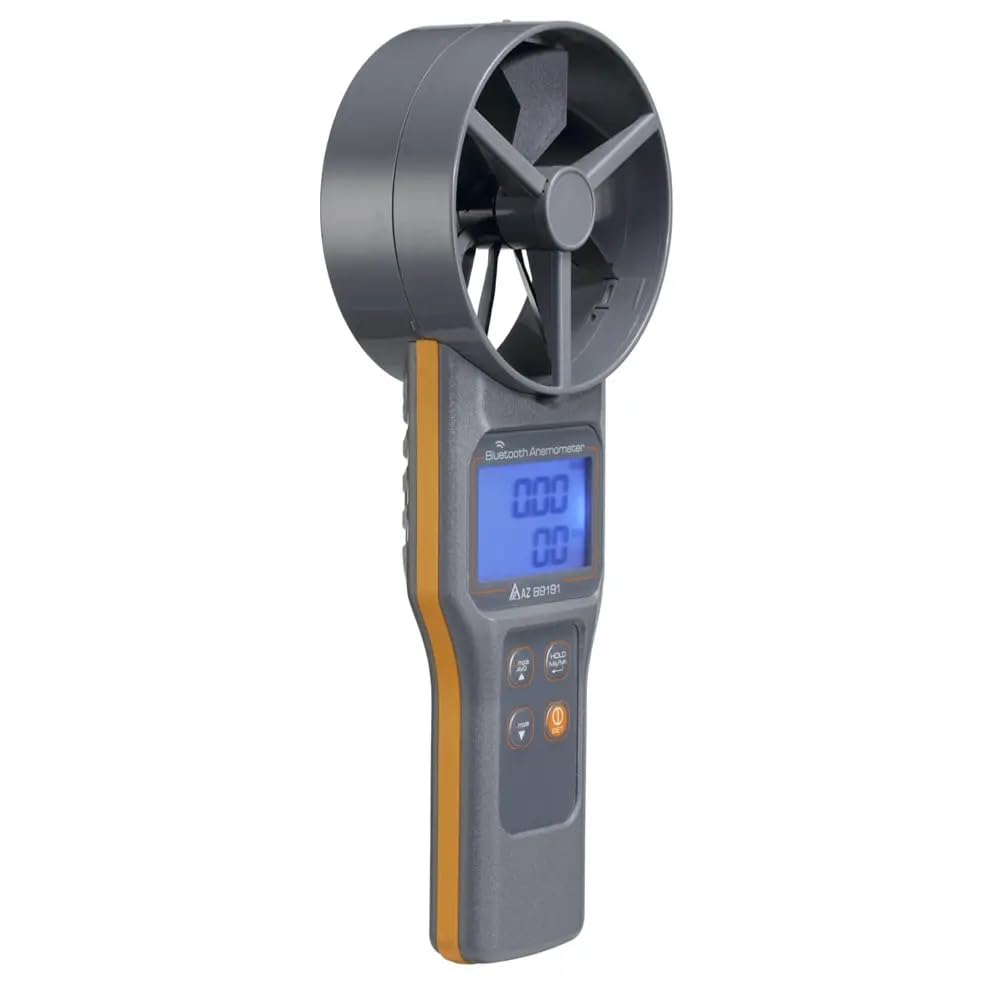

AZ89191 Bluetooth Temp./RH/CO2 Anemometer Wind Speed Meter Air Flow Meter Range 0.20~30.00m/s
AZ89191 Bluetooth Temp./RH/CO2 Anemometer Wind Speed Meter Air Flow Meter Range 0.20~30.00m/s
无法加载取货服务可用情况
AZ89191 Bluetooth-compatible Anemometer Air Flow Velocity Wind Speed Meter Fan Air Flow Tester Meter Range 0.20~30.00 M/S
AZ 89191 Wind Speed Meter for Android & IOS
* Measures air velocity, volume, temperature, humidity, dew point & wet bulb temperature and CO2
* Broadcasting data every second to smart devices by using Bluetooth technology
* 10 cm diameter vane type with build in temperature, humidity and NDIR CO2 sensor
* Auto airflow cone recognize
* Optional square & round flow cone and extension stick
* Unlimited points average auto calculation
* Time weighted average auto calculation
* Free APP provides data recording, photograph & filing
* Please search for “Nice Flow” from APP stores
Application of 89191 AZ Bluetooth 4.0 Air Flow Measuring Devices:
The 89191 AZ Bluetooth 4.0 wind speed metercan measure the Air Speed, Air Velocity, Air Volume, Temperature, Humidity value, which is the best
choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Air Conditioning and Refrigerating) or industrial related application.
The portable 89191 AZ Bluetooth4.0 Air flow Meterhas the 10 cm diameter vane type with built-in NDIR wave guide technology CO2 sensor, it can
measure the CO2 value to monitor the indoor air quality.
The 89191 AZ Bluetooth4.0 Anemometeris very easy to use. It could export the data through Bluetooth 4.0 wireless technology to User's smart phones
via “Nice Flow” APP. Welcome to learn more about the operation procedures from the YouTube linkage in the end of page.
The 89191 AZ Temperature & Relative Humidity & CO2 & Air Flow Metercould attach to the specific air flow cone to measure the volume quickly.
User just needs to install the compatible airflow cone, the meter will recognize the area for air volume calculations automatically. The air flow cone set
has the round and square size, which could be met with most applications. We also provide the cone extension stick could be purchased, which could
let user another way to take measurement in an efficient way without using ladder.
Specification:
|
Model |
89191 |
|
Wind Speed Range |
0.20~30.00 m/s |
|
Wind Speed Accuracy |
±(1.5% of reading+0.3 m/s) for under 20 m/s |
|
Air Temperature Range |
-20~60℃ |
|
Air Temperature Resolution |
0.1℃, 0.1℉ |
|
Air Temperature Accuracy |
±0.6℃ |
|
Air RH% Range |
0.1%~99.9%RH |
|
Air RH% Resolution |
0.1%RH |
|
Air RH% Accuracy |
±3%RH (at 25℃ 10~90%RH, others ±5%RH) |
|
CO2 Range |
0~9999 ppm, (5001~9999 ppm out of scale range) |
|
CO2 Accuracy |
±30 ppm ±5% of reading (0~5000 ppm) |
|
Temperature Response Time |
60 seconds (typical) |
|
Air RH% Response Time |
60 seconds (typical) |
|
LCD Update |
Every second |
|
Wet Bulb Temp. Display |
-20~59.9℃ |
|
Dew Point Temp. Display |
-5~59.9℃ |
|
Air Volume Display (CMM) |
0~99999 m3/minute |
|
Air Volume Resolution |
0.1 (0~9999.9) or 1 (10000~99999) |
|
LCD Size |
54(L) * 32.5(W) mm |
|
Operating Temperature |
0~50℃ |
|
Operating RH% |
Humidity <80% |
|
Storage Temperature |
-10~50℃ |
|
Storage RH% |
Humidity <90% |
|
Meter Size |
269(L)* 106(W) * 51(H) mm |
|
Weight |
~200g |
|
Battery |
AAA*4 PCS |
|
Optional Accessory |
Airflow Cone (W/soft Carry Case), Cone Extension Stick |
|
Standard Package |
Meter, Batteries, Manual, Hard Carry Case |
Brand: Graigar
Features:
- Measures air velocity, volume, temperature, humidity, dew point & wet bulb temperature and CO2
- Broadcasting data every second to smart devices by using Bluetooth technology
- 10 cm diameter vane type with build in temperature, humidity and NDIR CO2 sensor
- Auto air flow cone recognize
- Unlimited points average auto calculation
- Time weighted average auto calculation
model number: AZ89191
Part Number: AZ89191
