AZ9631 Digital Differential Pressure Data Logger Manometer 100 psi with Software Air Pressure Difference Tester
AZ9631 Digital Differential Pressure Data Logger Manometer 100 psi with Software Air Pressure Difference Tester
Regular price
$299.90 USD
Regular price
Sale price
$299.90 USD
Unit price
/
per
Couldn't load pickup availability
* Measuring and recording gauge pressure & differential pressure 3 measurement modes:
-Single point measurement
-Manual record up to 99 points
-Automatically record up to 12000 points
* 11 units for selection (metric, imperial)
* Automatic recording is programmable

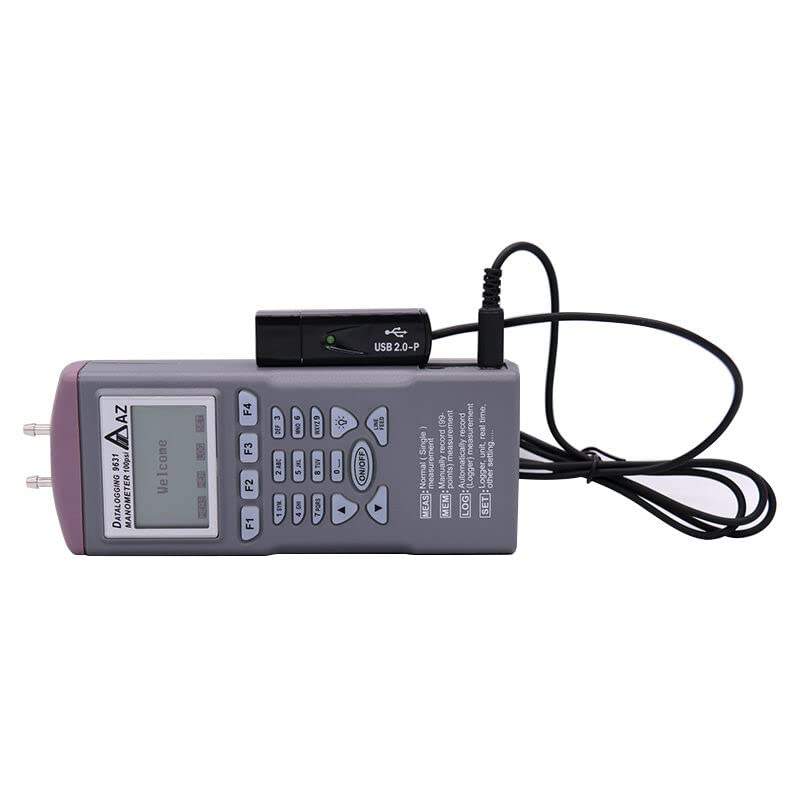

* RS232 interface with software enable to link to PC for downloading data
* Uploading pre-edited header from PC to meter
* Excellent tool as the air pressure gauge
* Plastic & metal available
-4 mm, metal only
-8 mm, metal or plastic
| Model | 9631 |
| psi Range (Resolution) | ±100.0 (0.1) |
| kPa Range (Resolution) | ±689.5 (0.4) |
| mmHg Range (Resolution) | ±5171 (3) |
| Kg/cm2 Range (Resolution) | ±7.031 (0.004) |
| mbar (hpa) Range (Resolution) | ±6895 (4) |
| bar Range (Resolution) | ±6.895 (0.004) |
| inH2O Range (Resolution) | ±2768 (2) |
| cmH2O Range (Resolution) | ±7004 (4) |
| inHg Range (Resolution) | ±203.6 (0.2) |
| ftH2O Range (Resolution) | ±230.7 (0.2) |
| oz/inch2 Range (Resolution) | ±1600 (1) |
| Accuracy (25℃, 77℉) | ±0.3% of full scale |
| Repeatability | ±0.2~0.5% of full scale |
| Linearity/Hysteresis | ±0.29~1% of full scale |
| Combined Accuracy | ±1.0% of full scale |
| Response Time | 0.5 second |
| Compensated Temperature Range | 0~50℃ |
| LCD Size | 45(L) * 26(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity <80% |
| Storage Temperature | -20~50℃ |
| Storage RH% | Humidity <90% |
| Meter Size | 171(L) * 70(W) * 39.5(H) mm |
| Weight | ~260g |
| Battery | AAA Battery * 4 PCS or 9V adaptor |

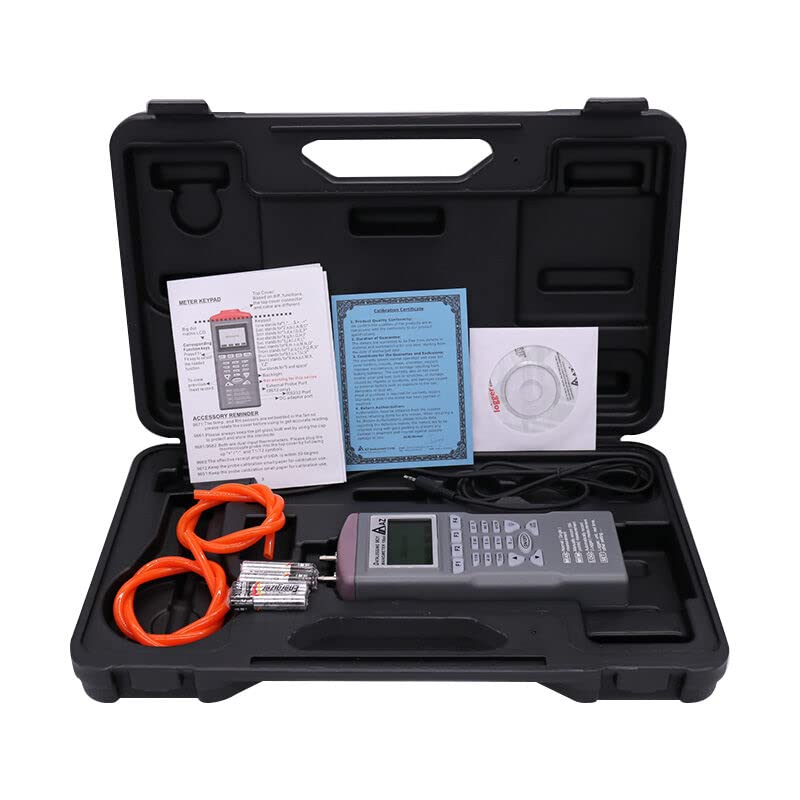

| Standard Package | Meter, Manual, Connection Hose*2, Hard Carry Case, Software CD & Cable |
