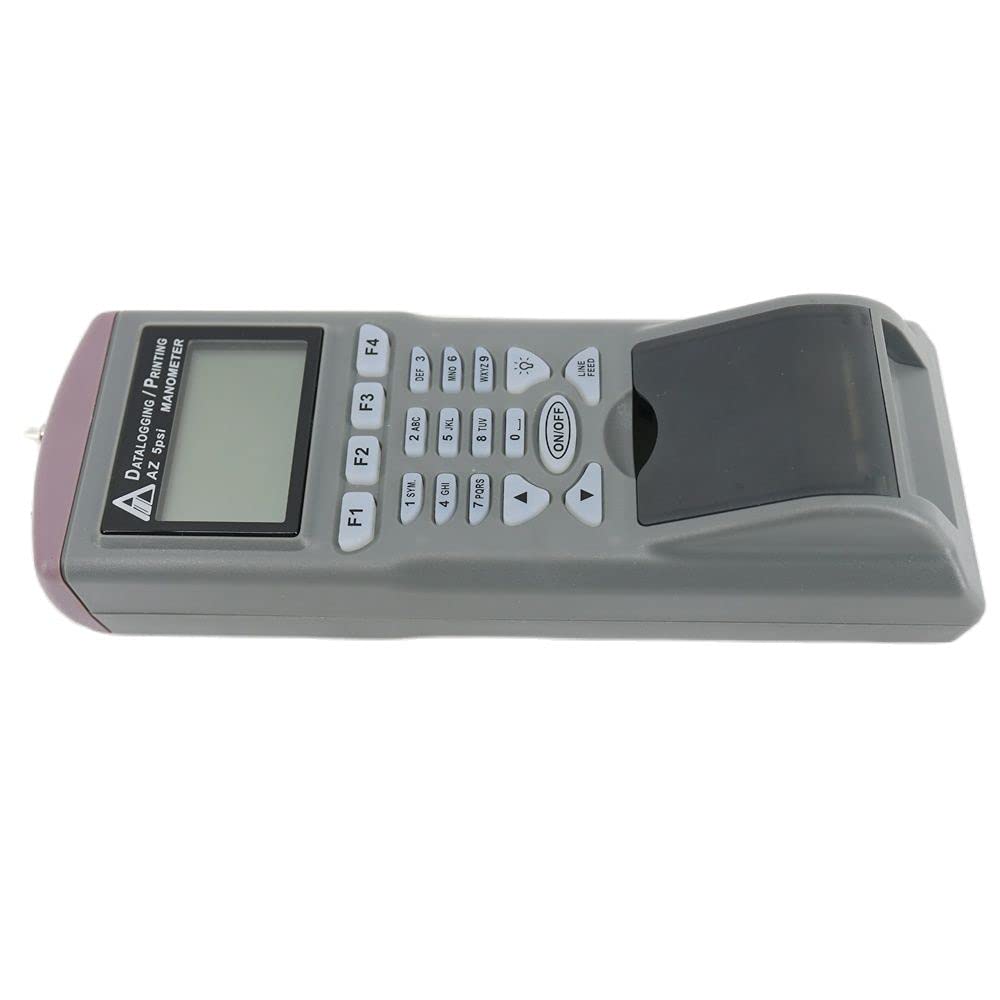

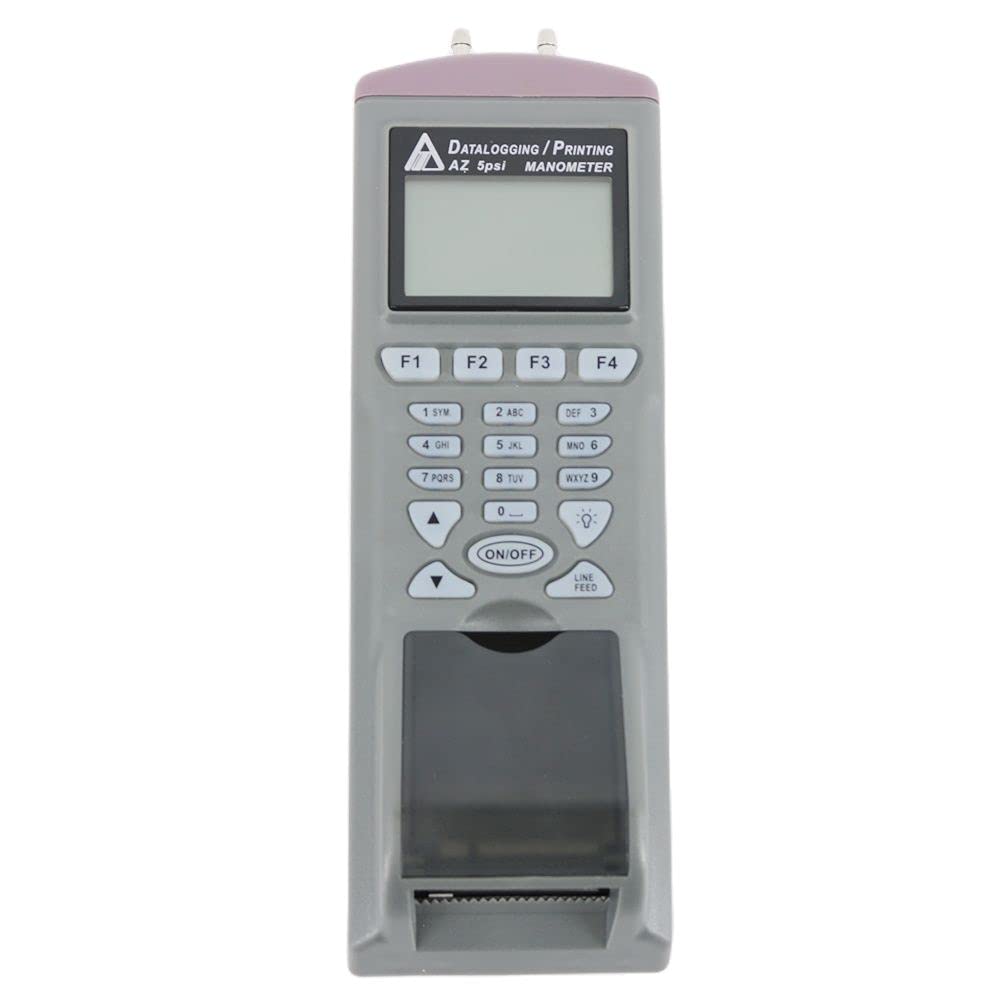

AZ9835 Pressure Meter 5psi Manometer Logger Differential Pressure Datalogging with Printer

Brand: Graigar

Features:

• The AZ9835 Differential Pressure Meter Recorder could measure the gauge pressure with reference to ambient pressure or differential pressure between pressures. It is the ideal tool for HVAC/R technicians measuring pressure level, medical equipment, computer peripherals and pneumatic controls.
• It can be operated by the batteries or adaptor, which could be help user to measure, record and print the air differential pressure easily. It also could be program anywhere, any time.
• There are 11 pressure units could be selected for imperial and metric with AZ9835:psi, kPa, mmHg, Kg/cm2, mbar(hpa), bar, inH2O, cmH2O, inHg, ftH2O and Oz/inch2.
• User could use the RS232 cable to link the to PC to download or upload. It could be attached to tripod for long time usage.
• The AZ9835 as the thermal printer, it would be economic for user to change the thermal paper roll.

model number: AZ9835

Part Number: AZ9835

Details: Features
* Measuring and recording gauge pressure & differential pressure 3 measurement modes:
-Single point measurement
-Manual record up to 99 points
-Automatically record up to 12000 points
* Built-in printer to print anytime, anywhere
* 11 units for selection (metric, imperial)
* Automatic recording is programmable
* RS232 interface with software enable to link to PC for downloading data
* Uploading pre-edited header from PC to meter

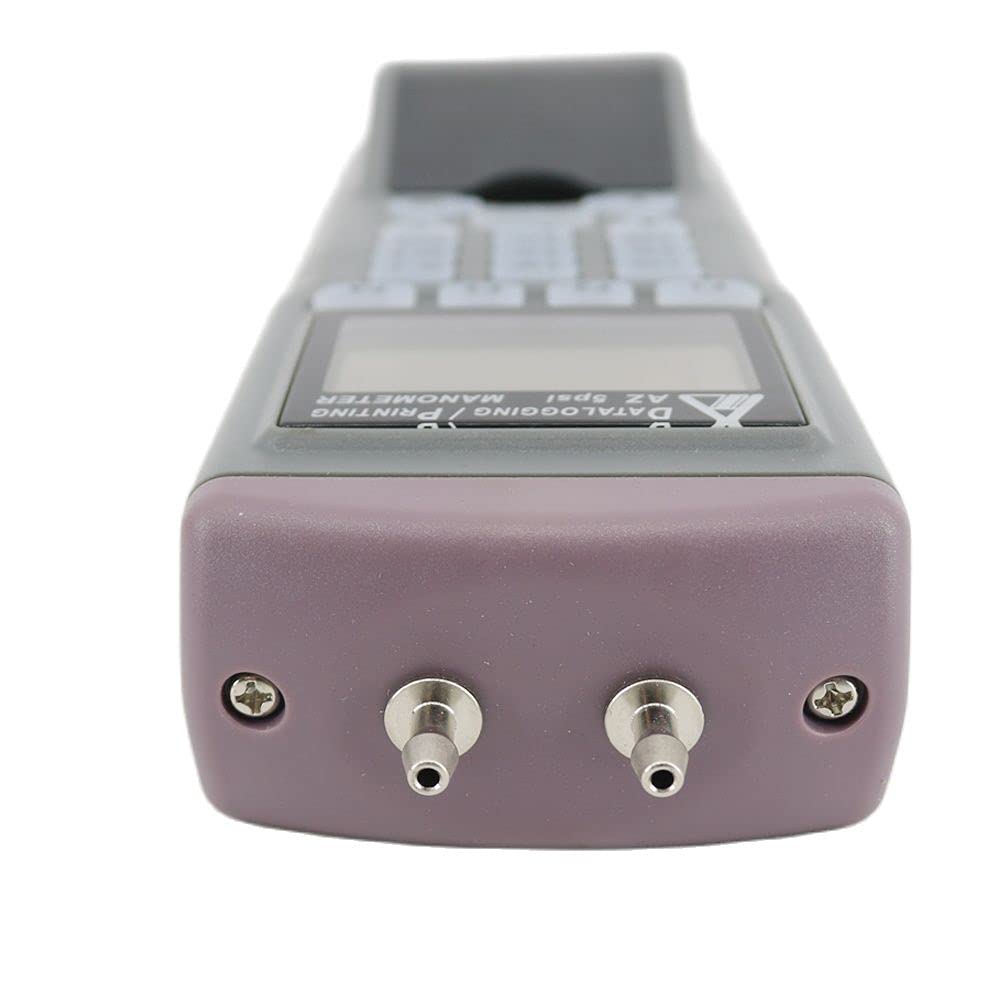

* Plastic & metal available
-4 mm, metal only
-8 mm, metal or plastic
Specification

Model:9835
psi Range (Resolution):±5.000 (0.003)
kPa Range (Resolution):±34.47 (0.02)
mmHg Range (Resolution):±258.6 (0.2)
Kg/cm2 Range (Resolution):±0.352 (0.001)
mbar (hpa) Range (Resolution):±344.7 (0.2)
bar Range (Resolution):±0.345 (0.001)
inH2O Range (Resolution):±138.4 (0.1)
cmH2O Range (Resolution):±350.2 (0.2)
inHg Range (Resolution):±10.18 (0.01)
ftH2O Range (Resolution):±11.53 (0.01)
oz/inch2 Range (Resolution):±80.0 (0.5)
Accuracy (25℃, 77℉):±0.3% of full scale
Repeatability:±0.2~0.5% of full scale
Linearity/Hysteresis:±0.29~1% of full scale
Combined Accuracy:±1.0% of full scale
Response Time:0.5 second
Compensated Temperature Range:0~50℃
LCD Size:45(L) * 26(W) mm
Operating Temperature:0~50℃
Operating RH%:Humidity ＜80%
Storage Temperature:-20~50℃
Storage RH%:Humidity ＜90%
Meter Size:208(L) * 70(W) * 53(H) mm
Weight:~370g

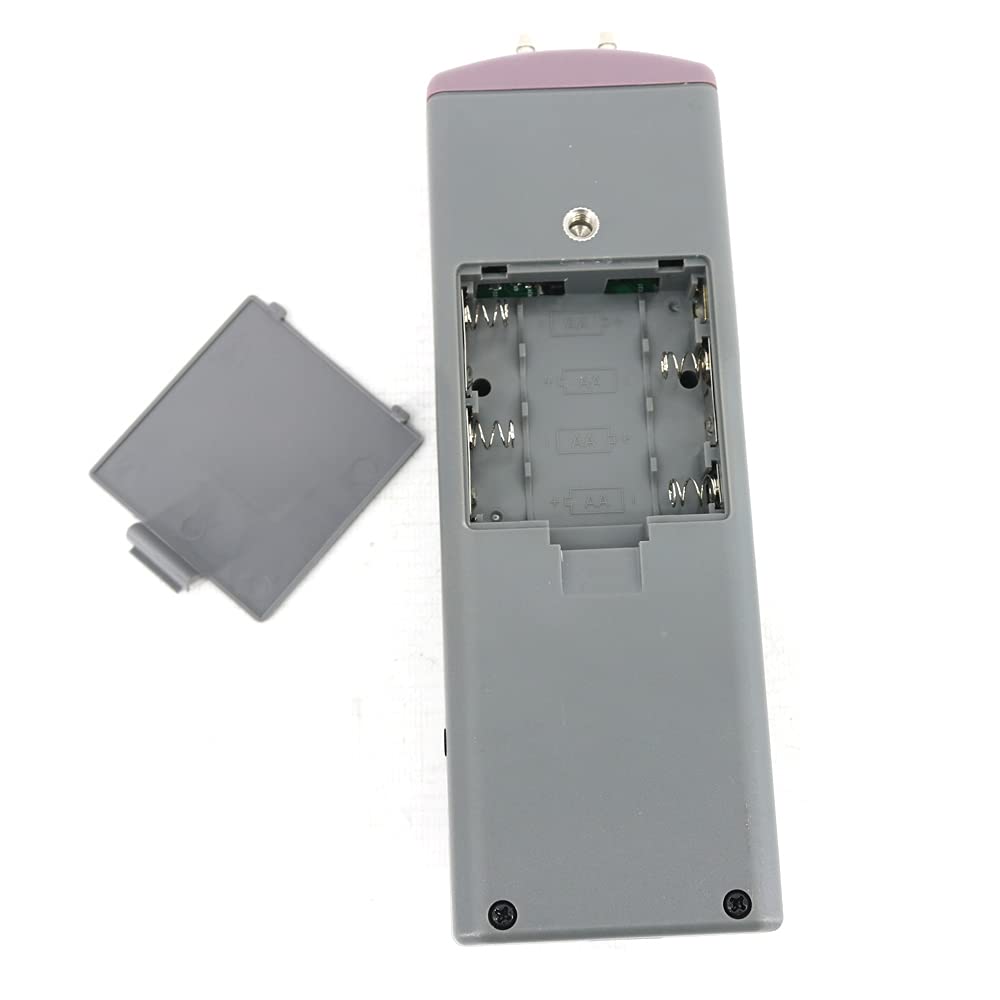

Battery:AA Battery * 4 PCS or 9V adaptor

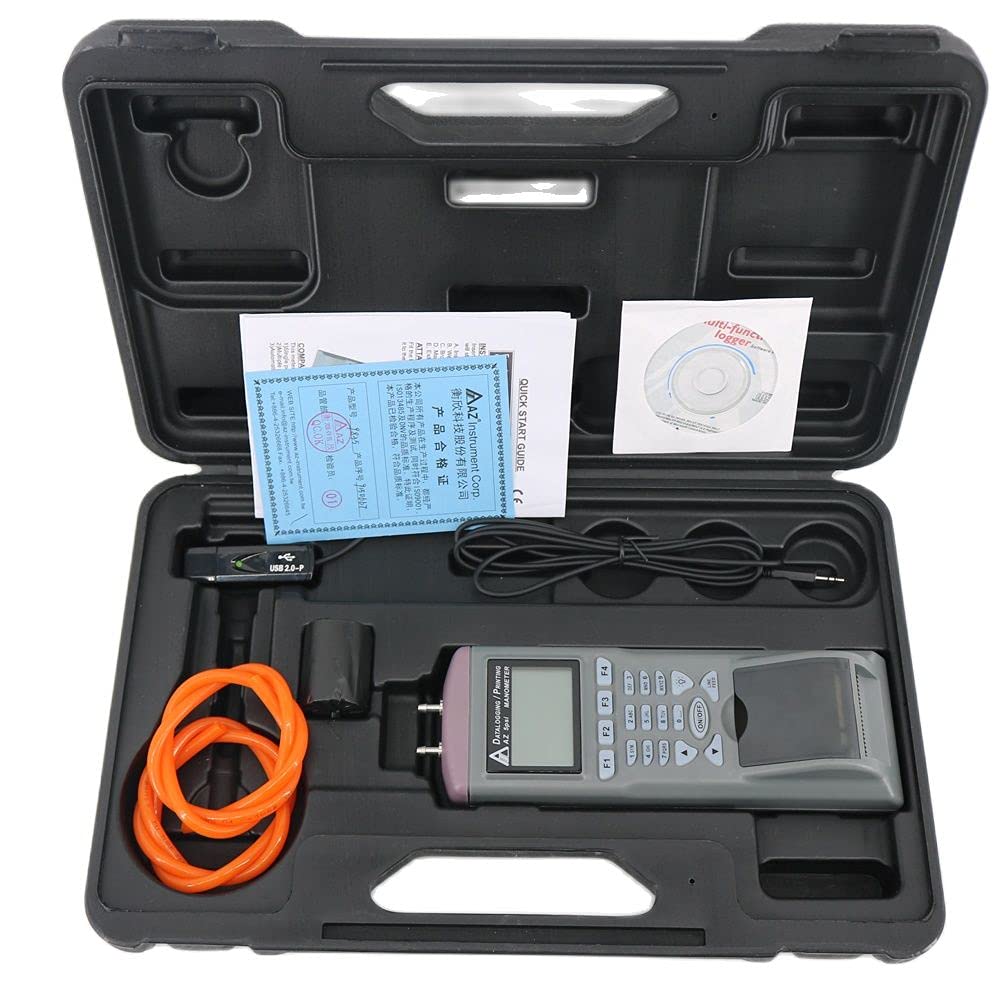

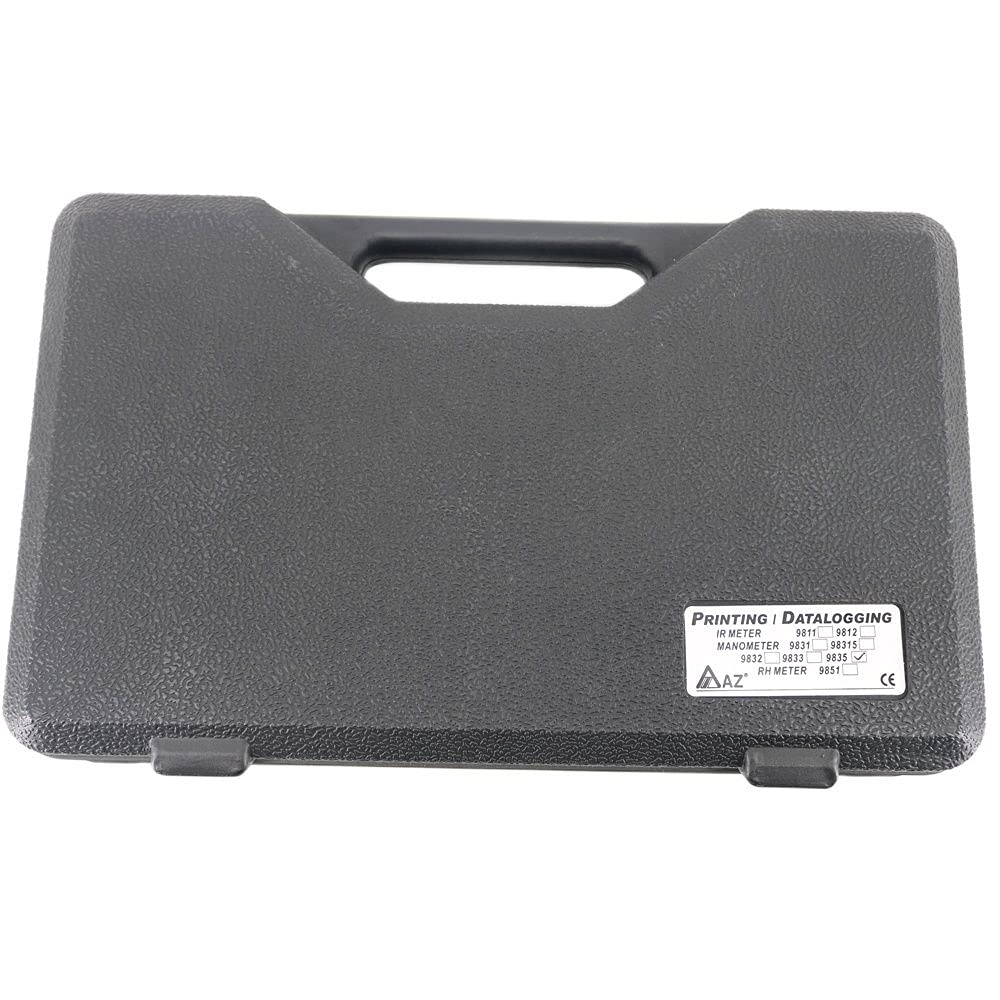

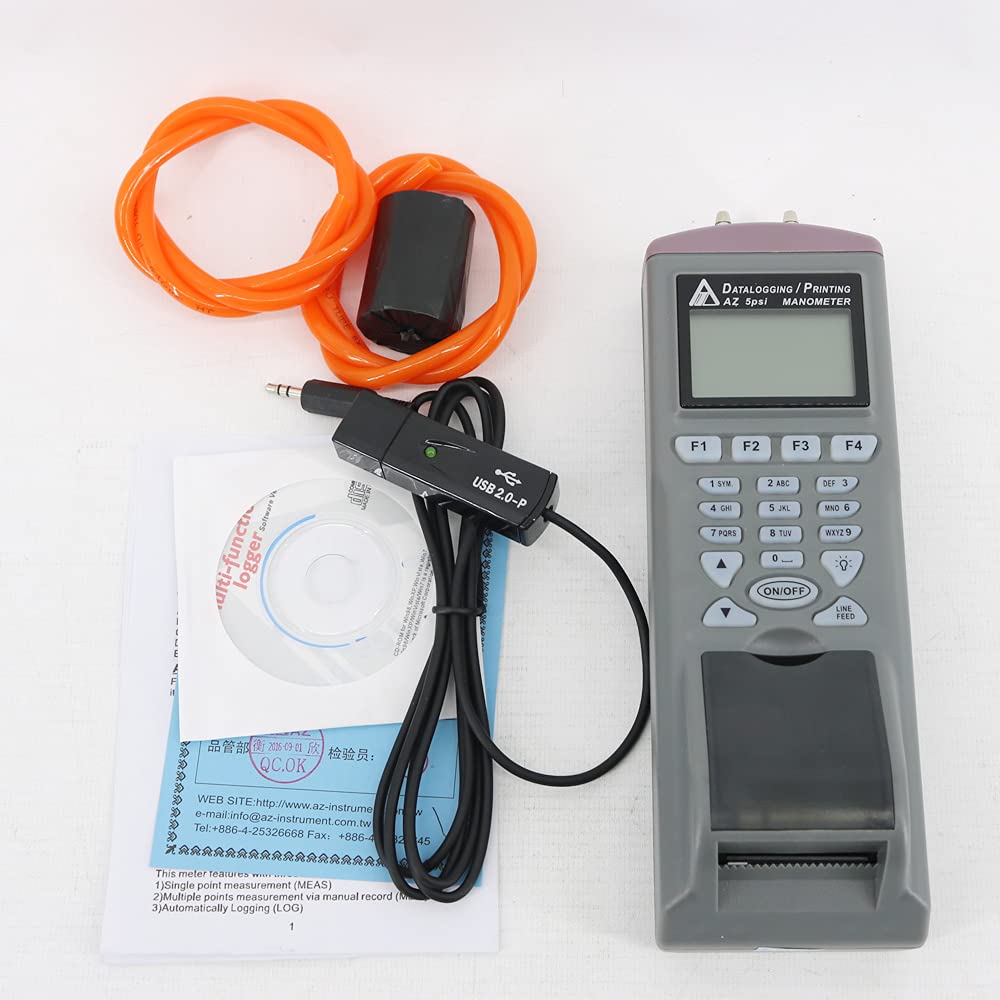

Standard Package:Meter, Manual, Connection Hose*2,Hard Carry Case, Software CD & Cable

EAN: 0761272052196
