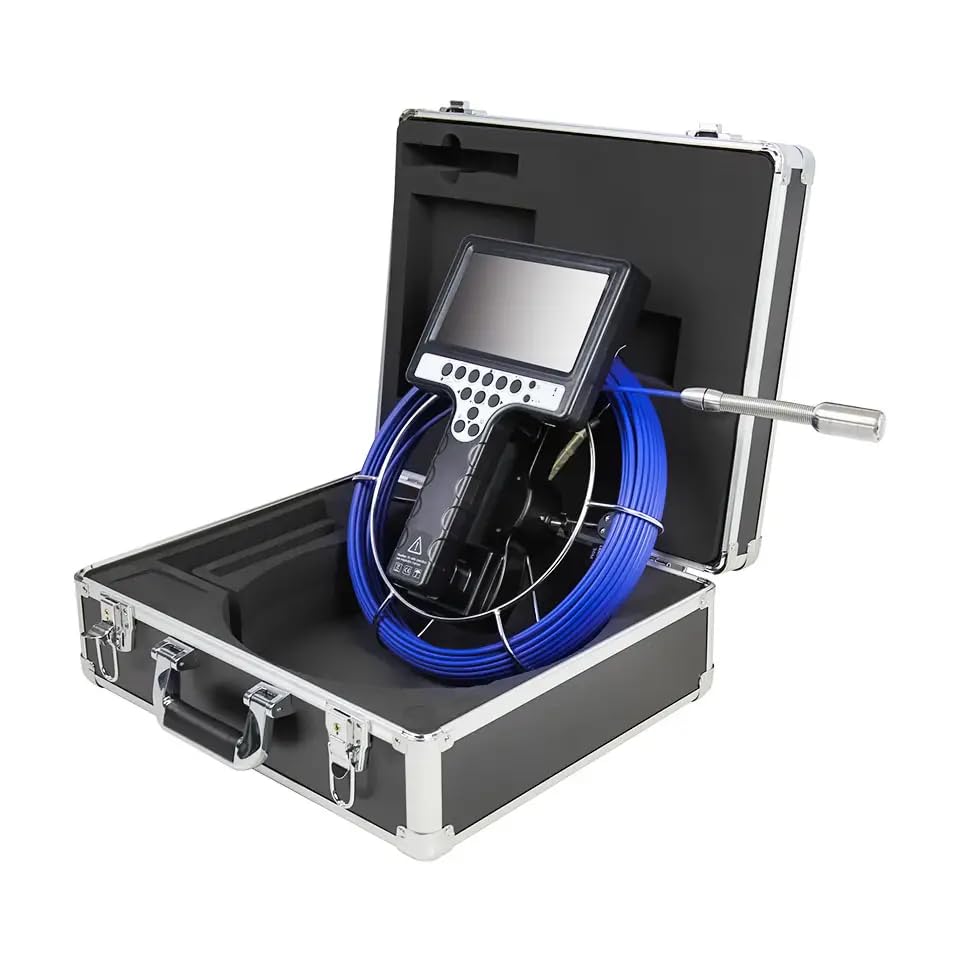

B1-C23 Portable Boiler Chimney Pipe Internal Inspection Machine Industrial Endoscope 23mm Camera Head 720 * 576 7inch Display 30m Cable Length 98 Feets
B1-C23 Portable Boiler Chimney Pipe Internal Inspection Machine Industrial Endoscope 23mm Camera Head 720 * 576 7inch Display 30m Cable Length 98 Feets
无法加载取货服务可用情况
B1-C23 Portable Boiler Chimney Pipe Internal Inspection Machine Industrial Endoscope 23mm Camera Head 720*576 7inch Display
- One-touch video/audio recording and image capture
- Support max 256G SD card or USB stick
- Support image capture while recording
- Cable M/FT counter and Text
- Zoom function (8 levels)
- 7-hour battery life
- Optional removable camera heads with different size and functions (self-levelling or 512Hz transmitter)

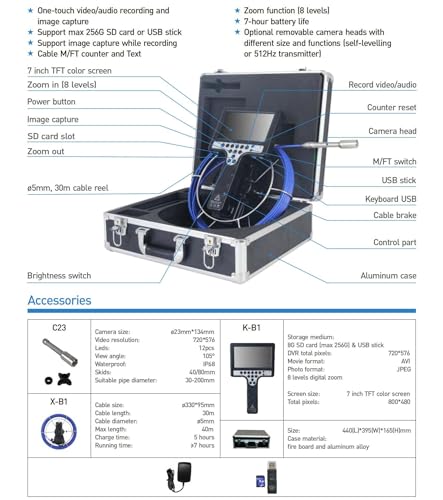

Specification
|

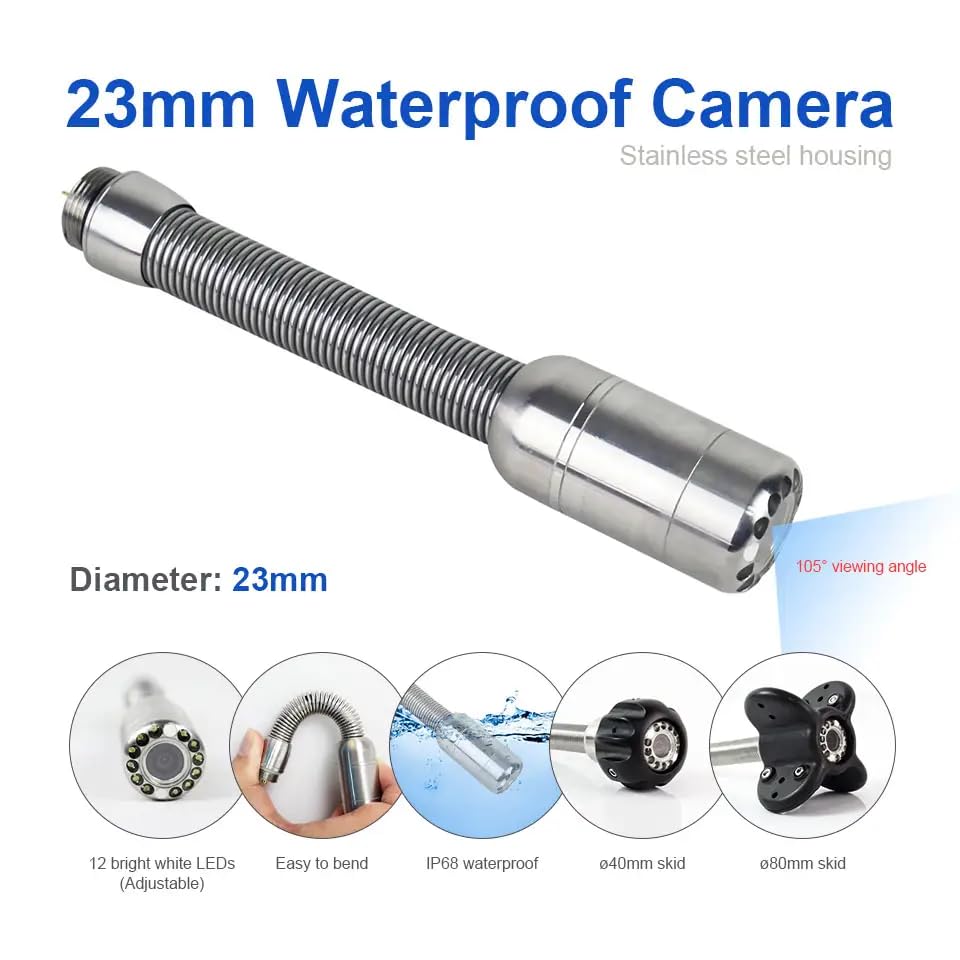

Camera & skid: Camera size: ø23mm*120mm Video resolution: 720*576 Leds: 12pcs View angle: 105° Waterproof: IP68 Skids: 40/80mm Suitable pipe diameter: 30-200mm
|

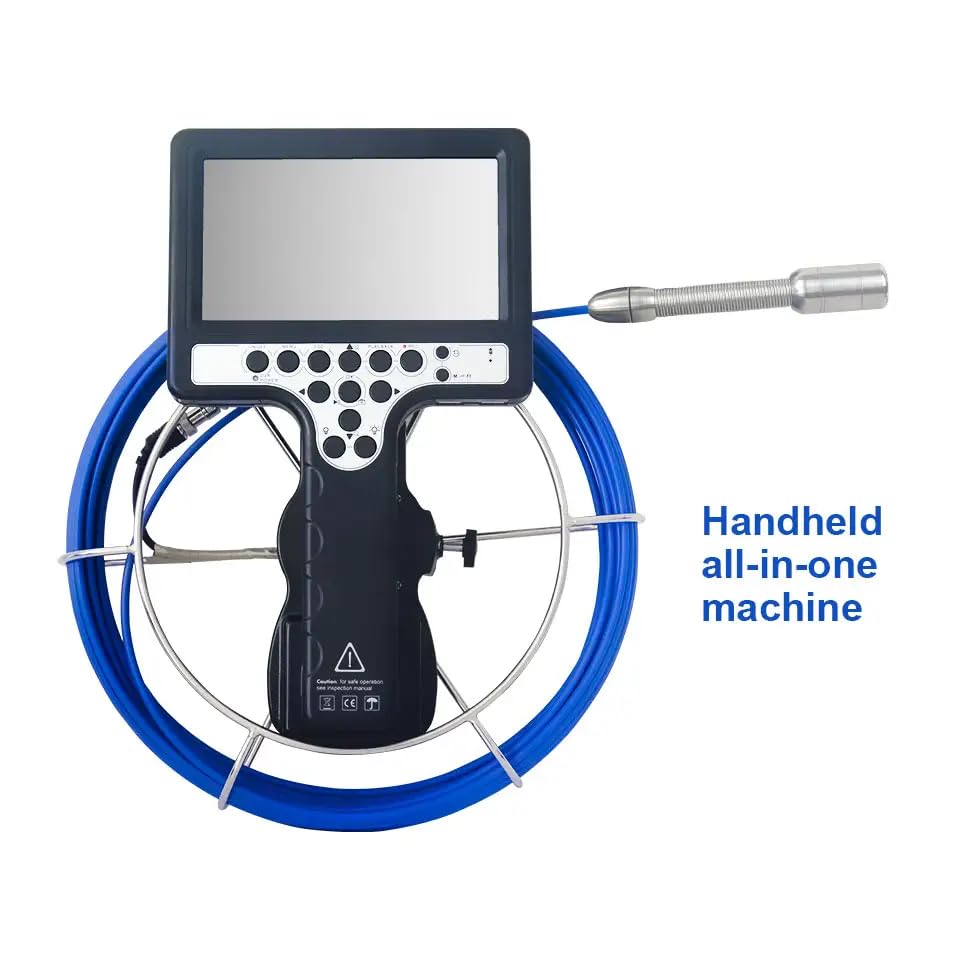

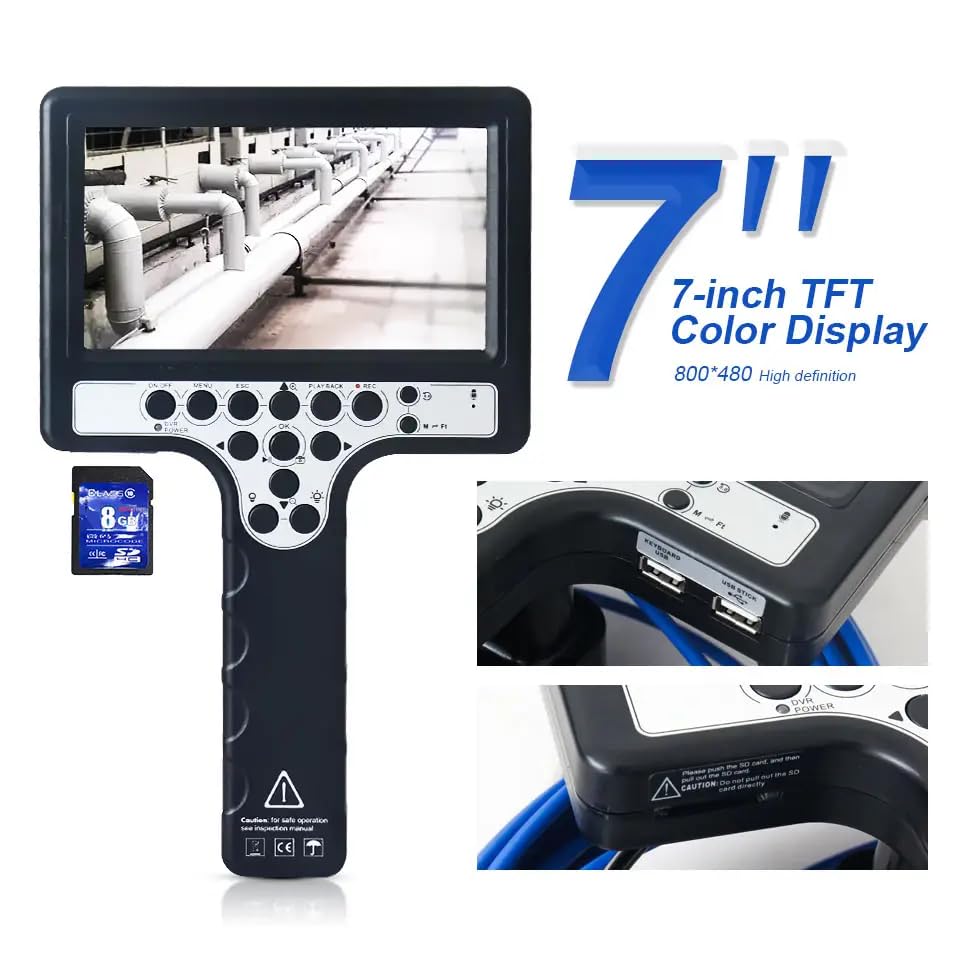

Control box: Storage medium: 8G SD card (max 256G) &USB stick DVR pixels: 720*576 Movie format: AVI 8 levels digital zoom Screen size: 7 inch TFT color Screen pixels: 800*480
|
|

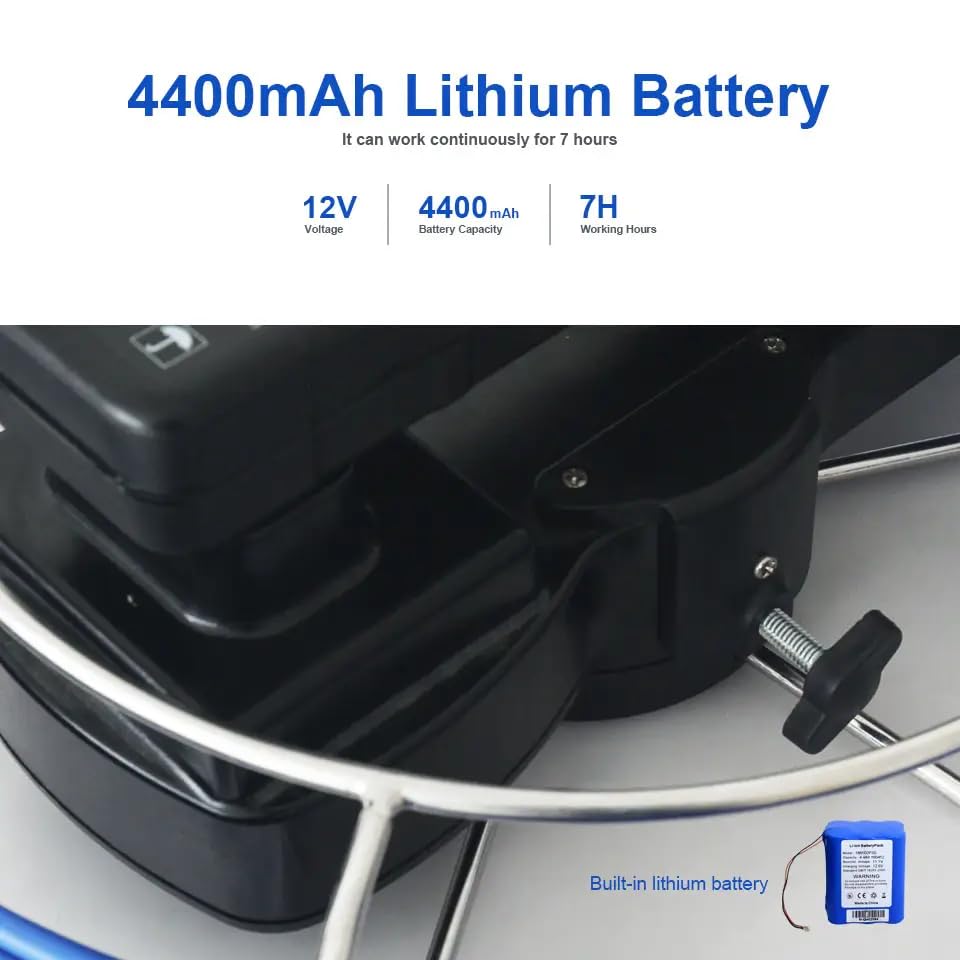

Cable reel: Cable size: ø330*132(h)mm Cable length: 30m Cable diameter: ø5mm Max length: 40m Charger time: 5 hours Running time: ≥7 hours
|

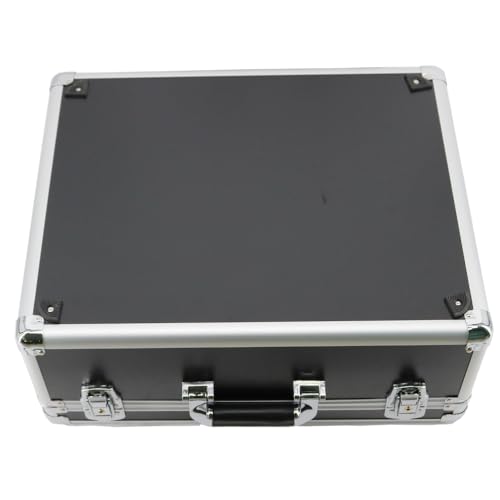

Case: Size: L440*W395*H165mm Case material: Fire board and aluminum alloy |
Brand: Graigar
Color: Blue Cable
Features:
- One-touch video/audio recording and image capture
- Support max 256G SD card or USB stick
- Support image capture while recording
- Cable M/FT counter and Text
- Zoom function (8 levels)
model number: B1-C23
Part Number: B1-C23
EAN: 0707457580467
