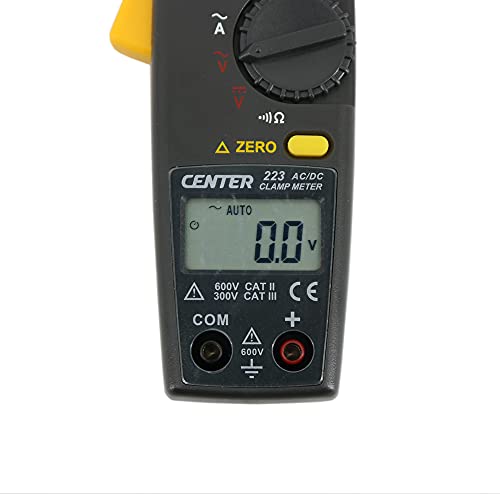

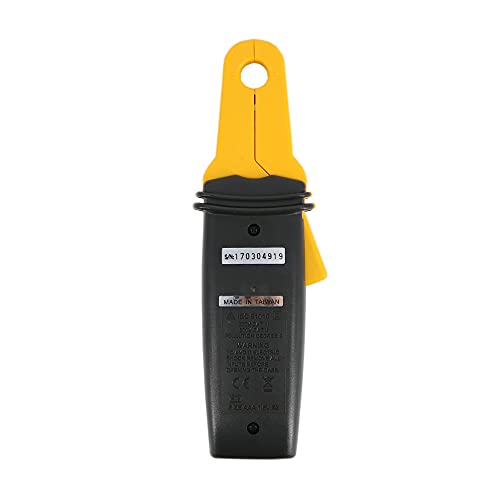

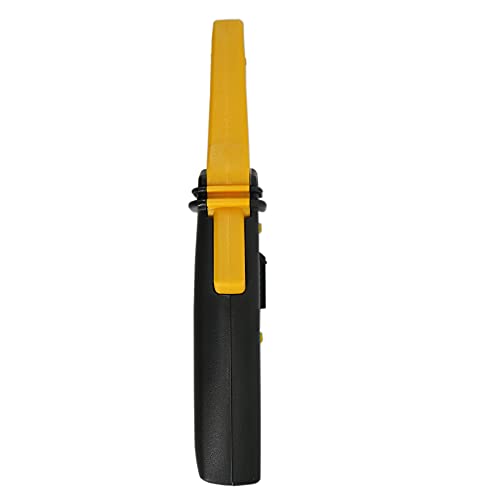

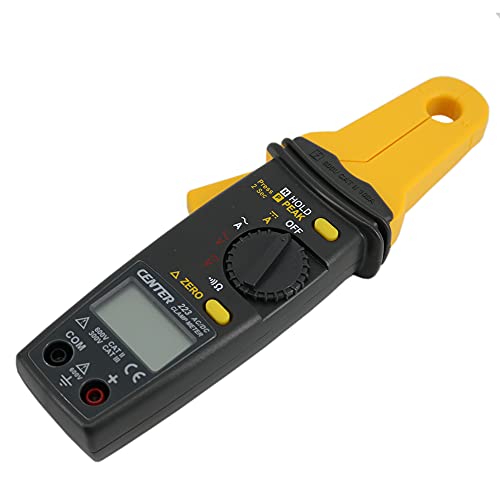

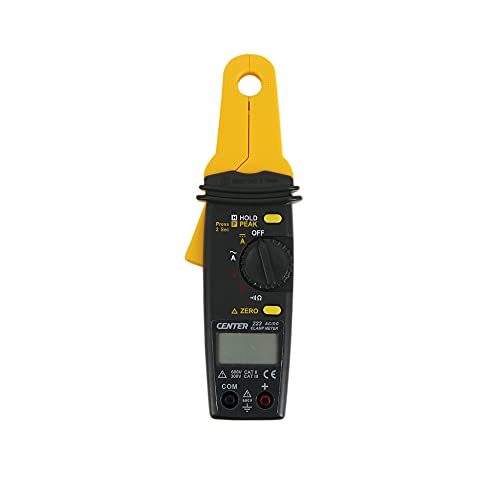

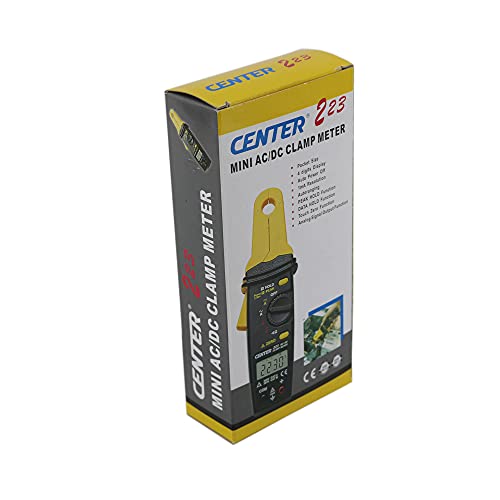

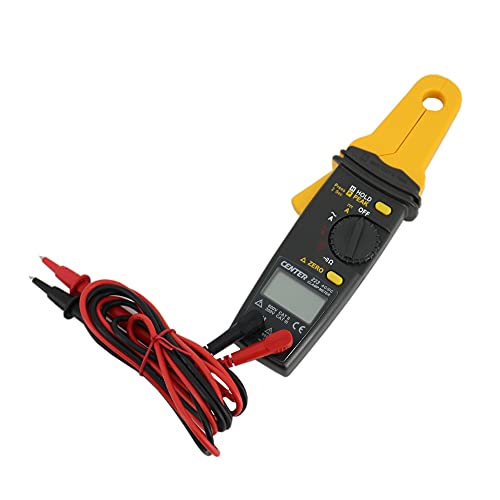

CENTER-223 Mini Clamp Meter High Resolution AC/DC Current Clamp Meter

CENTER-223 Mini Clamp Meter High Resolution AC/DC Current Clamp Meter

$159.00 USD
$159.00 USD
促销 售罄

CENTER 223 is a high resolution AC/DC clamp meter. With resolution of 1mA and span of 100A, this tester is great for appliance installation or for automotive applications.

Features:

1.1mA resolution
2.Analog signal output function
3.Pocket size
4.Peak Hold function
5.Data Hold function
6.Auto ranging
7.Auto power off
8.Touch Zero function
9.300V CATIII

Specifications:

AC Current
Range Resolution
Accuracy
50Hz~500Hz
10A 1mA 2%+10
80A 10mA
80A~100A 3.5%+10
DC Current
Range Resolution
Accuracy
10A 1mA 2.5%+10
80A 10mA
80A~100A 4.5%+10
AC Voltage
Range Resolution
Accuracy
50Hz~500Hz
600V 0.1V 1.5%+5
DC Voltage
Range Resolution Accuracy
600V 0.1V 1%+2
Resistance
Range
Resolution
Accuracy
10K
1
1%+3
Continuity
Range
Active Region

< 100

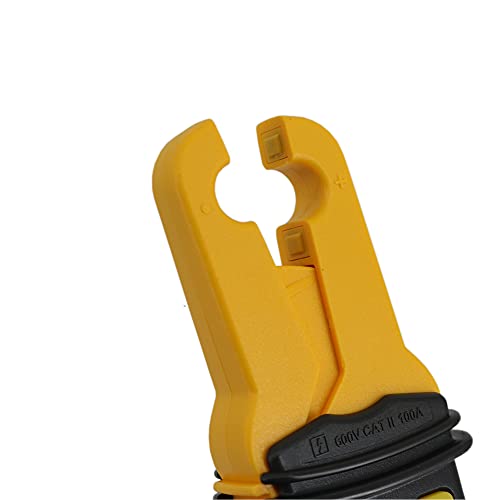

Jaw opening size: 12.5mm
Battery: 1.5V AAA x 2
Dimensions: 202 x 50 x 29mm
Weight: 180g

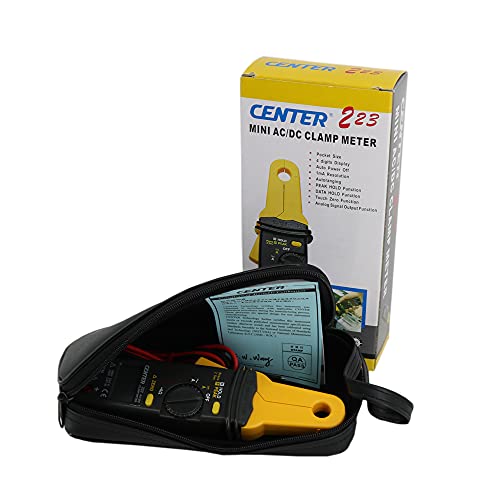

Standard Accessories:

Test lead, instruction manual, carrying case
