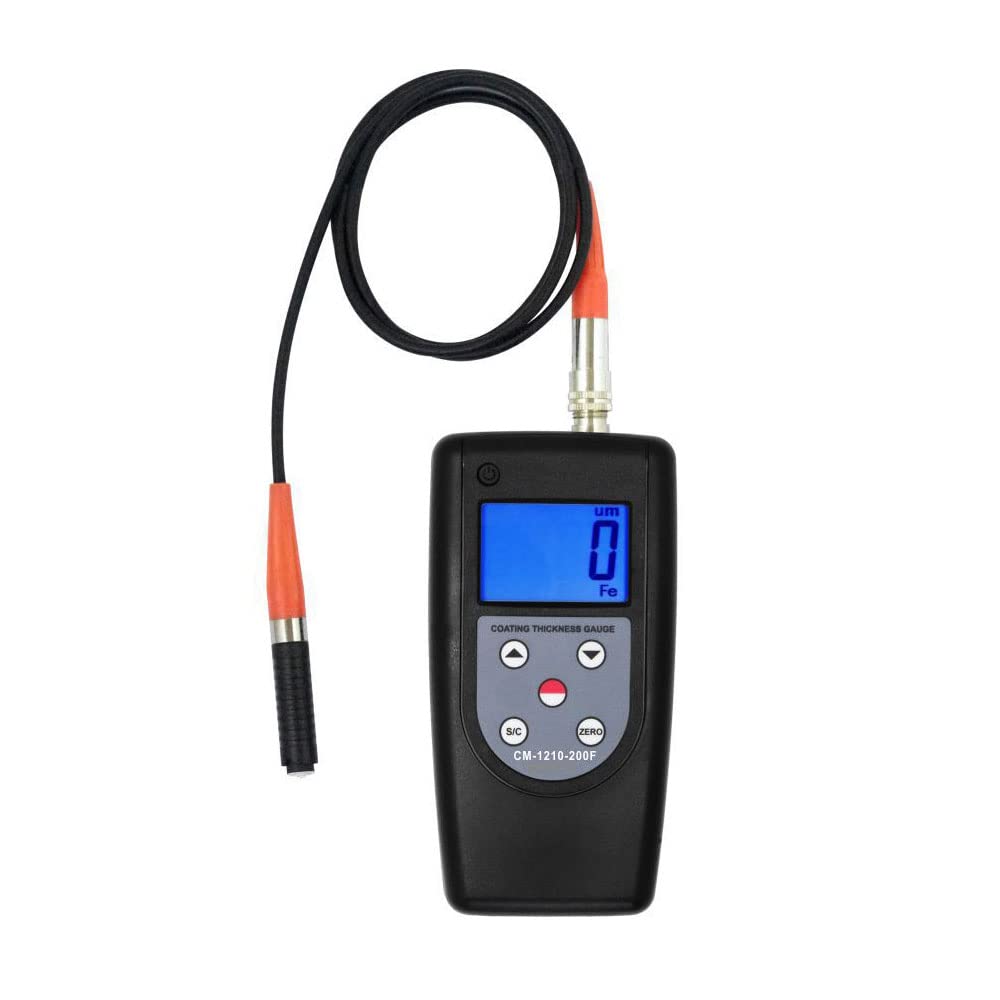

Graigar CM-1210-200F Digital NDT Coating Thickness Gauge with F Magnetic Induction Probe Range 0-200um/0-8 mil
Graigar CM-1210-200F Digital NDT Coating Thickness Gauge with F Magnetic Induction Probe Range 0-200um/0-8 mil
无法加载取货服务可用情况
Features
* Specially for the thickness measurement of coating on small workpiece.
* Measuring method: magnetic induction (F)
* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
|
Principles |
Applications |
Examples |
|
F Type |
Measure the thickness of non-magnetic materials on magnetic materials |
Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc |
Parameters
|
Model |
CM-1210-200F |
CM-1210-200N |
|
Principle |
F Magnetic Induction |
NF Type Eddy Current |
|
Range |
0 ~ 200 µm / 0 ~ 8 mil |
|
|
Resolution |
0.1 µm / 1 µm |
|
|
Accuracy |
±1 ~ 3%n or ±2.5 µm or 0.1 mil |
|
|
Min.Radius Workpiece |
Convex 2 mm / Concave 4 mm |
|
|
Min.Sample Thickness |
0.1 mm |
|
|
Metric / Imperial |
√ |
|
|
Functions |
Battery Indicator & Automatic Power Off |
|
|
Opeating Conditions |
Temperature : 0 ~ 40°C |
|
|
Humidity : 10 ~ 90% RH |
||
|
Power Supply |
4 x 1.5V AAA (UM-4) Battery |
|
|
Dimensions |
140 x 72 x 34 mm |
|
|
Weight |
215 g (Not Including Batteries) |
|
|
Standard Accessories |
Main Unit |
|
|
Probe ( F Type ) |
---------- |
|
|
---------- |
Probe ( NF Type ) |
|
|
Calibration Base ( F ) |
---------- |
|
|
---------- |
Calibration Base ( NF ) |
|
|
Calibreation Foils ( 1 set , 2 pieces ) |
||
|
Carrying Case ( B04 ) |
||
|
Operation Manual |
||
