CP100 Power Tester Intelligent Power Electric Parameter Measuring Instrument Power Meter Digital Power Meter

CP100 Power Tester Intelligent Power Electric Parameter Measuring Instrument Power Meter Digital Power Meter

$199.00 USD
$199.00 USD
Sale Sold out

Brand: Graigar

Color: Black&Green

Product Description



Model CP100



Display mode: 4 digital tubes, 4 windows with high precision.



Input voltage 3-600V



Input current 5mA-20A (special can be customised other range of voltage and current)



Power factor-1.000-1.000



Frequency range AC:45Hz~65Hz



Bandwidth:5kHz



Testing accuracy 0.5 grade



Measurement speed automatic



Latch function used when data fluctuation, convenient reading

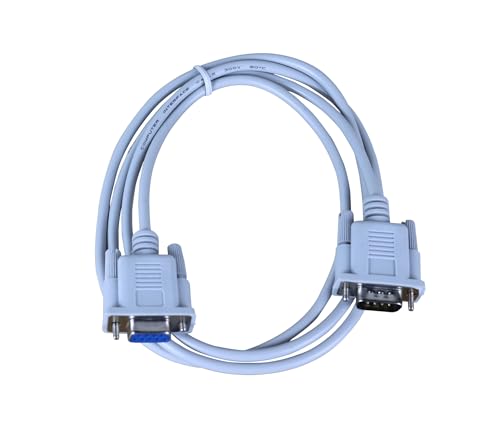

Communication mode RS232 (optional)



Ambient temperature: 0℃～40℃ Humidity: 40%～80%, altitude ≤2000m

Dimensions (W * H * D) 203mm (W) × 92mm (H) × 270mm (depth)



Weight 3Kg

Features:

  • CP100 digital electrical parameter tester (also known as digital power meter) internal high-performance sampling components, and the application of advanced PLL phase-locked loop technology and high-precision 32-bit A/D.
  • Quantitative analysis of waveform data to ensure that the instrument's high accuracy and high stability.
  • Now widely used in home appliances, motors, power supplies, transformers and lighting appliances and other fields, is the ideal replacement for the traditional pointer meter and digital electrical instrumentation, chassis compact economic intelligent power meter, can test AC, such as: voltage, current, power, power factor / frequency can be read directly through the window of the instrument, convenient and intuitive.
  • Instrument with automatic range switching function.
  • Especially suitable for production line large-volume testing.

model number: CP100

Part Number: CP100
