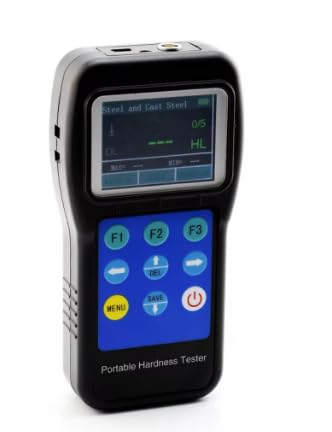

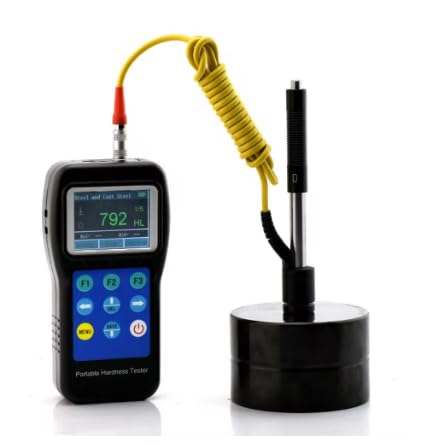

Digital Portable Hardness Tester KH180 Test at any angle Hardness meter Hardness Scale HL, HB, HRB, HRC, HRA, HV, HS
Digital Portable Hardness Tester KH180 Test at any angle Hardness meter Hardness Scale HL, HB, HRB, HRC, HRA, HV, HS
无法加载取货服务可用情况
| Digital Portable Hardness Tester KH180 Test at any angle Hardness meter Hardness Scale HL, HB, HRB, HRC, HRA, HV, HS |
Feature
Easy to operate;
More scales for the following materials are added.
CWT, ST material add HRA, HB . for D impact device
C. ALUM material add HV. for D impact device
C. ALUM material add HV. for C impact device
Provide user defined material
which realize special material measurement, widely expand the application range of Leeb hardness testing
Test at any angle, even upside down;
Has a starting value calibration function, ensure the data is applicable and accurate in different codes and
standards;
Seven impact devices are available for special application. Automatically identify the type of
impact devices;
User calibration function;
Battery information indicates the rest capacity of the battery and the charge status;
Has the function of automatic alarm. Pre-set tolerance limit, beyond the range has automatic alarm,
especially suitable for batch testing;
Menu operation, information rich, intuitive, the realization of arbitrary switching material
and hardness of system's key type, simple and convenient;
Excellent after-sale service system for high quality products-two years warranty and all life
maintenance.
Narrow space also available to use;
Support OEM Service;
High price performance.
TECHNICAL DATA
|
Measuring Materials |
Steel and cast steel, alloy |
|
Measuring |
HLD(170~960), HRC(17.9~69.5), HRB(13.5~101.7) |
|
Indication |
±6HLD(D impact device) |
|
Measuring |
360° |
|
Hardness Scale |
HL, HB, HRB, HRC, HRA, HV, HS |
|
Display |
320x240 true color TFT screen |
|
Data |
Max 600 groups (relative |
|
Power |
AA Battery*2 |
|
Working |
-20°C~55°C |
|
Size |
152x76x33mm |
|
Weight |
0.3kg |

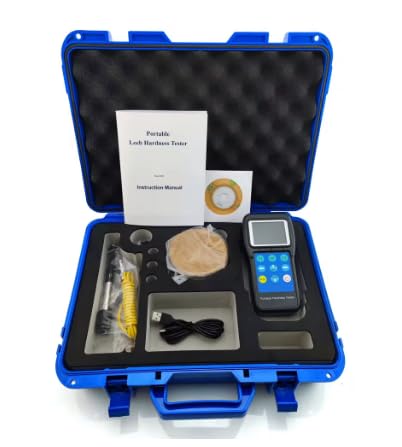

STANDARD DELIVERY
|
ITEM |
QTY |
|
Main Unit |
1 PC |
|
Standard D |
1 PC |
|
Standard Calibration |
1 PC |
|
Standard |
1 PC |
|
Brush |
1 PC |
|
USB Cable |
1 PC |
|
PC Software |
1 PC |
|
User Manual |
1 PC |
|
Instrument Case |
1 PC |
|
Warranty |
2 Years |
Brand: Graigar
Color: Black
Features:
- 1. Portable, rugged, LCD screen display. 2. With power-on display value software calibration function, to ensure that the data in any industry under different norms and standards applicable and accurate.
- 3. Fully sealed metal shell, rugged and durable, with excellent resistance to vibration, shock and electromagnetic interference. 4. Menu operation, information-rich, intuitive, one-button to achieve the material and hardness system of any switch, simple and convenient.
- 5. With automatic alarm function. Pre-set tolerance limits, out of range automatic alarm, especially suitable for batch testing. 6. It can freely convert all hardness systems (HL, HB, HRB, HRC, HRA, HV, HS) without calculation.
- 7. Can be equipped with 7 different impact devices, automatic identification, replacement without recalibration, better compatibility. 8. Large LCD display with high brightness LED backlight, convenient to use in grey light environment.
- 9. With automatic sleep, automatic shutdown, remaining power alert function, low power consumption design. 10. Support ‘forged steel (Steel)’ material, when using D/DC type impact device to test ‘forged steel’ specimen, you can directly read the HB value, no need to manually check the table. 11. Adopting No.5 ordinary battery, it can work continuously for not less than 200 hours.
