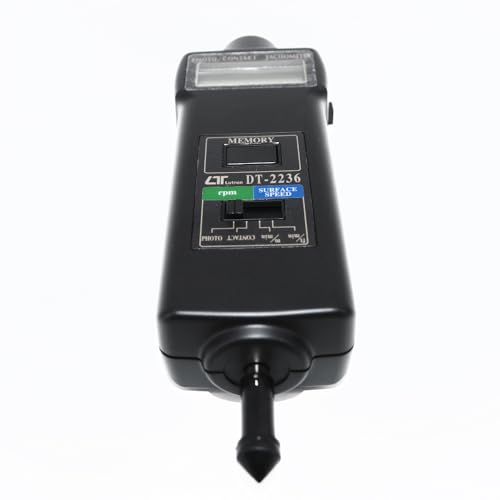

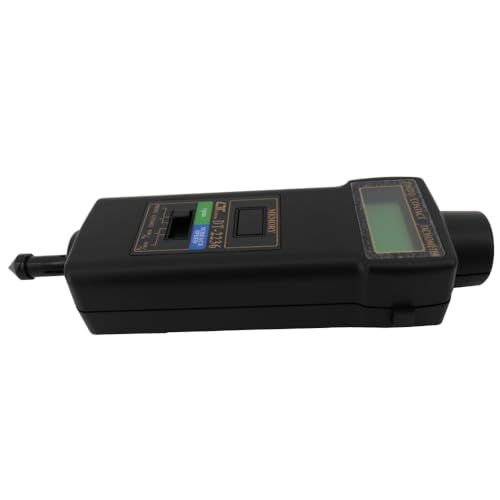

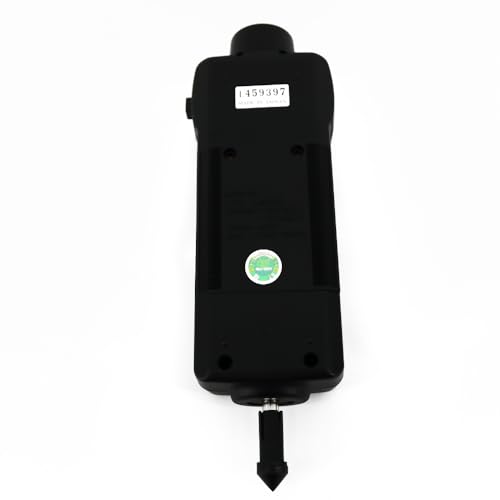

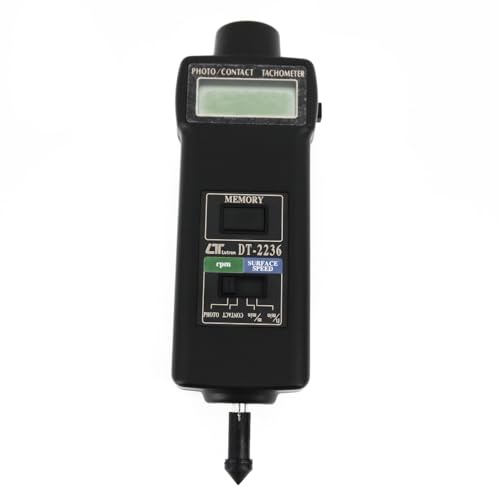

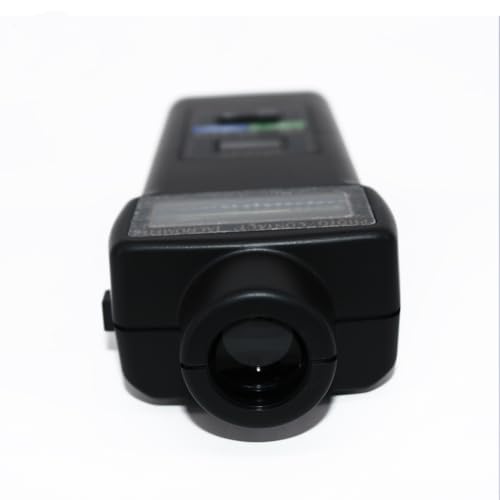

DT-2236 Digital Tachometer, Photo & Contact Dual Mode Rotational Speed Tester, Measuring Range 5~99999 RPM
DT-2236 Digital Tachometer, Photo & Contact Dual Mode Rotational Speed Tester, Measuring Range 5~99999 RPM
无法加载取货服务可用情况
LUTRON DT-2236 Tachometer Digital Revolution Meter DT2236 Tachometer Surface Speed Tester Rotative Velocity Tester
Features:
* Multifunctional, one instrument combines PHOTO TACH.(RPM) & CONTACT TACH. (RPM , m / min, ft / min ).
* Digital display with no guessing errors.
* Wide measuring range and high resolution.
* The last value / max. value / min. value will be automatically stored in memory.
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegant shape and ease of use.
Models & Applications
| Model | Photo | Contact | Surface Speed | Frequency | Cycle | Pulse Times | Pulse Distance |
| DT-2859 | √ | √ | √ | √ | √ | √ | √ |
| DT-2236 | √ | √ | √ | — | — | — | — |
| DT-2858 | √ | √ | √ | — | — | — | — |
| DT-2857 | √ | — | — | — | — | — | — |
| DT-2856 | √ | √ | — | — | — | — | — |
Specifications
|
Model |
DT-2236 |
DT-2858 |
DT-2857 |
DT-2856 |
|
|
DT-2236L(Laser Type) |
|||||
|
Range |
Laser |
2.5~99,999r/min |
|||
|
Contact |
0.5~19,999r/min |
------- |
0.5~19,999r/min |
||
|
Surface Speed |
0.05~1999,9 m/min |
------- |
------- |
||
|
0.2~6560 ft/min |
------- |
------- |
|||
|
Resolution |
Tachometer |
0.1 r/min(0.5~999.9 r/min) |
|||
|
1 r/min(Over 1000 r/min) |
|||||
|
Surface Speed |
0.01 m/min(0.05~99.9 m/min) |
||||
|
1 m/min(Over 100 m/min) |
|||||
|
0.1 ft/min(0.1~999.9 ft/min) |
|||||
|
1 ft/min(Over 1000 ft/min) |
|||||
|
Accuracy |
±(0.05%n+1d) |
||||
|
Sampling Time |
1.0 s(Over 60 r/min) |
||||
|
Test Range Select |
Automation |
||||
|
Memory |
Max / Min / Last Value |
||||
|
Time Base |
Quartz Crystal |
||||
|
Laser Tach Detecting Distance |
50~150mm/2~6inch( Typical), Max,300mm/12inch |
50~250mm/2~10inch (Typical), Max600mm/14 inch |
50~150mm/2~6inch (Typical), Max300mm/12inch |
||
|
Power Supply |
80mA(Testing) |
||||
|
Dimensions |
0~50ºC |
||||
|
Weight |
4x1.5V AA Size(UM-3)Battery |
||||

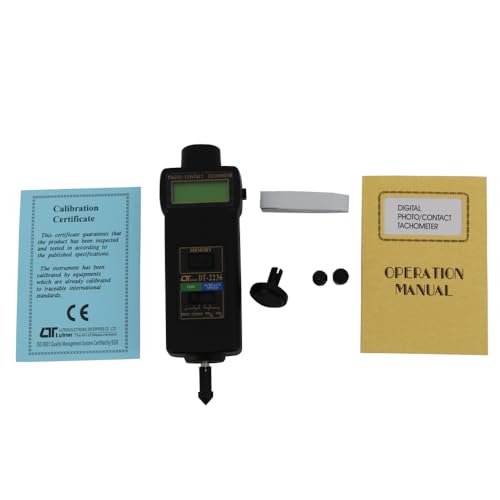

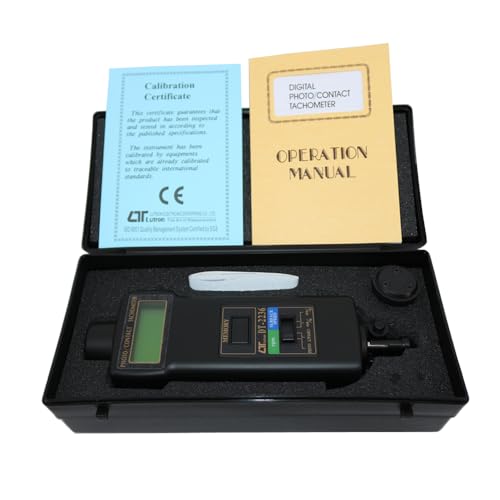

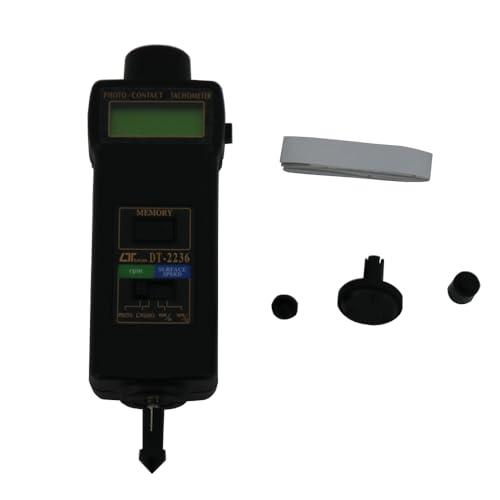

Accessories:
1. Main Unit

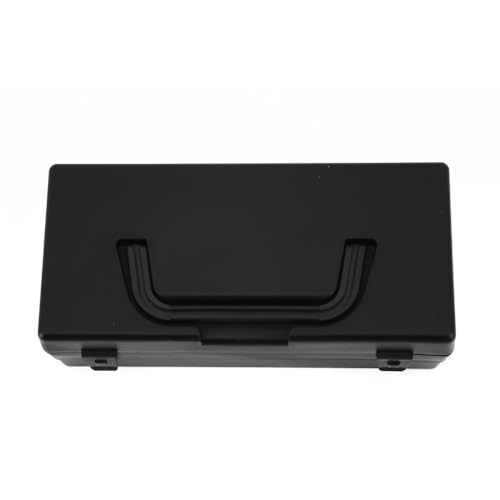

2. Carrying Case(B01)
3. Operation Manual
4. Reflective tape 350 mm
5. Cone Adapter (AS35A)
6. Funnel Adapter (AS35B)
7. Surface speed test wheel (AS35C)
Brand: Graigar
Features:
- World's patent, Multi-functions, one instrument combine Photo Tachometer RPM ) and Contact Tachometer ( RPM, m/min., ft/min. ).
- Wide measuring range : 0.5 to 100,000 RPM. < 1,000 RPM, 0.1 RPM resolution.
- High precision with 0.05% accuracy. Exclusive one chip LSI circuit & crystal time base.
- Memorize the last value, max., value, min. value. High visible LCD display.
- The use of durable, long lasting components, including a strong, light weight ABS plastic housing, assures almost maintenance free performance for many years.
model number: DT-2236
Part Number: DT-2236
