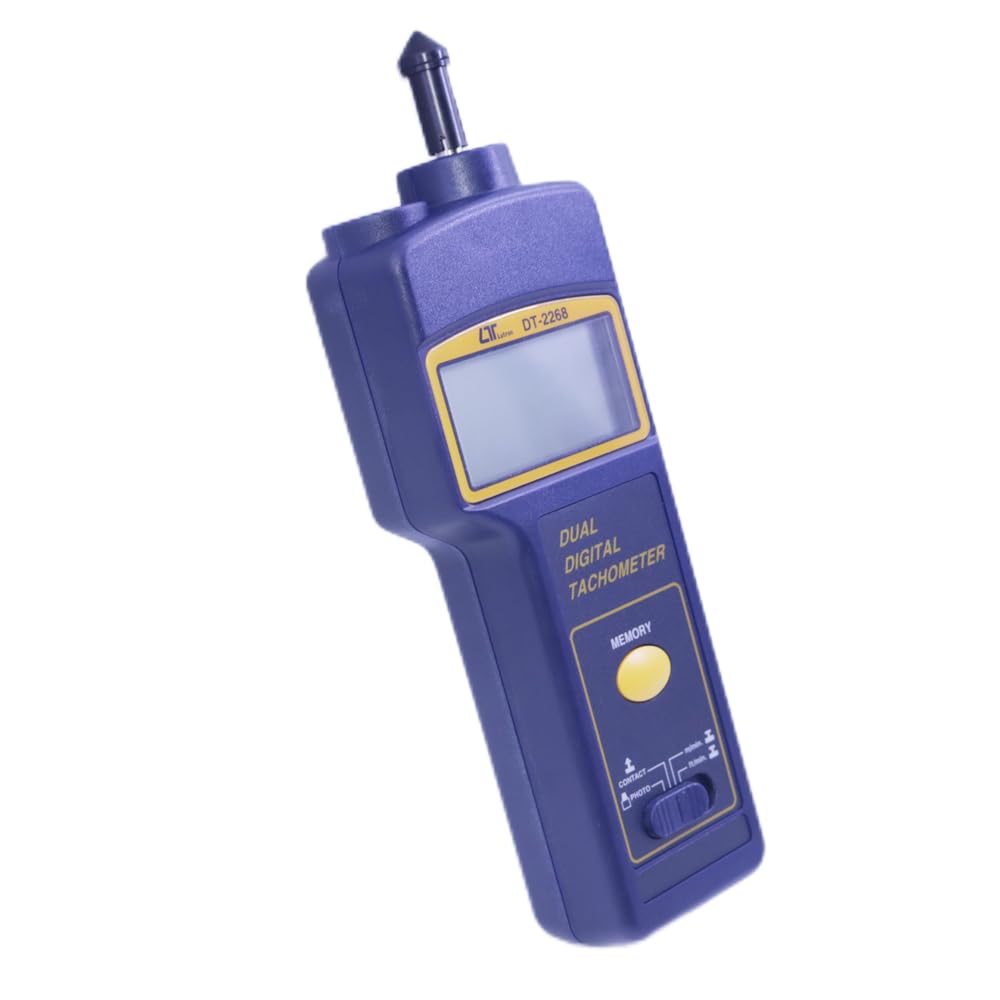

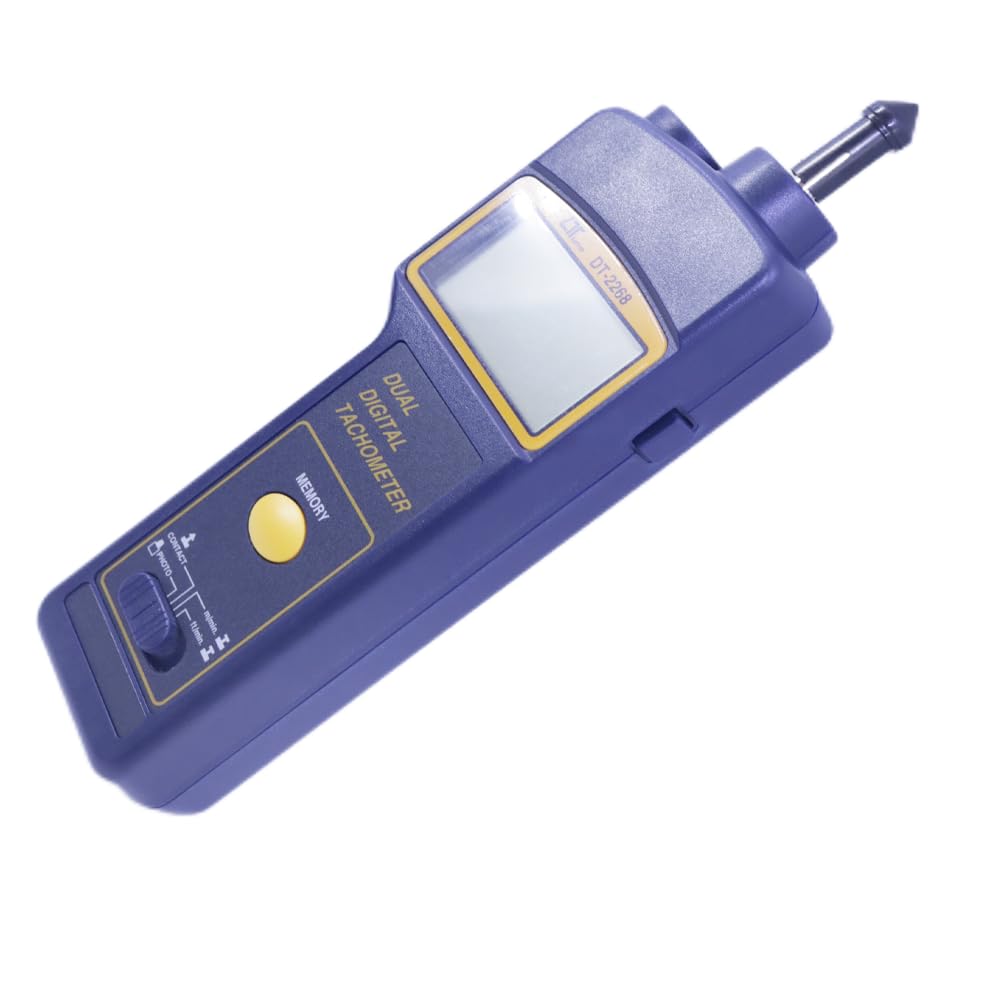

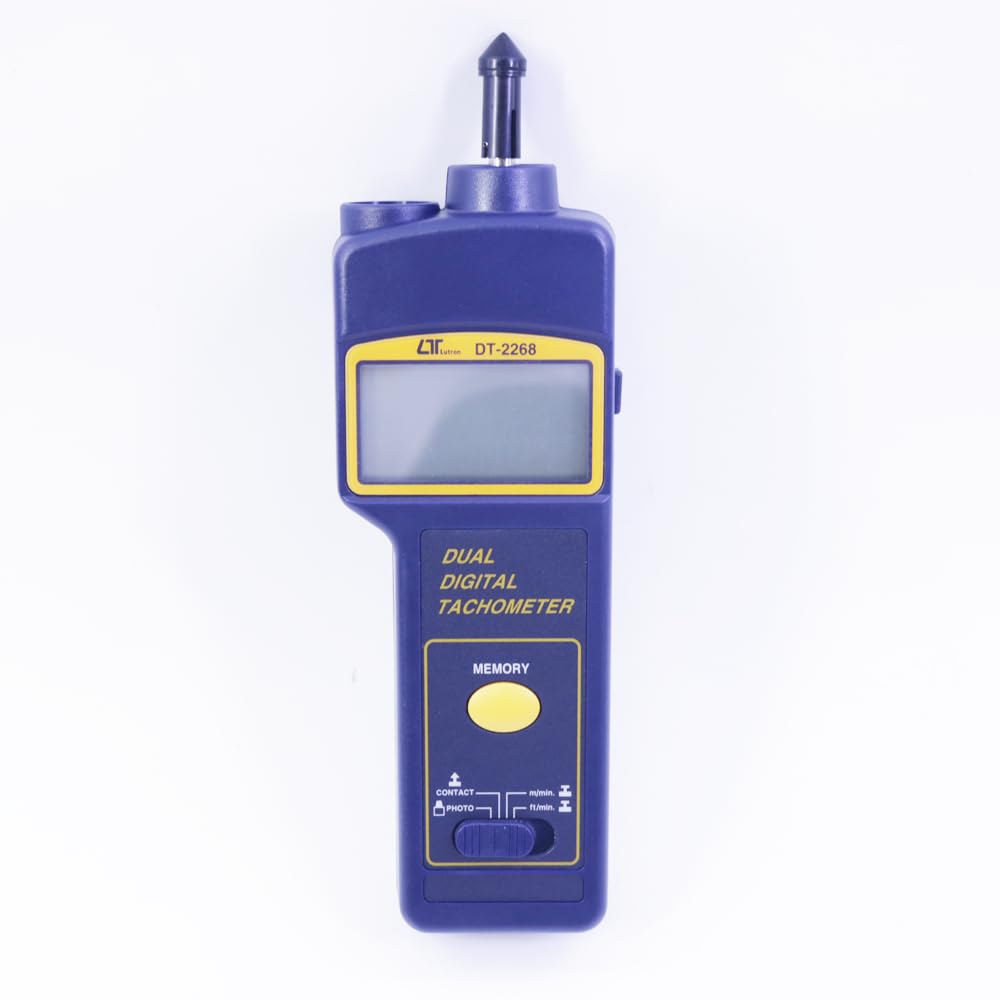

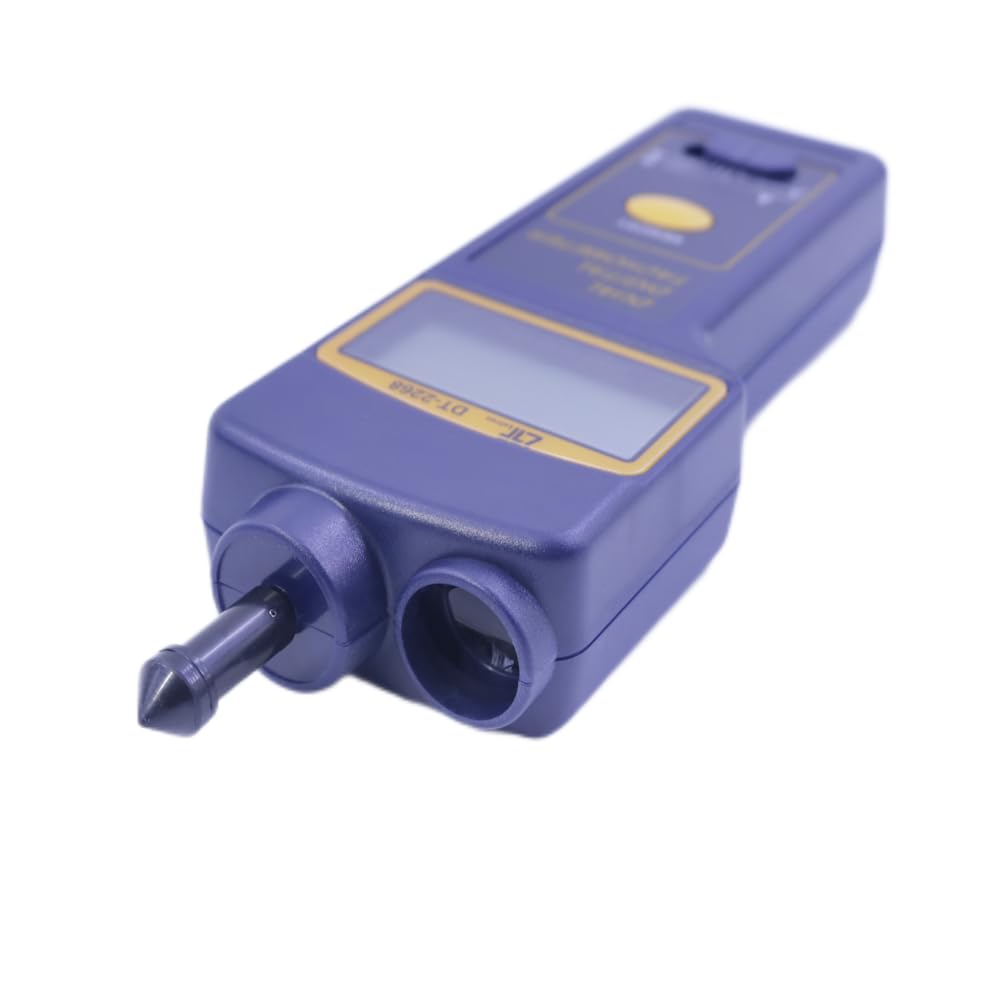

DT-2268 Photo Tachometer Contact Tachometer Measuring Range From 0.5 to100,000RPM

Brand: Graigar

Features:

• *Multi-functions,one instrument combine Photo Tach.( RPM ) & Contact Tach.( RPM, m/min., ft/min. ).
• *Wide measuring range from 0.5 to100,000 RPM.
• *0.1 RPM resolution for themeasured value < 1000 RPM.
• *The last value, max., value, min.value will be stored into the memory automatically & can be obtained by pressing Memory Call Button.
• *Laser light beam for photo tachometer,long measuring distance.

model number: DT-2268

Part Number: DT-2268

Details: Features
*High precison with 0.05% accuracy.

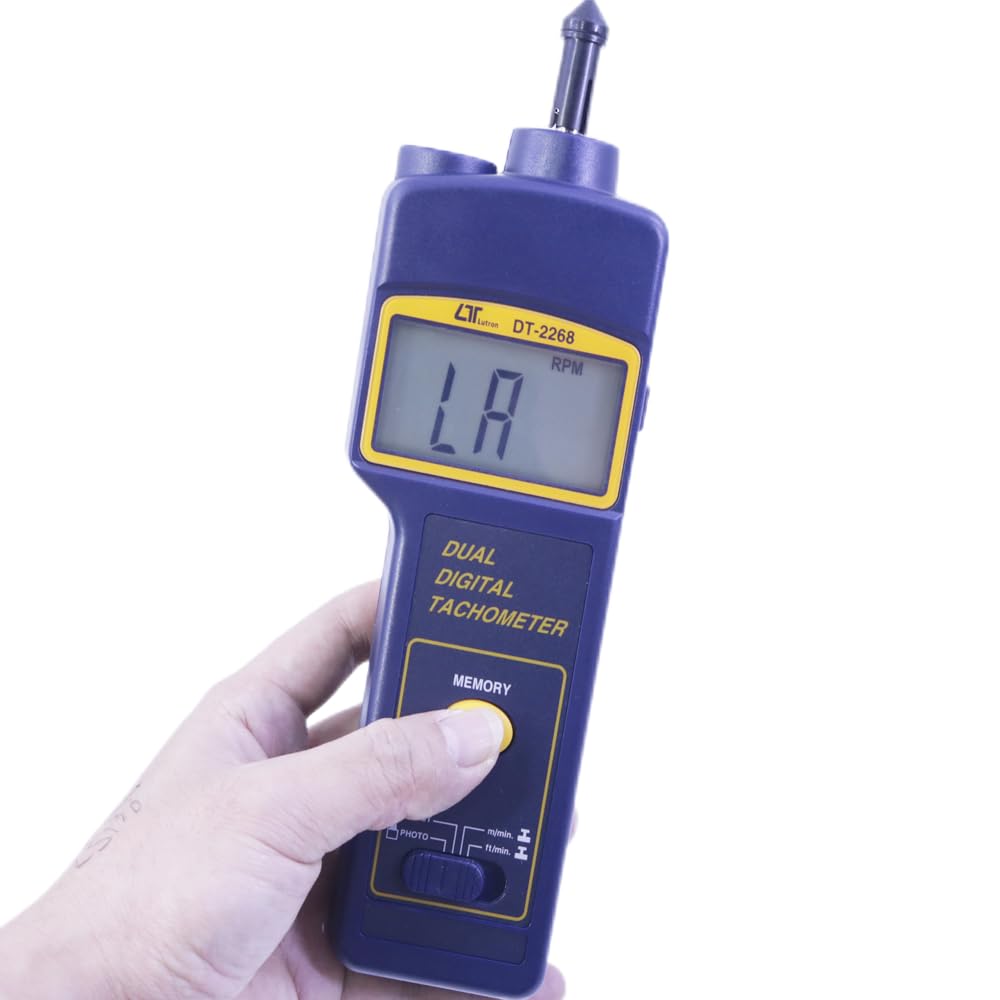

*Large LCD display,High visible LCD display gives RPM reading exactly with no guessing or errors & saves battery energy.
*The use of durable, long lasting components including a strong, light weight ABS plastic housing, assures almost maintenance free performance for many years.
*The housing cabinet has been carefully shaped to fit comfortable in either hand.
Specificatons:
Measurement Range:
*Photo Tachometer:5 to 99,999 RPM
*Contact lachometer:0.5 to 19,999RPM
*Surface Speed:m/min.- 0.05 to 1,999.9 m/min.(ft/min.- 0.2 to 6,560 ft/min.)
*Resolution:
RPM:0.1 RPM ( <1,000 RPM )/1 RPM ( 1,000 RPM ).
m/min.:0.01m/min. ( <100 m/min. ).;0.1m/min. ( 100 m/min. ).
ft/min.:0.1 ft/min. ( <1,000 ft/mn. );1 ft/min. ( 1,000 ft/mn. ).
*Display:LCD, size 60 mm x 30 mm.5 digits with display unit.
*Accuracy:± ( 0.05% + 1 digit ).
*Time base:Quartz crystal.
*Circuit:Exclusive one-chip of microcomputer LSI circuit.
*Photo Tachometer detecting distance:50 to 500 mm typically.
*Photo Tach. Laser light source:Less than 1 mW./Class 2 laser diode.Red Wave length is 645nm approximately.
*Operating Temperature:0 to 50℃( 32 to 122℉ )
*Operating Humidity:Less than 80% R.H.
*Memory:Last/Max./Min. value.

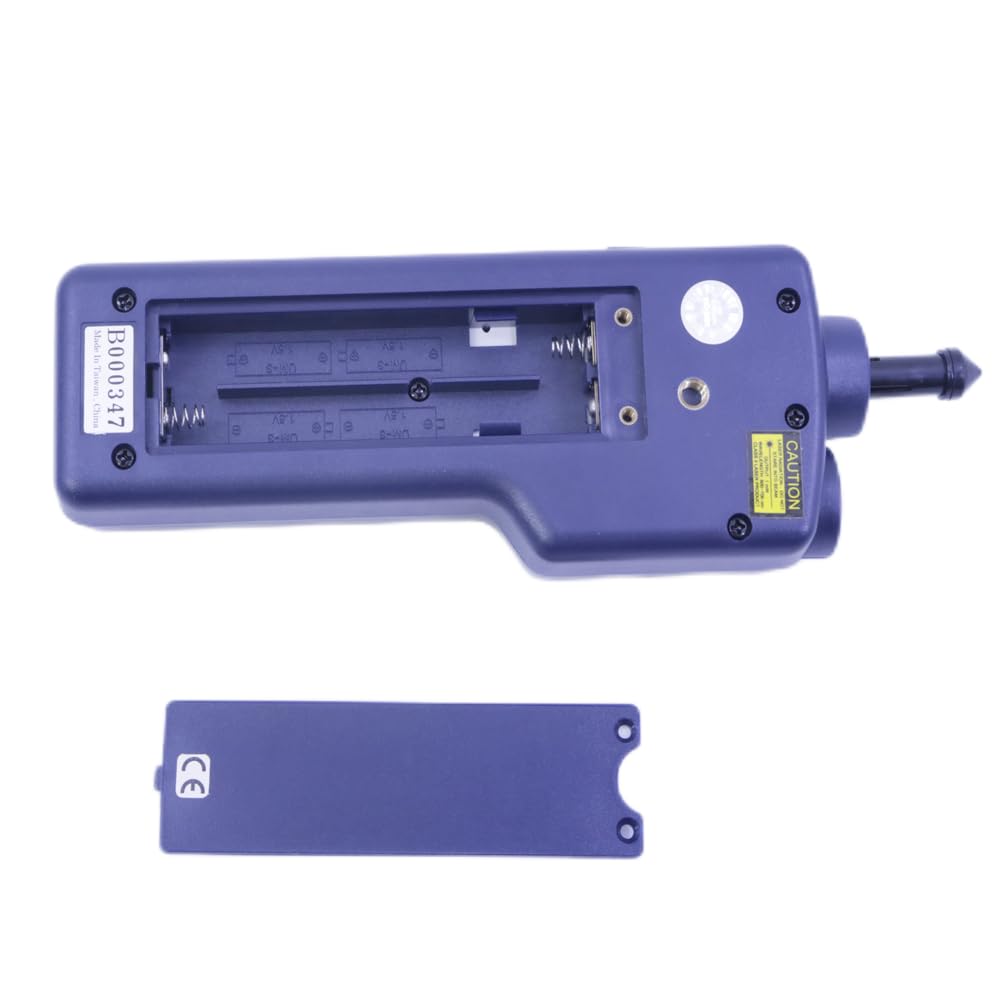

*Battery:4 x 1.5V AA ( UM-3 ) batteries.
*Power Consumption:Photo type:Approx. DC 153 mA./Contact type:Approx. DC 10 mA.
*Size:215 x 65 x 38 mm.( 8.5 x 2.6 x 1.5 inch ).
*Weight:240 g ( 0.52 LB ).

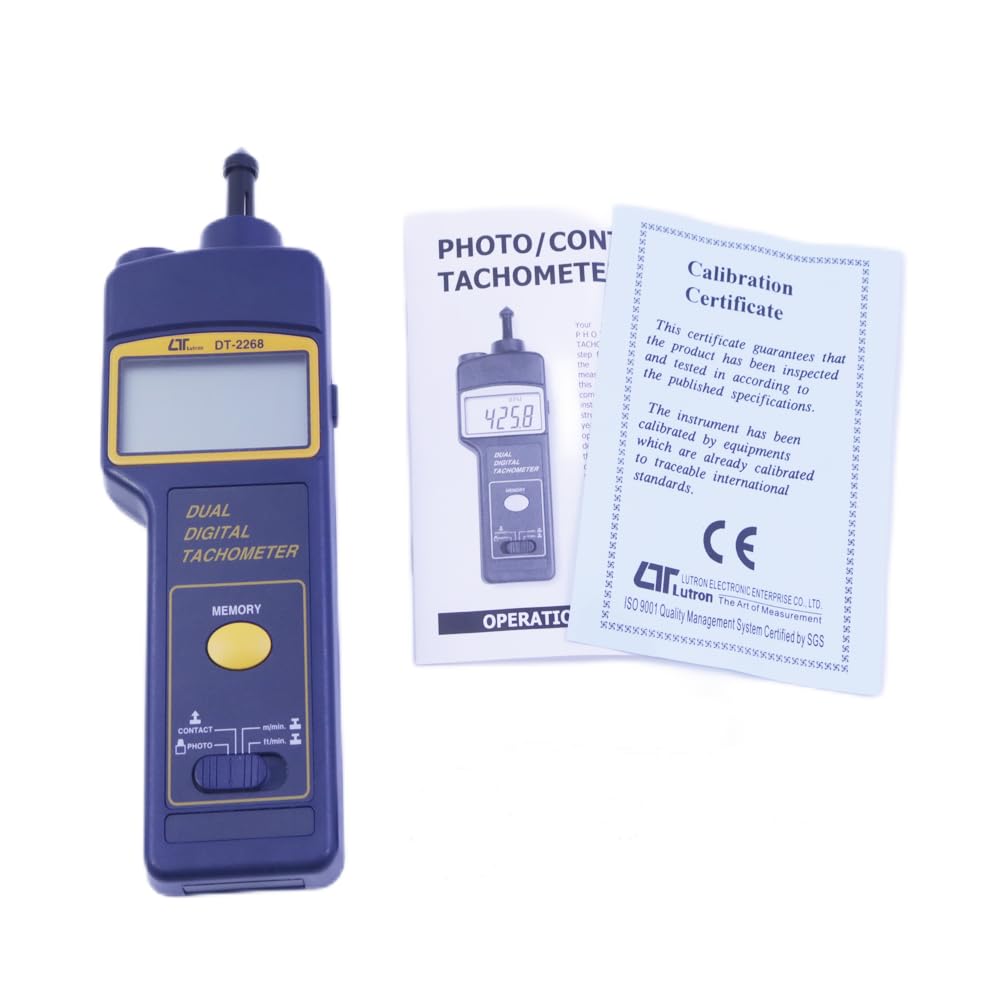

Accessories Included:
Carrying case*1 PC.
Reflecting tape marks ( 600 mm )*1 PC.
RPM adapter ( CONE )*1 PC.
RPM adapter ( FUNEL )*1 PC.
urface speed test wheel*1 PC.
Operation manual*1 PC.

EAN: 0707457580733
