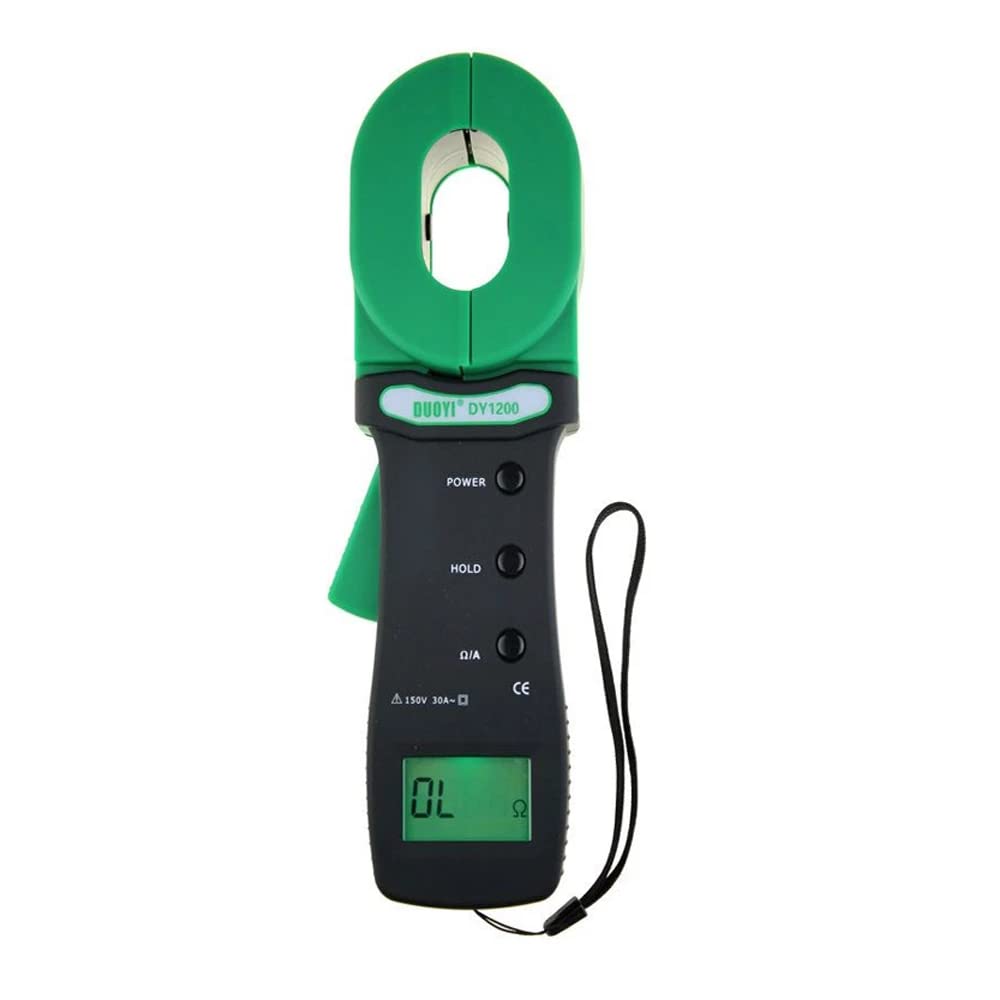

DY1200 Digital Clamp-on Ground Resistance Tester 0.01 to 1000Ohm Portable Earth Ohm Meter

Brand: Graigar

Color: Green

Features:

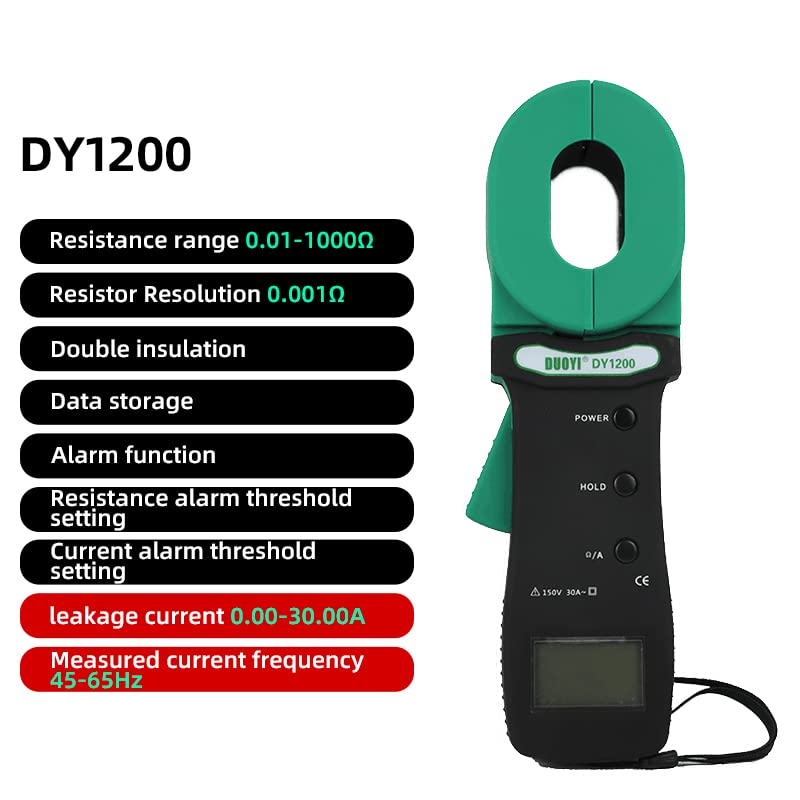

• Autoranging ground resistance measurements from 0.01Ohm to 1000Ohm with 0.01Ohm resolution
• AC Leakage current range of 10mA to 30.00A with 50µA resolution
• Configurable alarm value for resistance and current to support your measurement
• Ergonomic mold, full rubber coating for slip proof
• Simplifies ground resistance measurements on multiple point ground systems

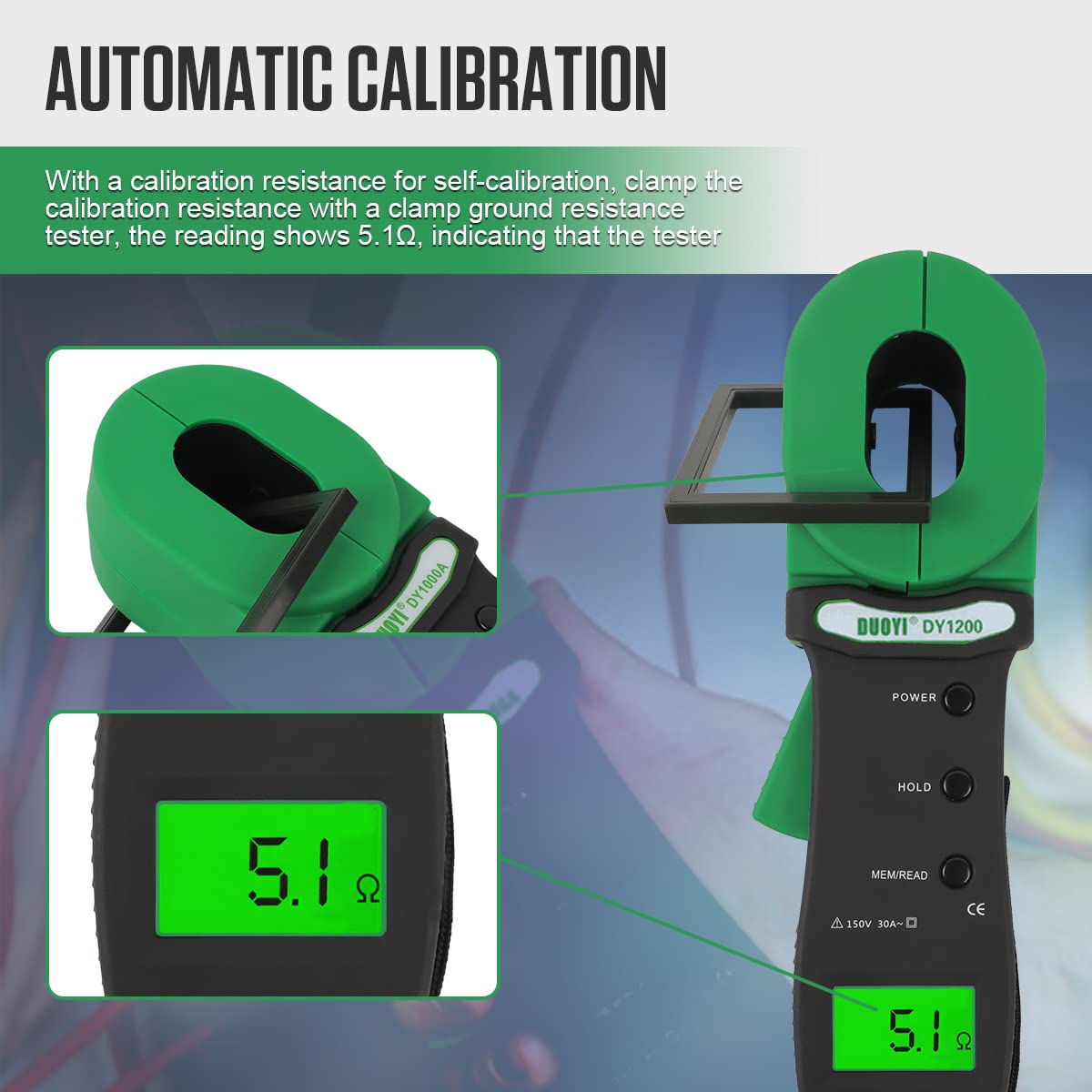

• Verification resistor confirm accuracy of meter
• Datalogging with 99 data points
• Complete with heavy duty case and verification resistor

model number: DY1200

Part Number: DY1200

Details: Specifications:
Range Resolution Precision
0.01Ω ~ 0.99Ω 0.01Ω ±1%+0.01Ω
1.0Ω ~ 49.9Ω 0.1Ω ±1.5%+0.1Ω
50.0Ω ~ 99.5Ω 0.5Ω ±2%+0.5Ω
100Ω ~ 199Ω 1Ω ±3%+1Ω
200Ω ~ 395Ω 5Ω ±6%+5Ω
400Ω ~ 590Ω 10Ω ±10%+10Ω
600Ω ~ 1000Ω 20Ω ±20%+20Ω
Min. Resolution:0.01Ω
Configurable alarm value of resistance:0~199Ω
Leakage current
Range Resolution Precision
0 ~ 80mA 50µA ±2.5%+1mA
80mA ~ 650mA 0.5mA ±2.5%+2mA
650mA ~ 4A 5mA ±2.5%+10mA
4A ~ 30A 10mA ±2.5%+20mA
Min. Resolution:50µA
Measurement of leakage current:46 ~ 65 Hz, RMS
Configurable alarm value of current:0~499mA
Memory:99 sets

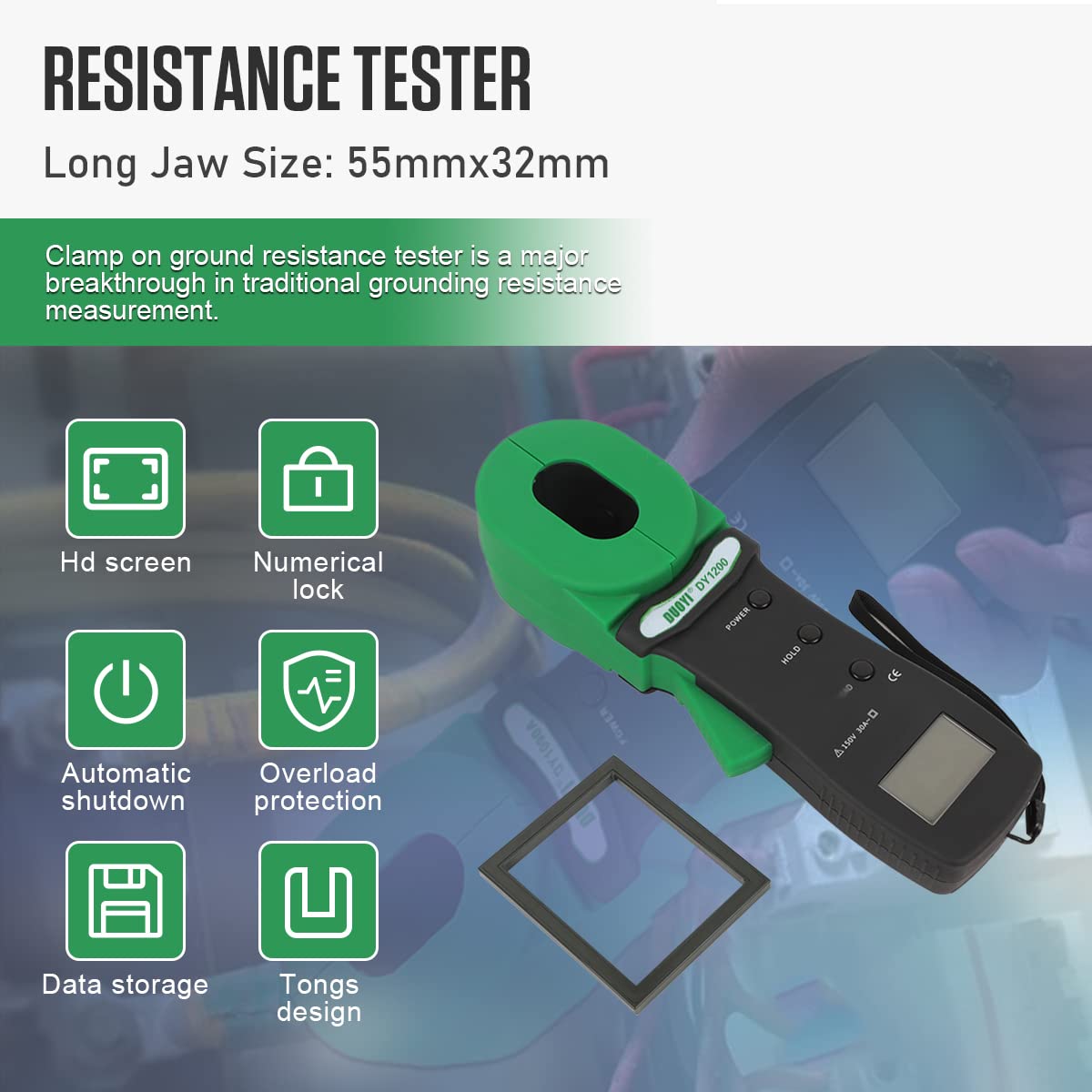

Conductor Size:32 * 55 mm
Working Temperature:-10°C ~ 55°C
Working Humidity:10%~80%
LCD Size:28.5 x 47 mm
General Characteristics:
Power: AA1.5x4 (Not included battery)

Product Size: 285*90*60 mm

Product Net Weight: 1285g (Not including battery)

Standard Accessories: Verification resistor, carry case

Standard Individual packing: carry case

EAN: 0707457646965
