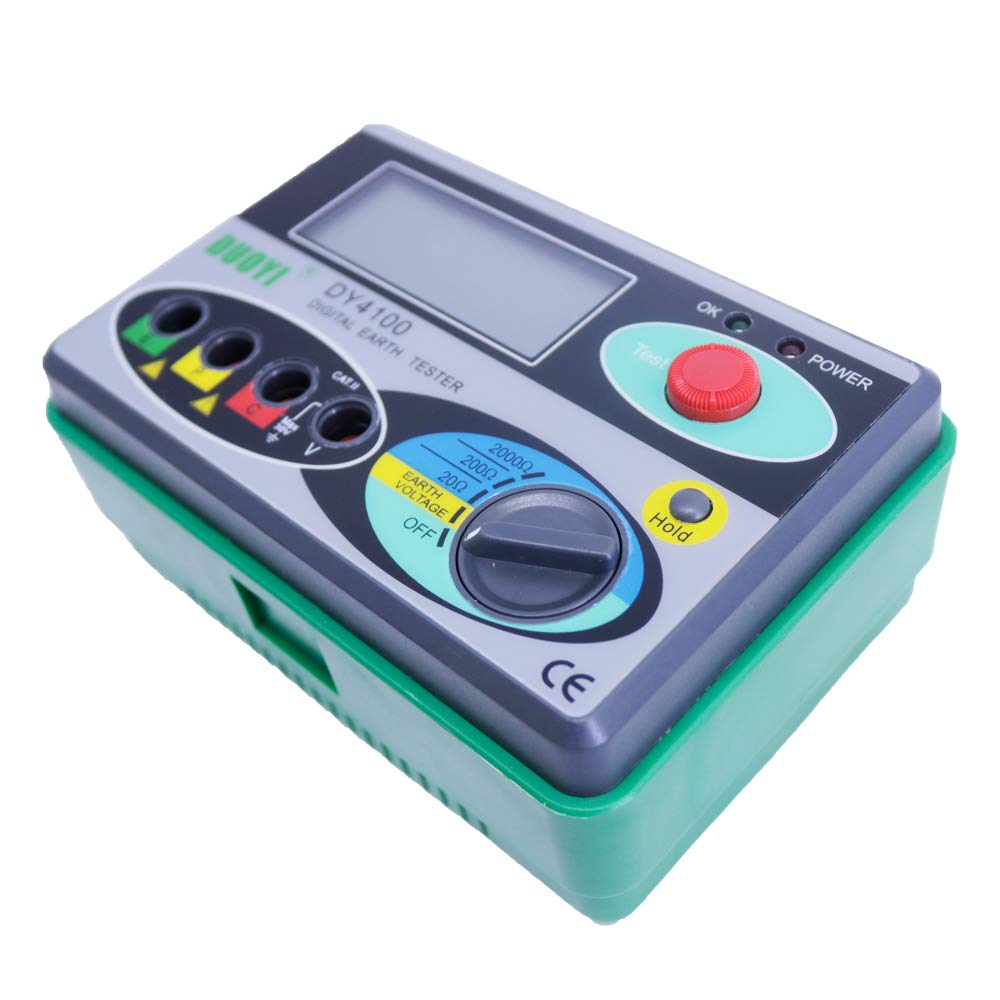

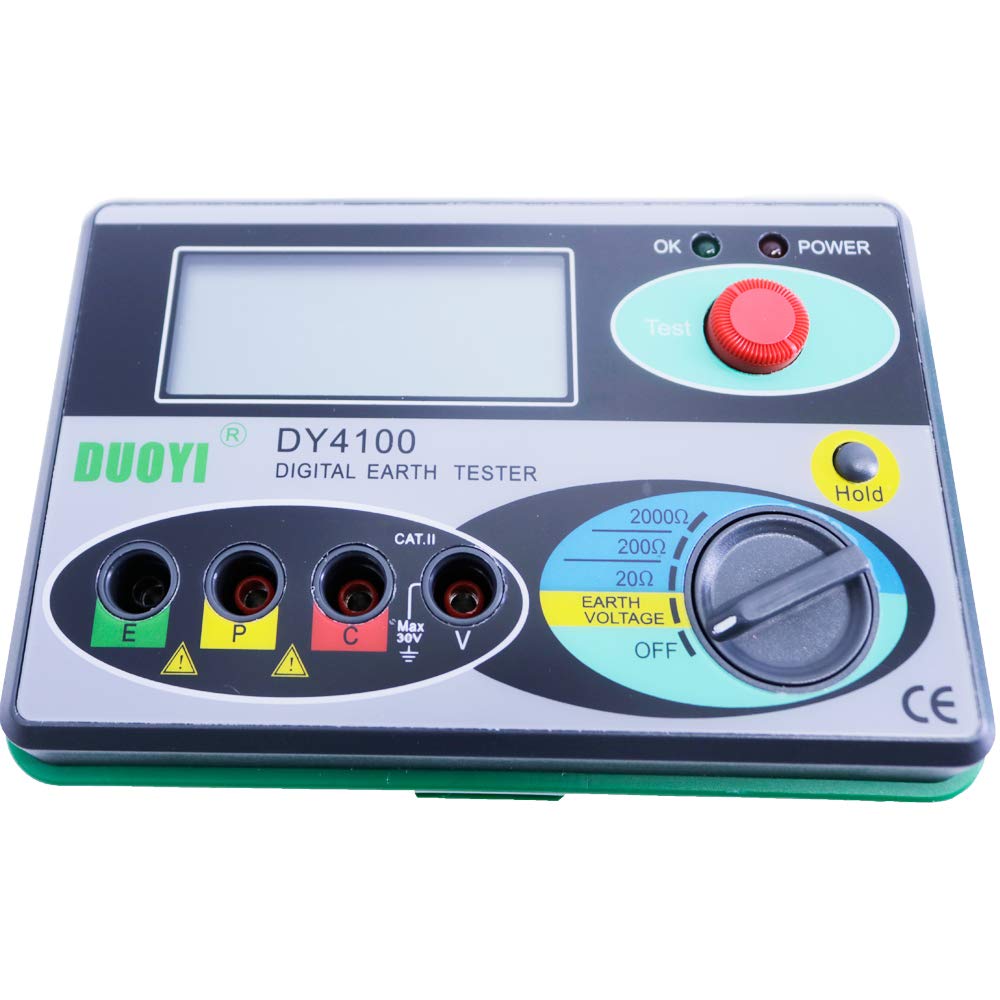

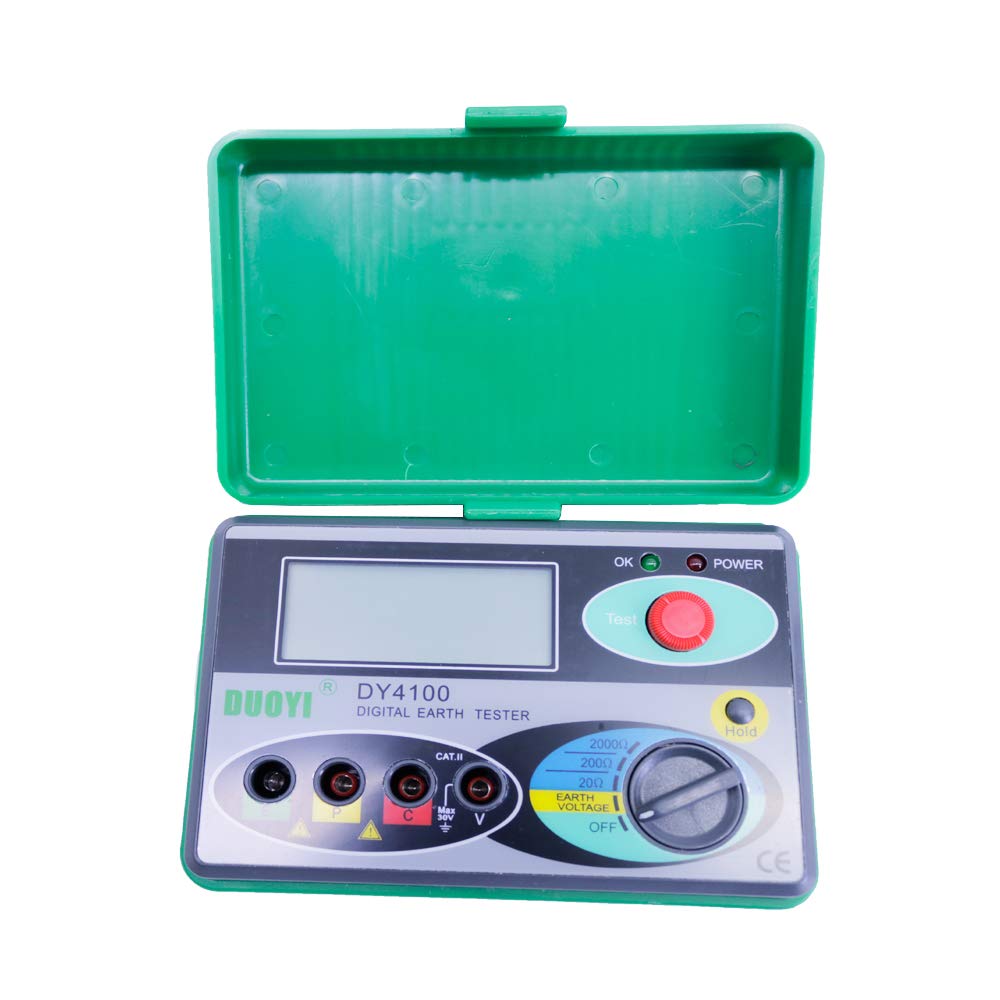

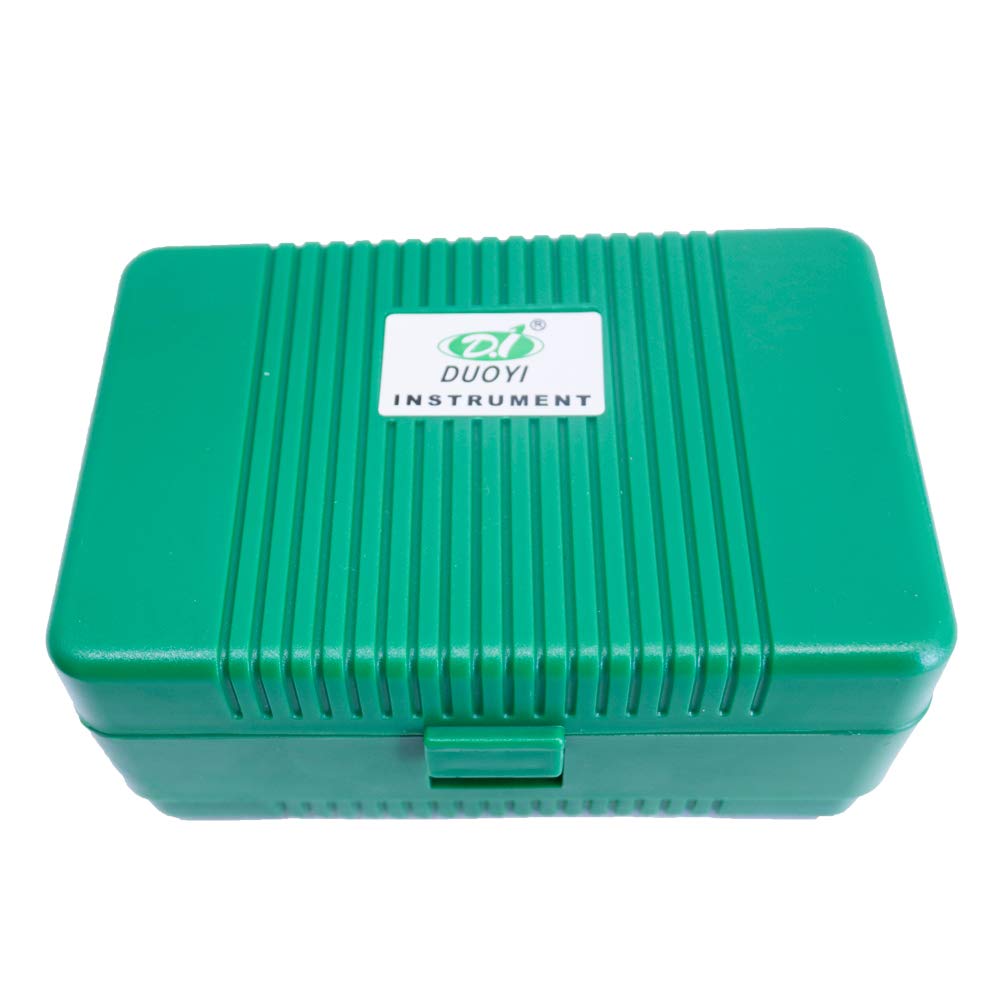

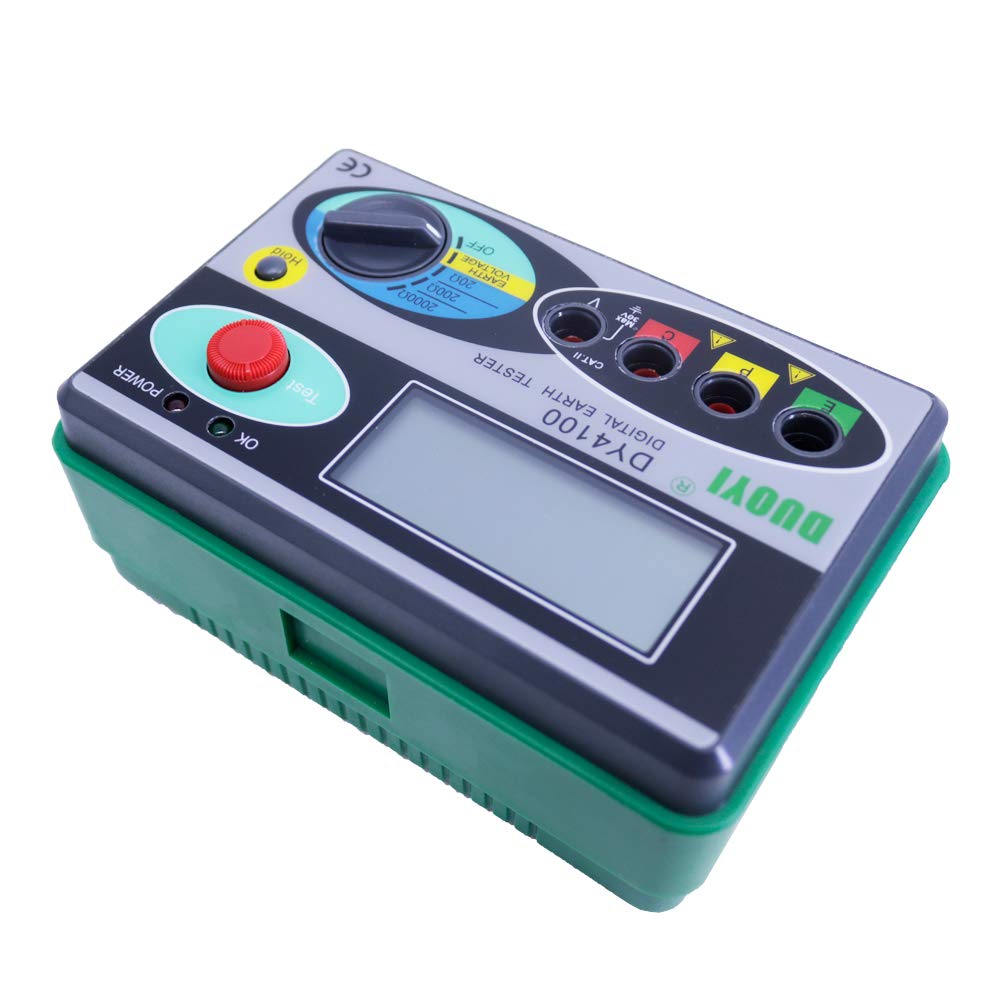

This one has more complete functions, higher accuracy, more convenient and reliable for operation and more suitable for outdoor use with dust and wet proof structure.
It can test earth resistance of various earth systems including power systems, electric equipments, lightning conductors as well as resistance value of low resistance conductor and AC voltage test.
Ground resistance measurements from 0.01Ω to 2000Ω with 0.01Ω resolution
Data hold, low battery warning

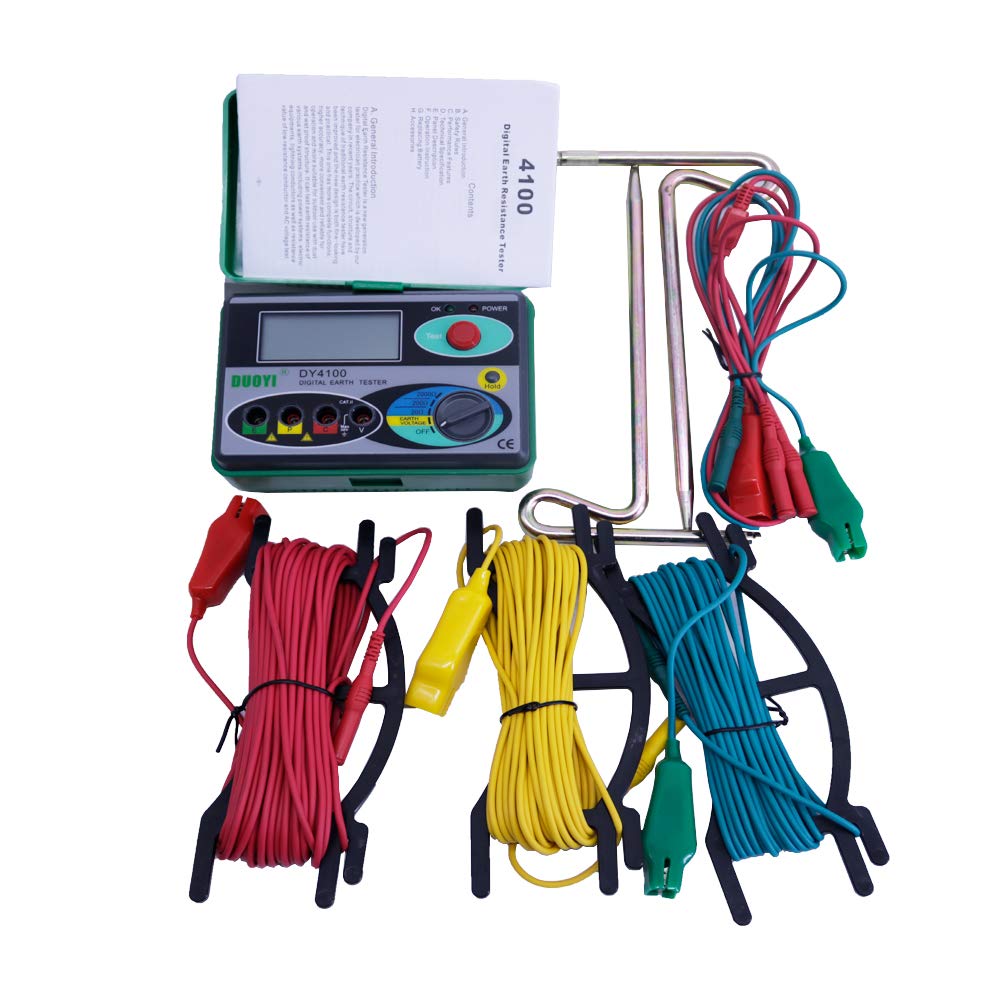

Complete with test leads, auxiliary earth bars, (not include battery)
model number: DY4100
Part Number: DY4100
Details: MODEL：DY4100
Earth Ground Resistance：0/20/200/2000Ω ±(2%+3)
Earth Voltage：0~30V ±(3%+5)
Resolution：0.01Ω
Data Hold：yes
Working LED Indicator：yes
Function Symbol Display：yes
Low Battery Warning：yes

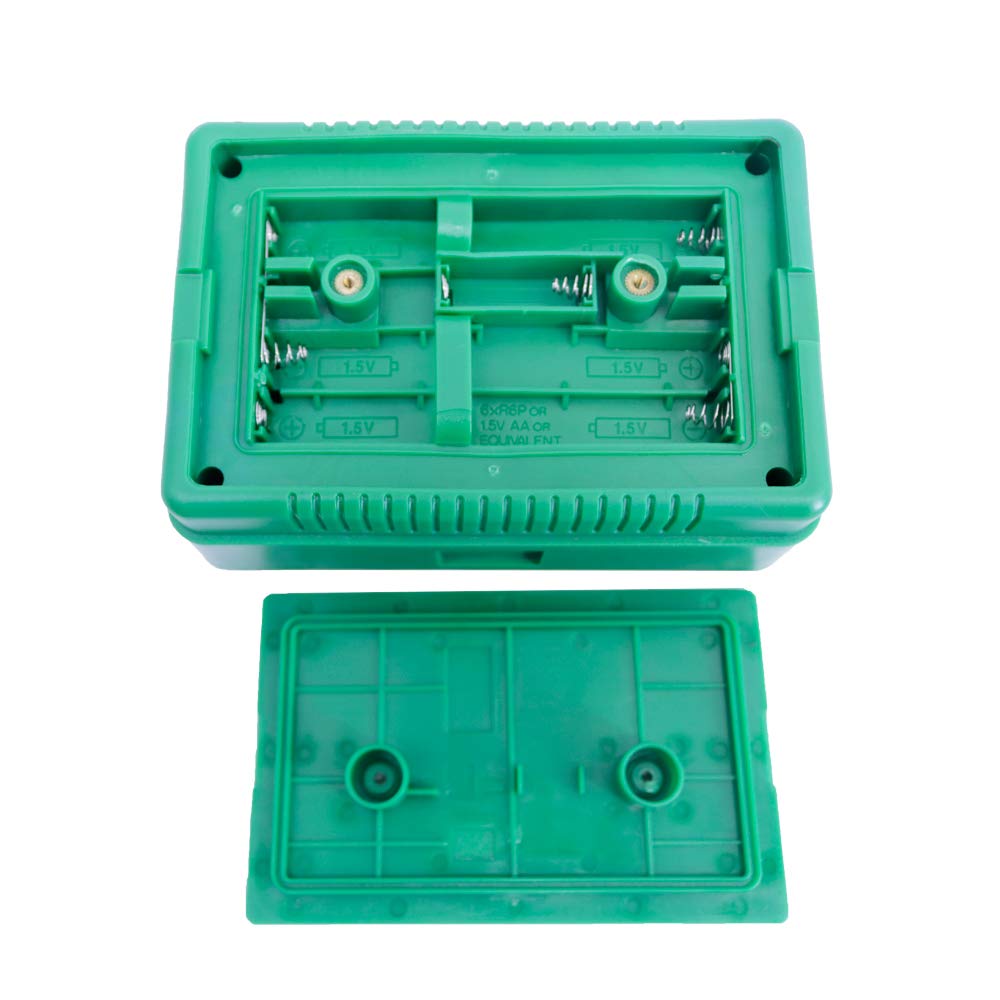

Power：AA1.5Vx6(UM3) (not include battery)
Product Size：150 x 100 x 70 mm
Product Net Weight：approx. 680g
