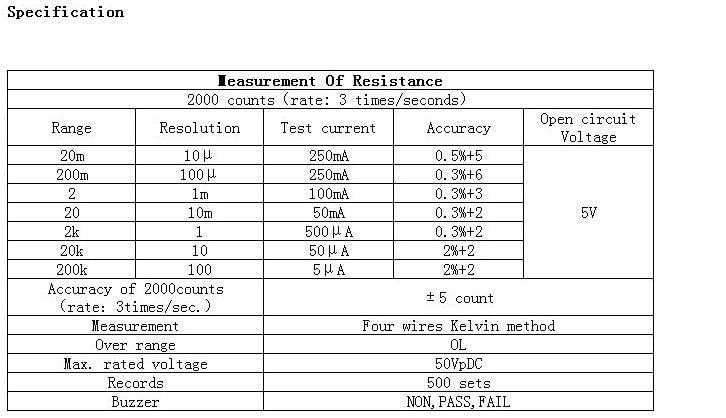

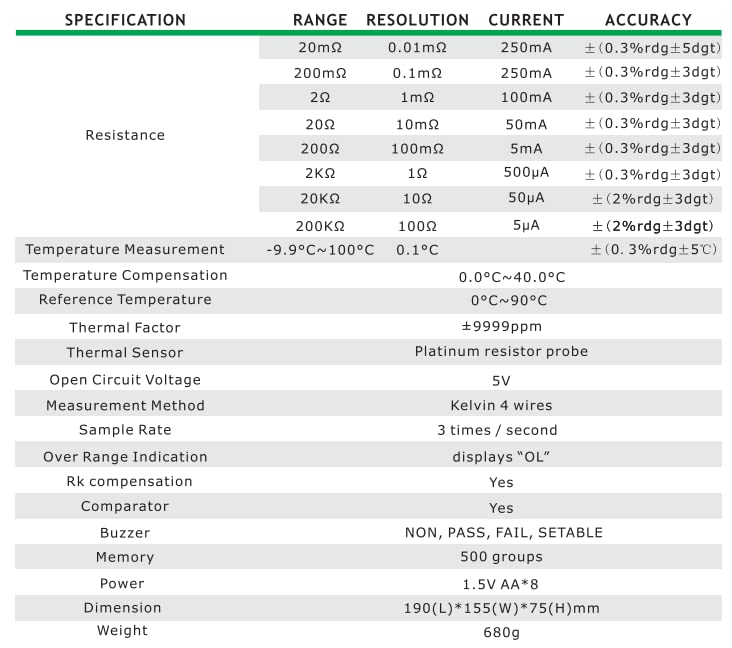

Four terminal Kelvin measurement ranges from 20mΩ to 200kΩ with minimum resolution 0.01mΩ.
Batteries drive maximum 250mA test current for field use.
Platinum resistor probe provides temperature measurement ranges from -9.9°C to 100°C with 0.1°C resolution.
Temperature compensation 0°C to 40°C; Built-in comparator for NON/PASS/FAIL resistance testing or selection with pre-configured value.
Test lead compensation(Rk); Store/recall up to 500 groups of measurement; Gold plating test lead.
Part Number: DY4106

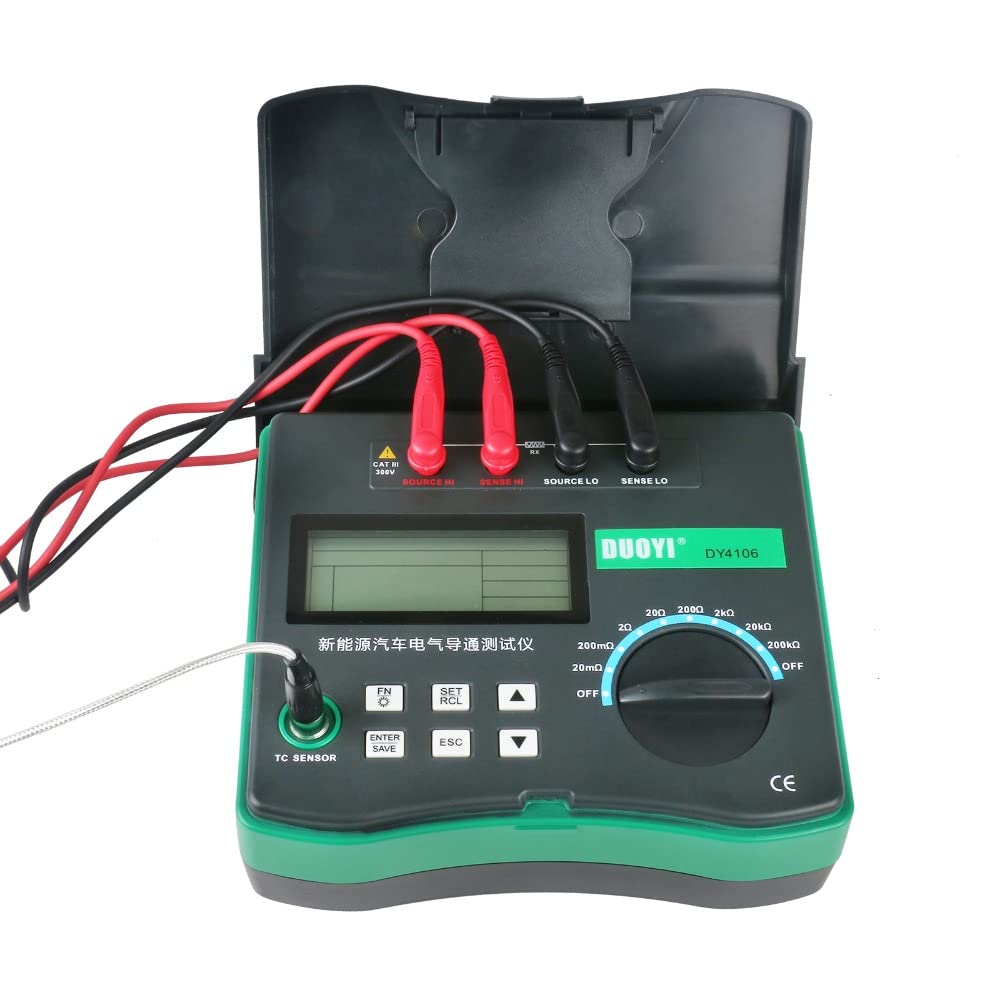

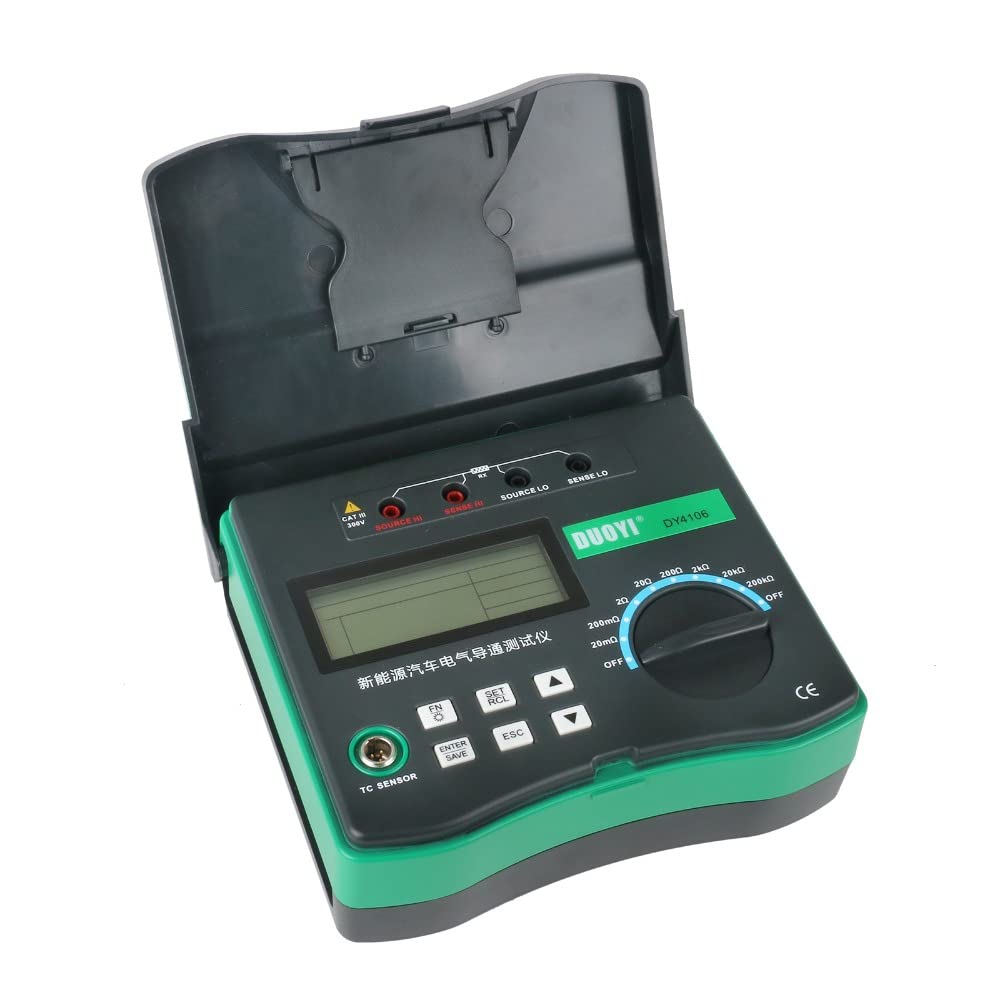

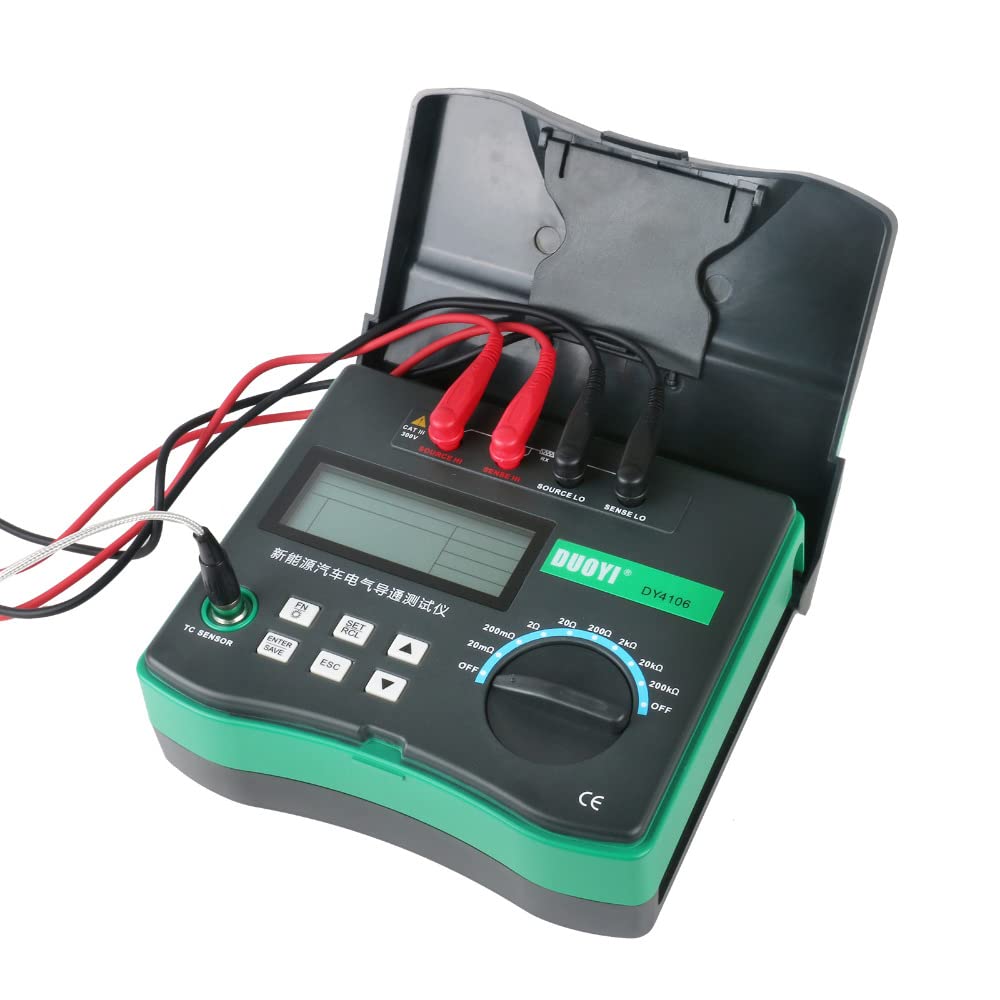

Details: DY4106 is a DC milli-ohm meter with high accuracy adequate for low resistance measurement in switches, electric relay, PCBs, connectors and relevant equipments. With PT-100 temperature probe, the meter can control measuring impedance to accommondate environment changes. The meter can be used to measure contact resistance in switches, relays, PCBs, cables, connectors, and component testing in resistors, motors, fuses, hot resistance wires. It can also be used in warehousing inspection, quality check and conductivity evaluation in product design.

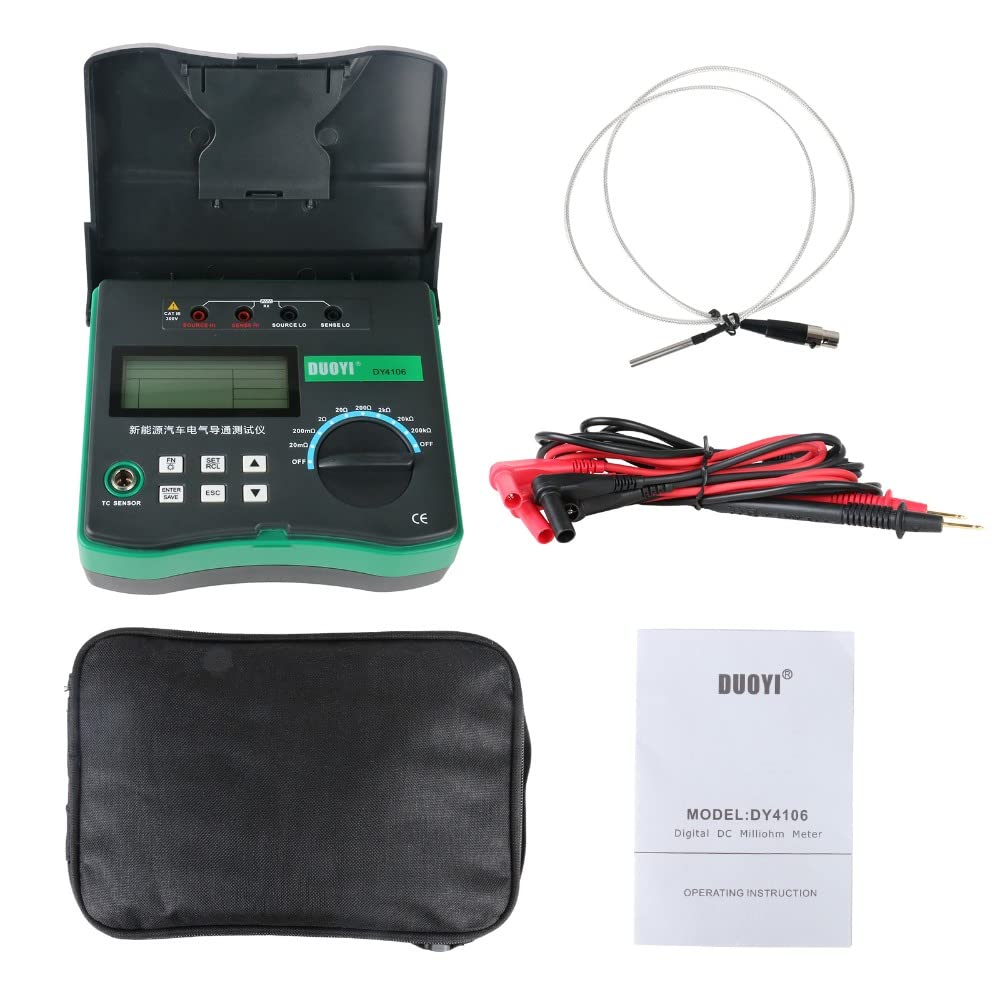

Packing list:
Product hostx1
Specific gold-plating test wire x1

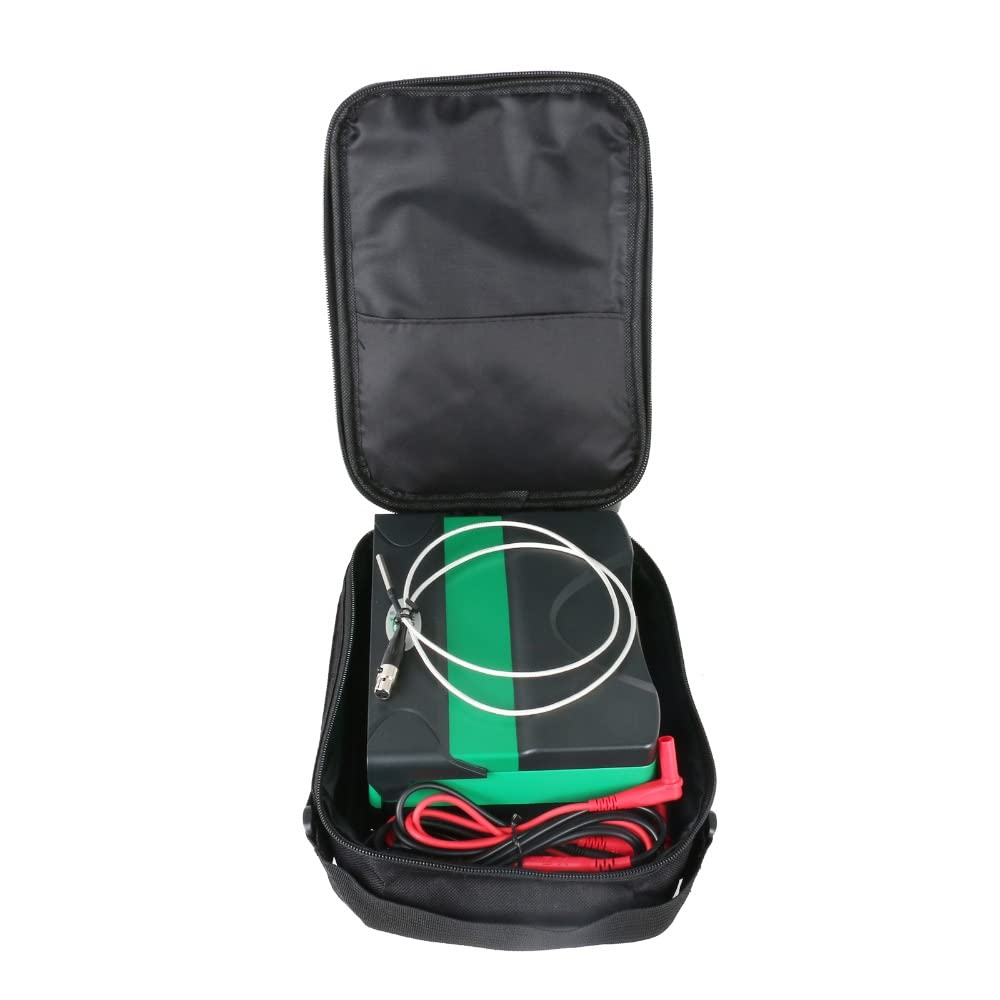

Carry case x1
Pt temperaturesensor x1
Operating instruction x1
