EG3002 Generator Speed Governor Diesel Generator Speed Control Unit Replace Kutai Engine

EG3002 Generator Speed Governor Diesel Generator Speed Control Unit Replace Kutai Engine

$109.99 USD
$109.99 USD
促销 售罄

Brand: Graigar

Color: Black

Highlights at a glance

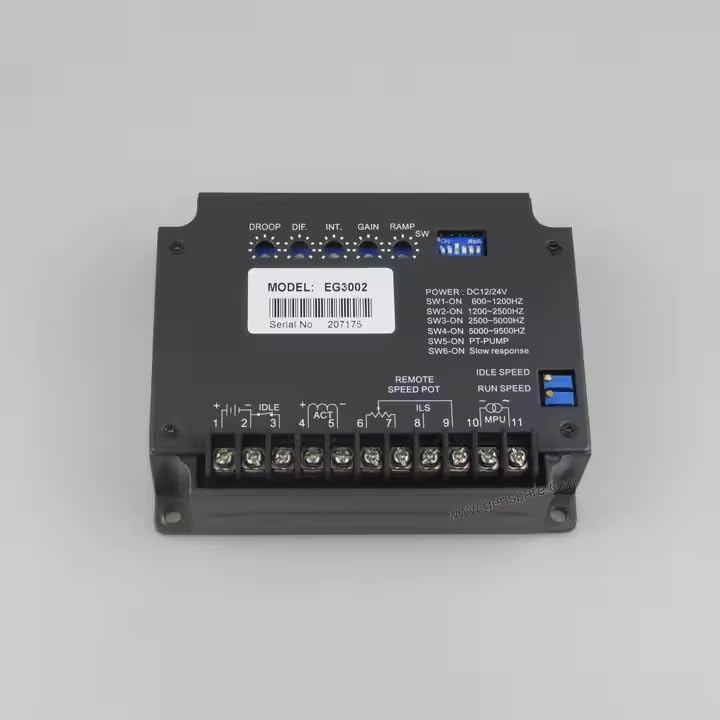

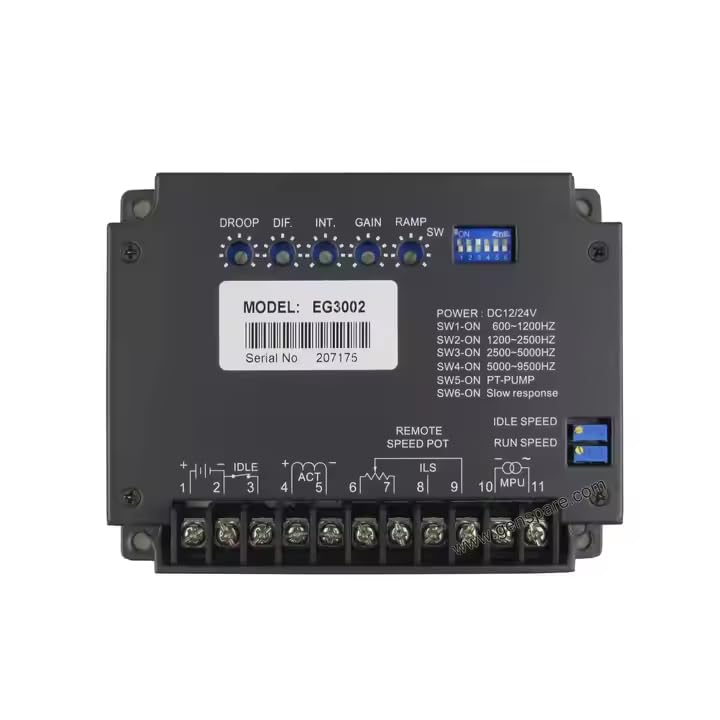

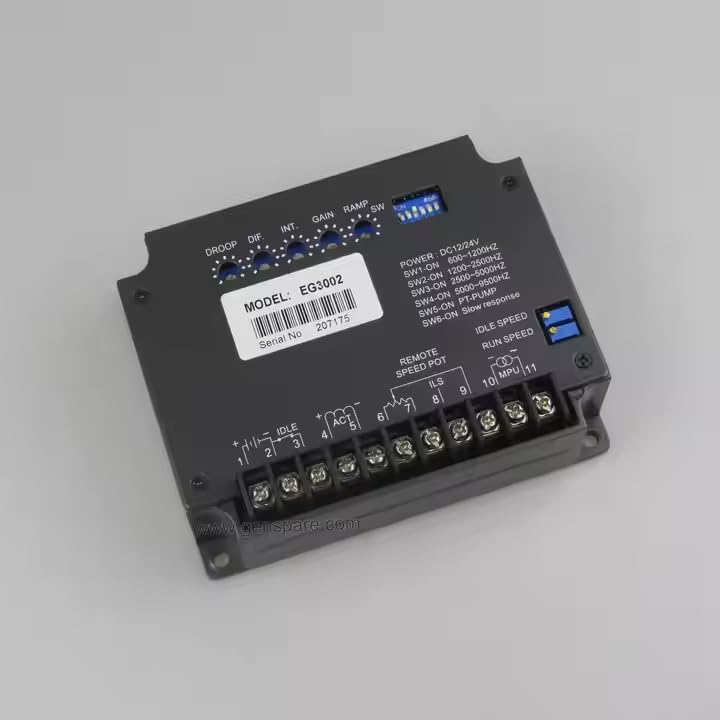

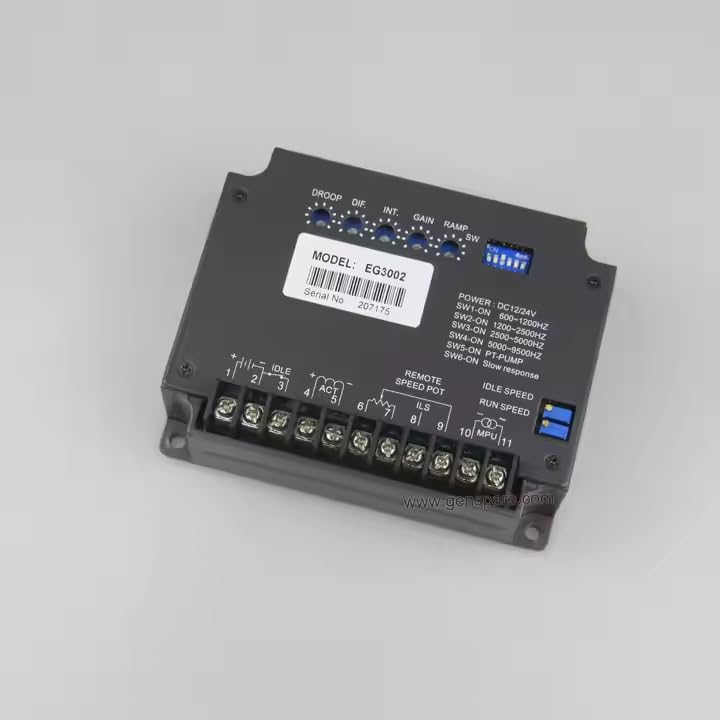

The Kutai EG3002 is an electronic speed controller for diesel and gasoline engines, paired with MPU and actuator. It features adjustable idle speed and fuel limiting to control start up smoke and vibration. Receives speed signal from MPU compares with set value and adjusts actuator. Power supply 12 24 Vdc +-20% from battery or DC adapter. Features Supports wide MPU flywheel frequencies up to 10000 Hz Max 15A output Works with diesel and gas engines High sensitivity stable at low frequency variations Epoxy encapsulated moisture vibration rust proof For isochronous generators automatic paralleling PLC controls Idle speed adjustment remote speed POT connection Key Specs Operating Voltage 10 32 Vdc Output Current Continuous 7A max 15A for 10s MPU Frequency 10 10000 Hz MPU Voltage 1 120 Vac Idle Adjustment 30 90% of normal speed Speed Stability +-0.25% at constant load Ramp Time 3 20s adjustable Speed Droop 0 4% adjustable Operating Temp -40 to +80 C Humidity <95% RH Dimensions 147x114x50mm Weight 690g +-2% Settings PID gain integral differential droop idle run speed ramp time via potentiometer and DIP switches. Supports Cummins PT pump extreme slow response engines.

Features:

  • · Works on a wide ranges of MPU/flywheel frequencies · 15 Amp Max Output
  • · Suitable for all types of diesel and Gas engines
  • · High Sensitivity and stable at Low Frequency Variations
  • · Moisture, vibration, and rust protected, Epoxy encapsulated electronics
  • · For Use With Isochronous Generators & Automatic Paralleling PLC controls
  • · Idle Speed Adjustment and connections for a Remote Speed POT

model number: EG3002

Part Number: EG3002
