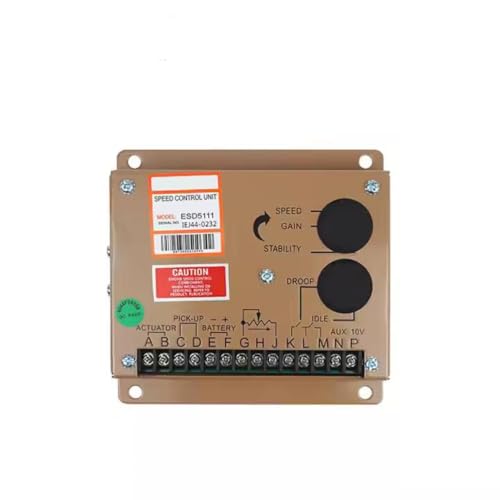

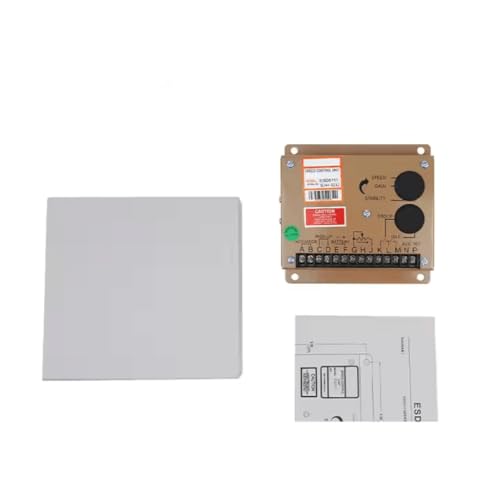

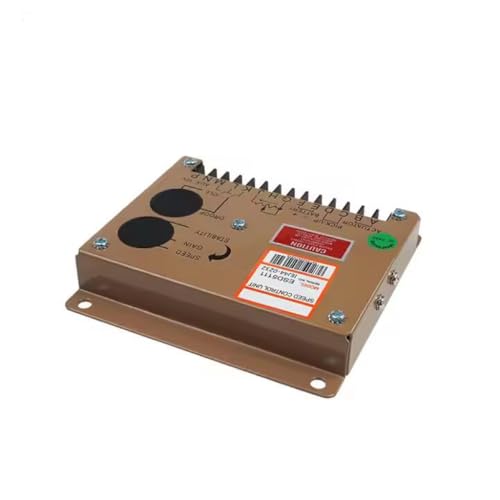

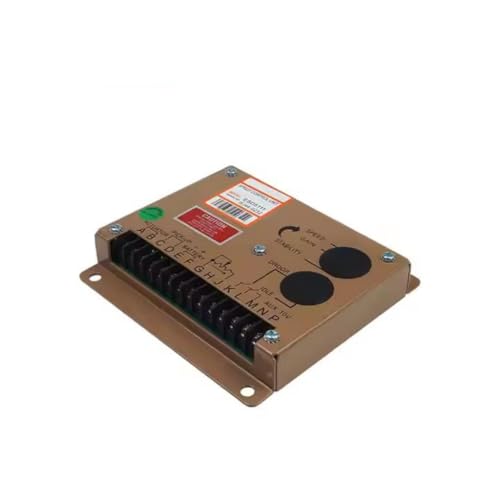

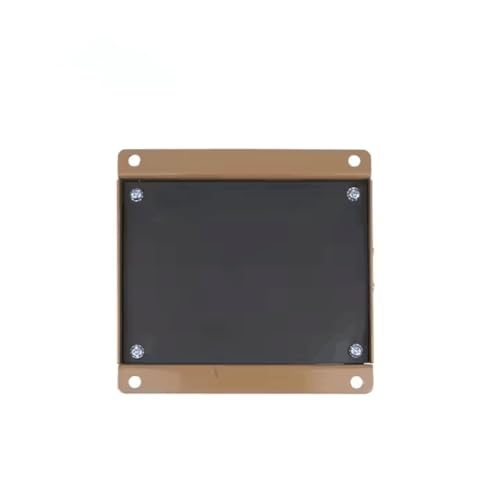

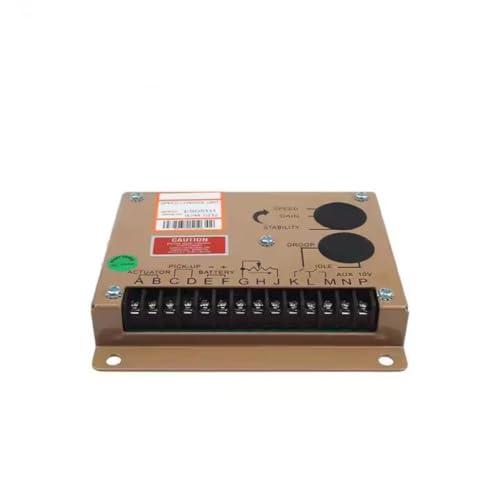

ESD5111 Generator Spend Control Unit Automatic Speed Governor for Diesel Generator

ESD5111 Generator Spend Control Unit Automatic Speed Governor for Diesel Generator

$99.99 USD
$99.99 USD
促销 售罄

Brand: Graigar

Color: Gray

Highlights at a glance

The ESD5111 series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes. Isochronous Operation/Steady Stability: +/-0.25% or better Supply: 12 or 24 VDC Battery Systems(transient&reverse voltage protected) Power Consumption: 50 ma continuous plus acutator current Maximum Actuator Current at 25celsius(77celsius F): 10 Amps continuous Speed Controller ESD5111 Isochronous Operation/Steady State Stability ± 0.25% or better Speed Range/Governor 1K-7.5K Hz continuous Speed Drift with Temperature ± 1% Maximun Idle Adjust CW Min. 1200Hz. below set speed Idle Adjust CCW Min. 4100Hz. below set speed Droop Range 1-5% regulation Droop Adj. Max. (K-L Jumpered) 875Hz., ± 75Hz. per 1.0 A change Droop Adj. Min. (K-L Jumpered) 15Hz., ± 6Hz. per 1.0 A change Speed Trim Range ± 200Hz. Remote Variable Speed Range 500 -7.5Hz. or any part thereof Terminal Sensitivity J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance L: 735Hz., ± 60Hz/Volt @ 65 K Impedance N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance P: 10V DC Supply @ 20ma Max. Speed Switch Adjustment Range 1000-10000Hz. ENVIRONMENTAL Ambient Operating Temperature Range -40°c to +85°c Relative Humidity up to 95% Storage Temperature -55°c ~ 90°c Shock 20-100HZ 500mm/Sec. INPUT POWER Supply 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) Polarity Negative Ground(Case Isolated) Power Consumption 50mA continuous plus actuator current Maximum Actuator Current at 25 10Amps continuous Speed Sensor Signal 0.5-120 Volts RMS PHYSICAL Weight 630g Diesel Engine Spare Parts Electronic Governor For Genertor Spend Control Unit ESD5111 Speed stablity Better than ±0.25% Speed range 1Khz ~ 7.5Khz Thermostablity Max ±1% Idle adjustment 160 ± 20Hz ~ Rated speed 95% Power input Voltage 12V DC 24V DC Output 50mA Signal of speed sensor 0.5 ~ 120V RMS

Features:

  • The ESD5111 series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.
  • Isochronous Operation/Steady Stability: +/-0.25% or better
  • Supply: 12 or 24 VDC Battery Systems(transient&reverse voltage protected)
  • Maximum Actuator Current at 25celsius(77celsius F): 10 Amps continuous
  • Power Consumption: 50 ma continuous plus acutator current

model number: ESD5111
