ETCR5000 Power Quality Analyzer Multi-Functional 3 Phase Power Analyzer with 068B Current Clamp 1.0A~1000A

Name: ETCR5000 Power Quality Analyzer Multi-Functional 3 Phase Power Analyzer with 068B Current Clamp 1.0A~1000A
Brand: Graigar
SKU: B0BXX2M9SK
Price: 1599.00 USD
Availability: InStock

$1,599.00 USD

促销售罄

数量

Function:

Transient capture function

Monitoring instantaneous change of power grid voltage current parameters, including the voltage current fluctu-ations, voltage current surge, sag and short supply interruption, temporary overvoltage, impact current and Cur-rent voltage instantaneous distortion. Instruments can store 150 sets of transient waveform at the same time.

Starting current monitoring

Monitoring surge current of line and the startup current when electrical equipment is starting, help to correctly design capacity. Can be display the RMS rising / falling curve In the startup process, the envelope curve of startup current, waveform of 4 channels current and 4 channels voltage. Recording about 100s after trigger, storage the current /voltage instantaneous and waveform curve of each cycle in 100s.

Trend chart recording and storing function

Store all the test parameters of basic test functions (Urms, Uthd, Ucf, Uunb, Hz, Vrms, Vthd, Vcf, Vunb, PST, Arms, Athd, Acf, Aunb, KF,W, VAR, VA, PF, COSphi, TANphi),50 voltage harmonics, 50 current harmonics. And create the trend curve. Record data for a long time according to need(concurrent selection 20 parameters to record data for once every five seconds, you can record about 300 days.).

Alarm function

Set the limit values according to need, monitoring the values whether overshoot, if overshoot will generate an alarm log, such as: voltage, current, unbalance, harmonic ratio, frequency, active power, total harmonic distor-tion. You can configure 40 different alarms, each group can set different monitoring parameters (including 50 harmonics, total of 123 different parameters) and limit values, also can set the shortest time of overshoot. The log can contain up to 12,800 alarms.

Snapshot function

Any screen can be saved (screen snapshot), at the same time automatically records the time and test mode. Such as can save voltage and current waveform, harmonic bar chart, phasor diagram etc. It can save a maximum of 60 screen snapshot.

Communication function

Communicate with computer via USB; Monitoring software can display waveform of power quality analysis, read of the transient waveform, trend chart recording, alarm log, screenshots, and display on the computer.

Setting function

The user can configuration of the time and date, configuration of the screen contrast and brightness, definition of each phase curve colorsrsquo.

Choice of type of connection to the net work.

Configuration of the type of the current sensors and voltage ratios.

Select Chinese menu or English menu.

#9670Help menu in Chinese/English

Every stage of operation can press the "help" key to obtain relevant information.

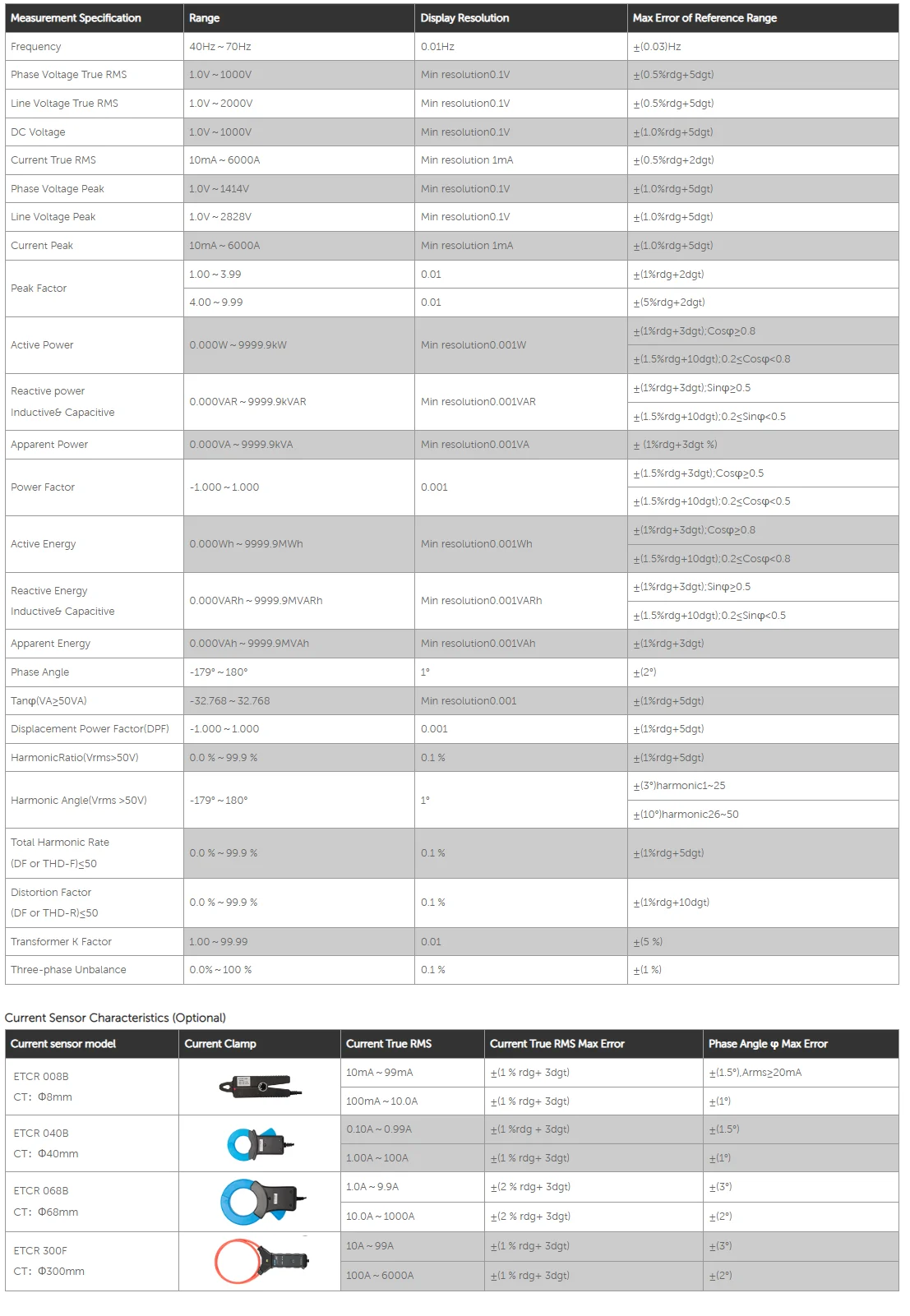

Technical Specifications of ETCR5000

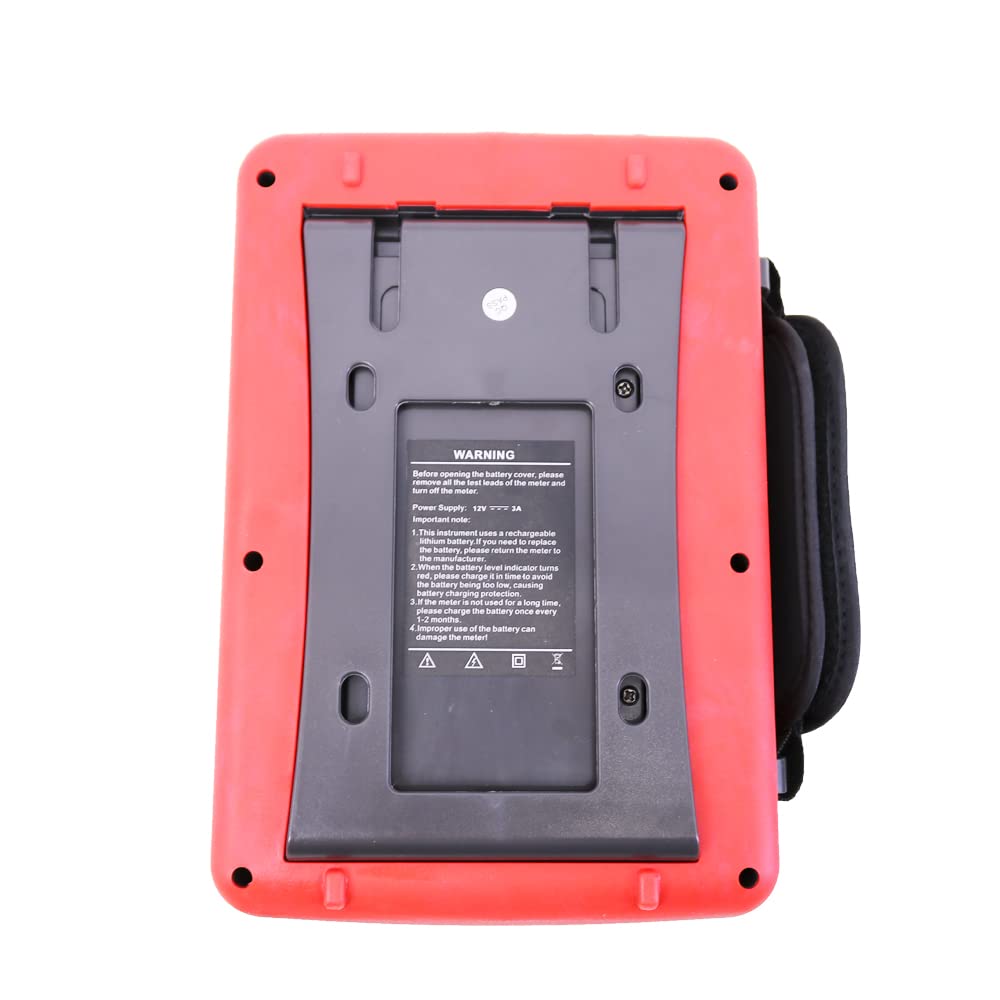

Power supply	Rechargeable lithium-ion battery packs 9.6V, backup charger.
Battery indicator	Battery symbol shows dump energy. When the voltage is too low, automatic shutdown after the 1 minute.
Power consumption	Current consumption of normal test 490 mA, continuous working for 8 hours.

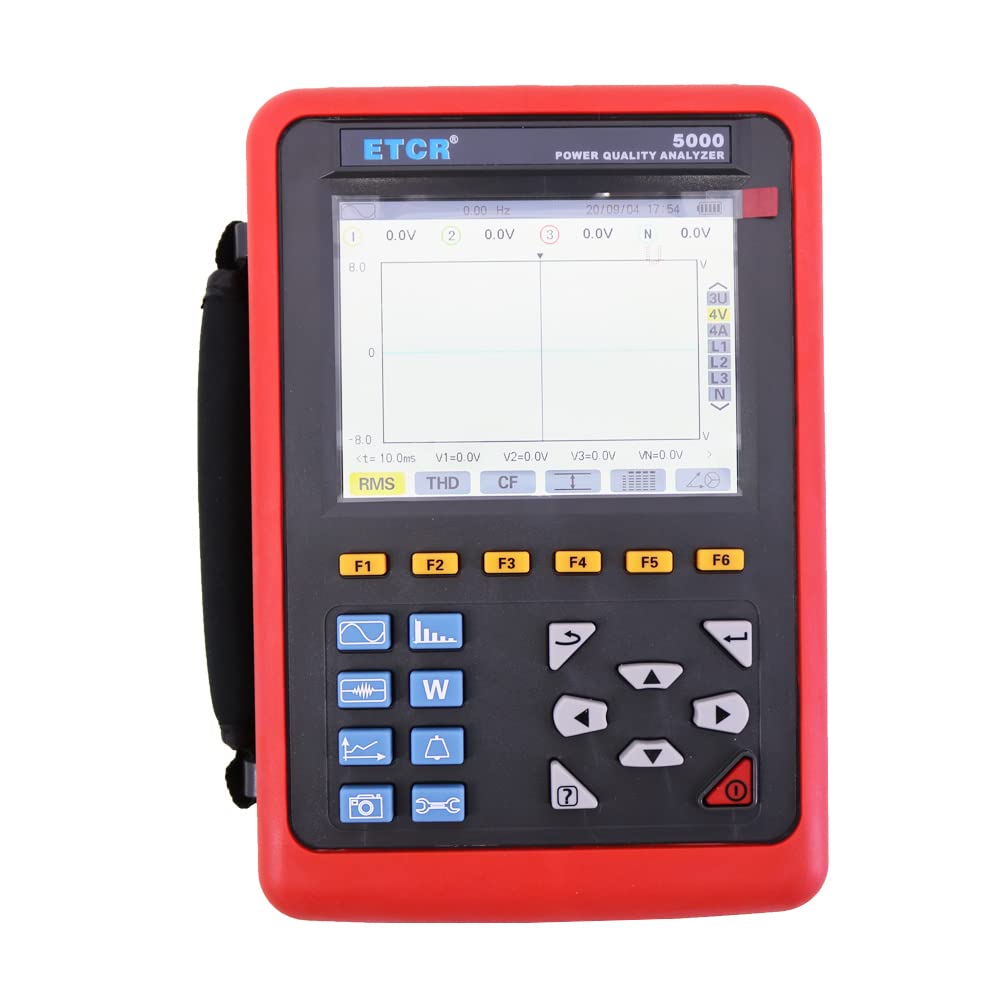

Display mode	LCD color screen, 640dotstimes480dots, 5.6 inches, display domain: 116mmtimes88mm.

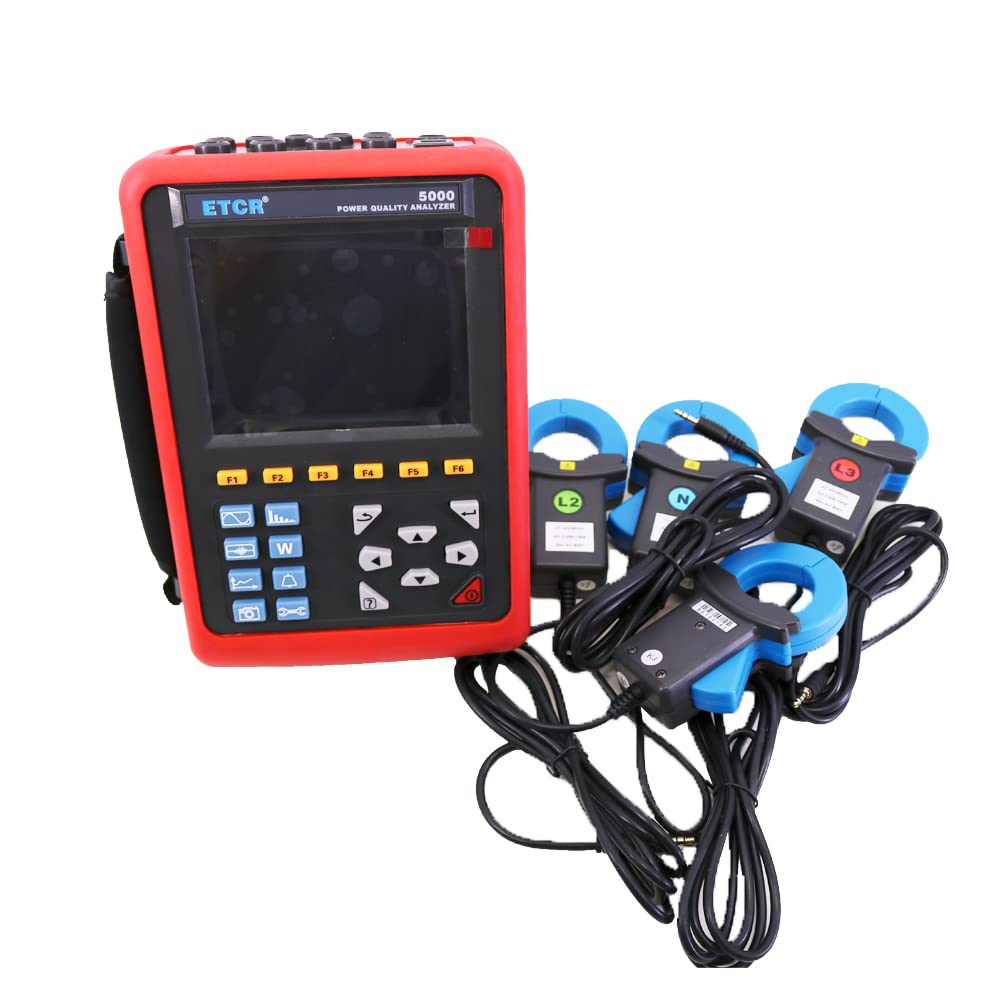

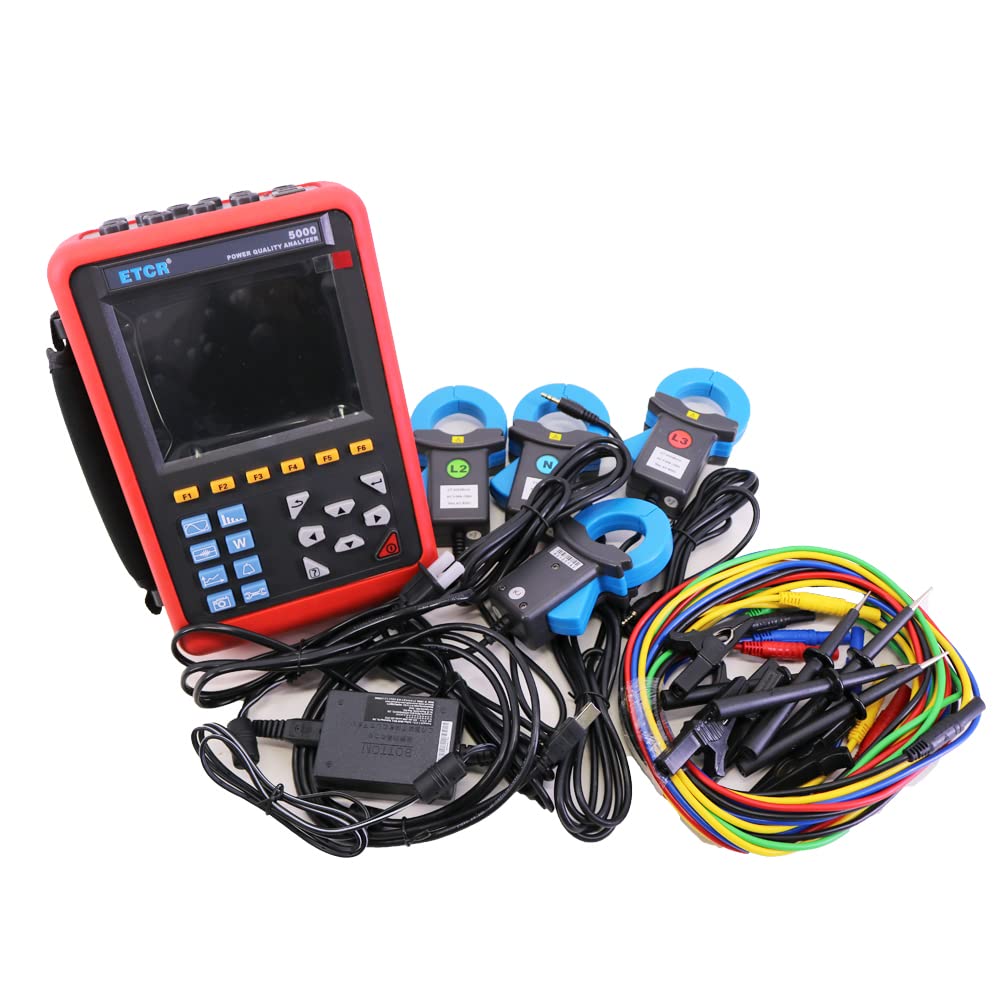

Size of clamp	008B small sharp current clamp: 7.5mmtimes13mm;
	040B circle current clamp: 35mmtimes40mm;

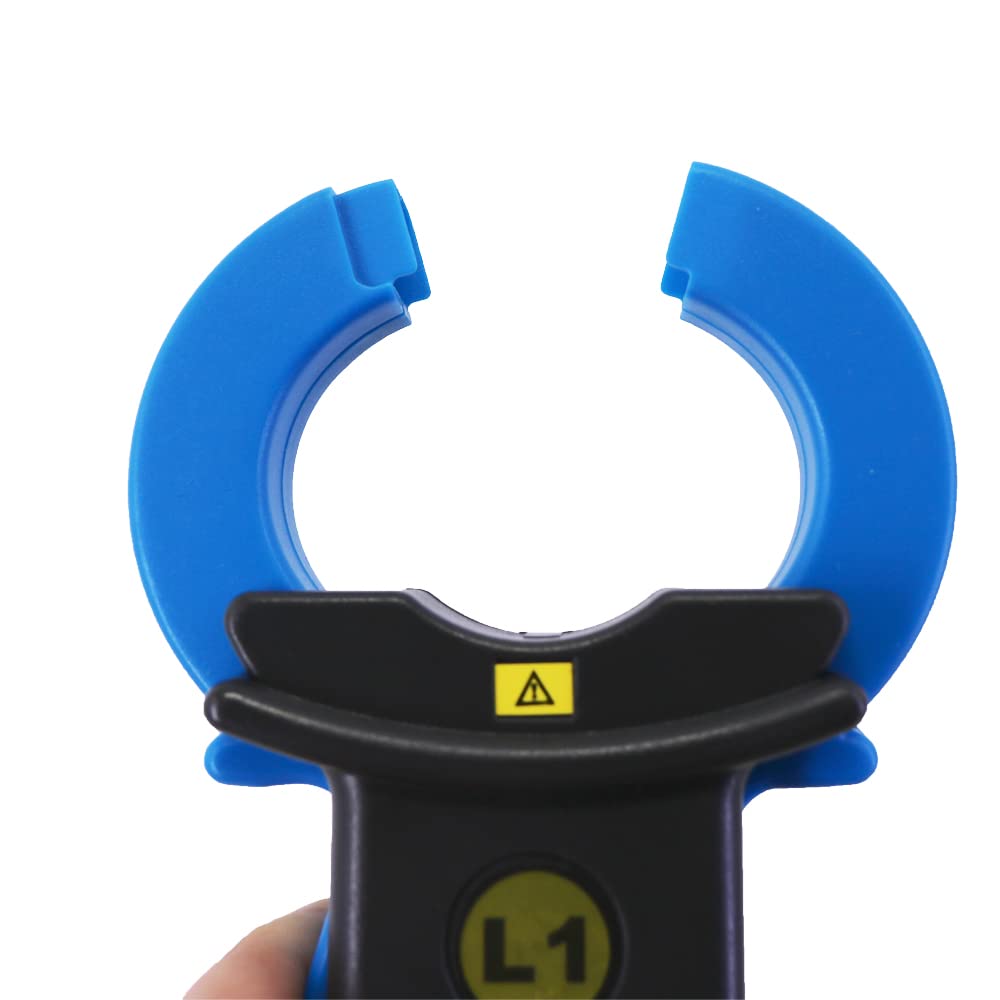

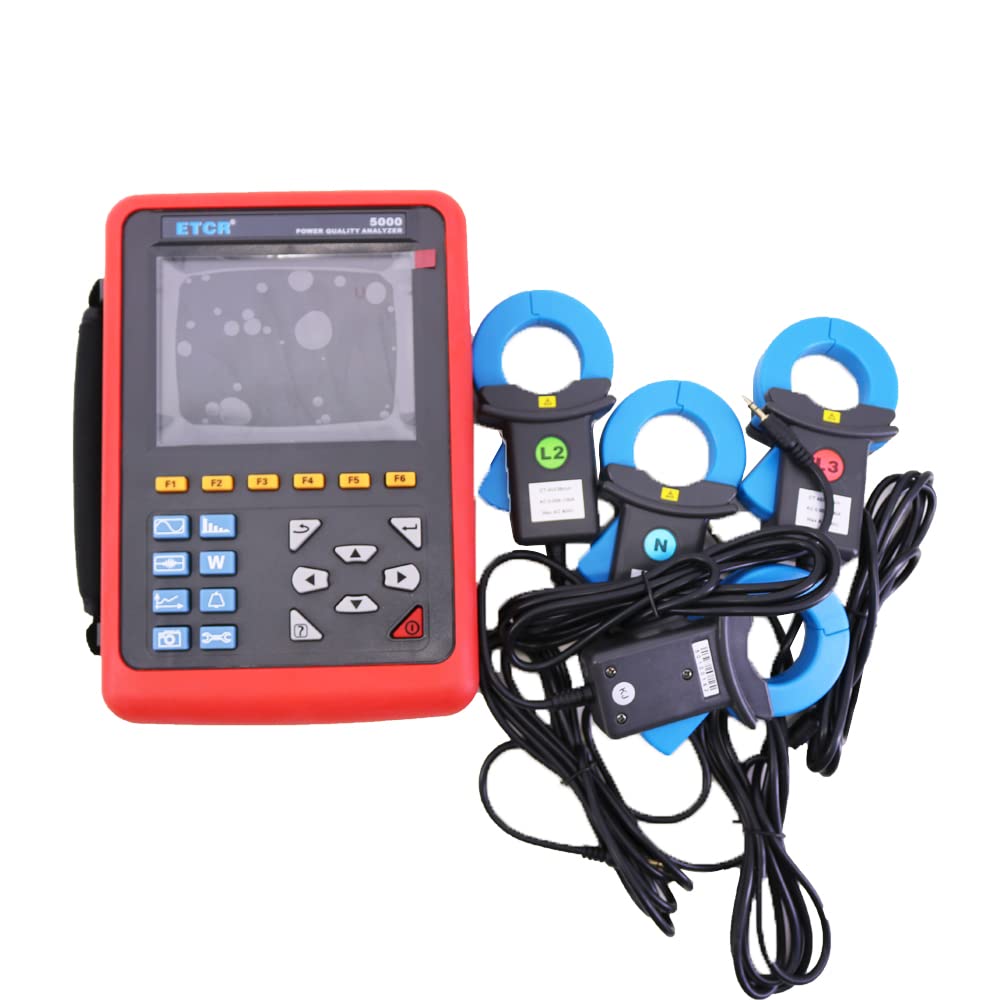

	068B circle current clamp: 68mmtimes68mm.
	300F Flexible coil current sensor (with Integrator) : #1060300mm
Instrument dimensions	LtimesWtimesH: 240mmtimes170mmtimes68 mm.

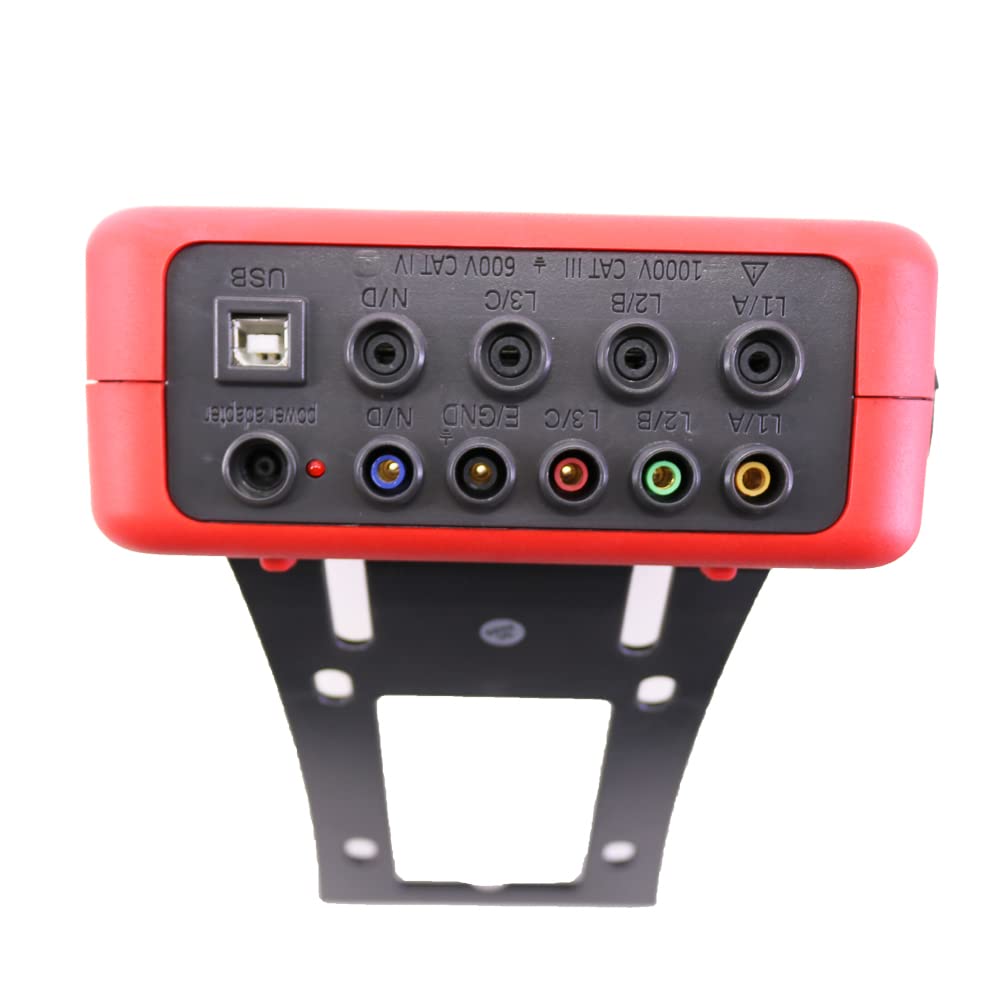

Number of channels	4U/4I.
Phase-to phase voltage	1.0V~2000V.
Phase-to-neutral voltage	1.0V~1000V.
Current	008B current clamp: 10mA~10.0A;
	040B current clamp: 0.10A~100A;
	068B current clamp: 1.0A~1000A;
	300F Flexible Coil Current Sensor (with Integrator) : 10A ~ 6000A
Frequency	40Hz~70Hz.
Parameters of electricity	W, VA, Var, PF, DPF, cosphi, tanphi.
Energy parameters	Wh, Varh, Vah.
Harmonic	Order 0~50.
Total harmonic distortion	Order 0~50, each phase.
Expert mode	Yes.
Number of Transient records	150 sets.
Voltage flicker	Yes.
Starting current mode	Yes, 100 seconds.
3 phases unbalance	Yes.
Record	300 days(simultaneous recording 20 parameters, record one point every 5 seconds).
Min/Max recorded value	Measurement of maximum and minimum values over a period of time.
Alarm	40 different types of parameter selections, 12,800 sets alarm logs.
Peak	Yes.
Phasor diagram display	Automatically.
Capacity of snapshots	60
Menu language	English/Chinese.
Communication	USB.
Automatic switching off	When an alarm campaign is initiated or a search for transients, an inrush current capture, or a trend recording is pending or in progress, the device is not automatic switching off.
Automatic switching off	In other test mode, 15 minutes without keystrokes, automatic shutdown after prompt 1 minute.
Backlight function	Yes, suitable for use at night and dark place.
Weight	Host: 1.6kg (with battery).
	008B small sharp current clamp: 170gtimes4;
	040B circle current clamp: 190gtimes4;
	068B circle current clamp: 510gtimes4;
	300F Flexible Coil Current Sensor (with Integrator) : 330gtimes4;
	Test wires and power adapter: 900g;
	Total weight: about 9.2kg (with packaging).
Length of voltage test wire	3m.
Length of current sensor wire	2m.
Working temperature and humidity	-10degC~40degC; below 80%Rh.
Storage temperature and humidity	-10degC~60degC; below 70%Rh.
Input impedance	Input impedance of test voltage: 1MOmega.
Withstand voltage	Withstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell.
Insulation	Between instrument wiring and shell ge10MOmega.
Structure	Double insulation, with insulation vibration-proof sheath.
Safely rules	IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2.
