ETCR8300 Three-Channel Current/Leakage Monitoring Recorder 0mA-200A True RMS AC Leakage Current Tester

ETCR8300 Three-Channel Current/Leakage Monitoring Recorder 0mA-200A True RMS AC Leakage Current Tester

$565.00 USD
$565.00 USD
Sale Sold out

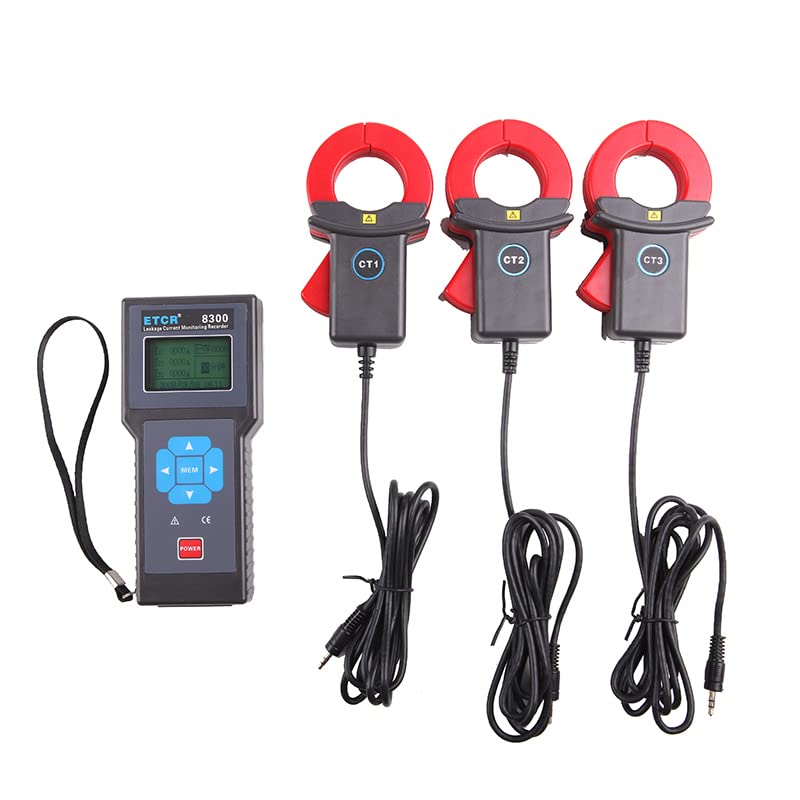

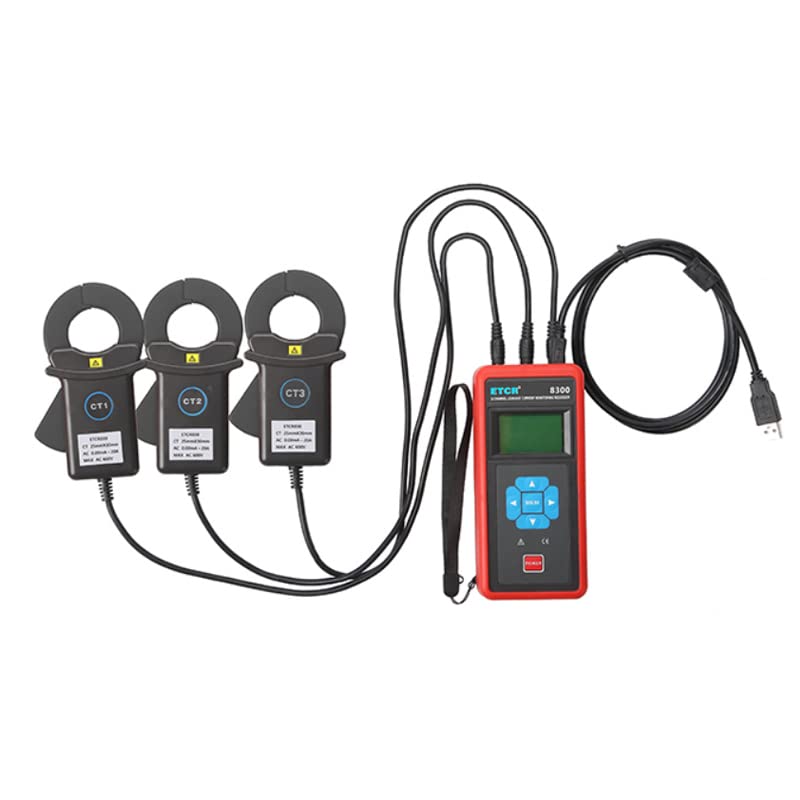

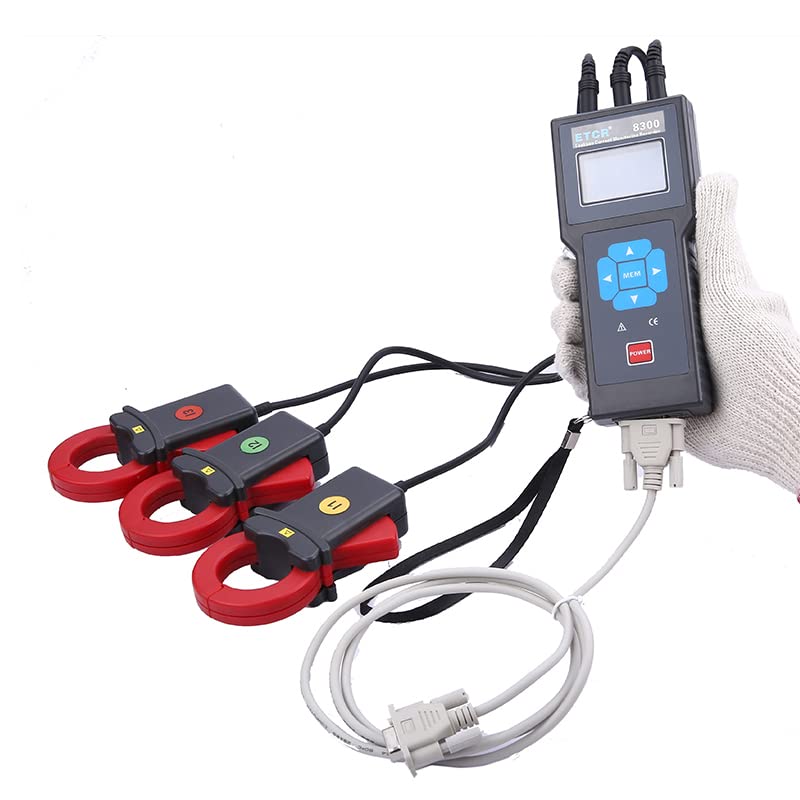

ETCR8300 series Three-Channel Current/Leakage Monitoring Recorder is well designed and manufactured for online measurement, monitoring and recording of Three-Channel AC leakage / current at the same time. It is composed of a tester, monitoring software, current clamp and communication cable, etc. This instrumenthas been widely applied the 380/220 Power system. It can provide a safety and convenience measurement with accurate results.
     The instrument has a large LCD display with blue background and a large storage space. 3900 sets of data can be stored in the instrument. Three- channel current value can be display on the screen. In addition, the instrument can automatically store data at a interval, which is adjustable from 1 to 99 min.
Monitoring software provides online and real-time monitoring and historical data inquiry. With the software developed by our technical department, the users can read, inquire, store, generate and print a fitting curve and report.
     The current clamp is made of a special alloy, adopts the latest CT technique and magnetic shielding technique and is not almost interfered by external magnetic field. This ensures high accuracy, high stability and high reliability of the values which are measured continuously
Parameters:
Functions

Measuring AC leakage current and AC current of three channel, monitoring current in real-time manner, locating insulation faults and repairing electrical lines.
Power source

DC6V, alkaline battery LR03 1.5V×4
Testing Method

Split core type CT, true RMS
Range

0mA-200A
Resolution

1mA
Accuracy

±2%±5dgt
Clamp size

35mm×40mm
Instrument Dimension
Tester(L×W×H): 75mm ×170mm ×30mm
Current clamp(L×W×H): 122mm ×70mm ×33mm
Mass
Tester: 750g (battery included)
Current clamp: 170g × 3 PCS
LCD Dimension

Display field: 44mm×27mm
Shield Type

Type B: Double shielding
Sampling Rate

2 samples/s
Data storage

3900 sets (data loss does not occur after power failure or replacing the battery)
Time Setting

Recording internal adjustable from 1 to 60 min, If set to 0 min, the auto-store function is turned off
Recording Time

Continuously operate for about 10 days at the power-saving mode
Line Voltage

Line with a voltage up to AC600V
Overflow Display

The “OL” symbol is displayed when a measured value is beyond the measurement range
Battery. Voltage

A Low-Battery symbol is displayed and the user should replace the battery with a new one when the battery voltage drops to 4.6V to 4.8V. In this case, the measured values are still accurate.
Rated Power

about 5mA at the power-saving mode, maximum current consumption: 20mA
Lead Length

2 m
Temperature and Humidity

Working: -20C-50;below 80%rh

Storage: -20c-50C;below 70%rh
Insulation Resistance

Higher than 100MΩ, 1000V
Safety Codes

IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT 3(600V), IEC61326(EMC standard)

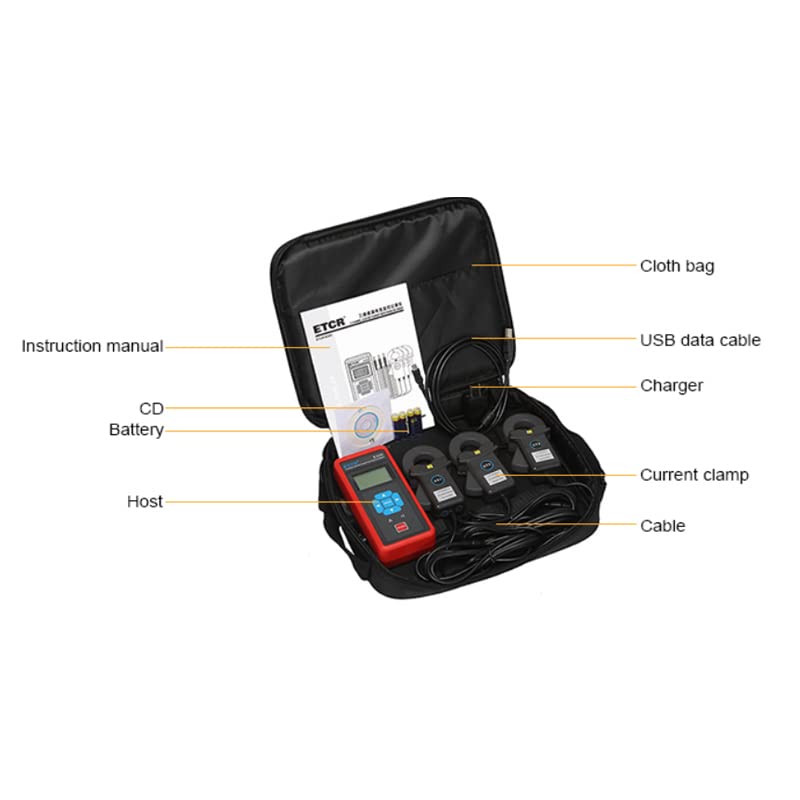

Accessories

Tester: 1 PCS, Current clamp: 3PCS, Instrument bag: 1 PCS, RS232 Com-cable:1 PCS; Software Disk: 1 PCS
