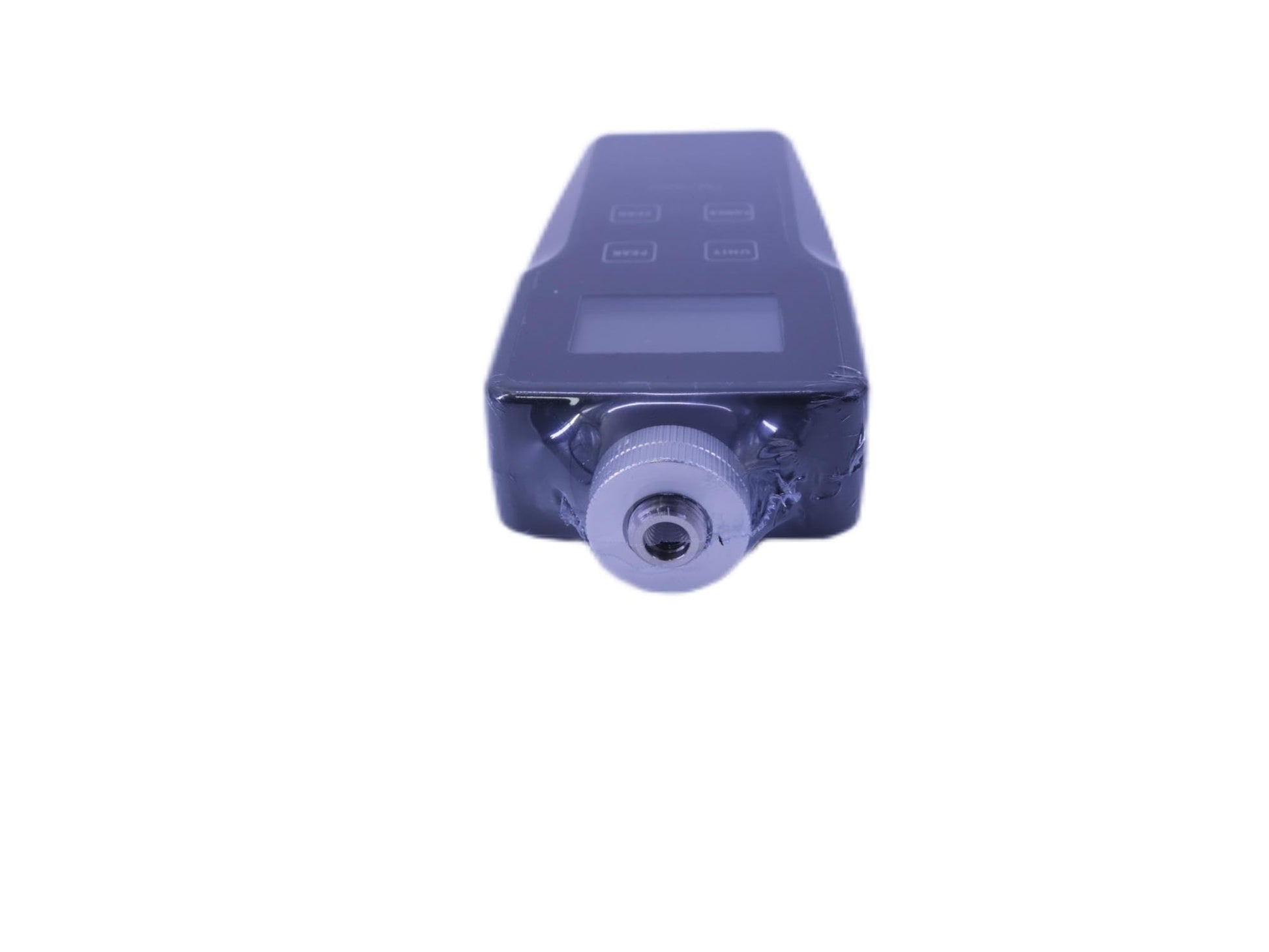

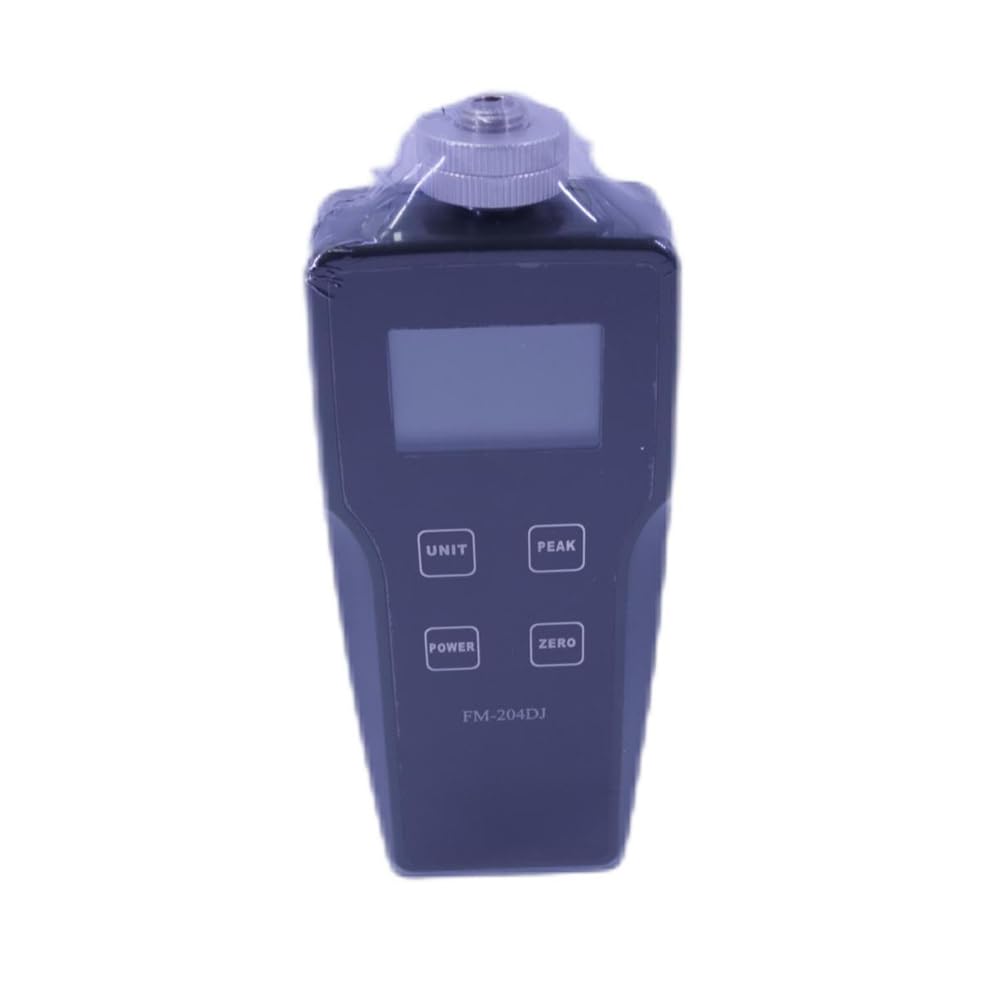

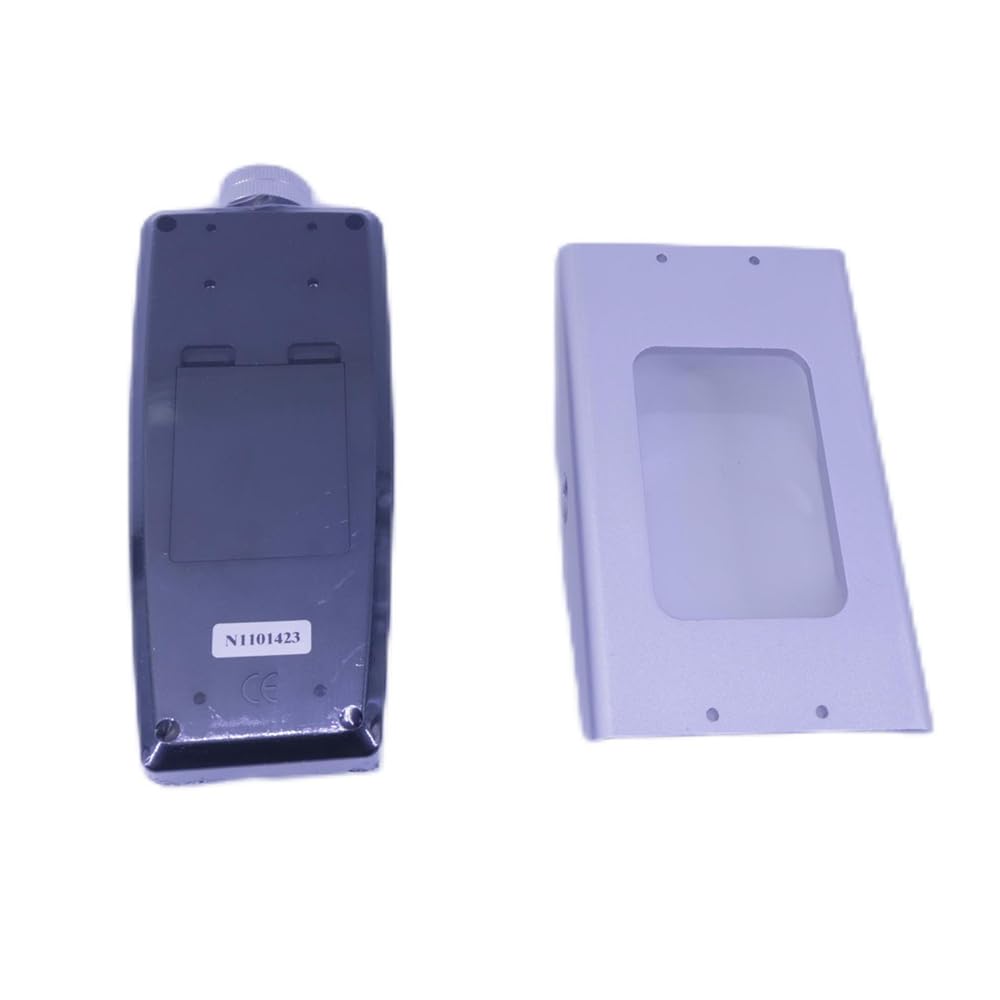

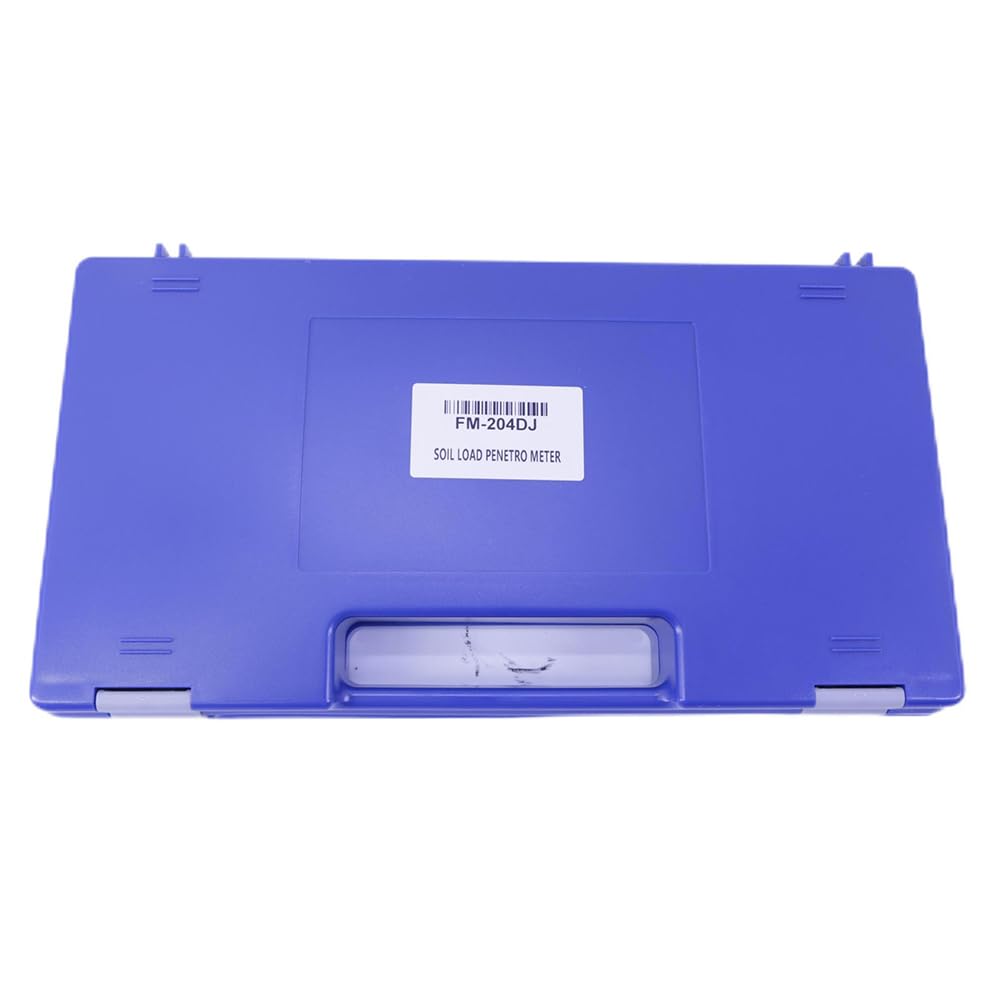

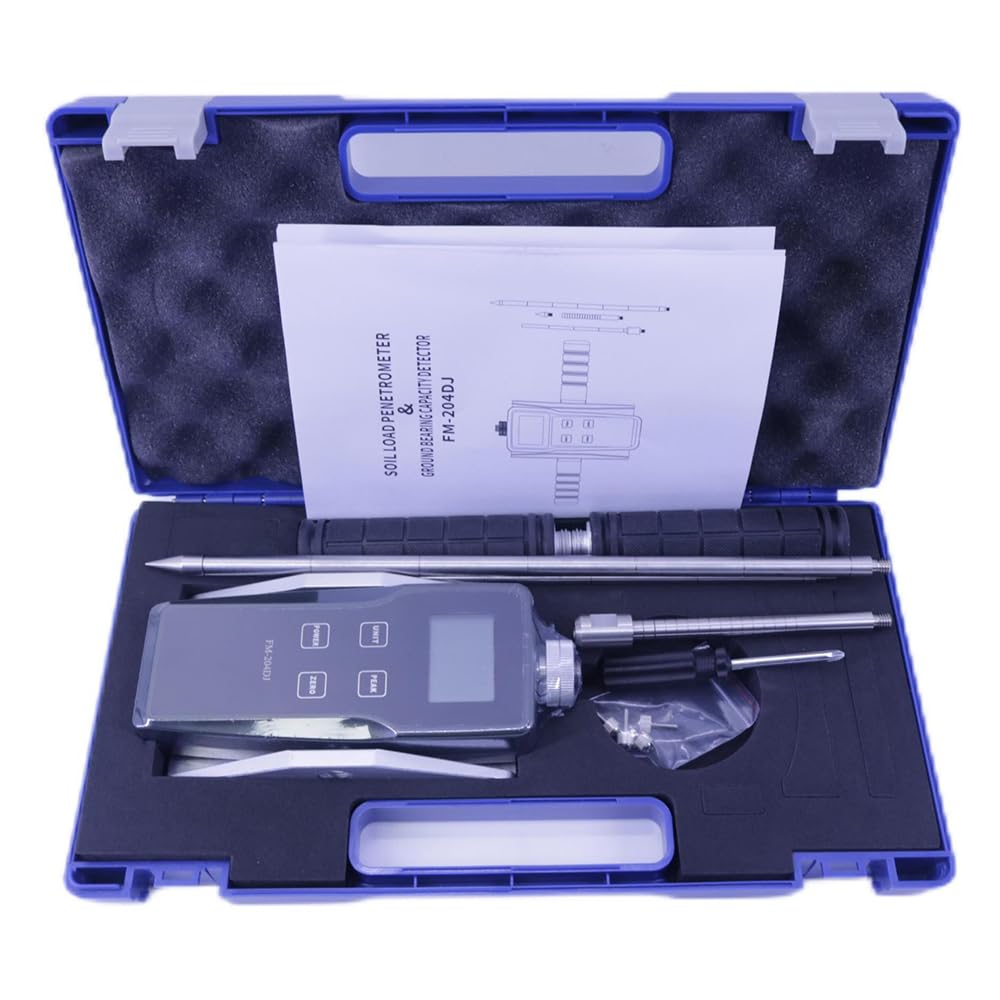

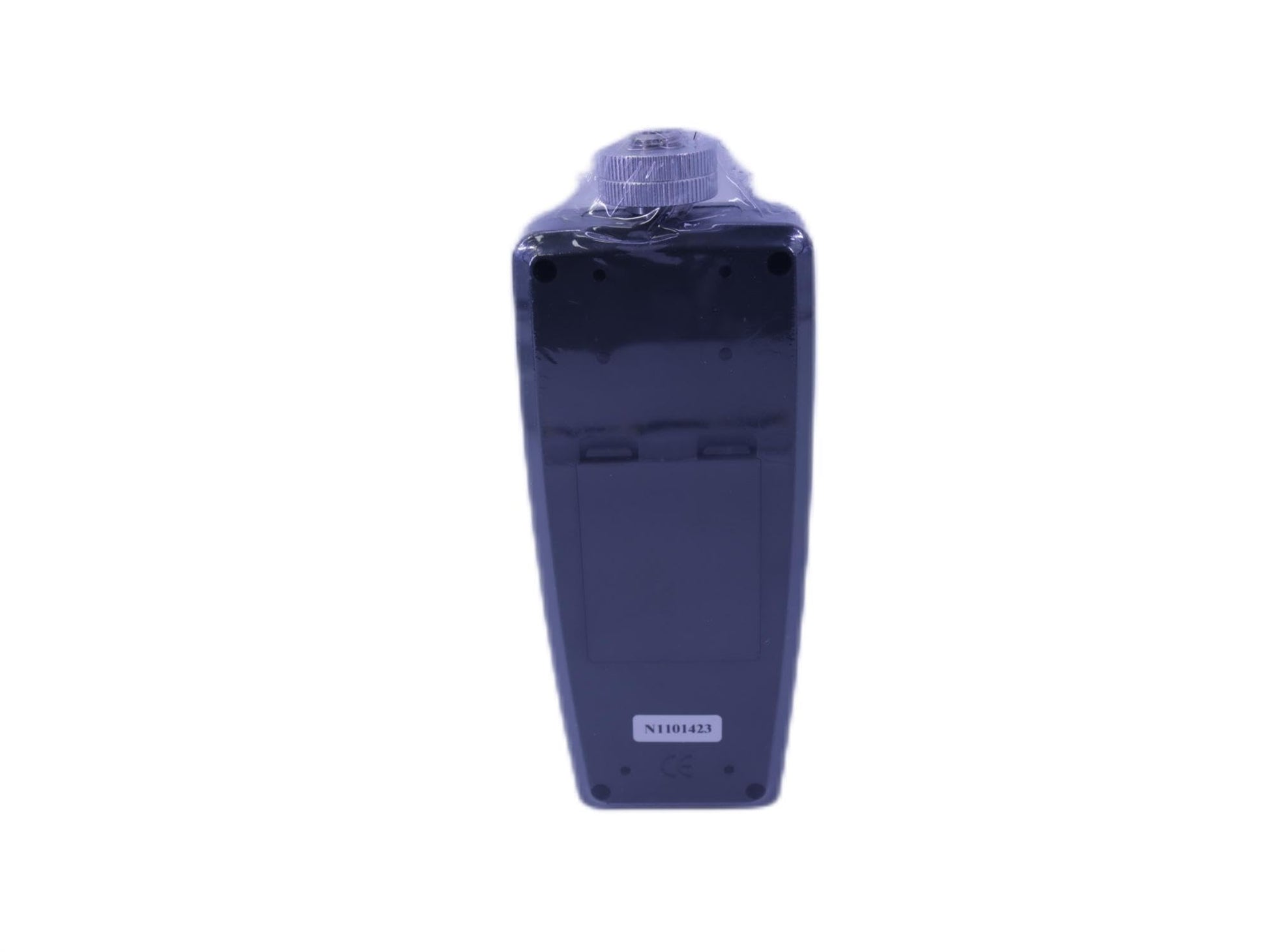

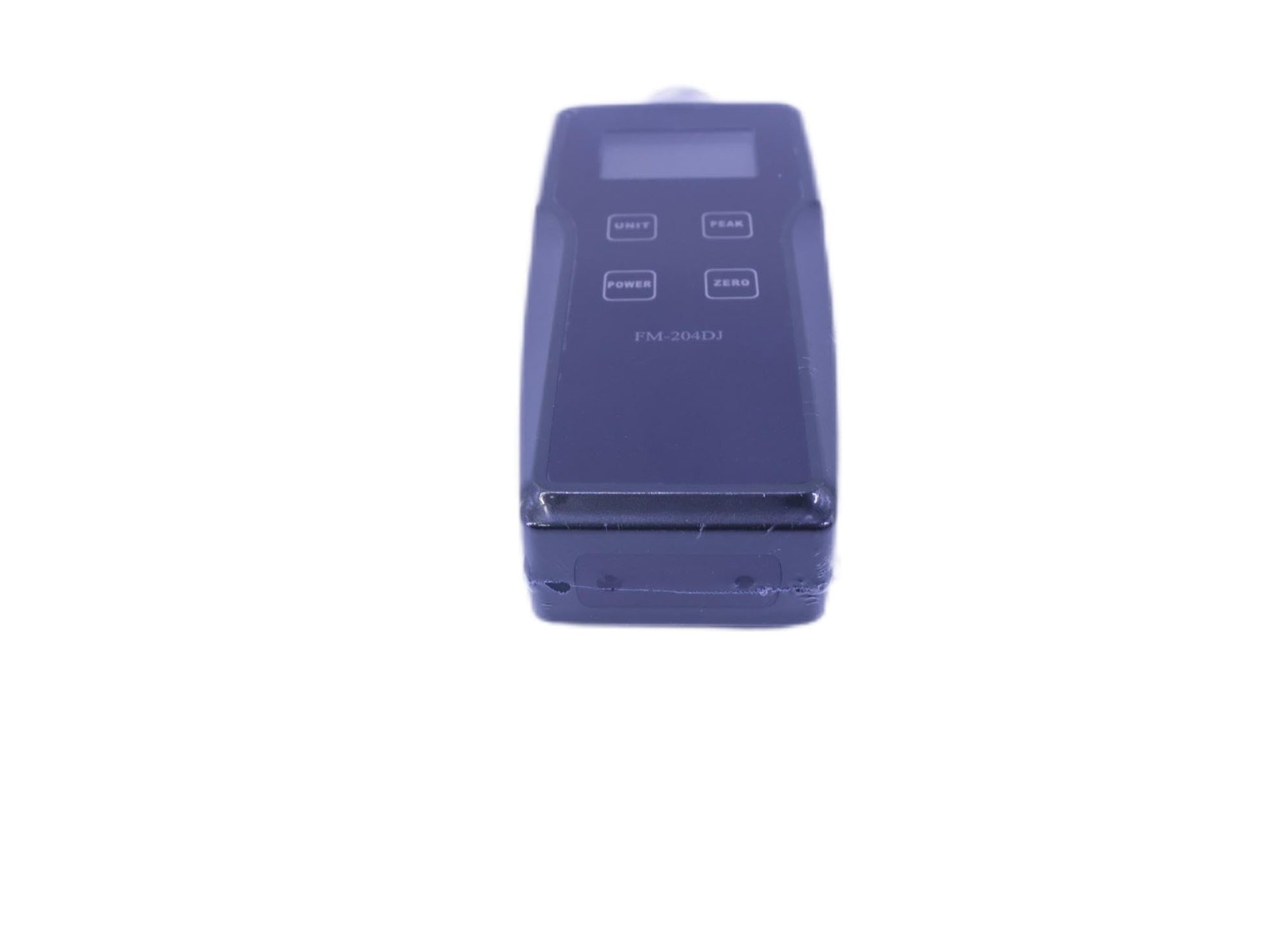

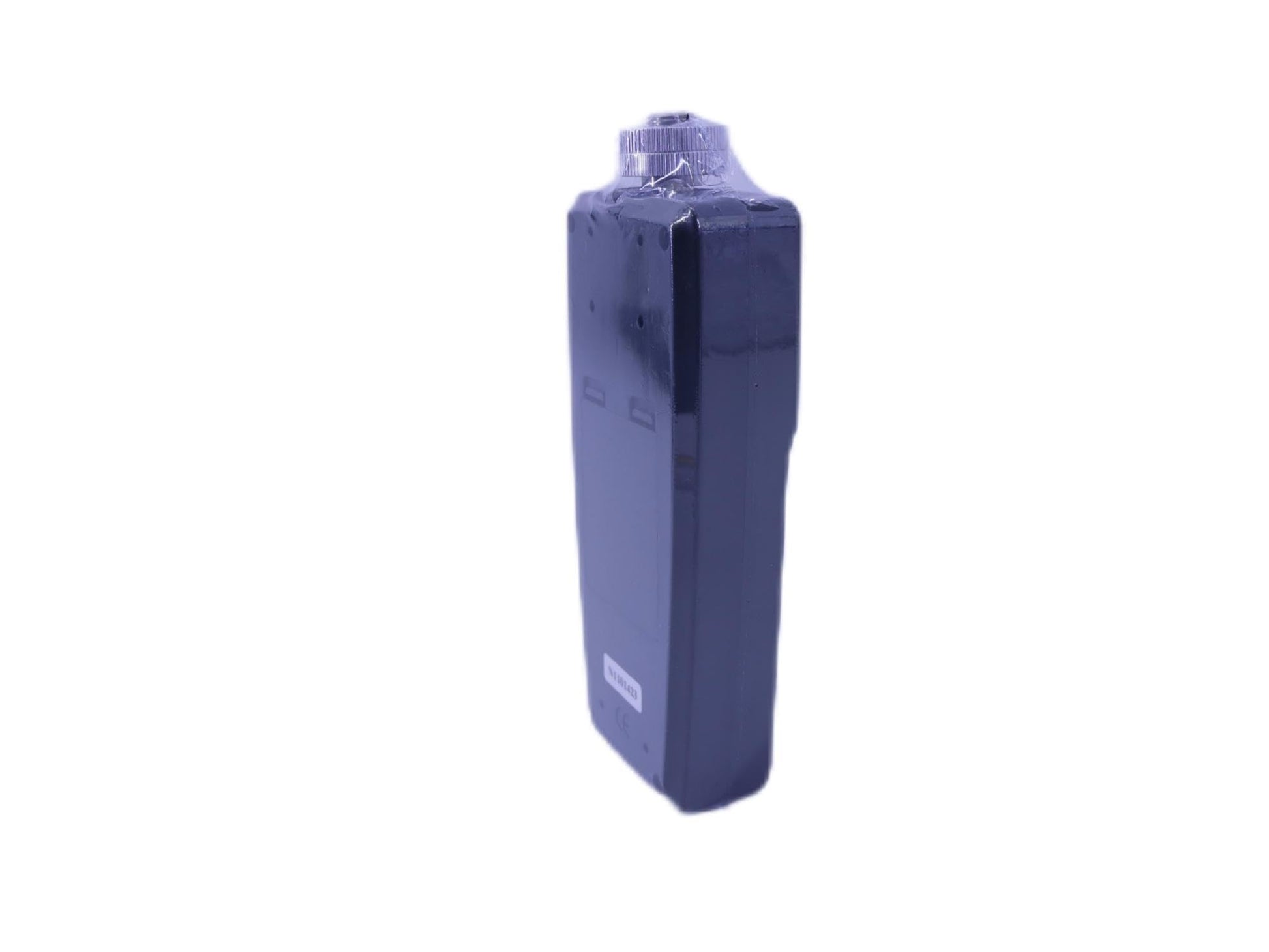

FM-204DJ Soil Load Penetrometer Ground Bearing Capacity Detector Measuring Range 0kg-100kg

Brand: Graigar

Features:

• It is used in domestic industrial and civil construction, highway, railway, road and bridge, municipal drainage, oil pipeline, water conservancy, dam construction, dike, irrigation canal, reservoir construction, airport runway engineering.
• Small and easy to carry in the field.
• Penetration method a group of tests up to 15-20 minutes, high efficiency, fast, productivity liberation.
• By measuring the penetration resistance and looking up the table, the dry density can be quickly obtained, and then the compaction
• Soil Load Penetrometer Ground Bearing Capacity Detector Measuring Range 0kg-100kg

model number: FM-204DJ

Details: Specifications
Measuring range:0kg-100kg (0N-1000N)

Test depth:0cm-30cm

Material tested:all kinds of backfill soil, clay, sand and mixed soil after rolling

Application environment:highway, railway, reservoir, dike, dam and civil building, etc

Test results:filling resistance, relative density, compaction coefficient and foundation bearing capacity

Power:2 AA batteries(6 V dc matching)

Weight (excluding battery):instrument 415g, handle 295g, probe rod 380g.

Accuracy of the test:≤0.25%

shutdown mode:Close automatically or manually shut down 10 minutes

EAN: 0707457451460
