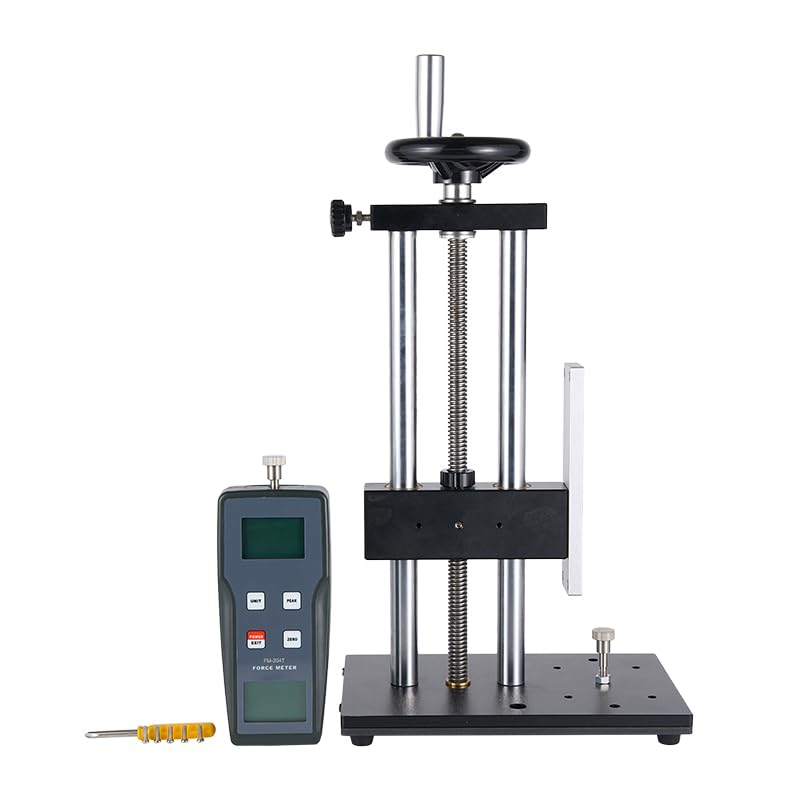

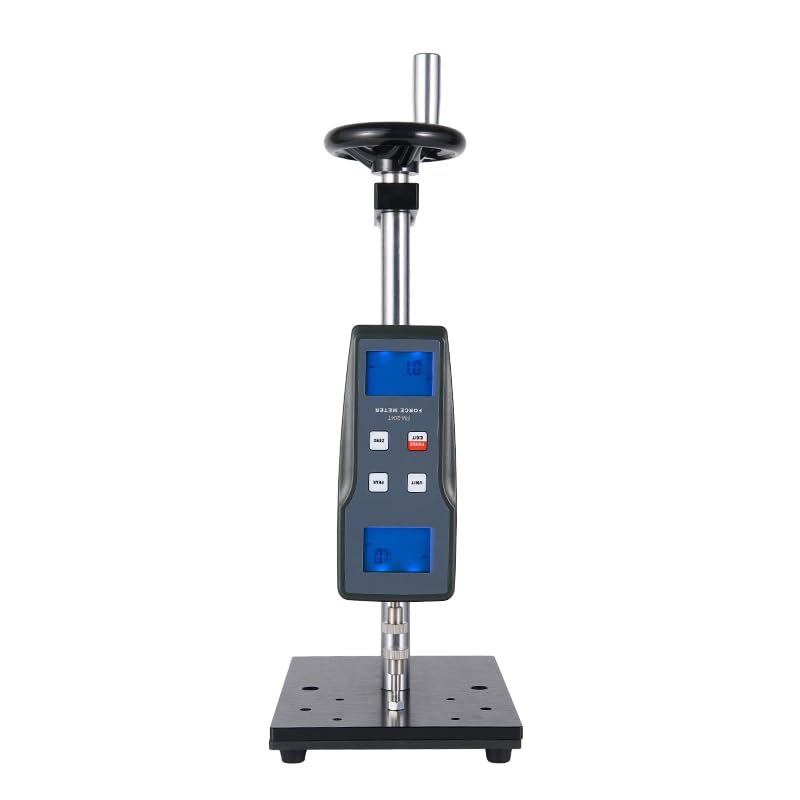

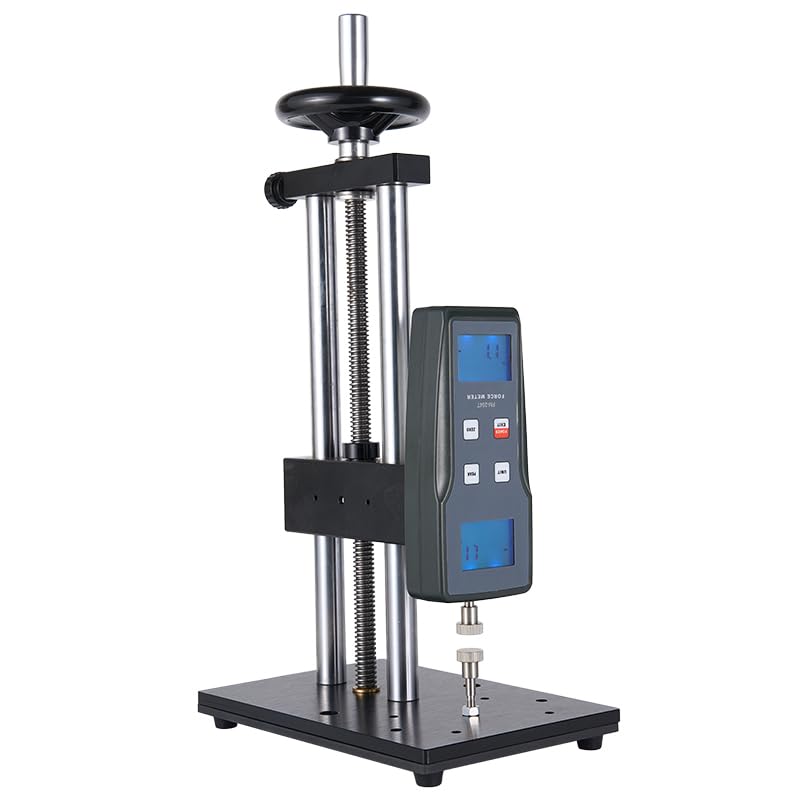

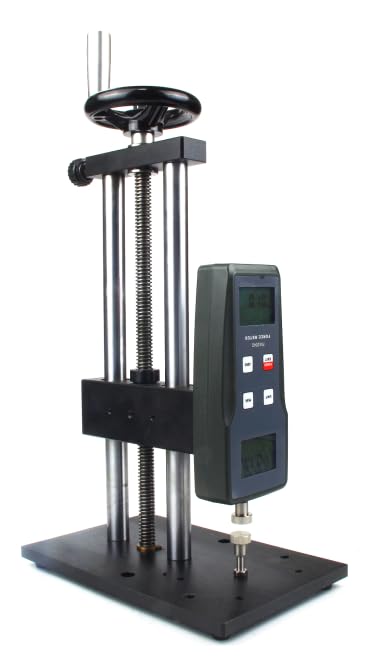

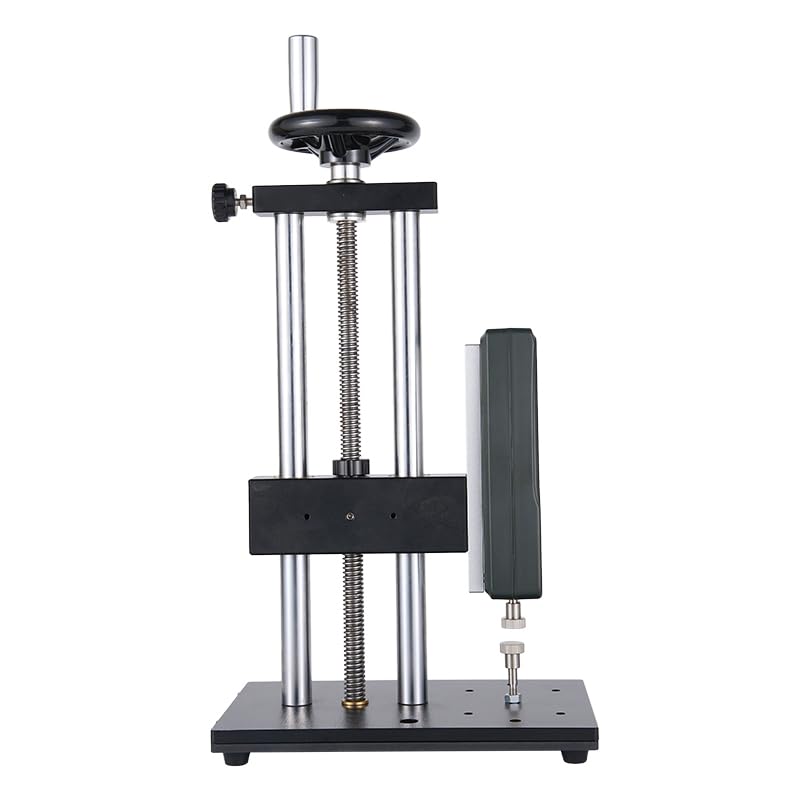

FM-204G Digital Grain Feed Grain Hardness Tester with Stand 0N-196N 0-20Kgf 0-4426F

FM-204G Digital Grain Feed Grain Hardness Tester with Stand 0N-196N 0-20Kgf 0-4426F

$429.00 USD
$429.00 USD
促销 售罄

FM-204G Digital Grain Hardness Tester Testing Instrument Range 0Kgf-20Kgf 0N-196N

Features:

* High precision and high resolution.

* Digital display, ignore the difference.

* N(Newton), kg(kg), 1B (pounds), g(grams) four measuring units for choice, mutual conversion.

* Peak hold function. Maintain peak display until manually reset.

* Green environmental protection, can be set 10 minutes no operation automatic shutdown; It can also be manually shut down.

* Can be powered by alkaline batteries; Can also be connected to 5V DC power supply.



Principle:

FM_204G series grain feed granule hardness tester is a kind of digital display grain feed granule hardness tester newly designed and developed by our company.

It has the advantages of high precision, easy operation and convenient carrying. The scientific use test range is 10%-100% of the full scale.

The metrology department recommends not to use less than 1% of the full scale.

At the same time, after the instrument and the tested object are in place, press the ZERO (ZERO) key to clear the ZERO to eliminate the weight of the fixture and so on.



Specifications:

Test scope

 0Kgf-20Kgf,0N-196N,0F-4426F

The resolution

0.01Kgf,0.1N,0.0126F

Diameter of the test range

 15mm

Precision

±0.5%FS (range) + 1 digital peak
Unit

kgf, gf, N, Lbf

Can be measured value

Peak, instantaneous value.

According to

 Four big liquid crystal, the direction, double screen

Shutdown mode

Close automatically or manually shut down 10 minutes

Backlight



Backlight

Allow the load

 150%F.s (super 110% E.s, beeping alarm)
The power supply

Section 2 battery 5 or 5 v dc power supply

Working temperature

0~40°C
         Working humidity                                                <80%

     The work environment



             Around the source and the corrosive medium



                 Turnning

                                                 390g

Size

211mmx80mmx36mm

Brand: Graigar

Features:

  • High precision and high resolution. Digital display, ignore the difference.
  • Can be powered by alkaline batteries; Can also be connected to 5V DC power supply.
  • N(Newton), kg(kg), 1B (pounds),g(grams) four measuring units for choice, mutual conversion. Test scope:0Kgf-20Kgf,0N-196N,0F-4426F
  • Peak hold function. Maintain peak display until manually reset.
  • Green environmental protection, can be set 10 minutes no operation automatic shutdown; It can also be manually shut down.

model number: FM-204G

Part Number: FM-204G

EAN: 0707457580498
