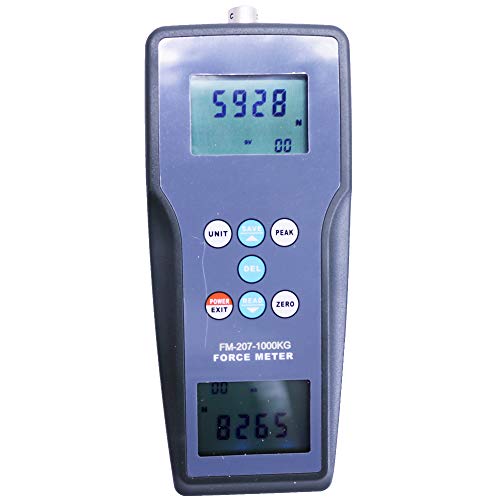

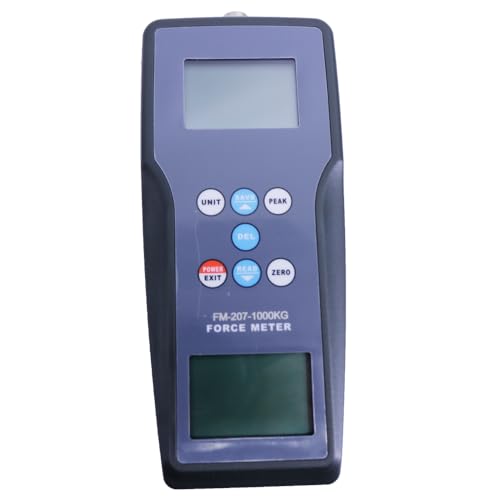

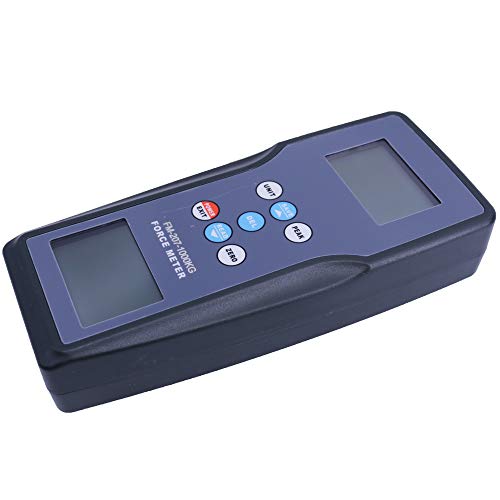

The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts.
Features
* High accuracy and high resolution. * Digital display with no guessing or errors. * With 3 measurement unit for selection and conversion, N, kg, lb. * With peak value hold function. * can memorize 99 groups of data. * With 10 minutes auto power off and manual power off. * Either alkaline battery Power supply or 6V DC power. * Use USB cable or Bluetooth adapter for data output.
Force Range
±1000 kgf
±9800 N
±2200 Lbf
Resolution
0.01 kgf ( <100 kgf )
0.1 kgf ( ≥100 kgf )
0.1 N ( <1000N )
1 N ( ≥1000 N )
0.1 Lbf ( < 1000 Lbf ) 1 Lbf ( ≥1000 Lbf )
Accuracy
±0.2% FS ±1 Digit
Unit
Kgf, N, Lbf
Measurement State
Peak Value Measurement, Real Time Measurement
Display
2 Reversed 4 Digit LCD
Power Off
10 Minutes Auto Power Off, Manual Power Off
Backlight
Blue Backlight
Safe Load
150% FS ( Buzzer Alarm Over 110% FS )
Data Output
USB, Bluetooth
Power Supply

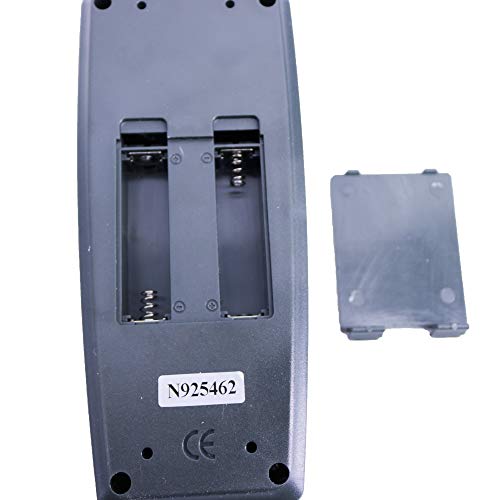

2 x 1.5 AA( UM-3 ) Battery or 6VDC Power Supply
Operating Conditions
Temperature: 0 ~ 40°C
Humidity: <80%
Surrounding
No Vibration Source or Corrosive Medium Around
Weight
1165 g
Case Size
175 x 80 x36 mm
Senor Size
181 x 54 x 30 mm

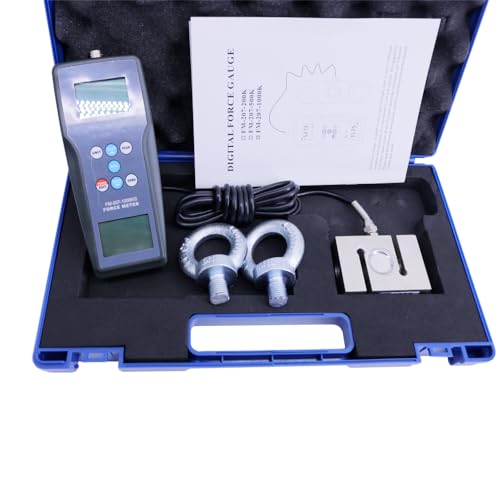

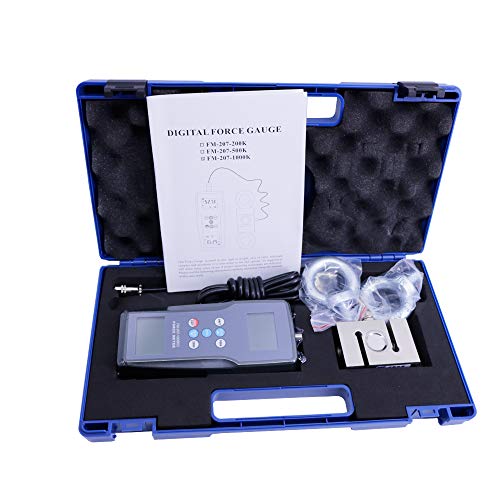

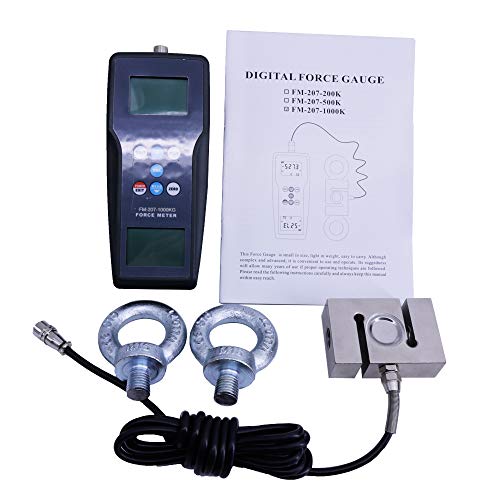

Standard Accessories

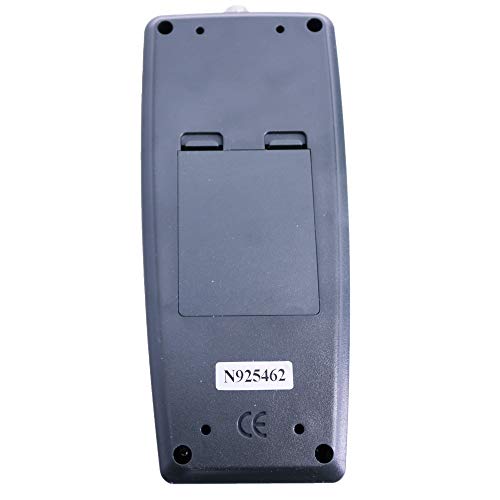

Digital Force Gauge
Sensor ( M12 Screw Hole )
2 Suspension Links
Manual

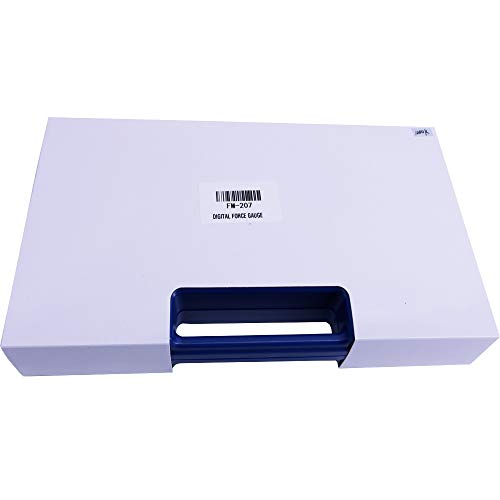

Carrying Case
Optional Accessories
CD
USB Data Cable
Bluetooth Adapter
Power Adapter
Brand: Graigar
Color: Black
Features:
Digital display with no guessing or errors.
With 3 measurement unit for selection and conversion, N, kg, lb.
With peak value hold function.
Can memorize 99 groups of data.
With 10 minutes auto power off and manual power off.
