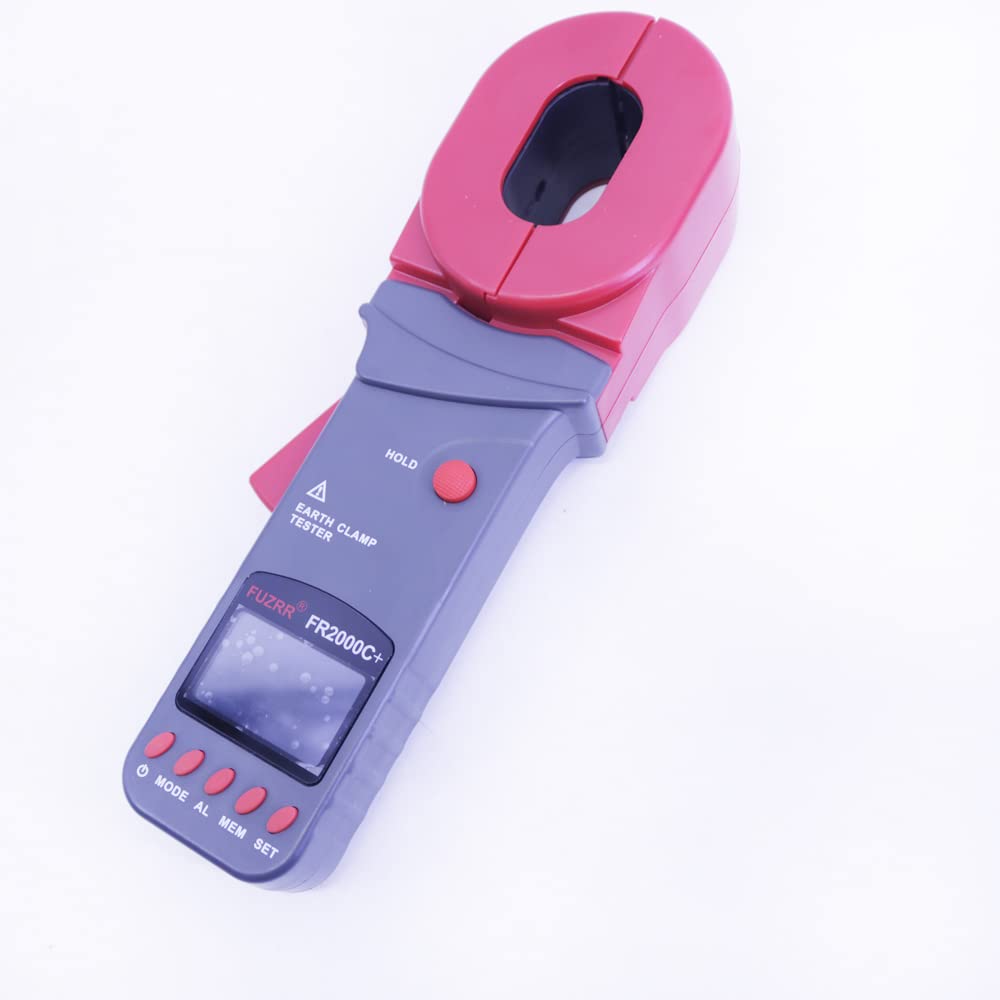

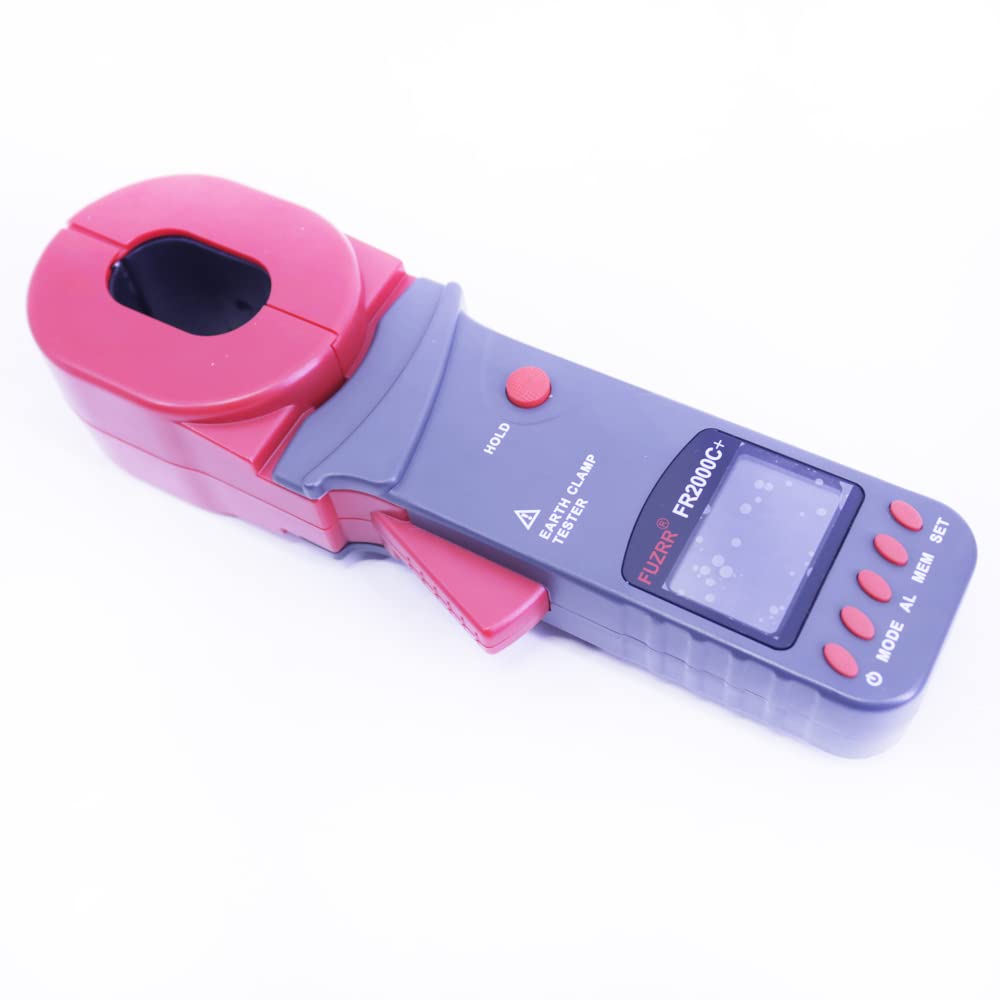

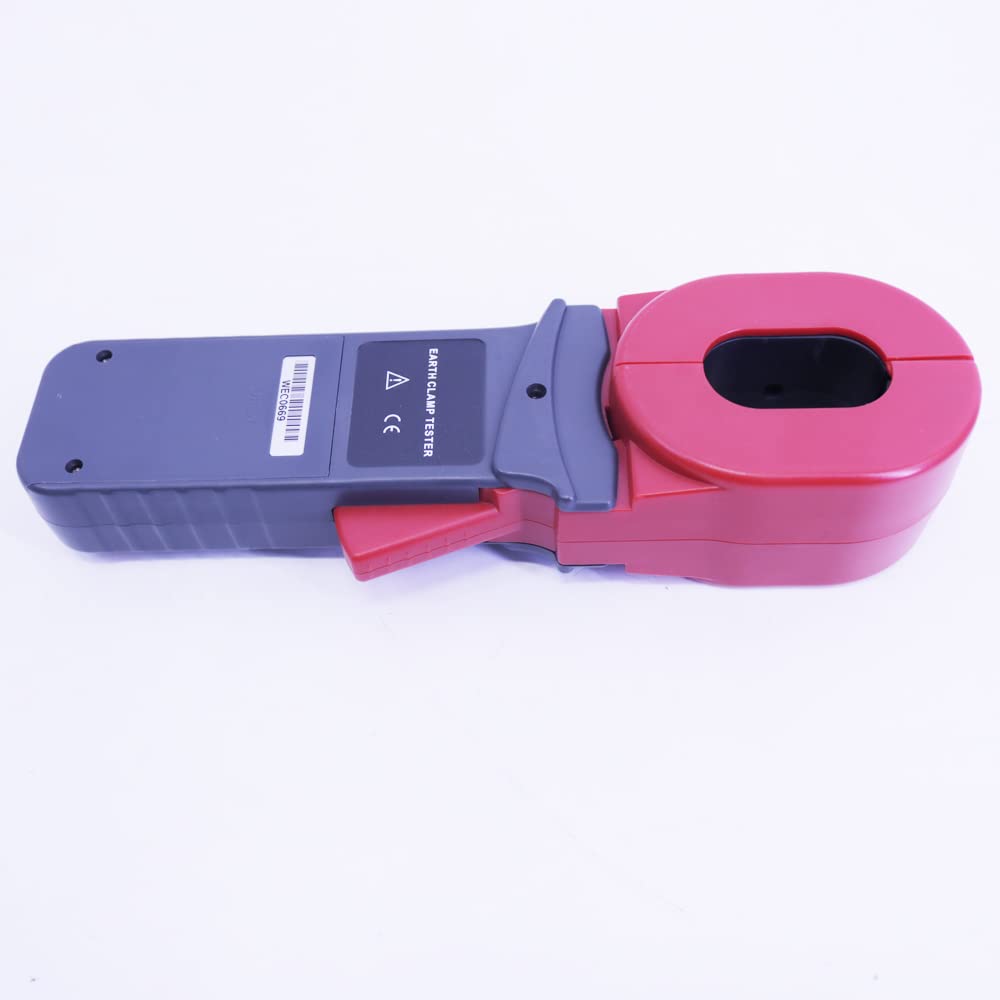

FR2000C+ Clamp Ground Resistance Tester Multifunctional Resistance Tester Range: 0.01-1200ohm

FR2000C+ Clamp Ground Resistance Tester Multifunctional Resistance Tester Range: 0.01-1200ohm

$259.00 USD
$259.00 USD
促销 售罄

FR2000C+ is a new generation of groundless pile measurement method that our company's technical team meticulously developed. It uses a brand new generation of LCD, black screen backlight display and microprocessor technology to measure the grounding resistance through inductive method. Ω+A same screen display.When measuring a grounded system with a loop, it is not necessary to disconnect the ground lead wire, and no need for auxiliary electrodes. It is safe and fast. Widely used in telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, iron tower transmission lines, gas stations, factory grounding networks, lightning rods and so on. The instrument has the test precision, fast, simple, stable, reliable and other features
      The FR2000C+ ground resistance tester is microprocessor controlled, can accurately detects ground resistance and leakage current. It uses a fast filtering technique to minimize interference. At the same time store 500 groups of data, online monitoring data through monitoring software, USB data uploaded to PC ,and has unique features such as value retention and intelligent alarm prompting
      The FR2000C+ ground resistance tester consists of host computer, monitoring software, test line, USB cable, and grounding pin. It has the functions of reading, viewing, saving, reporting and printing of historical data.

Resistance Range: 0.01Ω-1200Ω

Current Range: 0.00mA-20.0A

New black screen design, luxury

Ω+A same screen display

Real-time clock function

Quick self-test function without waiting

Using fast filtering technology, strong anti-interference ability

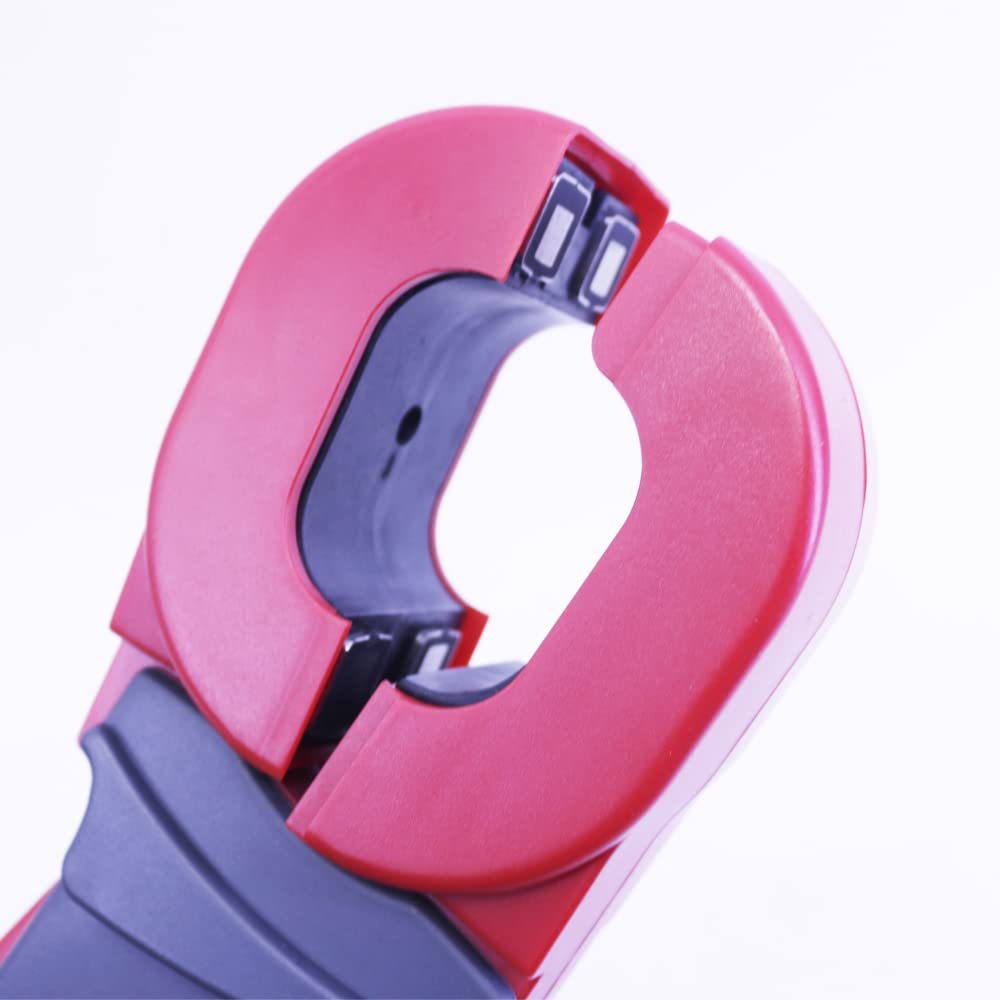

New design, long life clamp head

Fully isolated USB technology, safe and reliable,500 sets of storage

Function

Ground resistant test, Loop resistance test, leakage current test

Resistance Range

0.01Ω-1200Ω ; Resolution: 0.001Ω; Accuracy: ±1%±0.01Ω

Current Range

0.00mA-20.0A ; Resolution:0.01mA; Accuracy: ±2%±1mA

Power Supply

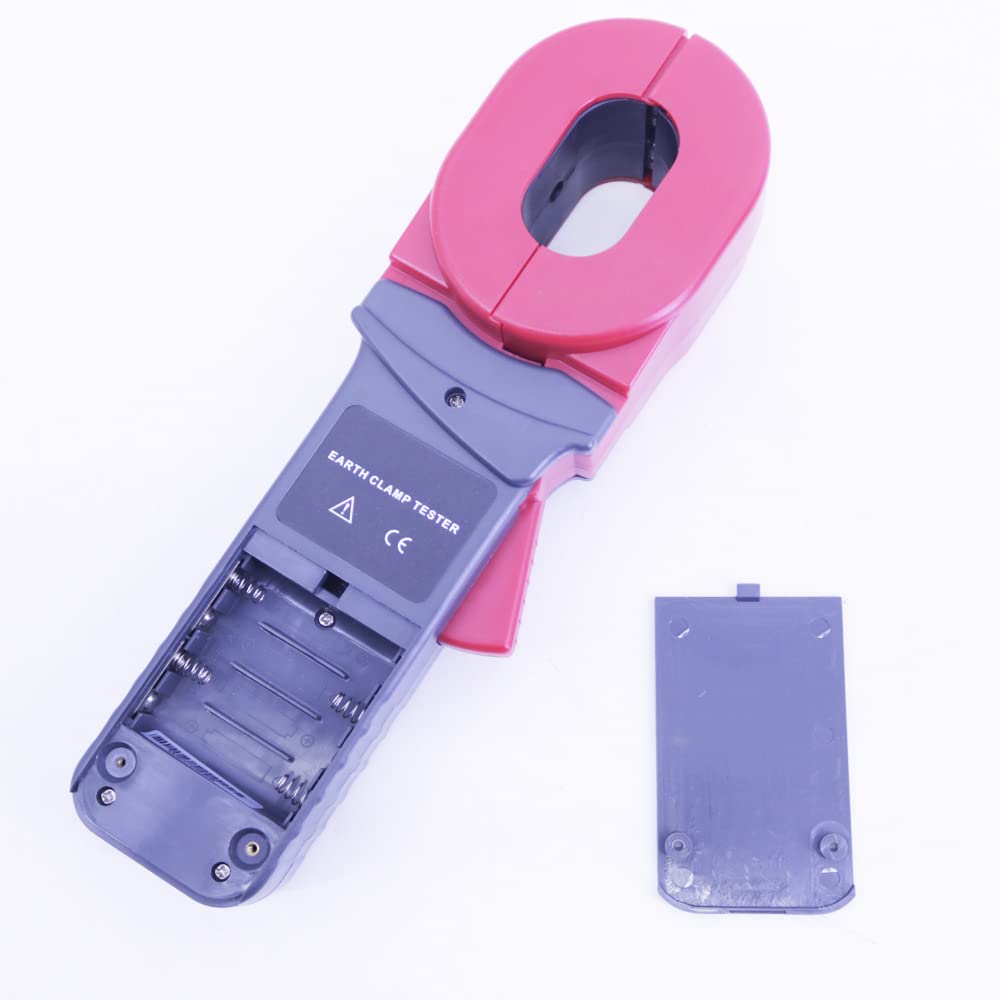

DC6V Alkaline Dry Battery (1.5V LR6 X 4)

Measurement Method

Mutual induction

Clamp Diameter

65mmx32mm

Clock Function

Have

Ω+A Synchronized display

Ω+A same screen display

Display Mode

4-digit LCD display, black screen design

LCD Dimension

46mm×29mm

Meter Dimension

W/T/H: 85mm×58mmx285mm

Sampling Speed

About 2 times/second

Data Storage

300 Groups, the symbol “MEM” gives indication, “FULL” mark will flash to indicate the memory has been full

Data Review

"MR" symbol indication when reviewing data

Overflow Display

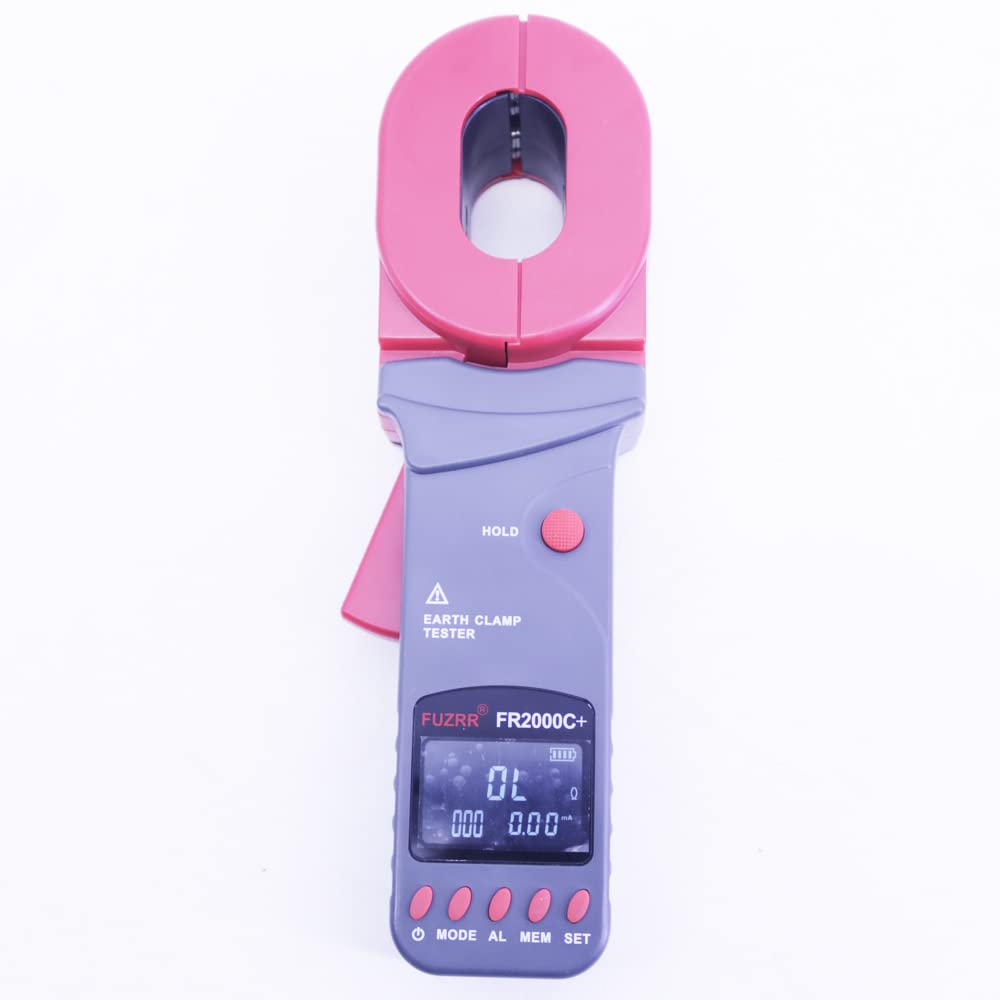

Exceed measurement range overflow function: “OL ” symbol display

Interference Test

Automatic identify interference signal, "NOISE" symbol indication when the interference current is large

Alarm Function

Alarm when the measured value exceeds the alarm setting value

Battery Voltage

Real-time display of battery power, reminding timely charging when battery voltage is low

Automatic shut-down

"APO" instruction, automatic shutdown after 5 minutes boot

Power Consumption

50MA Max

Weight

Instrument: 1180g (with battery)

Working Temperature and Humidity

-10°C~40C; below 80% rh

Insulation Resistance

20Ω or more (500V between circuit and outside)

Pressure Resistance

AC 3700V/rms(between circuit and outside)

Suitable for Safety Regulations

IEC61010-1(CAT III 300V, CAT IV 150V, Pollution Degree 2); IEC61010-031; IEC61557-1 (grounding resistance)

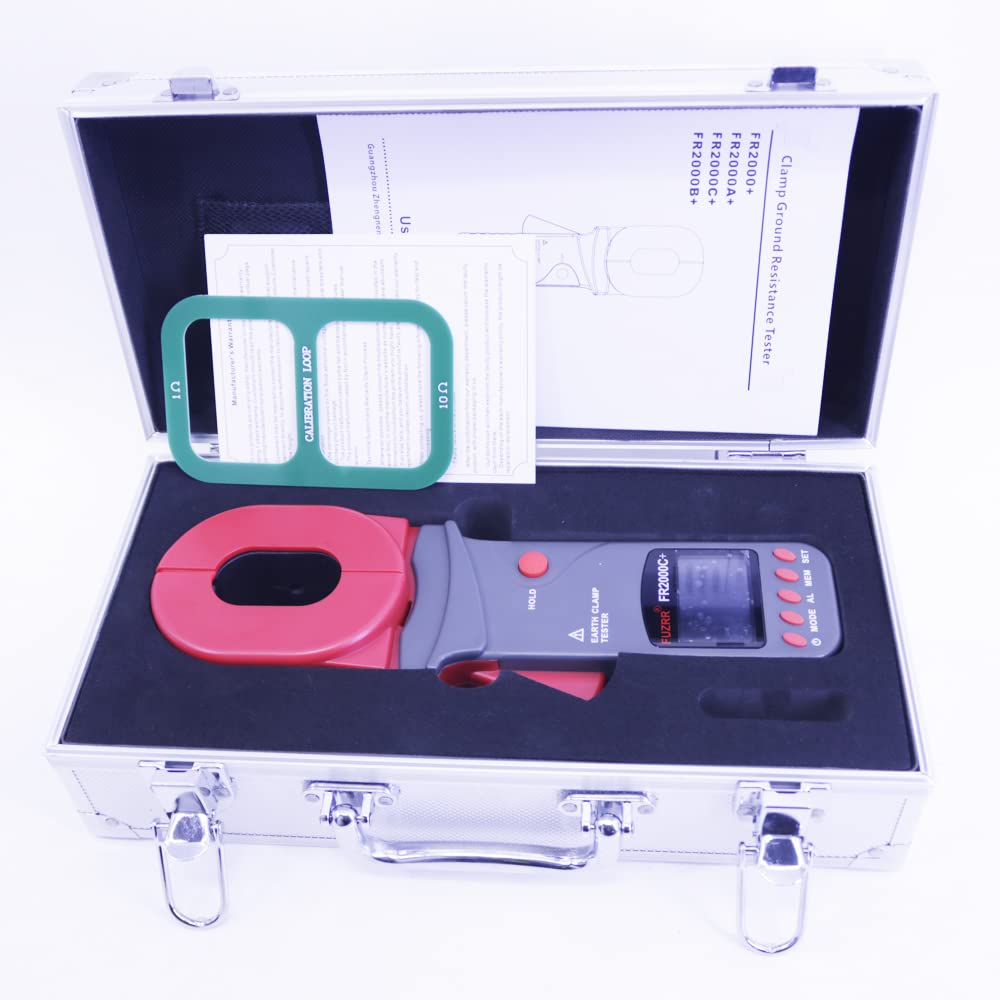

Earth Tester

1PC

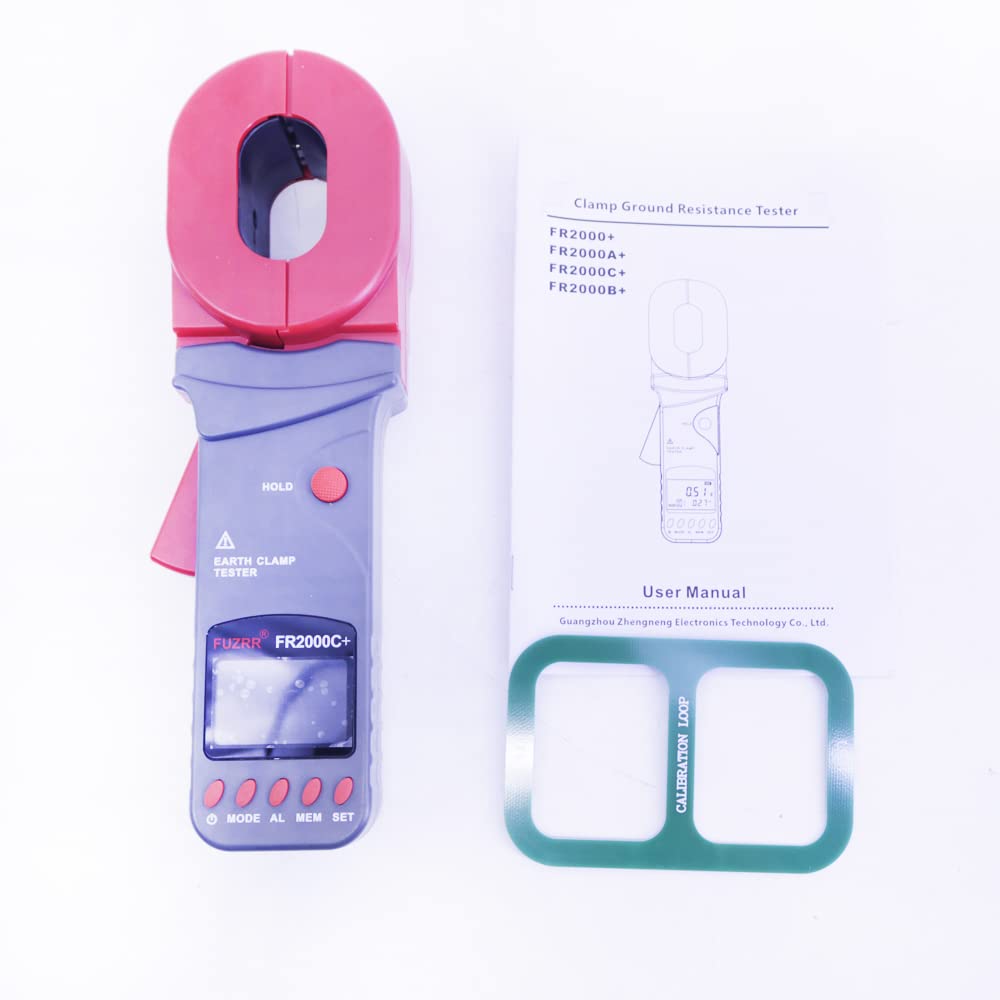

Test Loop

1PC



Manual  Certificate

1 SET

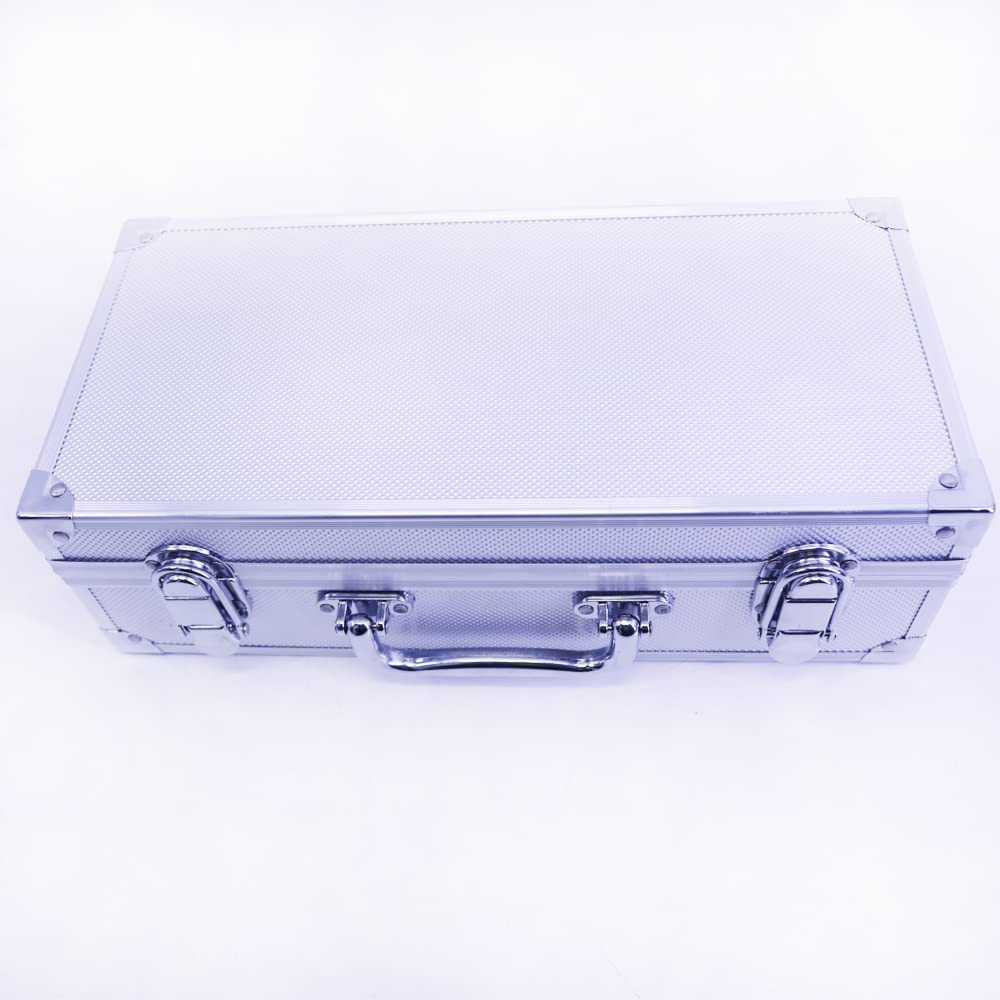

Carrying Case

  1PC
