Gloss Meter WG60A Glossmeter Digital Gloss Meter Tester Measuring Instrument Measuring Range 0-1000GU
Gloss Meter WG60A Glossmeter Digital Gloss Meter Tester Measuring Instrument Measuring Range 0-1000GU
无法加载取货服务可用情况
Gloss Meter WG60A Glossmeter Digital Gloss Meter Tester Measuring Instrument Measuring Range 0-1000GU
WG60A gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used on coatings, printing ink, paint, paint, wood, marble,granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials. WG60A for WG60G upgrade, more stable performance, more durable, more comfortable;
Gloss Meter WG60A Function Description
(1) One button to complete measurement: one operation can complete measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle.
(2) Manually entering standard samples gloss data;
(3) Humanized design, good man-machine communication interface;
(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data;
(6) Data browsing and viewing function;
(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions;
(8) USB communication interface to communicate with PC;
(9) PC software can be extended more functions.

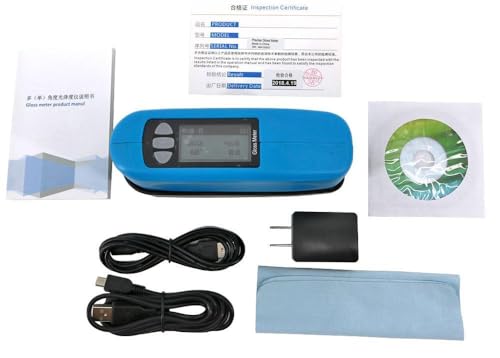

Attachment Description
(1) Power adapter: standard + 5V, 2A external power supply;
(2) Standard board: provide calibration criterion.
(3) USB cable: connect instrument to PC.
WG60A specification
|
Specification |
Unit |
Single Gloss Meter |
Triangle Gloss Meter |
|
Measuring Angle |
degree |
60° |
20° 60° 85° |
|
Measuring Range |
GU |
60°: 0-1000
|
20°: 0-2000 60°: 0-1000 85°: 0-160 |
|
Measuring Spot |
mm |
60°: 9x15
|
20°: 10x10 60°: 9x15 85°: 5x18 |
|
Division Value |
GU |
0-1000: 0.1 1000-2000: 1 |
0-1000:0.1 1000-2000:1 |
|
Repeatability |
GU |
0-100:0.2 >100:0.2% |
0-100:0.2 >100:0.2% |
|
Indication Error |
GU |
±1.5 |
±1.5 |
|
Zero Error |
GU |
0.2 |
0.2 |
|
Working Temperature |
℃ |
10℃ - 40℃ |
10℃ - 40℃ |
|
Storage Temperature |
℃ |
-10℃ - 70℃ |
-10℃ - 70℃ |
|
Humidity Range |
|
Relative humidity less than 85%, without condensation |
Relative humidity less than 85%, without condensation |
|
Power Adapter |
|
Section 2 5 alkaline batteries/power adapter |
Section 2 5 alkaline batteries/ power adapter |
|
Volume |
mm |
159x49x72 |
159x49x72 |
|
Weight |
g |
500 |
500 |
Brand: Graigar
Features:
- (1) One button to complete measurement: one operation can complete measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle. (2) Manually entering standard samples gloss data;
- (3) Humanized design, good man-machine communication interface; (4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data;
- (6) Data browsing and viewing function; (7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions;
- (8) USB communication interface to communicate with PC;
- (9) PC software can be extended more functions.
