GM-268 Digital Gloss Meter 20°60°85° Multi-Angel Glossmeter 0.1GU~200 GU
GM-268 Digital Gloss Meter 20°60°85° Multi-Angel Glossmeter 0.1GU~200 GU
Couldn't load pickup availability
Application:Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface, measurement.
Features
* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
* Accurate measurement, good repetitveness.
* Small in size, easy to carry.
* Auto calibration.
* Intelligent design, rapid measurement.
* Able to store 254 groups of measurements.
* Built-in lithium ion rechargeable battery.
* Backlight display, suitable for low light environment.
Material And Angle Selection Recommended
* 20°: High gloss paint, printing ink, plastics, paper and other materials.
* 60°: Middle gloss paint, printing ink, plastics, ceramics, marble and other materials.
* 85°: Low gloss paint, camouflage coatings materials.
Specifications
|
Display |
4 Digits Backlit LCD |
|
Measuring Angle |
20º/60º/85º |
|
Range |
0.1GU~200 GU |
|
Gloss Units |
GU |
|
Accuracy |
±1.0GU |
|
Resoltuion |
0.1 |
|
Repeatability |
±0.5GU |
|
Measuring Area |
7mmx14mm(Ellipse) |
|
Data Memorized |
254 Groups |
|
Operating Conditions |
Temp:0~40ºC Humidity:<85%RH |
|
Power Supply |
3.7V Lithium Ion Rechargeable Battery |
|
Dimensions |
140mmx45mmx75mm |
|
Weight |
305g(Including Batteries) |
|

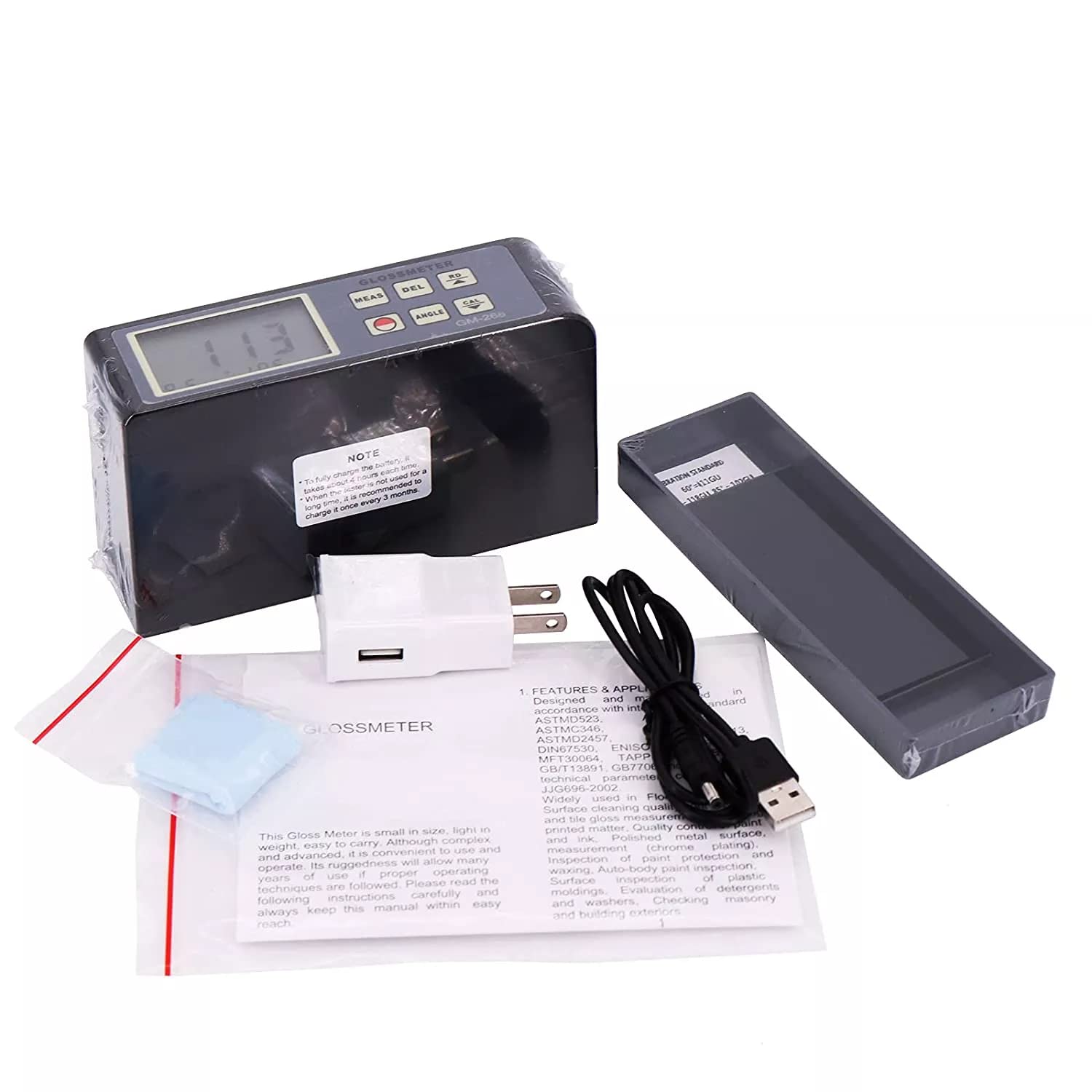

Stabdard Accessories |
Main Unit |
|
Holder with Calibration Standard |
|
|
Optical Cleaning Cloth |
|
|

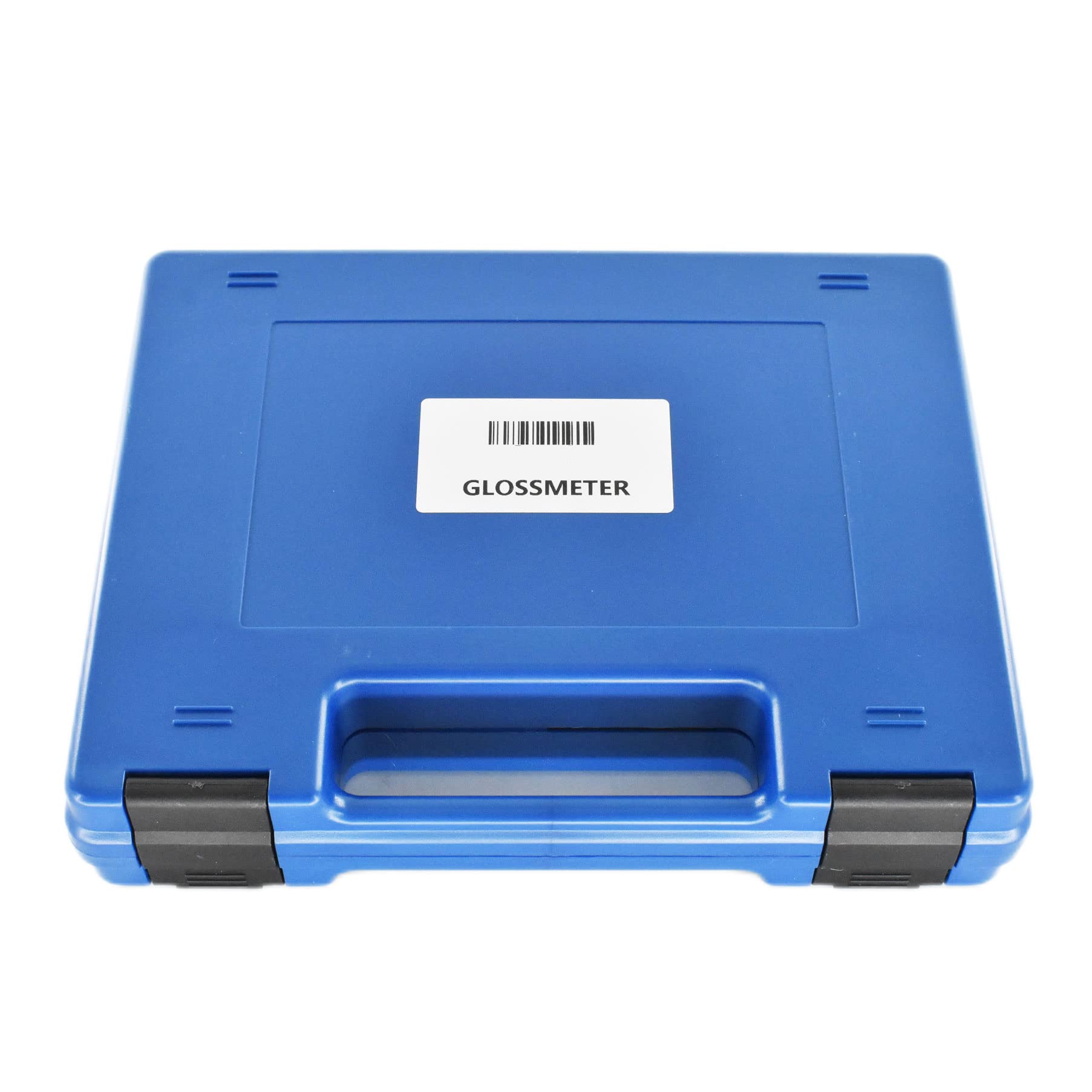

Carrying Case |
|
|
Operation Manual |
