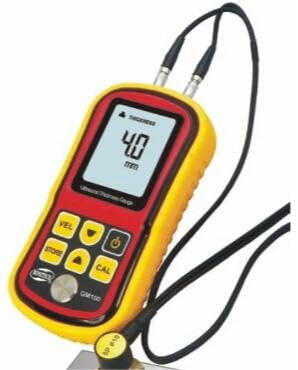

GM100 Ultrasonic Thickness Gauge 1.2-225mm(Steel) Digital LCD Ultrasonic Thickness Meter Tester Gauge
GM100 Ultrasonic Thickness Gauge 1.2-225mm(Steel) Digital LCD Ultrasonic Thickness Meter Tester Gauge
无法加载取货服务可用情况
*Auto Calibration to assure the accuracy
*Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer
*Use â–²and â–¼keys to make a quick adjustment for the sound velocity/thickness and a quick recall to the stored data
*Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not
*10 thickness measurement storage and recall function available, which facilitated the height work or working in wild area
*Sound velocity measurement: with a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table
*12 sound velocity for different material which also adjustable
*Low battery indication
*Auto power off mode designed to conserve battery life
*More than 10000 times long life keys
*The unit has a special memory that retains all of its setting even when the power is off
| Measuring Range | 1.2-225.0mm(Steel) |
| Accuracy | ±(1%±0.1)mm |
| Pipe Measuring Lower Limit | φ20*3mm(Steel) |
| Sound Velocity Range | 1000-9999m/s |
| Working Frequency | 5MHz |
| Working Temperature Range | 0-45°C |
| Automatic Zero Adjustment | √ |
| Data Store Function | √ |
| Auto Power Shut Off | √ |
| Low Battery Indication | 3V±0.2V |
| No battery in the package |
Brand: Graigar
Features:
- *Auto Calibration to assure the accuracy *Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer *Use â–²and â–¼keys to make a quick adjustment for the sound velocity/thickness and a quick recall to the stored data
- *Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not *10 thickness measurement storage and recall function available, which facilitated the height work or working in wild area
- *Sound velocity measurement: with a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table *12 sound velocity for different material which also adjustable
- *Low battery indication *Auto power off mode designed to conserve battery life
- *More than 10000 times long life keys *The unit has a special memory that retains all of its setting even when the power is off
model number: GM100
Package Dimensions: 11.0 x 8.7 x 2.8 inches
