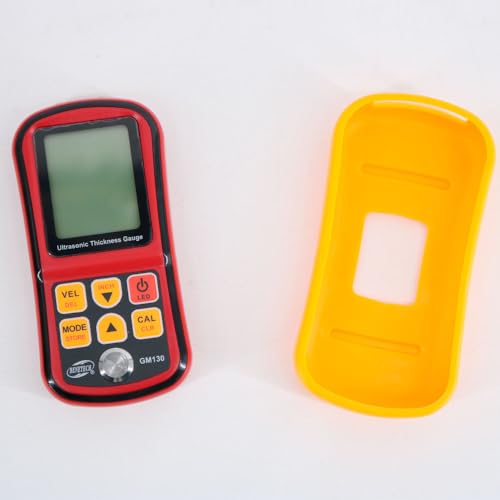

GM130 Ultrasonic Thickness Gauge Digital Paint Thickness Meter Measuring Range 1.0~300mm (Steel)

GM130 Portable Ultrasonic Thickness Gauge Digital Paint Thickness Meter LCD Battery Operated Measuring Range 1.0~300mm (Steel)

*Measuring range: 1.0~300mm (Steel)

*Accuracy: ±(1%H+0.1) mm

*Resolution: 0.01mm

*Sound velocity range: 1000~9999m/s

*Working frequency: 5MHz

*Minimum limit for tube measuring:

Φ10mm probe: Φ20*3mm (Steel)

Φ6mm probe: Φ12*2mm (Steel)

*Auto calibration to assure the accuracy

*Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.

*Data store/ Data recall/ Data delete function

*Sound velocity measurement

*Metric/Imperial unit selection

*Low battery indication

*Auto power off

*LCD backlight display
*Warranty: 12months

Brand: Graigar

Features:

• *Measuring range: 1.0~300mm (Steel) *Accuracy: ±(1%H+0.1) mm *Resolution: 0.01mm
• *Sound velocity range: 1000~9999m/s *Working frequency: 5MHz *Minimum limit for tube measuring: Φ10mm probe: Φ20*3mm (Steel) Φ6mm probe: Φ12*2mm (Steel)
• *Auto calibration to assure the accuracy *Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer. *Data store/ Data recall/ Data delete function
• *Sound velocity measurement *Metric/Imperial unit selection *Low battery indication
• *Auto power off *LCD backlight display *Warranty: 12months

model number: GM130
