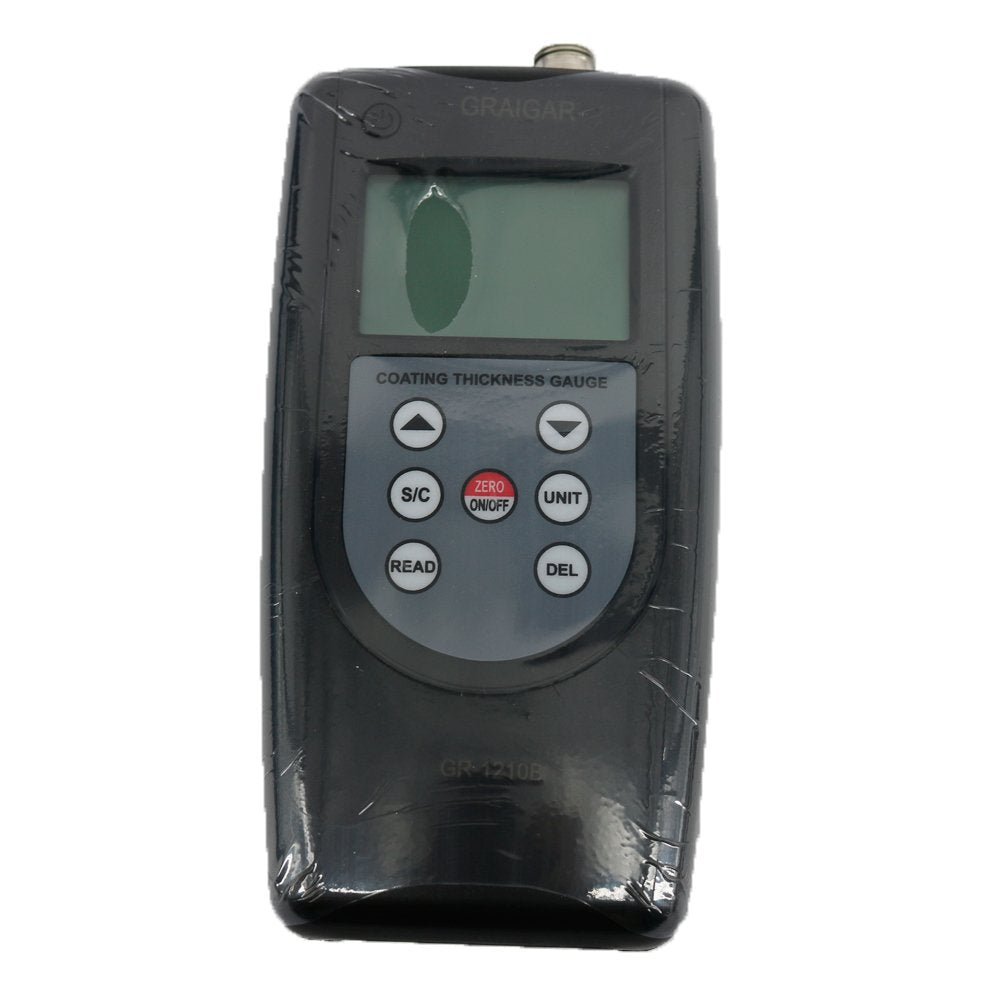

GR-1210B Coating Thickness Gauge (F & NF) Type Digital Thickness Tester Range 0~2000um/0~80mil

GR-1210B Coating Thickness Gauge (F & NF) Type Digital Thickness Tester Range 0~2000um/0~80mil

$269.00 USD
$269.00 USD
Sale Sold out

Features

* Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Separate Type can provide several type probe, measure can be more flexibility.

Principles Applications Examples
F Type
Magnetic Induction
(Iron Base) 		Measure the thickness of non-magnetic materials on magnetic materials Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc
NF Type
Eddy Current
(Aluminium Base) 		Measure the thickness of non-conductive coatings on non-magnetic metals Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc



Principle
F Magnetic Induction & NF Type Eddy Current
Range
0~2000µm/0~80mil
Resolution
0.1µm/1µm
Accuracy
±1~3%n or ±2.5µm
Min.Radius Workpiece
F Type:convex 1.5mm/concave 25mm
NF Type:convex 3mm/concave 50mm
Min.Measuring Area
6mm
Min.Sample Thickness
0.3mm
Metric/Imperial
√
Functions
Battery Indicator & Automatic Power Off
Data Memory
99 Groups
Operating Conditions
Temperature:0~40ºC
Humidity:10~90%RH
Power Supply
4x1.5V AAA (UM-4)Battery
Dimensions
140x72x34mm
Weight
215g(Not Including Batteries)

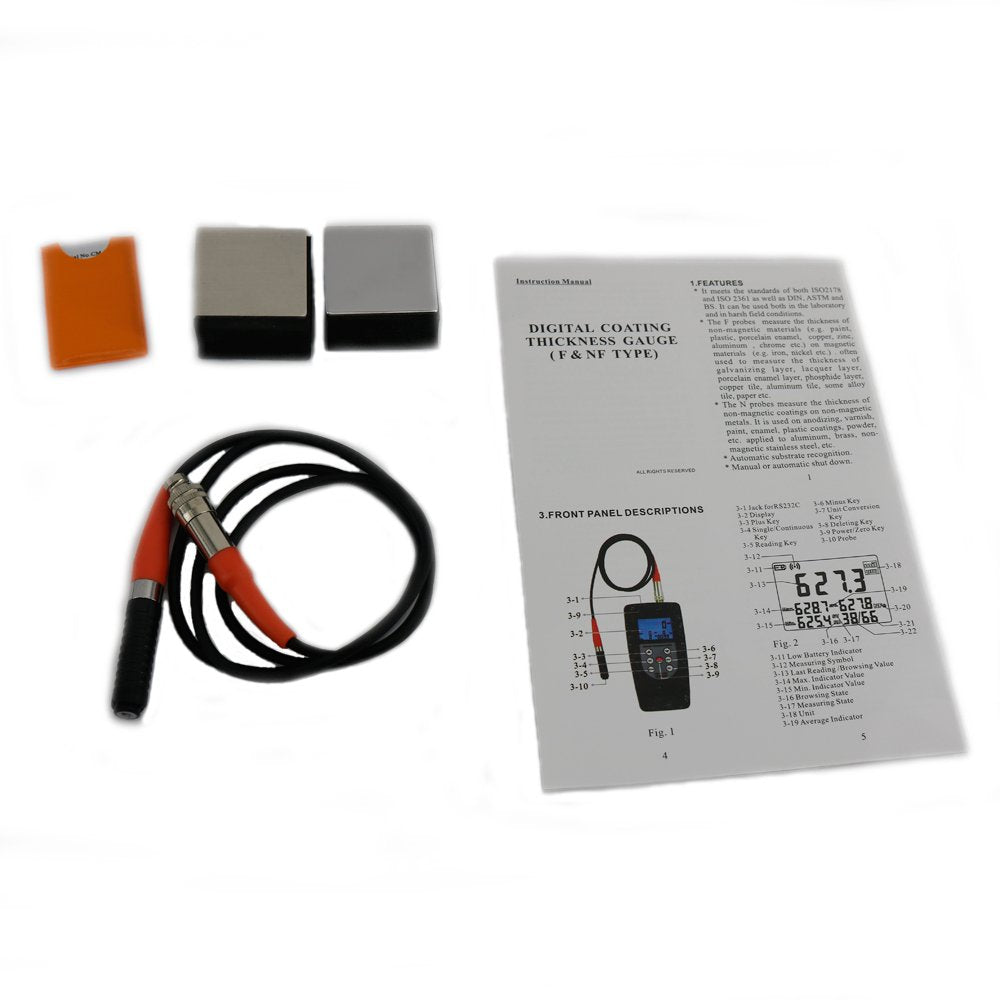

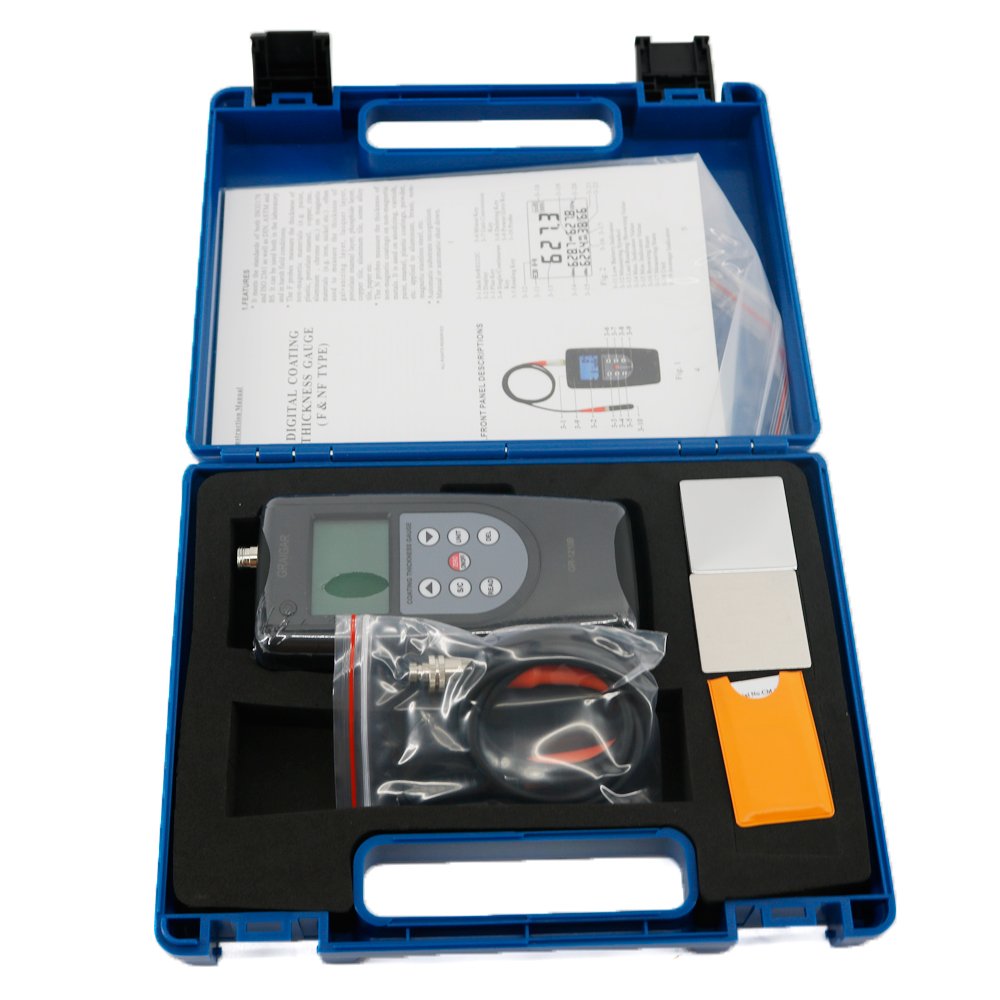

Standard Accessories:

Main Unit
Probe  (F & NF Type)
Calibration Base (F)
Calibration Base (NF)
Calibration Foils

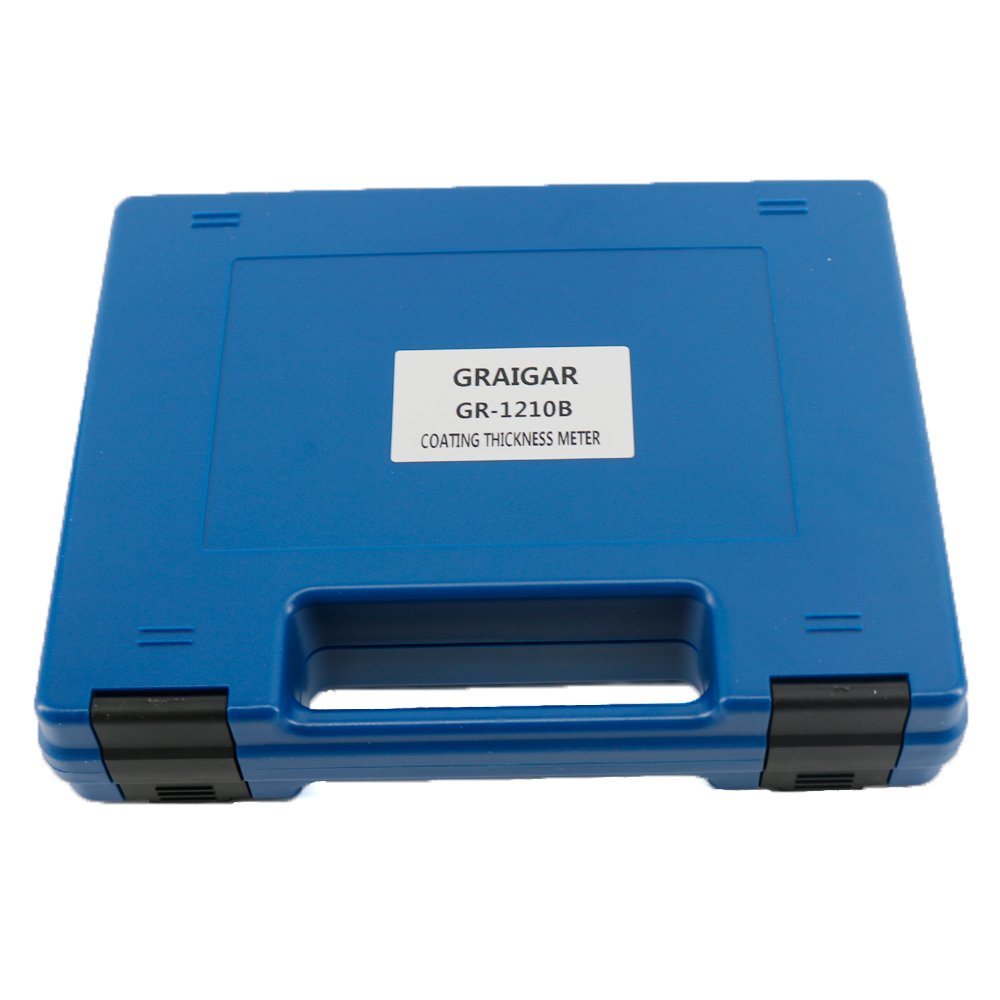

Carrying Case
Operation Manual
