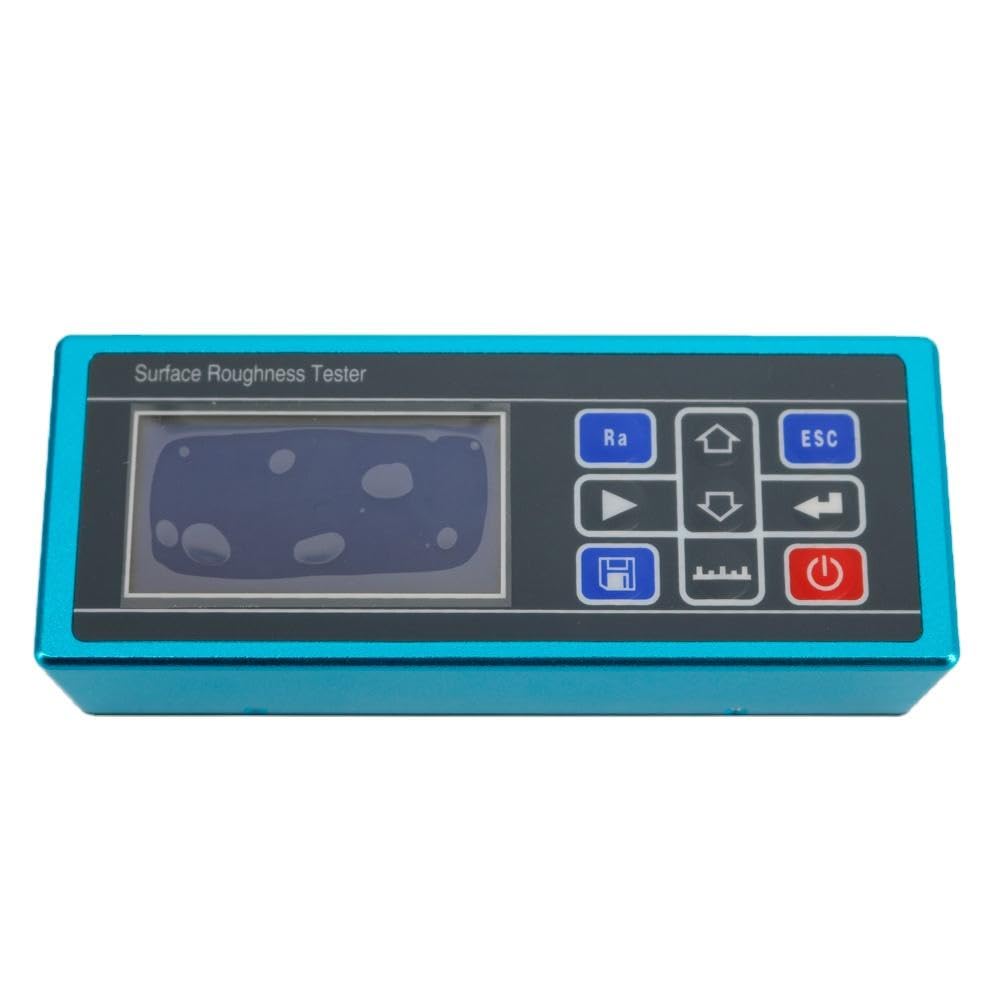

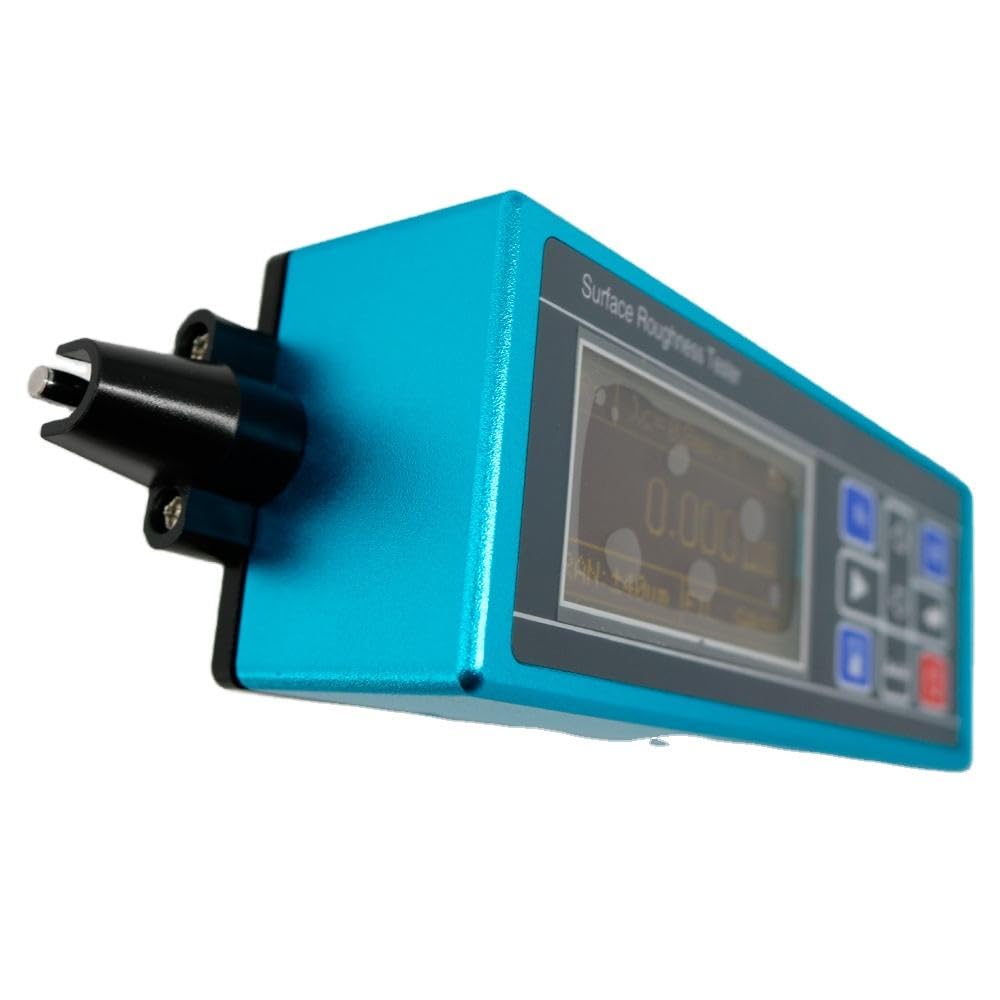

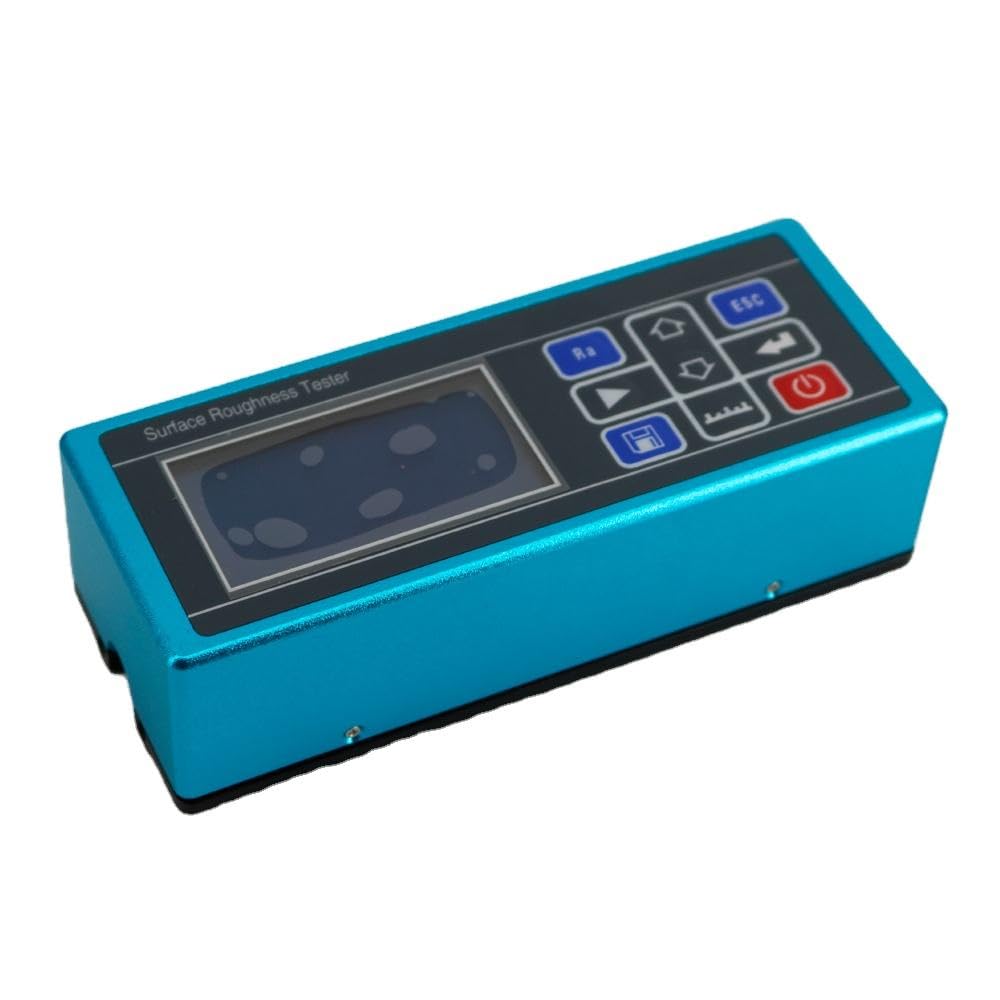

GR210 Portable Surface Roughness Meter Measuring Range 160um

GR210 Portable Surface Roughness Meter Measuring Range 160um

$998.00 USD
$998.00 USD
促销 售罄
GR210 Digital Surface Roughness Testerwith  14 Testing Parameters Measuring Range  Ra: 0.005~16.000um GR-210

Functions and Features:

1.Electromechanical integration design, small volume, light weight, easy to use;
2.Using DSP chip to control and data processing, high speed, low power consumption;
3.Large range, parameters RX, Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr;
4.128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
5.Display information rich, intuitive, can display all the parameters and graphics;
6.Compatible with ISO, DIN, ANSI, JIS national standards;
7.Built-in lithium ion rechargeable battery and a charging control circuit, high capacity, no memory effect;
8.Residual quantity indicator icon, prompting the user to charge;
9.Display of the charging process instructions, the operator can understand the degree of charge
10.Working time more than 20 hours of continuous work
11.Large capacity data memory, can store 100 groups of original data and waveform.
12.Real-time clock settings and display, convenient data recording and storage
13.With automatic dormancy, automatic shutdown and power saving function
14.Reliable control motor to go dead circuit and software design
15.Measurement information display, menu prompt information, false information and switch machine and other tips that information;
16.Full metal shell design, sturdy, compact, portable, high reliability.
17.Can be in English freely switch
18.Can be connected to a computer and printer;
19.Optional sensor surface, hole sensor, measuring platform, sensor, an extension rod and other accessories

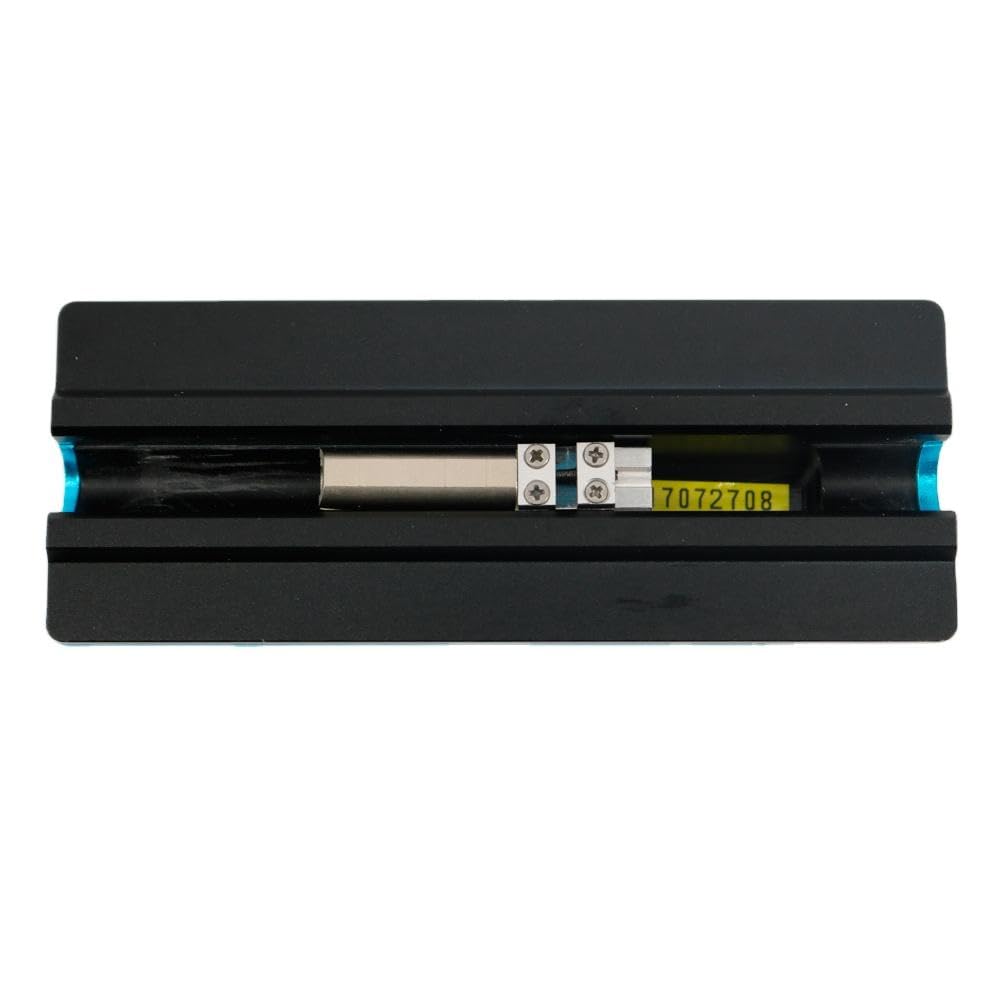

The performance index of sensor:
The detection principle Current induction
Measuring range 160 μm
Tip radius  5 μm
Tip material Diamond
Stylus force  4mN(0.4gf)
Stylus angle 90°
The guide head vertical radius  45mm




Item Description
The maximum driving trip  17.5mm/0.7inch
Indicating error Not more than ± 10%
Variation of indication  Not more than 6%
The measured profile Roughness, waviness, the original contour
Parameter Ra(0.005μm  ~  16μm),
Rz(0.02μm  ~  160μm),
Rq, Rt, Rx,Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr.
Filter RC,PCRC,Gauss,ISO13565
The sampling length L 0.25mm,0.8mm,2.5mm,8mm
Evaluation length L (1-5)l
Internal storage capacity  100 groups of original data
External input / output interface USB
Electric source Built-in rechargeable lithium ion battery or external power adapter


Brand: Graigar

Color: Blue

Features:

  • 1.Electromechanical integration design, small volume, light weight, easy to use; 2.Using DSP chip to control and data processing, high speed, low power consumption; 3.Large range, parameters RX, Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr; 4.128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
  • 5.Display information rich, intuitive, can display all the parameters and graphics; 6.Compatible with ISO, DIN, ANSI, JIS national standards; 7.Built-in lithium ion rechargeable battery and a charging control circuit, high capacity, no memory effect; 8.Residual quantity indicator icon, prompting the user to charge;
  • 9.Display of the charging process instructions, the operator can understand the degree of charge 10.Working time more than 20 hours of continuous work 11.Large capacity data memory, can store 100 groups of original data and waveform. 12.Real-time clock settings and display, convenient data recording and storage
  • 13.With automatic dormancy, automatic shutdown and power saving function 14.Reliable control motor to go dead circuit and software design 15.Measurement information display, menu prompt information, false information and switch machine and other tips that information; 16.Full metal shell design, sturdy, compact, portable, high reliability.
  • 17.Can be in English freely switch 18.Can be connected to a computer and printer; 19.Optional sensor surface, hole sensor, measuring platform, sensor, an extension rod and other accessories.

model number: GR210

Package Dimensions: 6.5 x 5.1 x 4.1 inches
