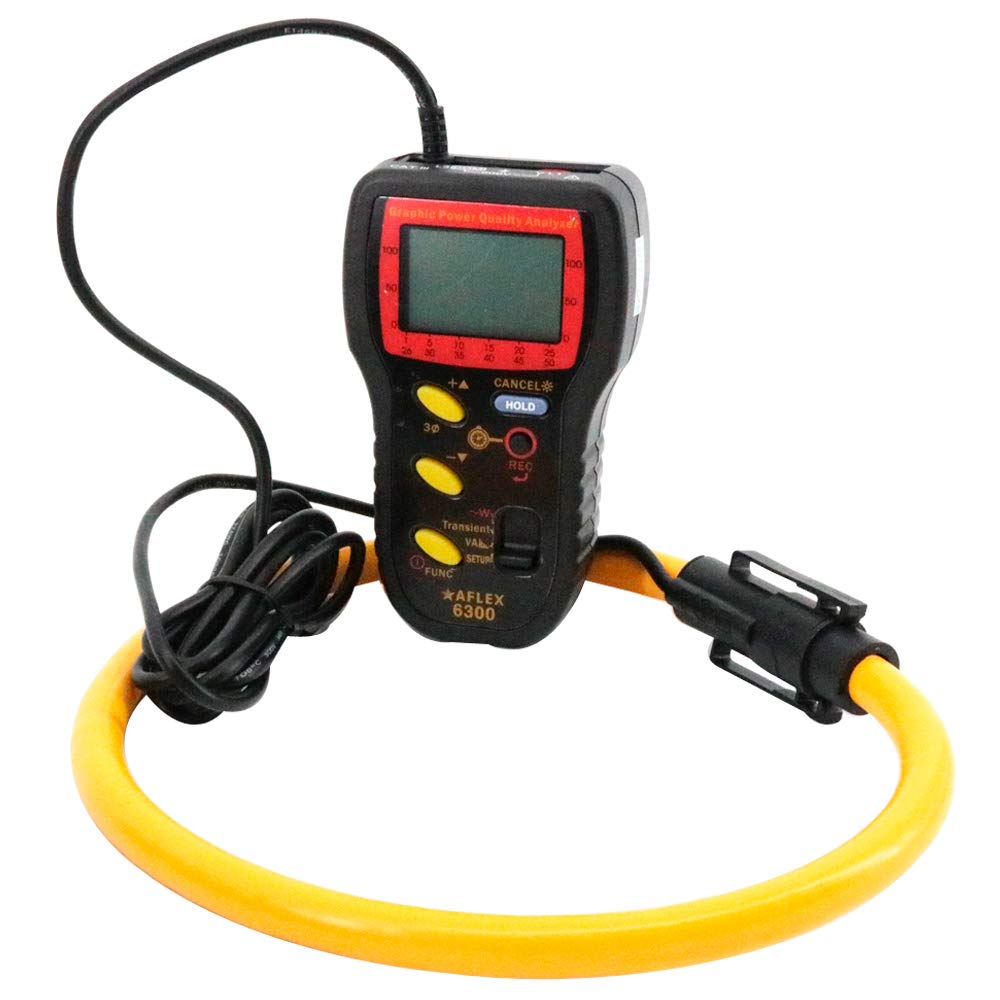

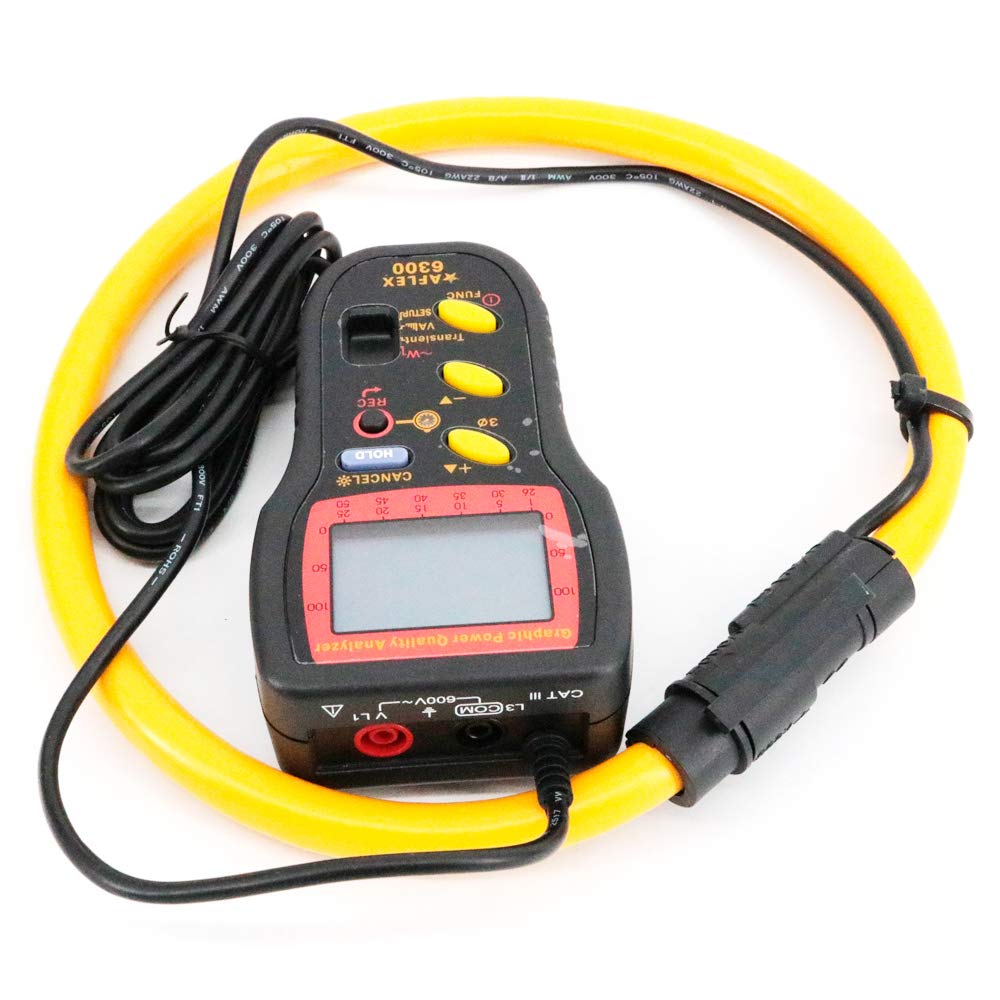

AFLEX-6300 power quality analyzer display of 25 Harmonics in One Screen with Waveform
Capture 128 Transient Events ( Time + Cycles + Faults ) with Programmable Threshold(%), Can Also be Reviewed in LCD
Output of Waveform, Power Parameters and 50 Harmonics at Command.
Smart Datalogging to save Battery Power for Long-term Monitoring
Maximum Demand (MD in W, KW, MW) with Programmable Period
Part Number: AFLEX-6300
Details: Product Features:
- Display of Overlapped Voltage and Current Waveform
- Maximum Demand (MD in W, KW, MW) with Programmable Period
- Harmonics Analysis ( V and I ) to the 50th Order
- Display of 25 Harmonics in One Screen with Waveform
- Display of waveform with Peak Values (512 Samples / Period), Datalogging of 32, 64, 128 or 256 Points/Cycles
- Analysis of Total Harmonics Distortion ( % THD-F )
- Graphic Phasor Diagram
- Programmable PT (1 to 3000) Ratios
- Capture 128 Transient Events ( Time + Cycles + Faults ) with Programmable Threshold(%), Can Also be Reviewed in LCD
- 50000 Records with Programmable Interval ( 1 to 6000 seconds)
- Output of Waveform, Power Parameters and 50 Harmonics at Command.
- Large Dot Matrix LCD Display with Backlight
- Optical Isolated RS-232C Interface
- Smart Datalogging to save Battery Power for Long-term Monitoring
- Built - in Calendar Clock for Data Logging
General Specification:
Conductor Size: 150 mm (approx.)

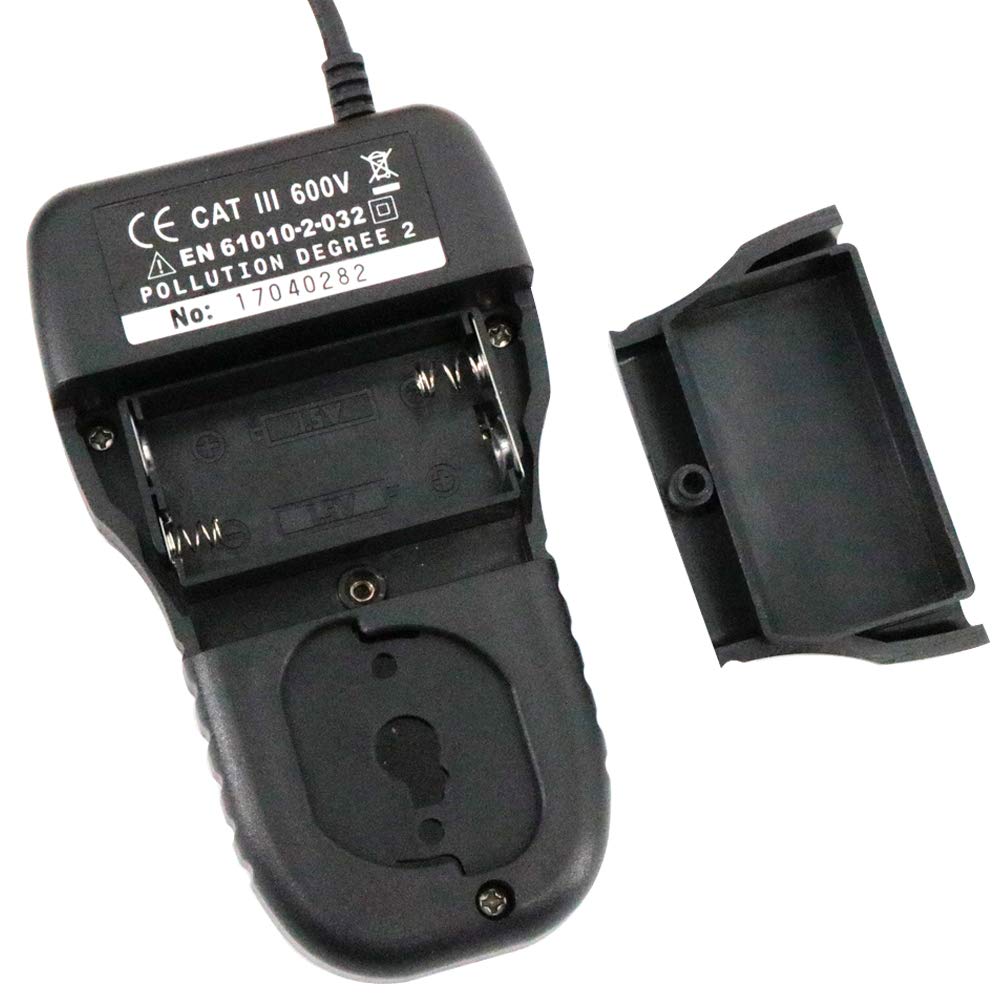

Battery Type: 1.5 V SUM-3 *2
Display: 128*64 Dot Matrix
Power Consumption: 10 mA (approx.)
Auto - Power - Off: 15 minutes
LCD update rate: 2 times/sec
Dimension: 130mm(L)*80mm(W)*43mm(H), 5.1"(L)*3.1"(W)*1.7"(H)

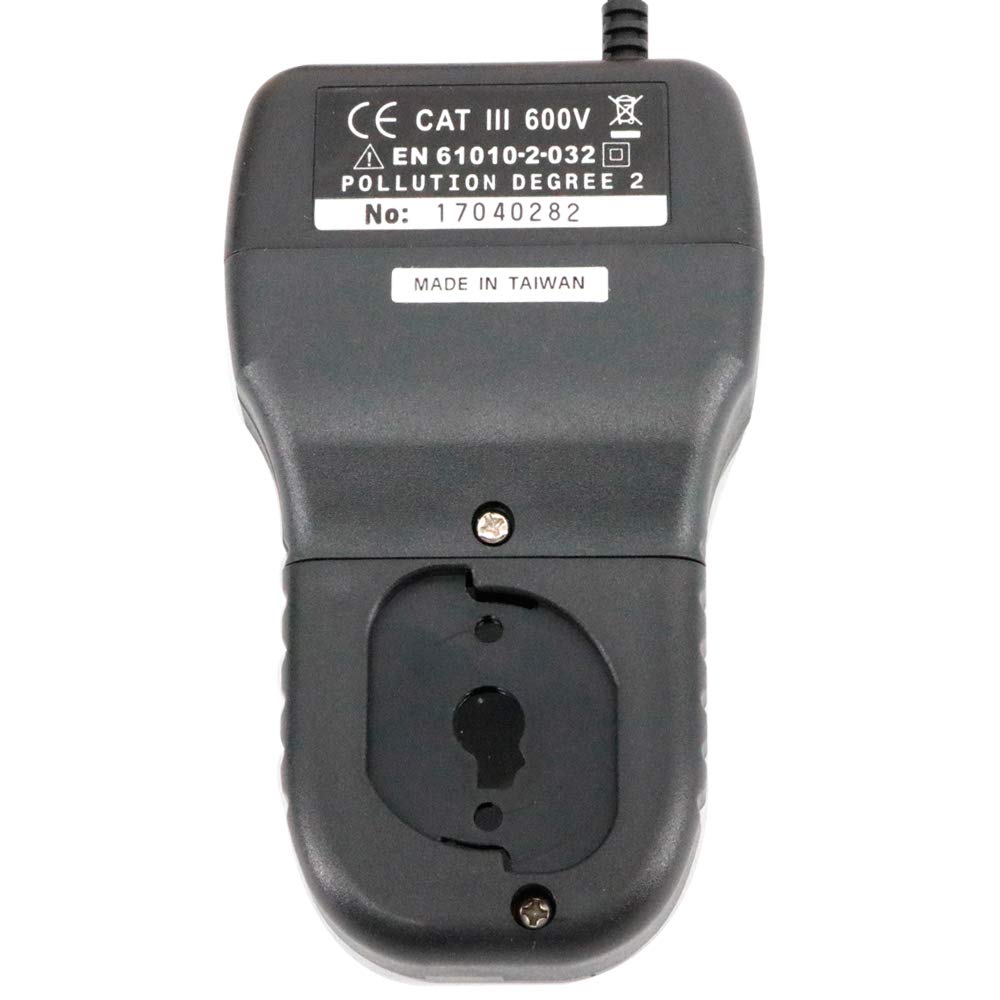

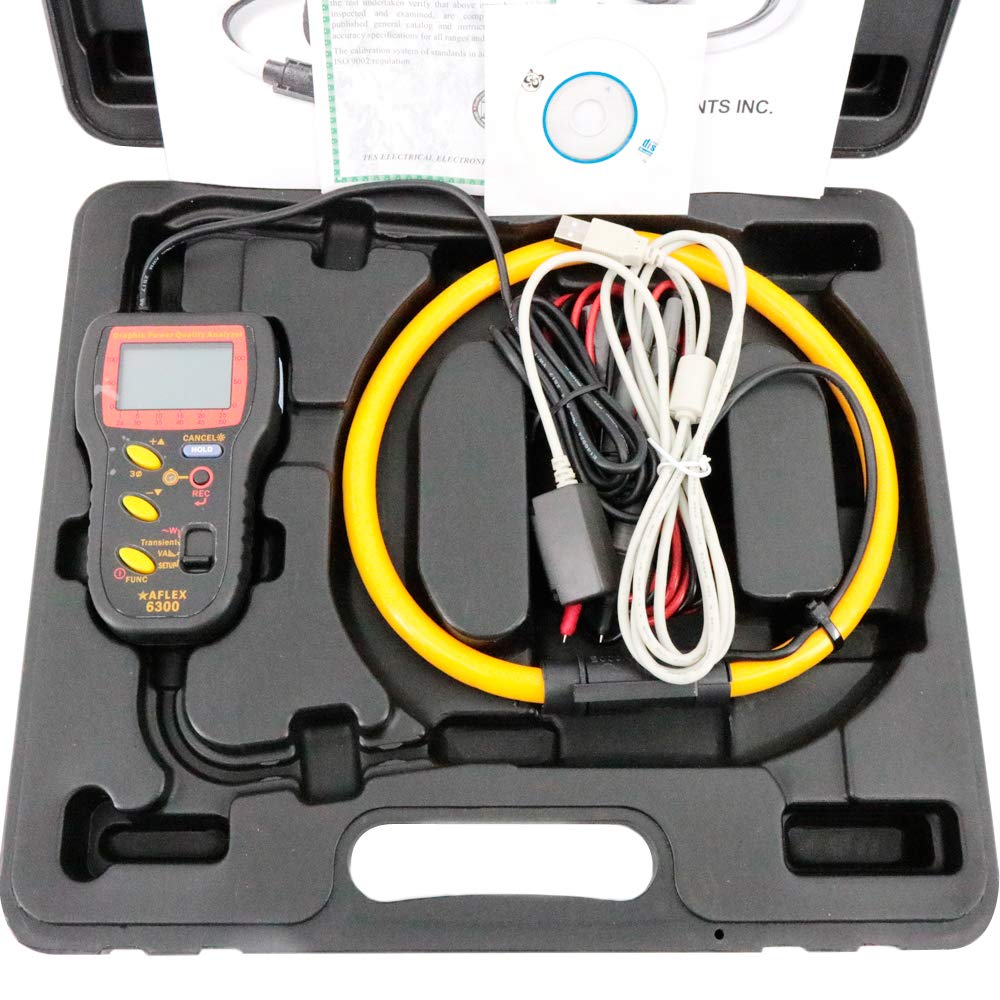

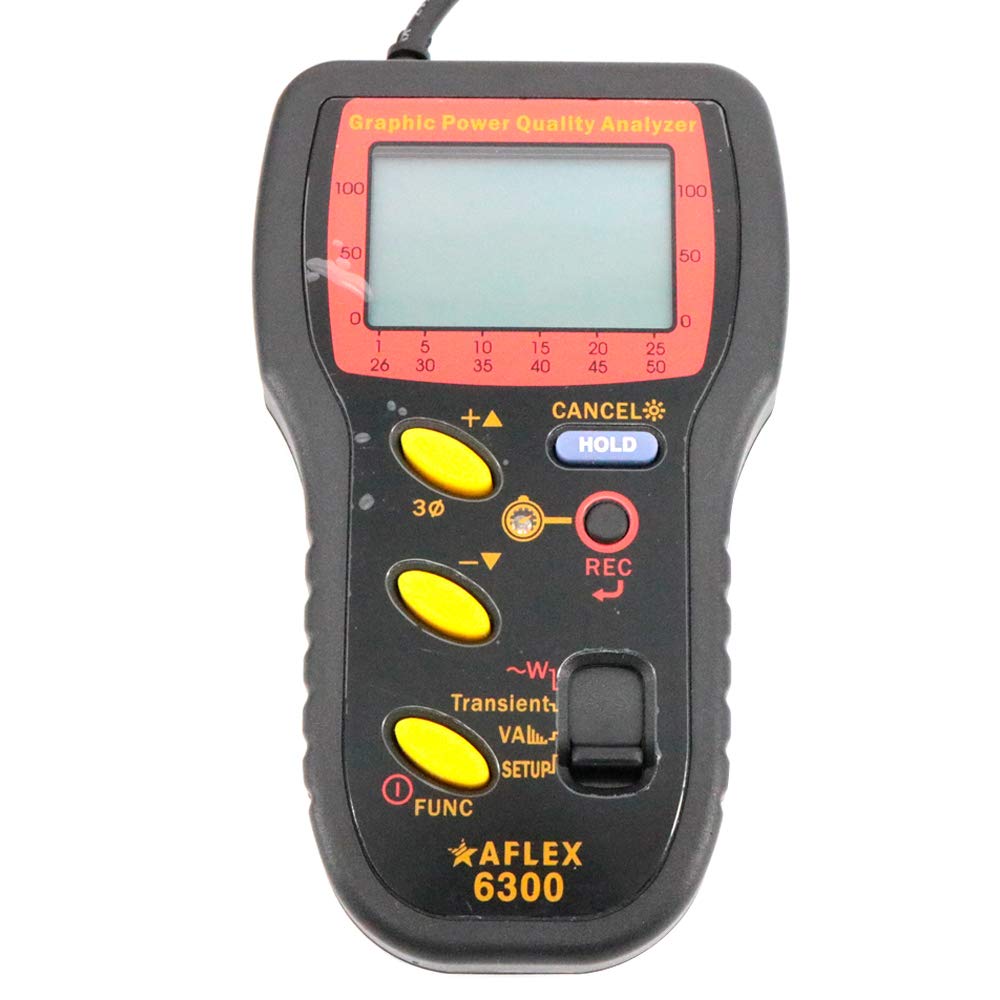

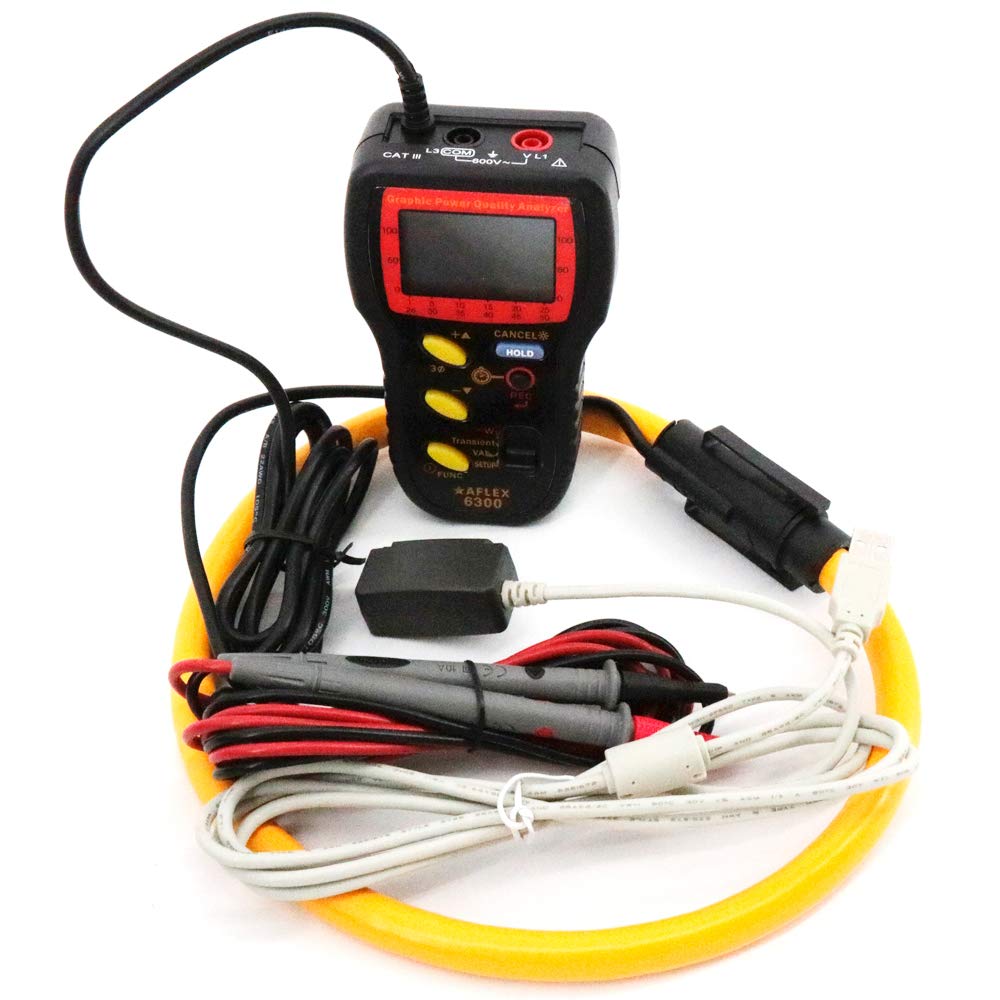

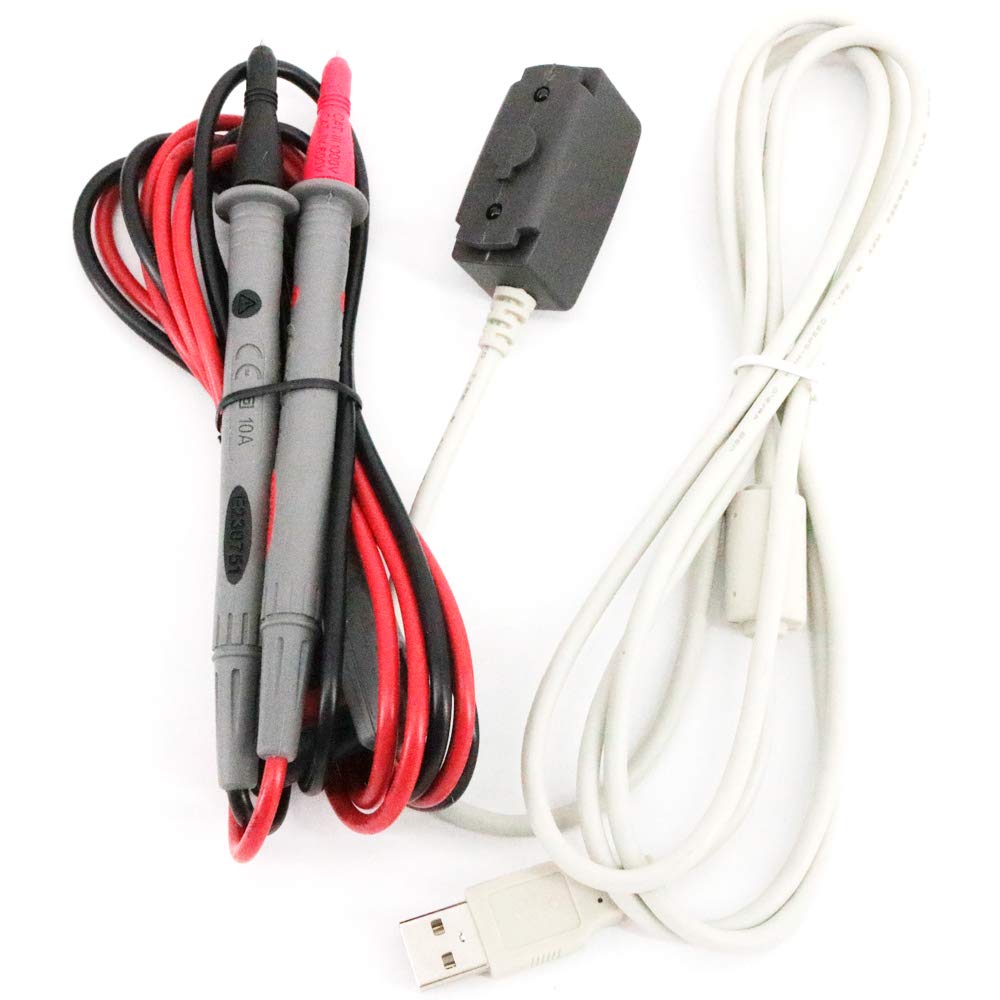

Accessories: Test lead*1 pair, Users manual*1
No. of Sample / Period: 512 ( V & A ), 256 (W)
Operating Temperature: -10 Cto 50 C
Operating Humidity: < 85% RH
Storage Temperature: -20 C to 60 C
Storage Humidity: < 75 % RH
Weight: 450g
